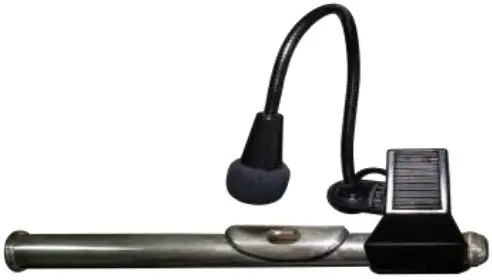

TAP MEC-LC Omnidirectional Condenser Microphone
TAP MEC-LC Omnidirectional Condenser Microphone

Features

MEC- LC is omnidirectional condenser microphone. Easy installation on bell with mounting clip. The flexible arm (gooseneck), allows a variety of elevated positions on wind instruments. With external foam windscreen. Requires 22-52V phantom power with XLR.
*** Secure the cable on the bell of the clarinet with elastic ring and with clip on the saxophone, which provides protection for the microphone against sudden pulling of the cable.

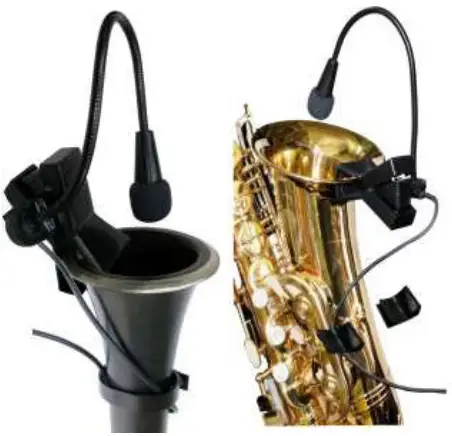

Product Overview

Product Overview
Product Overview

Specifications

Frequency range: 80 Hz to 18 kHz
Polar Pattern: Omnidirectional
Sensitivity: -56dB/1KHz
Connector: 3-pin XLR – Cable length: 4 m
Phantom Power Requirements 9-52 VDC
Net weight: 92g (microphone and clip)

TAP

Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
