NEPTUNE PPLV30-12 Transformer Power Supply
Introduction

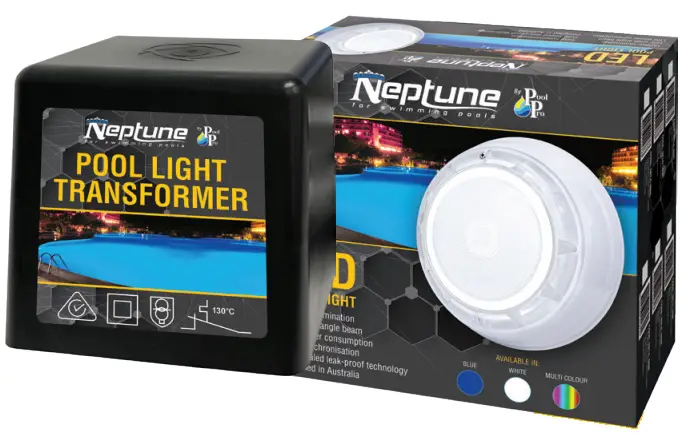

The Neptune Pool Light Transformer is designed to supply 12VAC for our Neptune LED Pool Lights and other suitable pool lights.
SPECIFICATIONS
| MODEL NUMBER | PROTECTION RATING | INPUT | OUTPUT | AUXILIARY OUTPUT | SECONDARY FUSE |
| PPLV30-12 | IP44 | 230V-240VAC 50Hz | 1 x 12VAC 30VA | 230V-240V 10A | 1 x 4A |
| PPLV60-12 | IP44 | 230V-240VAC 50Hz | 2 x 12VAC 30VA (60VA) | 230V-240V 10A | 2 x 4A |
| PPLV90-12 | IP44 | 230V-240VAC 50Hz | 3 x 12VAC 30VA (90VA) | 230V-240V 10A | 3 x 4A |
| PPLV120-12 | IP44 | 230V-240VAC 50Hz | 4 x 12VAC 30VA (120VA) | 230V-240V 10A | 4 x 4A |
SAFETY INSTRUCTIONS
- The Neptune Pool Light Transformer must be installed and serviced by a qualified electrician in accordance with AS/NZS 3000:2007.
- Failure to install correctly may result in property damage, serious injury or death.
- Do not overload output.
- Do not connect more than 5 x Neptune Pool Light Transformers in a series (Daisy Chain).
INSTALLATION

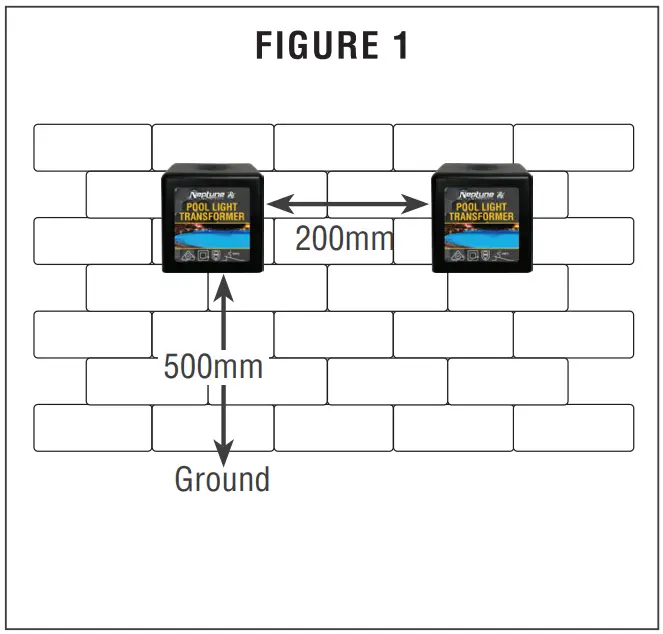

- The Neptune Pool Light Transformer must be installed in an upright position undercover at least 500mm above ground, see Figure 1.
- Drill mounting screw holes 93mm apart. Mount unit using wall plugs and screws provided, see Figure 2.

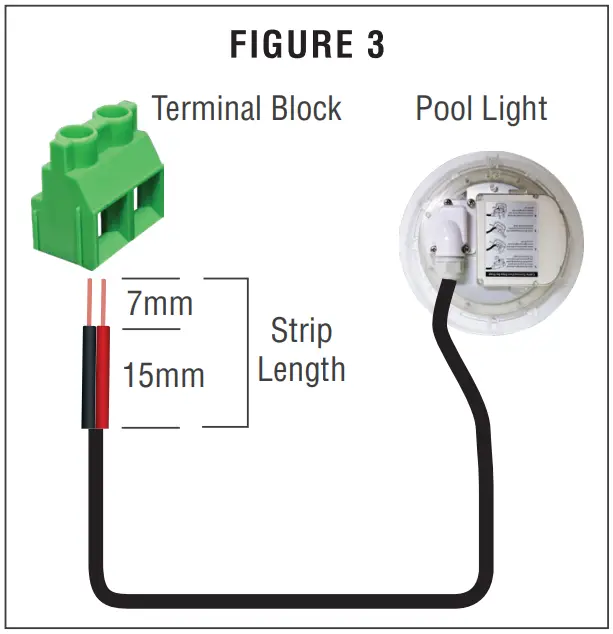

- Connect cable to output screw terminals, see Figure 3.
- Ensure cable is correctly connected to Neptune LED Pool Light.
- Plug unit into mains 240V socket.
- Turn on 240V power and enjoy your Neptune LED Pool Lights!
Customer Service
Simply A Better Choke
Phone Free Call: 1800 143 788
Email: [email protected]
International Phone: + 61 7 3209 7884
Web: www.poolpro.com.au
