LOG-FAR-M Series Farringdon Freestanding Stove
FARRINGDON OPTIONAL STAND FITTING
INSTRUCTIONS – USA & CANADA
LOG-FAR-M Series Farringdon Freestanding Stove
Applicable Part Numbers
LOG-FAR-M-xxx
LOG-FAR-L-xxx
PEDESTAL-FAR-M-xxx
PEDESTAL-FAR-L-xxx
NOTE : xxx– Denotes Colour Option
WARNING: Health and Safety
Please consult health and safety guidelines for advice on handling heavy and/or large items.
When lifting the appliance we recommend you always obtain assistance.
Fitting Instructions
All Farringdon stoves are factory fitted with the standard feet assemblies, however if it is so desired, this can be removed and an optional pedestal or log store can be fitted, so that the appliance height can be raised.
STEP 1

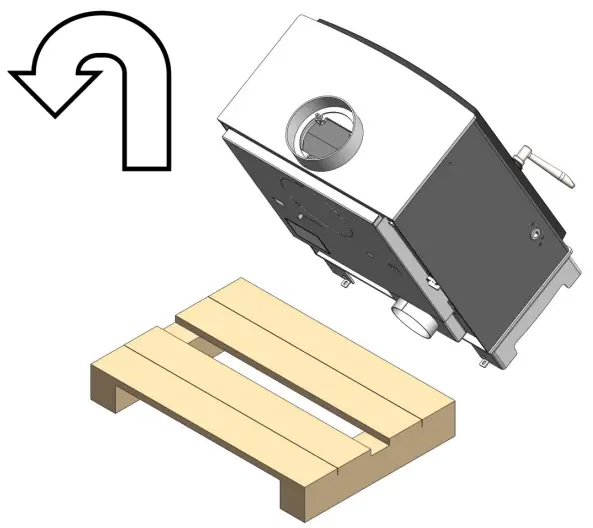

To remove the factory fitted feet assembly, carefully lower the stove onto its rear face, taking care not to damage the heat shield. We recommend lowering the stove onto the packing pallet base, that it was delivered on, as shown.
STEP 2
With the stove safely resting on its back, proceed to remove the 4 off fixings and remove the factory fitted feet assembly. Keep this item safe, for future use.
STEP 3
This step is applicable for log store, there is no need to remove the air control cover plate, as the log store locates around this cover.

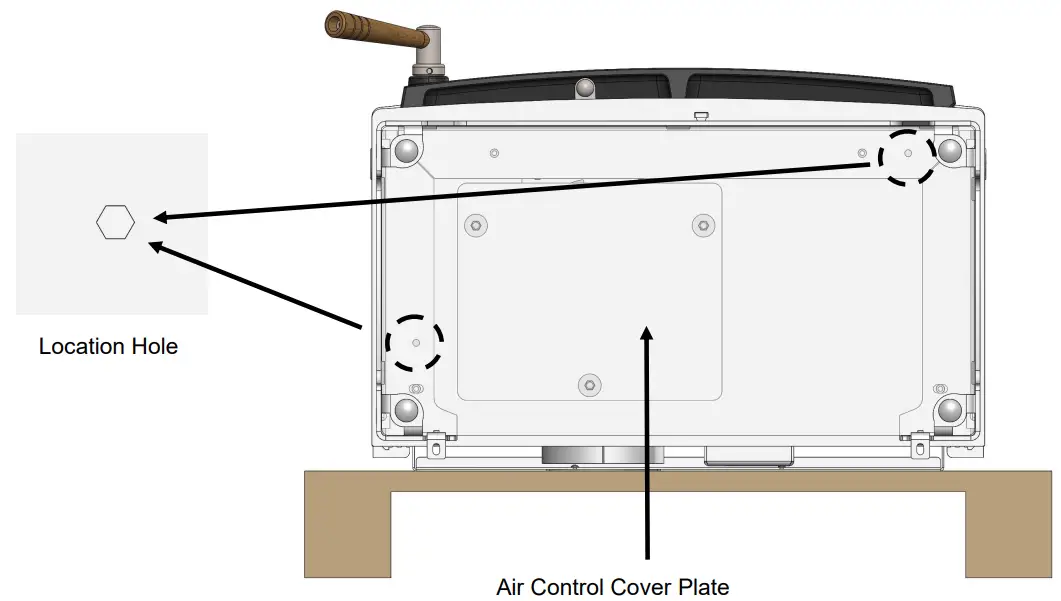

Please note the 2 no. location holes (hexagonal), these line up with the corresponding location pins within the log stove assembly.
Inner Log Store Heat Shield Hidden For Clarity
STEP 4

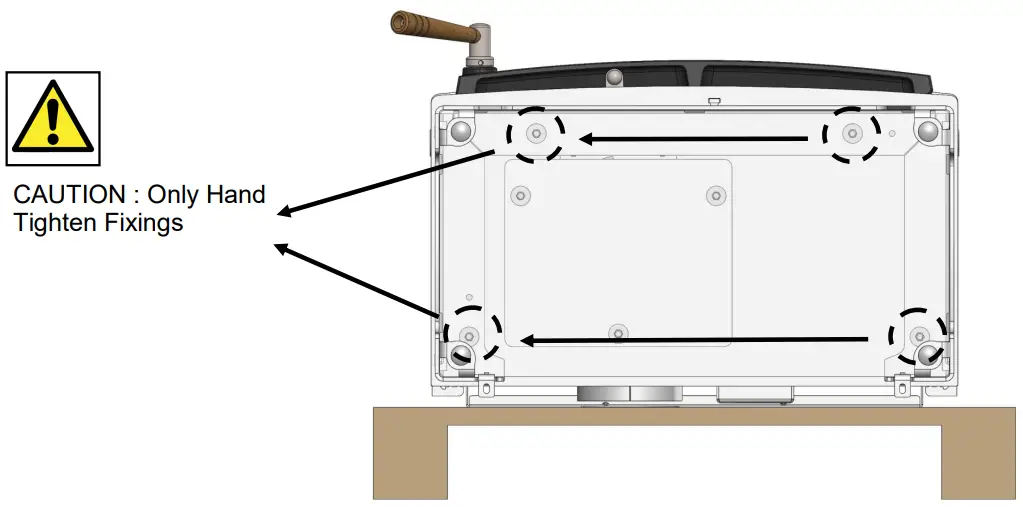

Position log store assembly, against the appliance base. Locate the positioning pins into the hexagonal mount holes. Affix the 4 off fixing screws and washer, provided with the accessory. Only hand tighten these fixings, otherwise damage to the threads may occur.
Inner Log Store Heat Shield Hidden For Clarity
STEP 5

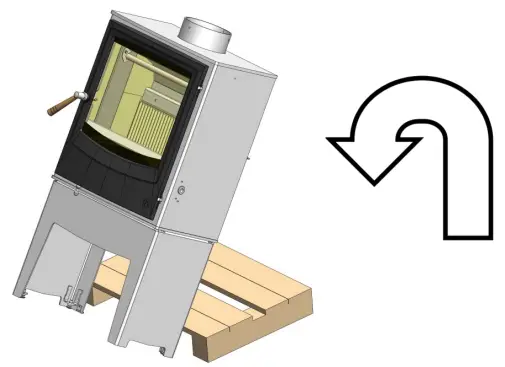

Taking care, return the appliance to the upright position. Extra caution will be needed as the centre of gravity will have moved by fitting the new accessory.
CAUTION
STEP 6
This step is applicable for Pedestal stand assembly ONLY, also see page 6 for further information.
Please follow steps 1 & 2 and with the stove resting on its back, remove the air control cover plate and fixings, the pedestal stand assembly will cover this opening within the base plate, so please keep this cover plate safe for future use.
STEP 7
Position the pedestal stand assembly, against the appliance base. Locate the positioning pins into the hexagonal mount holes. Affix the 4 off fixing screws and washer, provided with the accessory. Only hand tighten these fixings, otherwise damage to the threads may occur.
STEP 8
Return the appliance to the upright position, again take extra care when handling.
STEP 9
If your stove is to be installed with a direct air vent, then the pedestal stand has a rear duct connector, allowing for the external air supply to the stove. This will mean that the rear air duct within the stove body will need to be closed off.
The circular cover plate will be required to close off the body vent (both supplied with accessory kit, please disregard the rectangular cover as this is not required).
Farringdon
Round Cover Plate
STEP 10

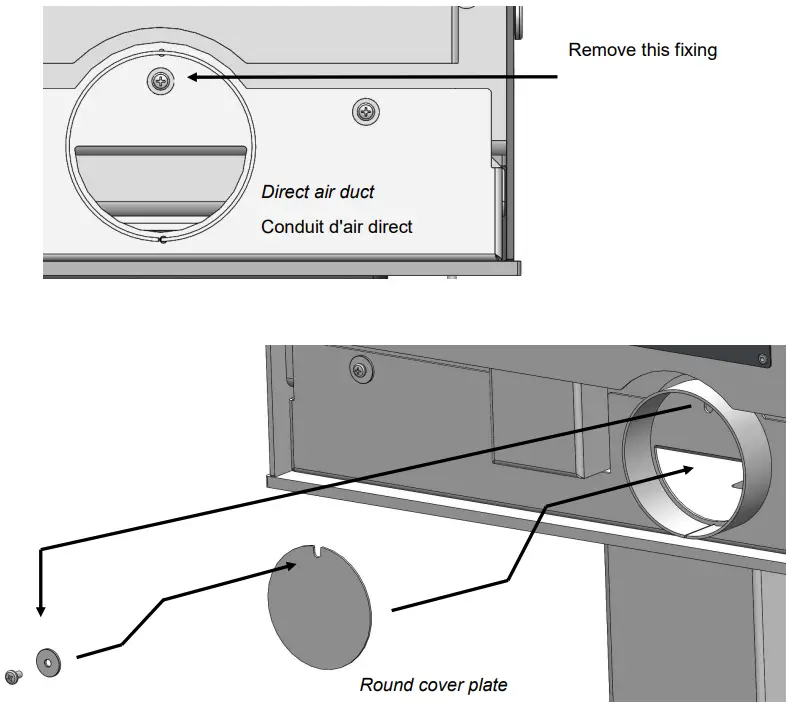

Looking at the rear of the stove, locate the fixing screw mounted within the circular duct connection. Remove this fixing and place the round cover plate inside the duct, replace the fixing and thus securing the cover plate.
ADDITIONAL NOTES
For Farringdon 16, models only, the following instructions apply irrespective of fitting a log store or pedestal.

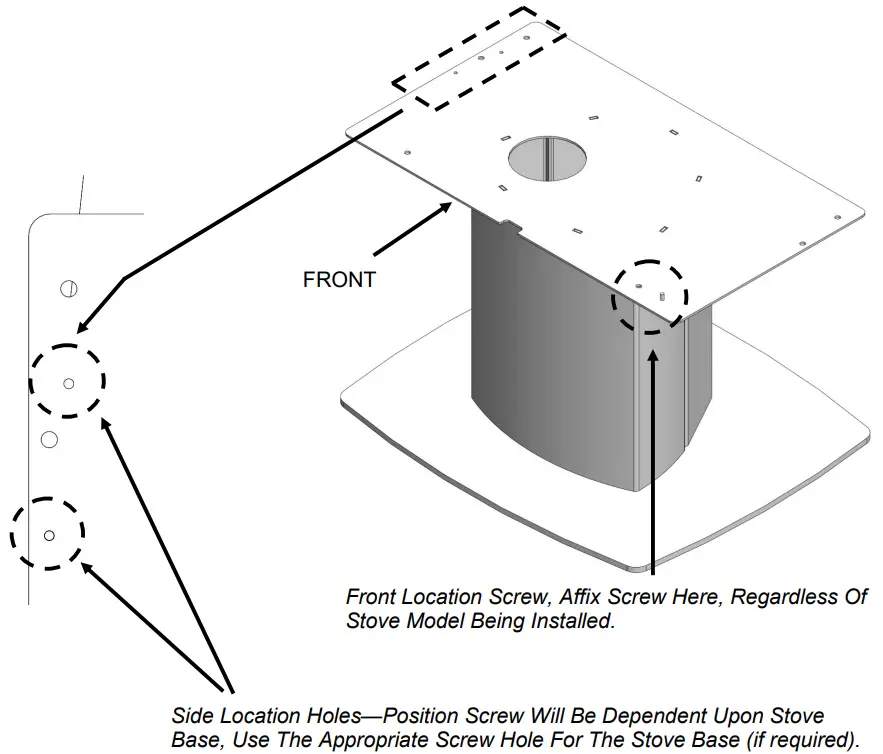

A separate screw is supplied, that can be used as a location pin positioning marker, depending upon the models of Farringdon being installed. Simply affix the screw in the appropriate hole that corresponds to the hexagonal hole cut into the base of your stove, this will then act as a positioning or location marker.
ADDITIONAL NOTES (pedestal stand assembly)

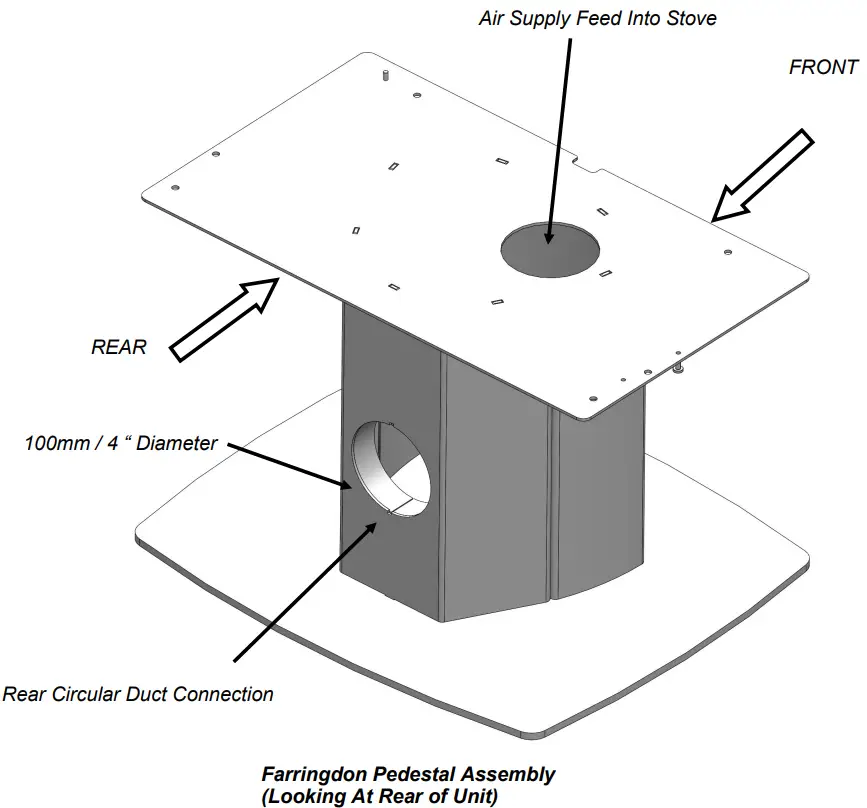

If you are connecting the stove to a direct air supply, the pedestal stand has a rear duct for connection. This circular hole has an internal size suitable for 100mm/4” diameter pipe.
ADDITIONAL NOTES (Log store assembly)

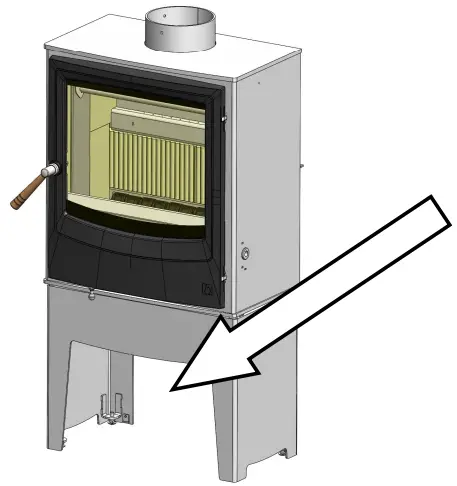

 | (Looking At Front of Unit) Log storage area; care must be taken to avoid naked flames and ignition sources from this area. |

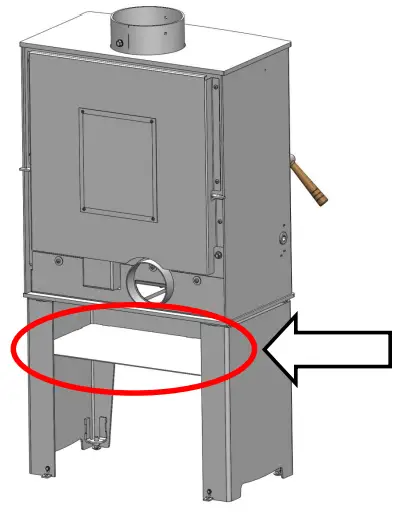

 | (Looking At Rear of Unit)CAUTION WARNING ! DO NOT PUT COMBUSTIBLE MATERIALS ONTO THE REAR SHELF. This area should be kept clear to act as a heat barrier from the stove. |
BK 727 Rev 02
Issue Date: 03/14/2023
