TX342 Remote Electronic Ignition and Control System
Instruction Manual

OPERATING INSTRUCTIONS -FOR OEM USE ONLY

TX342 Remote Electronic Ignition and Control System

⚠ WARNING
Fire or explosion hazard. Attempted disassembly or repair of controls can cause property damage, severe injury or death. Do not disassemble the gas valve; it contains no serviceable components.
Read these instructions carefully. Failure to follow them could result in a fire or explosion causing property damage, personal injury, or loss of life. The product  must be installed and operated according  to all local regulations.
A. BEFORE OPERATING verify that no gas is in the area around the appliance, including near the floor.
WHAT TO DO IF YOU SMELL GAS:

• Do not light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call the gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.
• If you cannot reach the gas supplier, call the fire department.
  B. Use only your hand to push in or turn the gas control knobs. Never use tools. If a knob will not push in or turn by hand, don’t try to repair it, call a qualified service technician. Force or attempted repair may result in a fire or explosion.
  C. Do not use this control or any gas appliance if any part has been under water or in contact with water. Immediately call a qualified service technician to replace the control system and any gas control system which has been under water or in contact with water.
  D. These instructions are to be referenced as a user guide, and do not supersede appliance manufacturer’s lighting instructions.

APPLICATION

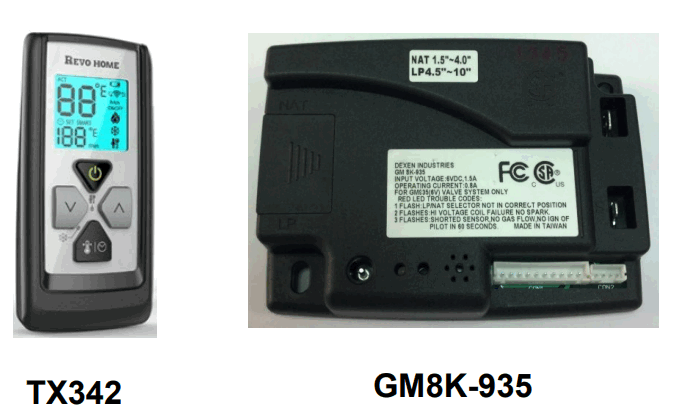

TX342 is a battery-powered electronic remote ignition and control system for gas appliances with pilot burners and ODS systems.
GENERAL NOTES
Radio frequency Remote
315 MHz for US, Canada;
Batteries – Remote Handset:
3 x1.5V “AAA” (quality alkaline recommended) 4.5V 100mA
Batteries – Receiver:
4 x 1.5V “AA” (quality alkaline recommended) 6.0V 1500mA
An AC Mains Adapter may be used instead of batteries (only the Grand Mate or an AC Mains Adapter approved by Grand Mate can be used).
NOTE: These remote handsets, receiver, wall switches, are not interchangeable with previous versions. For all lighting/ignition instructions please refer to appliance manufacturer’s instructions.
NOTE: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the  arty responsible for compliance could  void the user’s authority to  operate the equipment.
This equipment  has been  tested and  found to comply with  the limits for a  Class B digital  device, pursuant  to part  15  of the  FCC  Rules.  These  limits  are  designed to provide reasonable  protection against harmful  interference in  a   residential  installation.   This equipment  generates, uses and can radiate  radio frequency energy and, if not installed and used  in accordance with the instructions,  may cause harmful interference to radio communications.  However, there is no guarantee that interference will not occur in a particular  installation. If this equipment does  cause harmful interference  to radio  or television  reception, which can  be determined  by turning  the equipment off  and on, the  user is  encouraged to  try to  correct the  interference by one  or  more of the  following  measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for  satisfying RF exposure compliance. To maintain compliance with FCC exposure compliance requirement, please  follow operation instruction as documented in this manual.
NOTE: This device complies with CAN ICES-3 (B)/NMB-3(B)

• This product meets the applicable Innovation, Science and Economic Development Canada technical specifications.
• Canadian Compliance Statement This device complies with Industry Canada license-exempt  RSSs. Operation is subject to the following  two conditions: 1) This device may not cause  interference, and 2) This device must accept any interference, including interfereemcee that may cause undesired operation of the device.
• ISED  RF exposure statement This equipment complies with  ISED radiation exposure limits set  forth for an uncontrolled environment.  This transmitter must not be collocated or operating in conjunction with any other antenna or transmitter.

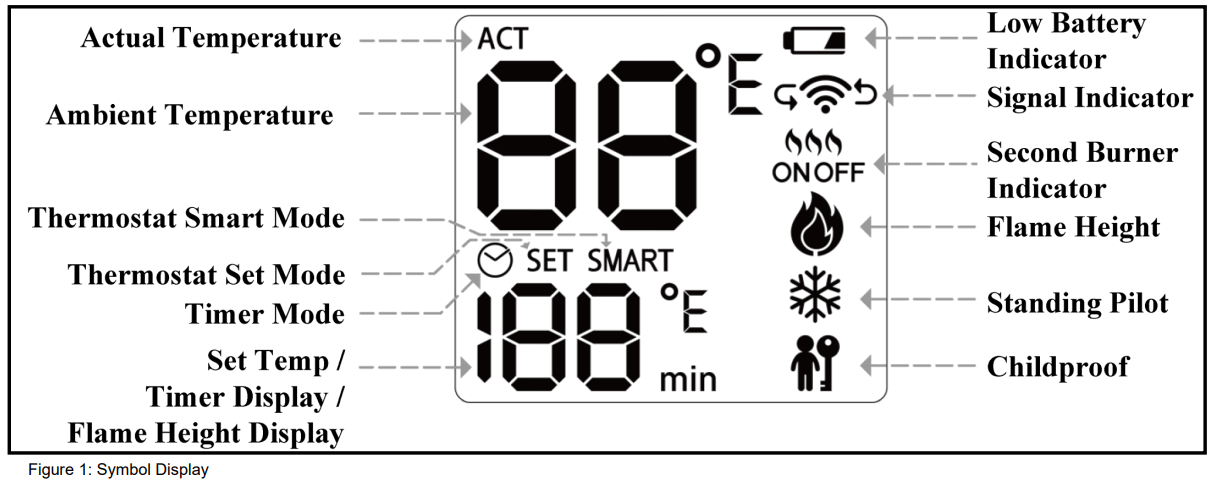

TX343 SERIES REMOTE HANDSET FEATURES

*Disabled for Europe
**ONLY for Bidirectional Model
SYMBOL ETTING TEMPERATURE SCALE

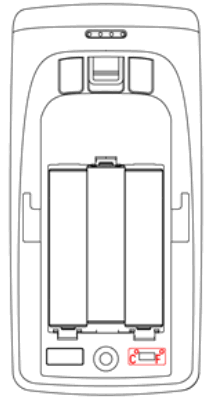

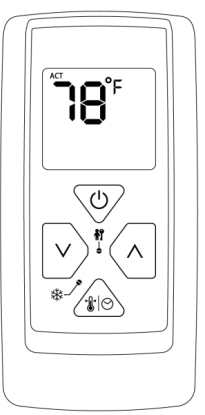

After batteries installed choose Fahrenheit or Celsius from slide switch.After setting the time and temperature scale, actual temperature display on standby screen.
SETTING THE ELECTRONICS CODE
(First time use only) A code is selected automatically for all Grand Mate electronics from among 65,000 random codes available. The receiver had to learn the code of the handset:

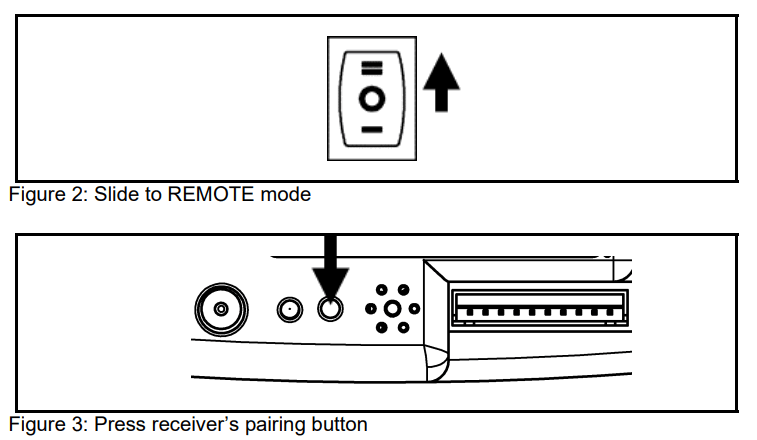

• Slide the ON/OFF/REMOTE slide switch from OFF to REMOTE mode. (see Figure 2).
• Press Pairing button, an acoustic signal and green LED flashing. (see Figure 3).
• Within the subsequent 10 second press button on the remote handset until you hear two (2) beep confirming the code is set.

NOTE: This is a one time setting only, and is not required when changing the batteries in the remote or re-ceiver.CHILDPROOF ON:

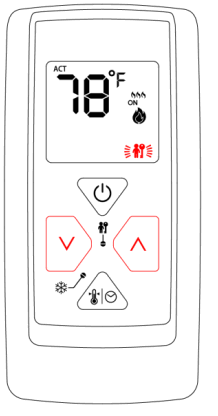

To activate press and buttons simultaneously. indicated and the handset is rendered inoperable include the off function.
OFF:
To deactivate press and buttons Simultaneously disappears.
MANUAL MODE (HANDSET)
NOTICE
Wiring of valve and receiver must be completed be-fore starting ignition. Failure to do so could damage the electronics.
⚠ WARNING
When pilot ignition is confirmed, main flame valve tum on to maximum flame height

STANDING PILOT

Handset Press and hold button to activate appliance to standing pilot. in- dictated.
Press  and hold button to deactivate appliance to standing pilot.  disappear.
NOTE: Standing pilot available to activate or deactivate manually.

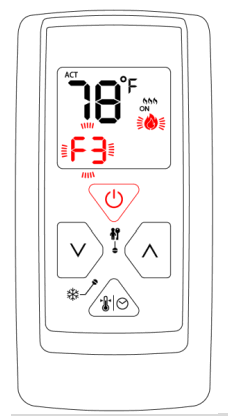

TURN ON THE FIRE Press button, a symbol indicating transmission appears on the display. The receiver confirms trans-mission with an acoustic signal.

• Main burner and rear burner turn on once pilot ignition is confirmed.
• Main gas goes Max flame height first, and will goes last flame height memory.
• 1-landset automatically goes into Manual mode after main burner ignition.

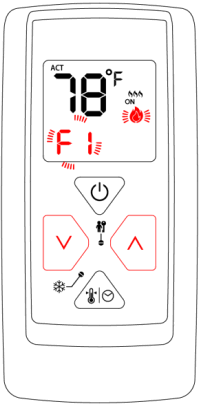

FLAME HEIGHT ADJUSTMENT To increase flame height press . Max flame height is 5. To decrease flame height press. Min flame height is 1.
TURN OFF THE FIRE Press button, the receiver confirms transmission with an acoustic signal.
NOTE: There is a 3 second delay before the next ignition is possible.
CHANGING THE MODE OF THERMOSTAT
During the appliance flame on, briefly pressing the button changes the mode of thermostat in the following order: and back to
NOTE: While pressing either button a symbol indicating transmission appears on the display. The receiver confirms transmission with an acoustic signal.

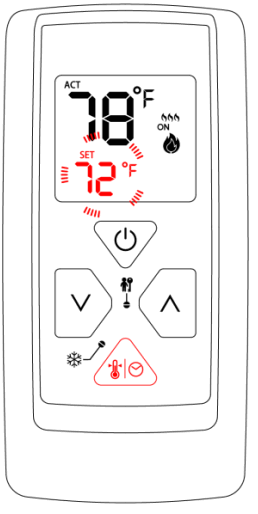

MODE OF THERMOSTAT – SET MODE In Set mode, indicated. Room temperature is measured from handset and compared to the  set tempera- true. The flame height modulated between last setting and off to  achieve the set temperature. press or to change set temperature.
NOTE: The default set temperature is 72℉ (22℃). Set temperature range from 45℉(7℃) to 95℉(35℃).

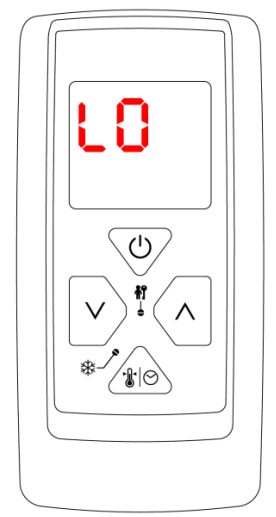

While ambient temperature equal or lower than 10℃(50℉) will appear

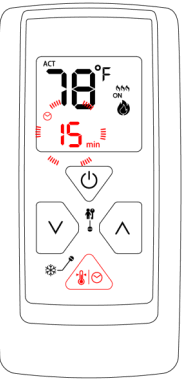

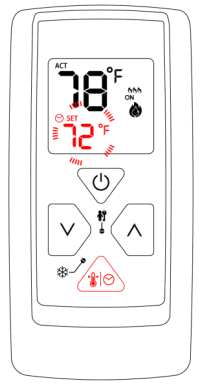

Handset can still operate all the functions except display ambient  temperature, while ambient temperature high- While ambient temperature equal or greater than 99℉(37℃) will appear . Handset will transmit a shutdown signal to appliance.MODE OF OPERATION – TIMER MODE In Timer mode, indicated. At the end of countdown time period, the fire turns off.
While   indicated, at the end of count-down time period, the fire will remain pilot flame.
NOTE: Time period available to set from 15 minutes to 180 minutes.
Press and hold to check the timer mode set temperature. Press or to change set temperature. To cancel thermostat function, press to change set temperature to — . There are individual set tempera- true memories for and , the flame height always default to its last setting.

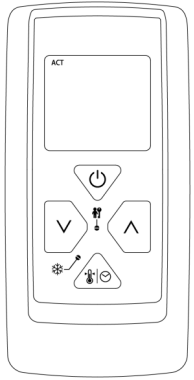

SLEEP MODE While handset is idle for 1 minutes, it will turn into sleep mode.
MISCELLANEOUS
Low Battery Indication Low battery indicator  indicated.
Battery replacement
Battery replacement is recommended at the beginning of each heating season. Do not use metal tools to remove batteries. Using a metal tool could cause a short that may damage the receiver.

Deben Industries, Inc
9220 Norwalk Blvd Santa Fe Springs, CA 90670
Tel: +1 5626998490
