Vex Iq 228-6470 2nd Gen Iq Controller Instruction Manual

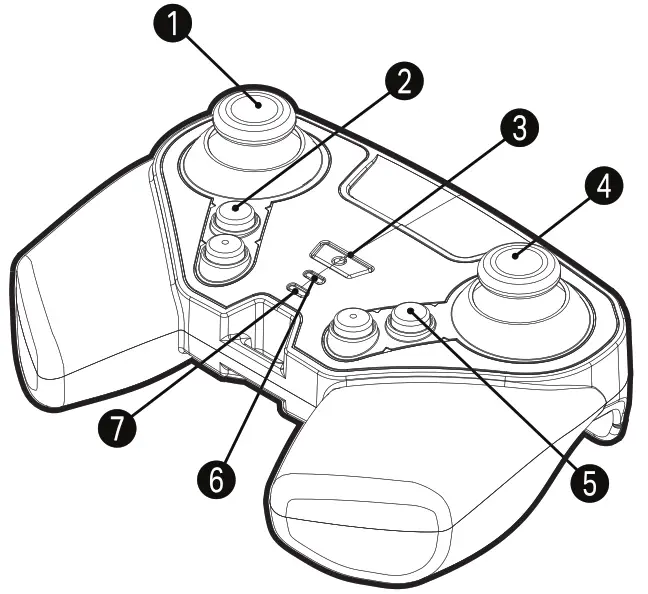

P/N 228-6470 IQ Controller (2nd generation)

1.  PUB Joystick/JoystickA/B
2. E Buttons/Boutons E
3. Power Button/Bouton Marche / Arret
4. C/D Joystick/Joystick C/D
5. F Buttons/Boutons F
6. Power/Link LED/LED Marche – Arrel / Connexion
7. Charge/Game LED/LED Charge/ Etat
8. USB Charge Port/Port Chargeur USB I
9. R Buttons/Boutons R I 10. L Buttons/Boutons L

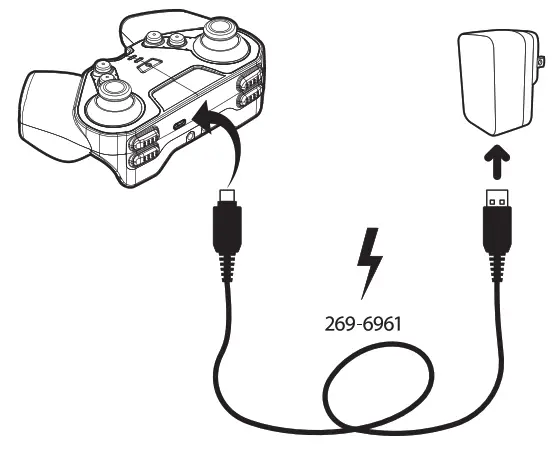

To Charge Controller:

1. Turn off Controller
2. Connect USB Cable A-C (269-6961) to V2 Controller and attach charging adapter
3. Plug into power outlet Branchersur une prise de courant
4. Charging will start automatically le chargement commencera automatiquement
   Adapter Not Included Adaptateur non inclus Charging Input USB Port (recommended 2.4 Aor greater, minimum 0.5 A)
   For additional information about using VEX IQ products, visit www.vexrobotics.com/vexiq/support Pour plus d’informations sur (‘utilisation des produits VEX IQ visitez www.vexrobotics.com/vexio/support For Software Updates, visit www.vexiq.com/firmware Pour les mises 3jours logicielles, visitez httpfivexiq.com/firmware

INSTRUCTIONS CONTINUED:/SUITE DES
Charge/Game LED Status:/Etat de la LED Charge / Etat:
Green-Fully Charged
Red-Charging in Progress
Blinking Red-Battery Fault
Off-Not Charging
To turn it on/off Press the power

Pour controller: Presser le bouton
allumer  Marche

PLEASE KEEP THESE INSTRUCTIONS.
Veuillez conserver le mode d’emploi.

FCC Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FOC Rules. These limits are designed to provide reasonable protection against harmful interference, n a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation, between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help.
— Shielded cables must be used with this unit to ensure compliance with the Class B FCC limits. Warning Changes or, modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
FCC Statement: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This. the device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This device contains a license-exempt transmitter(4/receiver(SJ that complies with Innovation, Science and Economic Development Canada’s license-exempt RSS(s). Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause undesired operation of the device

Custom manufactured in China for Innovation First Trading SARL. distributed in the U.S.A, Mexico, Caribbean, Central & South America by VEX Robotics, Inc., 6725 W. FM 1570, Greenville, TX 75402, U.S.A.
Ages 8+
Ans 8+
getStarted.vex.com
This product is solely intended to be used as part of the VEX IQ system.

WARNING: CHOKING HAZARD-Small parts. Not for children under 3 years.
Warning: CHOKING HAZARD
Avertissement: RISQUE D’ASPHYXIE
Advertencia: RIESGO DE ASFIXIA
Achtung: ERSTICKUNGSGEFAHR
Attenzione: RISCHIO DI SOFFOCAMENTO
 A SUBSIDIARY OF
INNOVATION FIRST
INTERNATIONAL
228-6470-750
