GeoSync GH6LB Hybrid LNB Instruction Manual
Introduction
The GH6LB HYBRID LNB has been designed to olow you to provide signals to either a SkyQTM or FreesotTM 4K receiver whilst also delvering signals to urto 4 other standard satejite receivers from the some dish.
The 2 outlets at the front are UK Wideband for the new services and the 4 at the back are Universal far HD services.
Fitting the (NB -as easy as I. 2, 3 This guidance is given for the replacement of on LNB on a Mk.4 elptical dish and assumes that the dish is correctly aligned. If you have a different type of dish. It should be supplied with a 40mm dia. LNB bracket which is compatible with GeoSync LNB’s.

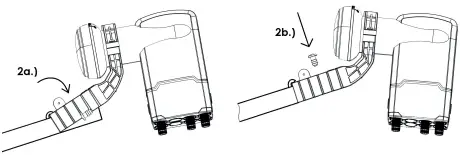

- Refer to the map opposite and align the bracket on the (NB at the appropriate an0e, then lighten the clamp securely.
- Having removed the old LNB slot the bracket onto the setoffs dish arm and secure it In place with the split pin.
- Connect the front 2 Wideband outlets to the new service and the 4 Universal at the back to any standard receivers, check signal quality, then pull down the weather shield.
If you are fitting and aligning a new dish you can find more guide maps on our website www.geo-sync.co.uk

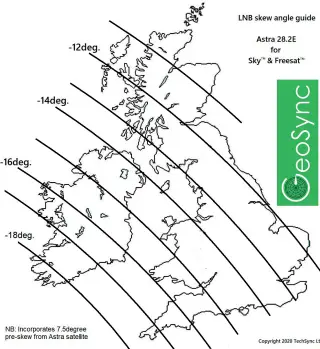

To help you align your LNB with either SkyTM or FreesatTM from the UK you will need to point the arrow on the bracket in the range -10 to -20 degrees indicated on the neck of the LNB

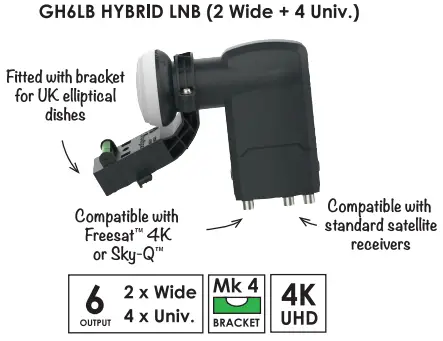

GH6LB HYBRIDE LNB (2 Wide + 4 Univ.)
The GH6LB is a Hybrid LNB which means that it combines two different systems for delivering the signal from the satellite to your receivers.
The front two outputs are Wide band specifically set-up to be compatible with FreesatTM 4K or Sky-QT”‘ while the four outputs at the back can feed signals from the same satellite to standard or HD receivers or PVR’s.
- Allows you to run Sky_QTM or FreesatTM 4K at the same time as up to 4 legacy receivers from the same dish
- Uses 10.41GHz Local Oscillator on Wide band for UK receivers
- Supplied fitted with bracket or popular UK elliptical satellite dishes
- Spirit level on bracket helps ensure that the dish is vertical
- Weather shield protects electrical connections
GH6LB HYBRID LNB – Technical Specification
| Input Frequency Range | Ku Bond | I 0.70-012.75GHz |
| Output Frequency Range | Universal – Low Band | 950-1950MHz |
| Universal – High Band | 1100-2150MHz | |
| Wideband – V & H | 290-2340MHz | |
| Local Oscillator Frequency | Universal – Low Bond | 9.75GHz |
| Unoversal – High Band | 10.6GHz | |
| Widebond – V & H | 10.4IGHz | |
| Local Oscillator Stability | Typical 4 25’C | +1- 0.0016Hz |
| Output VSWR | 2.5:1 Max | |
| Output type / impedance | F-Connector female | 75 Ohm |
| Phase Noise 4 | IkHz 25C | -60dBc/Hz |
| 10kHz 4 25t | -8OdBc/Hz | |
| lOCkHz 4 25C | -90dBc/ Hz | |
| Conversion Gain | Universal 4 25t | 55-65dB |
| Widebond @ 25’C | 48-60dB | |
| Gain Flatness | Typ. over any 27MHz Bond | 0.75dB |
| Noise Figure | Universal – Typical / Max | 0.50dB / 0.85dB |
| Wideband – Typical I Max | 0.55dB / 0.95dB | |
| Cross Polar Isolation | Typical | 20dB |
| Image Refection | Typical | 40dB |
| Current Consumption | Universal Max. | I 6Orrin |
| Wideband Max. | 10DmA | |
| Operating Temperature | Min-Max | -30t- + 60°C |
Declaration of Conformity
Hereby, GeoSync declares that this LNB for satellite broadcast reception. In domestic premises conforms with the Radio Equipment Directive 2014/53/EU. The full Declaration of Conformity is available by contacting the following:
internet address: www.geo-sync.co.uk/210616
