Razorri S50 2 Oz. Large Capacity Barrel Marinade Injector Gun User Guide

QUICK GUIDE
Marinade Injector Guide Kit
Comodo 550

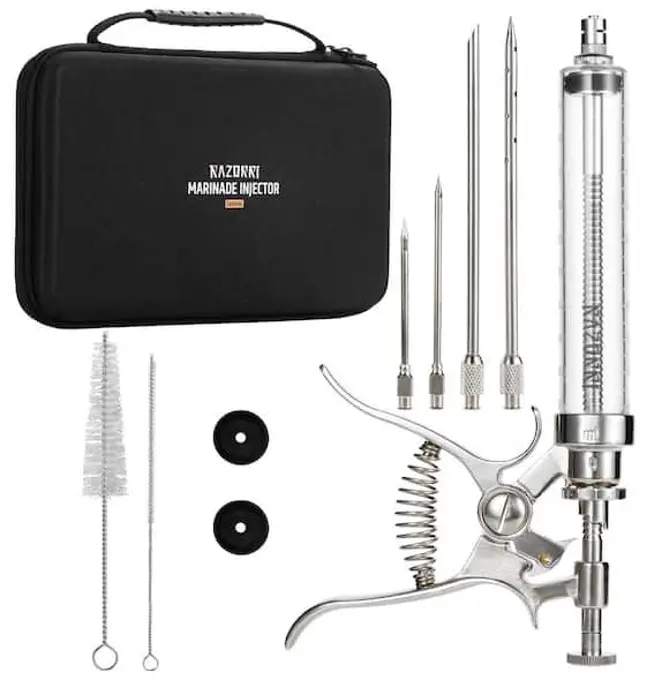

Package Includes

S50 2 oz. Large Capacity Barrel Marinade Injector Gun

1. 2 OZ Meat Injector Gun xl
2. 6- Needle x2
3. 3.5″ Needle xl
4. 3- Needle xl
5. Needle Cleaning Brush x2
6. 0-Ring x2
7. Plunger Rod Gasket Clip xl
8. Quick Guide xl

1. Disassemble and clean parts with the included brush.
2. Place the rubber seal on the thin rod.
3. Place the tube on the thin rod with the wider side facing toward the front. Slide metal disc on top of the pad.
4. Place the rod inside the grooved tube as shown. The injector mechanism will not work efficiently if the grooves are pointing in the wrong direction.
5. Slide tube into injector piece. Screw on the back knob. Make sure the barrel is aligned and screwed on correctly.
6. Adjust the width of the rubber gasket by twisting the back-end knob. This will create a watertight seal in the injector tube. Do not over-tighten.

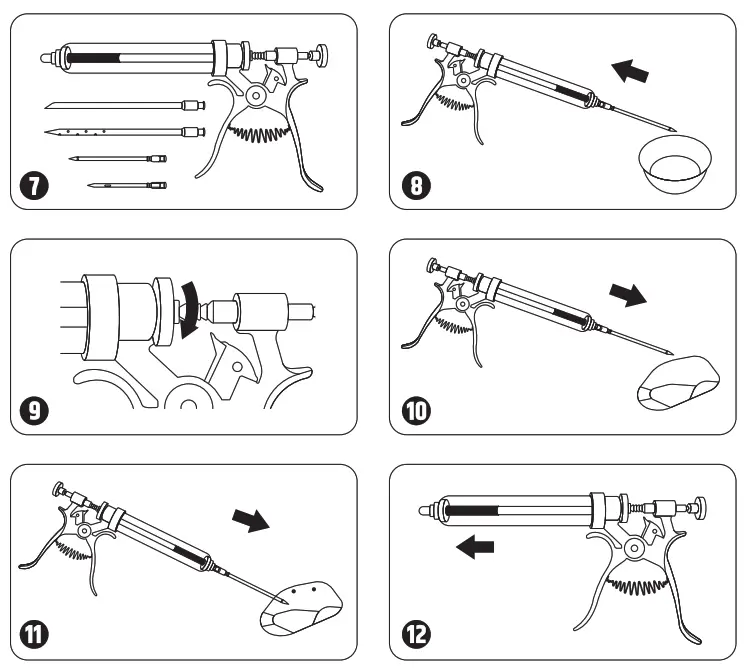

7. Choose the needle whose holes best correspond with the thickness of the meat and the intensity of the marinade, and carefully screw it halfway onto the needle holder.
8. Submerge the needle in the marinade and suck it into the barrel.
9. Adjust the marinade dispenser by dialing the numbers on the knob. Each number is equivalent to the number of ml being dispensed per injection.
10. Prick the needle into the meat. Slowly squeeze the trigger to inject the marinade in.
11. Carefully pull the needle out from the meat and prick at the other injection point for evenly spaced intervals 12. Disassemble and wash after use.

Tips

1. Please clean the meat syringe before use.
2. If it is difficult for you to push the injector, please apply some oil at the end of the plunger around the 0-ring.
3. KEEP AWAY FROM CHILDREN! The marinade needles are sharp!
4. Seasoning herbs should be ground smaller than the needle holes.

www.razorri.com
Razor Inc.
6945 SPEEDWAY BLVD STE H102 Las Vegas, NV 89115 US
Made in China
