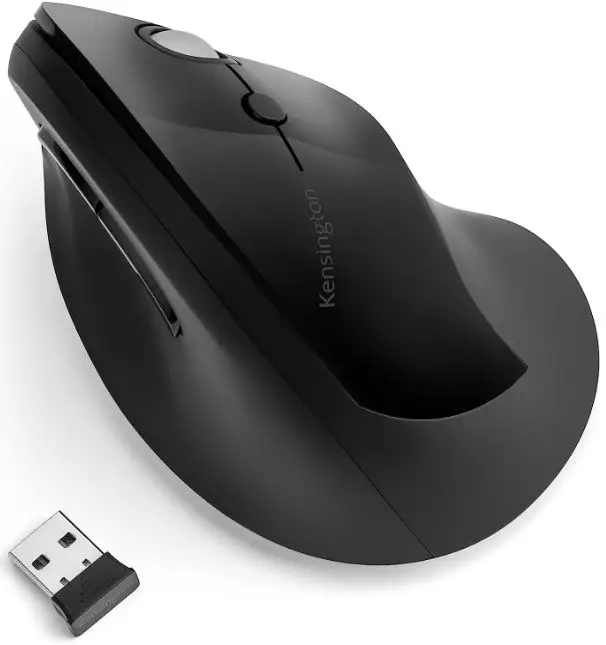

Kensington K75501eu Pro Fit Ergo Vertical Wireless Mouse Specifications And Datasheet

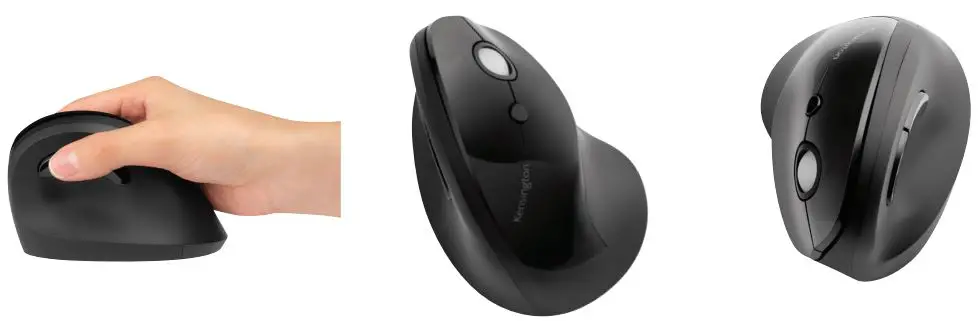

• Natural handshake position
  A contoured, natural (46.7-degree) slope neutrally positions the wrist, eliminating soft-tissue compression.
• Extended lip for the little finger
  Provides complete support for smoother, larger muscle group movement.
• Six-button design
  Fully-featured mouse with a scroll wheel, left, right, forward, back, and DPI (800/1000/1200/1600) buttons.

• Plug & Play
  Simply plug in the nano receiver for wireless connectivity up to 20 meters (65.61 feet).
• Low battery indicator
  Lets you know when it’s time to change the battery, so you’re never caught off-guard. One AA battery lasts up to 6 months.*

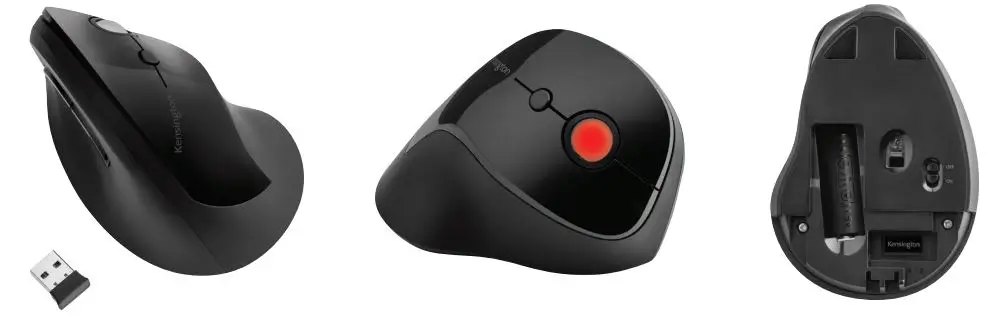

• Nano receiver storage
  Nano receiver can be stored conveniently inside the mouse when not in use.

• Preferred mouse in independent study
  In an independent study conducted by professional ergonomists, “users rated the vertical mouse as the most comfortable and stated that it conformed to their hand naturally.”

Specifications

System requirement

• Connection: 1x USB-A port for 2.4 GHz dongle
• Operating systems supported: Windows/macOS/Chrome OS/Android

Connectivity

• Wireless technology Wireless: 2.4 GHz
• Wireless operating distance: 20 m

Product dimensions

• Product unit dimensions: Length: 112 mm; Width: 76 mm; Height: 71 mm
• Mouse unit weight: 93.5 g
• Mouse color: Black

Packaging dimensions

• Packaging style: Retail box
• Packaging dimensions: Length: 153 mm; Width: 110 mm; Height: 201 mm
• Packaging weight: 130 g
• Master carton: 4 pcs
• Package contents: Mouse, 2.4 GHz USB-A dongle, 1 AA* battery, instruction guide, warranty card, compliance docs

Power and environmental

• Battery: 1 AA*
• Battery life: Up to 6 months of typical use. *Battery life may vary based on actual user behavior.
• Operating temperature: 0 to 45˚C / 32 to 113˚F
• Storage temperature: -15 to 60˚C / 5 to 140˚F
• Relative humidity: 0% to 90% non-condensing

Country of origin, regulatory, and warranty

• Country of origin: China
• Certifications and compliance: FCC, CE, IC, RCM, MIC
• Warranty: 3-year limited warranty

Special notes

• LED indicator (red): Low battery alert & DPI switch, on the scroll wheel
• DPI: 800/1000/1200/1600

Trademarks

All specifications are subject to change without notice. Products may not be available in all markets. Kensington and the ACCO name and design are registered trademarks of ACCO Brands. Kensington The Professionals’ Choice is a trademark of ACCO Brands. All other registered and unregistered trademarks are the property of their respective owners. © 2019 Kensington Computer Products Group, a division of ACCO Brands. All rights reserved. CBT24900EN

Connection

Observe these procedures to connect the mouse to your computer:

• Put the USB dongle into a computer’s available USB port. To ensure a strong connection, make sure the dongle is firmly inserted.
• Press the power button, which is often found on the mouse’s underside, to turn on the device. Instead, certain versions could feature a switch on the side.
• When the mouse is turned on, it ought to immediately begin looking for the USB dongle and make a connection. During this operation, the LED indicator on the mouse could flash or change color.
• The mouse should be usable once the connection has been made. You should be able to control the mouse buttons and the cursor on your computer screen.
• Try hitting the “Connect” button on the USB dongle and then the “Connect” or “Pair” button on the mouse’s bottom or side if the device doesn’t seem to be working. For detailed instructions on how to link the mouse with the dongle, consult the user manual.
• In most circumstances, the mouse can work perfectly without any additional drivers or software. However, you can check the Kensington website for any available software updates or troubleshooting instructions if you run into any problems.
