Air Mini D Plugin User Guide

Mini D Plugin
User Guide

Mini D
User Guide
Manual Version 1.1

Introduction

Thank you for purchasing the AIR Mini D plugin instrument.
This user guide explains how to use your plugin instrument. For more information on using other parts of the MPC software or hardware, please consult the respective MPC Software User Guide and MPC hardware User Guide.
System Requirements & Product Support
For the latest information about this product (system requirements, compatibility information, etc.) and product registration, visit akaipro.com.
For additional support, visit akaipro.com/support.

Installation

1. Double-click the .exe (Windows) or .pkg (macOS) file you downloaded. Follow the on-screen instructions to install the software.
2. Open the plugin application.
3. Click Sign In to sign into your inMusic Brands Profile using your Internet browser. If you do not have an inMusic Brands Profile yet, you will be prompted to create one.
4. Once you have signed in, click Activate in the plugin window to enter your serial key to unlock the plugin. You can unlock each plugin on up to three devices at a time.
5. If you do not have a serial key, you can click Try Unlicensed to explore the plugin with intermittent audio alerts.
   You can also click 10-Day Trial to initiate a free, fully featured trial of the plugin for 10 days.
   If you would like to purchase a serial key, click the link to purchase a license at profile.inmusicbrands.com.

To install the plugin content on your standalone MPC device, copy the Synths directory you downloaded into the top-level (not in any folder) of a SD card or USB drive. You do not need to copy any of the other files. Then, insert the drive into your device.
Note: For maximum convenience, we recommend you install a SATA drive in the drive bay of your standalone MPC and then copy the Synths folder onto this drive. MPC One does not have a SATA drive bay; for MPC One we recommend you install the folder onto a SD card.

Operation

Overview

Setup Section

1. Keyboard: Click this icon to enable or disable the virtual keyboard. When enabled, you can click these keys to input notes, or view notes being played on an external MIDI device.
2. Tempo: Displays the current plugin tempo. To change the tempo:
   • Click the number and use your keyboard to input a new value.
   • Click and drag the tempo value up or down using your cursor.
   • Click the Tap button at regular intervals.
3. Settings: Click this icon to open the Settings window, where you can set the following parameters:
   • Output: to select an audio hardware driver in your computer system. Click the Test button to play a test tone for checking your audio output settings. (Careful! You should lower the volume on your audio system beforehand.)
   • Sample Rate: Click this drop-down menu to select the desired sample rate for your project. This depends  on the available sample rates of the type of MPC hardware you are using or of your audio interface (i.e., select 96000 Hz only if your interface allows a 96 kHz sample rate).
   • Audio Buffer Size: Click this drop-down menu to set your audio system’s latency. Lower values result in a more immediate playing response but also more CPU consumption. If you are working with larger projects, this may cause audible clicks and pops. Higher values are more CPU-friendly but can produce more delay between pressing a pad and hearing the corresponding sound. The ideal audio buffer size also depends on your computer’s CPU performance. Experiment with this to find the best setting for your system.
   • Active MIDI Inputs: Displays available MIDI input devices. To enable a device, check the box next to its name.
   • Bluetooth MIDI: Click this icon to open your system’s Bluetooth settings menu, where you can select a Bluetooth-enabled MIDI device to control the plugin.
4. Menu: Click this icon to open the menu, where you can find the following options:
   • Scale: Click here to select a value to scale the plugin window to a new size.
   • Load Preset: Click here to load a saved preset.
   • Save Preset: Click here to save the current preset.
   • Open User Guide: Click here to open this User Guide.
   • About: Click here to view plugin version information.
5. Preset: Click this drop-down menu to view the list of included plugin presets. You can also click the up and down arrows next to this field to move to the previous or next
   preset.

Effects Toggle and Global Controls

Synth Controls

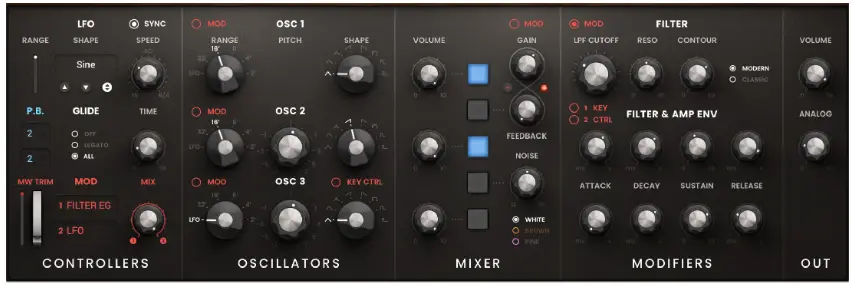

Controllers

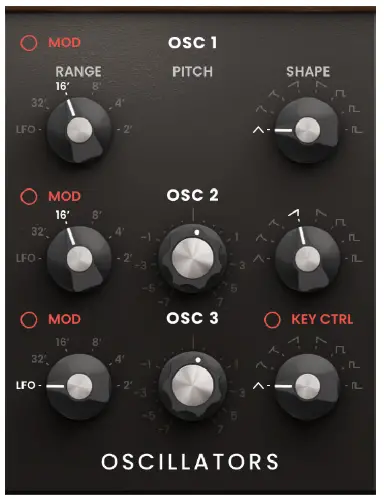

Oscillators

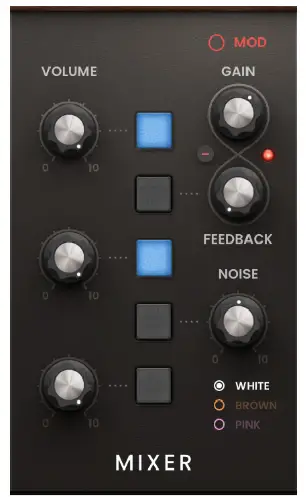

Mixer

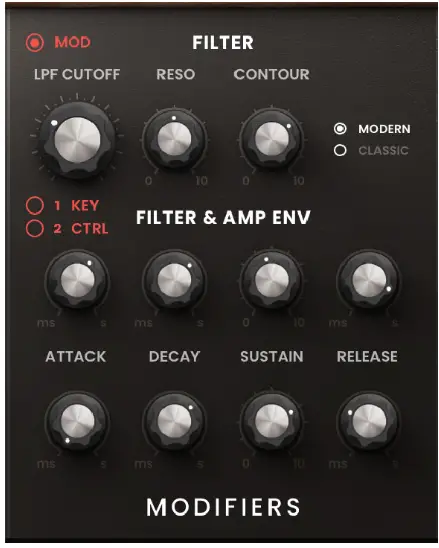

Modifiers

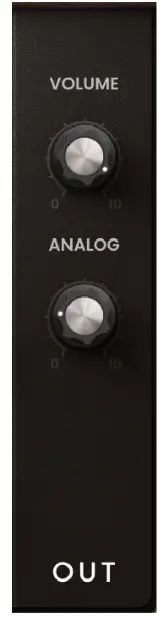

Out

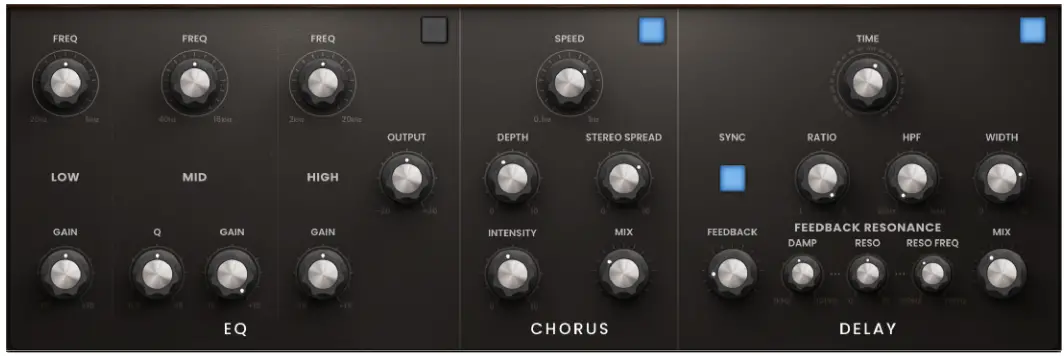

Effects Controls

Trademarks and Licenses

AIR Music Technology is a trademark of inMusic Brands, Inc., registered in the U.S. and other countries.
macOS is a trademark of Apple Inc., registered in the U.S. and other countries.
Windows is a registered trademark of Microsoft Corporation in the United States and other countries.
All other product or company names are trademarks or registered trademarks of their respective owners.
