USER MANUAL
SMART BRACELET
TS29B
Contents hide
Downloading the App
Scan the following QR code, download, and install the App.
Scan QR Code and Download
http://plus.crrepa.com/app-download/dafit

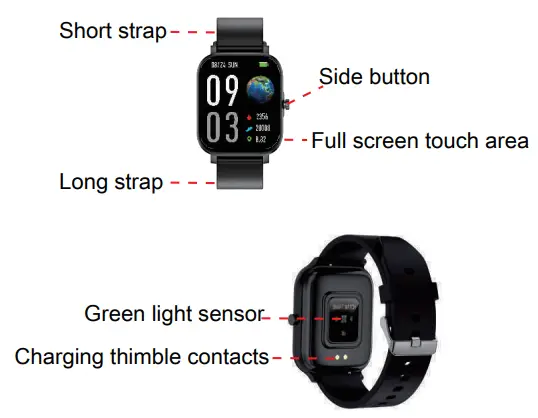

Appearance introduction

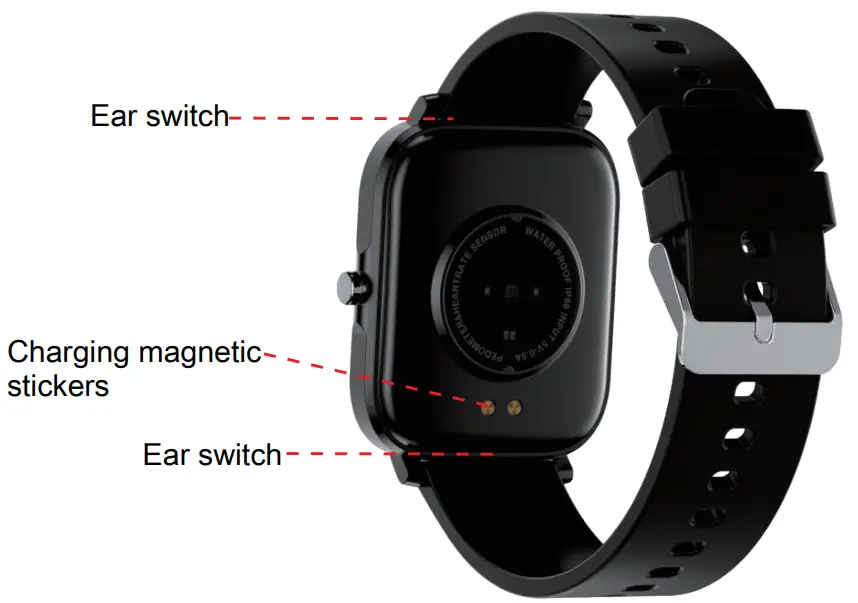

How to remove the strap
Charging requirements and battery specifications
| Operating Voltage | 3.7V |
| Battery capacity | 230mAh |
| Battery Type | Lithium polymer battery |
| Battery Type | Contact charging |
| Charging method | ≤12Hour, 25°C constant temperature |

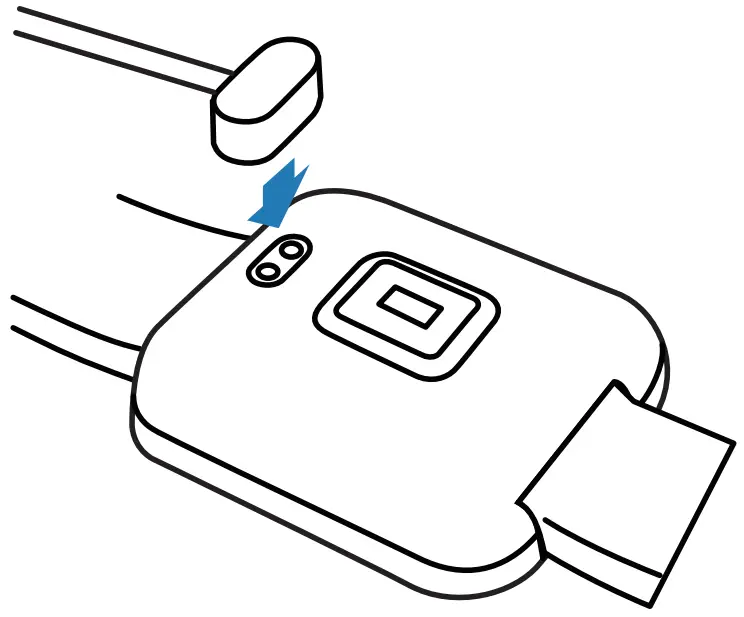

Charging and Active
Charging the device to active before the first time using; To charge your device, plug the charging cable into the adapter or USB port on your computer.
If the watch is out of power. please charge it. and wait for 5-10 seconds to light up the screen.

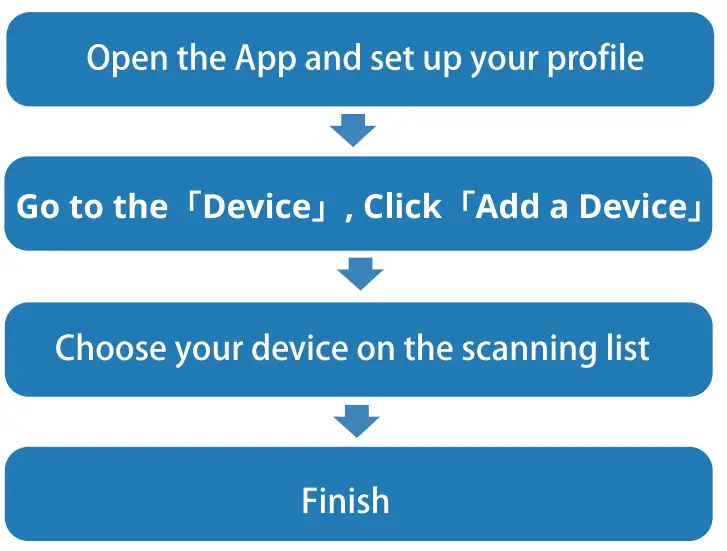

Pairing
The MAC address on the ‘Setting” -* About’ page could help you identify your device on the scanning list.
Compatible device description
Android⇔ios
Use the Touch Screen
Smart Watch Features
 | Sleep If you keep wearing Smart Watch in your sleep, it can provide the hours slept and quality of sleep stats on both the screen and the APR NOTE: Sleep stats reset to zero at 10:00 pm. |
 | Heart Rate Test The Smart Watch could record your heart rate all day. You also could tap on the page to start measuring heart rate. Click to start to test, it will vibrate after testing. |
 | Sports Smart Watch automatically tracks Steps taken on the screen. NOTE: Your movement stats reset to zero at midnight. |
 | Training Tap the training icon on the menu to start a new training measure recording, there are 8 sports modes to be chosen. The last training recording will be shown on the training page. |
 | Blood Pressure Test Tap on the blood pressure page to start measuring your blood pressure. On the blood pressure page, It can show the blood pressure measurement data of the last times. |
 | Sp02 Test Tap the 5p02 page to start measuring your Sp02. On the 5p02 page, It can show the Sp02 measured data of the last times. |
 | Weather It could show the weather info for current and tomorrow on the weather page. Weather info is synced after con-necting with the APP, it will not be updated after a long disconnect. |
 | Messages Reminder The device can sync incoming notifications from Twitter, Facebook, Whatsapp, Instagram, etc. Recently 5 messages can be stored. Note: You can switch/off the incoming notification in the APP. |
 | Remote Shutter After connecting the device, you can remote contra! the camera on your phone. |
 | Player Shutter After connecting the device, you can remote contra! the musk playa on your phone. |
 | Other Features Other features include a stopwatch, alarm, timer, brightness, mute on/off, theater mode, factory reset, power off, app, and about. |
 | Stop Watch Tap the start button on the stopwatch page to start timing, and tap the stop button to stop timing. |
 | Silent Alarms Set up the alarm on the APP, and the device will vibrate to remind you on time. |
 | Modalit a nondisturbo Select MENU VIEW in SETTING to switch between two styles, LIST VIEW, and GRID VIEW. |
 | Remind to Move The device will vibrate to remind you to make relax after 1-hour sitting. Note: You can switch on/off the feature in the APP. |
 | Remind to Drink The smartwatch will remind you Time to Drink Some Water” at the planned drinking time. Note: You can set the feature in the APP. |
Getting to Know Your Device
- Using in Wet Conditions
Your device is water-resistant, which means it is rain-proof and splash-proof and can stand up to even the sweatiest workout. NOTE: Do not swim with your Smart Bracelet. We also don’t recommend showering with your wristband; though the water won’t hurt the device, wearing it 24/7 does not give your skin a chance to breathe. Whenever you get your bracelet wet, dry it thoroughly before putting it back on. - Using Quick View
With Quick View, you can check the time or the message from your phone on your Smart Bracelet without taping. Just turn your wrist towards you and the time screen will appear for a few seconds.
General Info & Specifications
- Environmental Conditions
Operating temperature: 14°F to 122°F (-10°C to 50°C) Non-operating temperature: -4°F to 140°F (-20°C to 60°C) - Size
Fits a wrist between 5.5 and 7.7 inches in circumference. - Disposal and Recycling
Please kindly be aware that it is the consumer s responsibility to properly dispose of and recycle Smart Bracelet and accompanying components. Do not dispose of Smart Bracelet with common household waste, the Smart Bracelet unit is considered electronic waste and should be disposed of at your local electronic equipment collection facility.
For more information, please contact your local electronic equipment waste management authority or the retailer where you bought the product.
