LineLED 24V – Installation Instructions
Models LL42-LL72
LL42-LL72 LineLED 24V Linear LED Reel
Please read complete instruction prior to installation and keep for future reference!
- Product should be installed by a qualified electrician.
- Prior to installation ensure power is off at fuse box to prevent electrical shock.
- Use only with Class 2 power unit. Utiliser seulement avec Classe 2 unite d’alimentation electrique.
- Suitable for Damp Locations. Convent Aux Emplacements Humides.
- For under-cabinet or shelf mount.
- Conforms to UL STD 2108. Certified to CSA STD C22.2 No.250.0.
- Clean the area thoroughly where the LineLED will be installed.

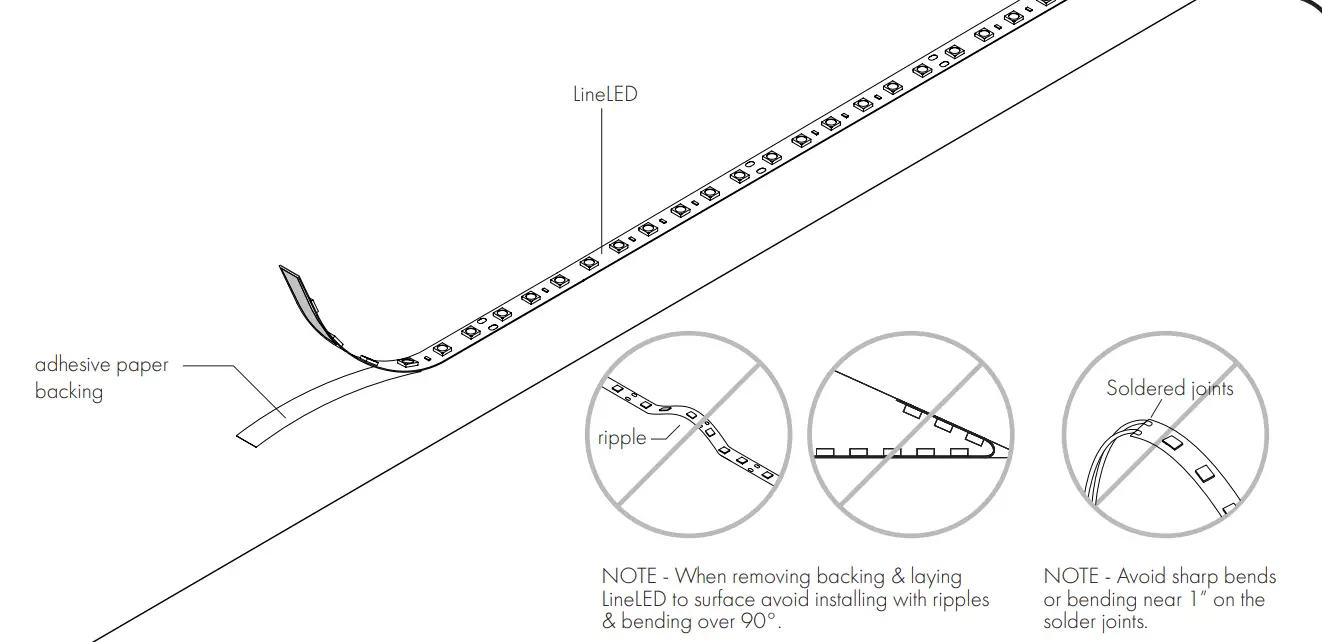

Remove the paper backing from the LineLED and firmly press down making surethere are no air bubbles that can cause surface irregularities. Do not remove theadhesive, removing the adhesive may cause arcing of the Line LED tape.
- If length of LineLED needs to be adjusted on site, simply cut the LED strip in between solder pads. Always cut from end with no connector/wire leads.

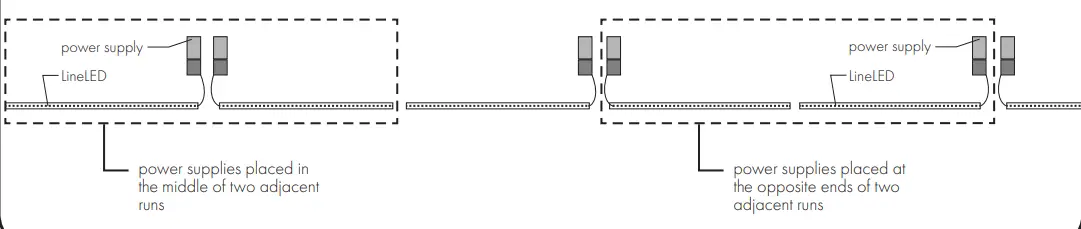

- RECOMMENDED LAYOUT FOR MULTIPLE ADJACENT RUNS OF LINELED FED WITH SEPARATE POWER SUPPLIES
Position power supplies either in the middle of two runs or at the opposite ends.

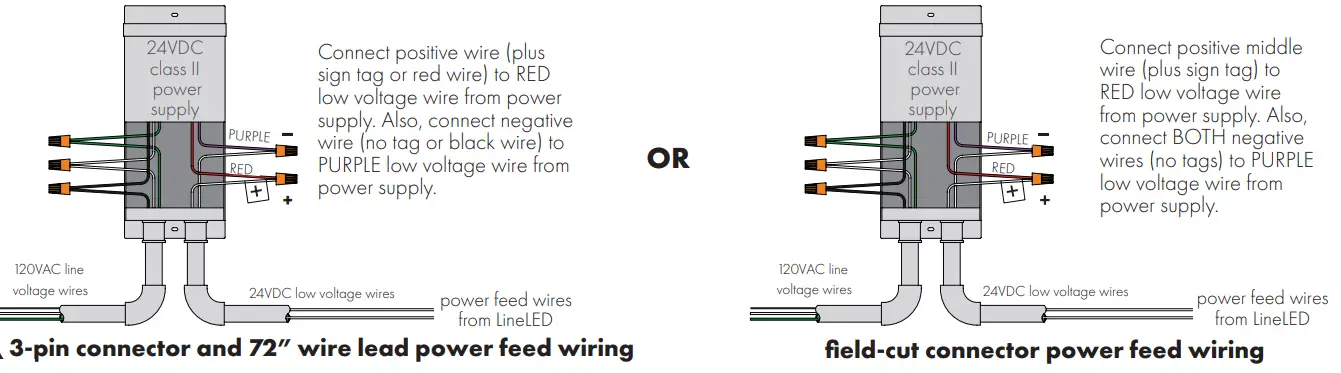

- Always ensure power to power supply is off! Follow diagrams to connect power feed wires to power supply. Refer to power supply instructions for wiring line voltage side.
REV0.2 22082022
*LUMINII RESERVES THE RIGHTS TO CHANGE SPECIFICATIONS WITHOUT NOTICE
