Epson Ecotank Et-4810 Multifunction Printer User Guide

ET-4810
Start Here

Ecotank ET-4810 Multifunction Printer

IMPORTANT: Before using this product, make sure you read these instructions and the safety instructions in the online User’s Guide.
Important Safety Instructions: When using telephone equipment, you should always follow basic safety precautions to reduce the risk of fire, electric shock, and personal injury, including the following:

• Do not use the Epson® product near water.
• Always keep this guide handy.
• Avoid using a telephone during an electrical storm. There may be a remote risk of electric shock from lightning.
• Do not use a telephone to report a gas leak in the vicinity of the leak.

Caution: To reduce the risk of fire, use only a No. 26 AWG or larger telecommunication line cord.

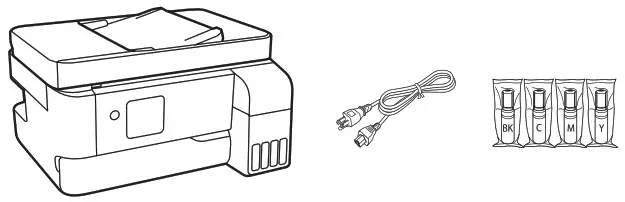

Unpack

Note: Do not open the ink bottles until you are ready to fill the ink tanks. The ink bottles are vacuum packed to maintain reliability.

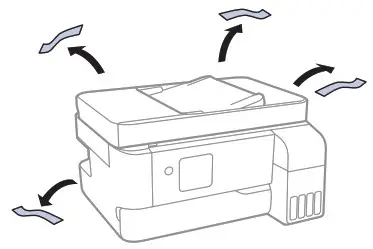

1. Remove all protective materials from the product.

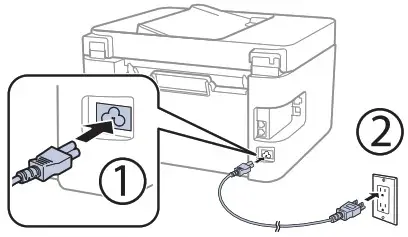

2. Connect the power cord to the back of the product and to an electrical outlet.
   Caution: Do not connect to your computer yet.

Choose a setup method

The Epson Smart Panel® app can help you set up your printer through an interactive, step-by-step process using your smartphone or tablet.

To use your mobile device for setup, continue to step 1.

OR

If you do not want to use a mobile device for setup, skip to the “Fill ink tanks” section.

1. Download the Epson Smart Panel app from your device’s app store. Do not launch the app yet.
   http://www.epson.com/support/smartpanel

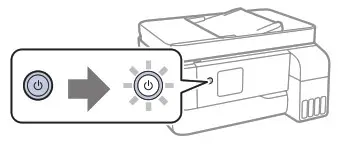

2. Hold the  power button until it lights up to turn on the product.
   Note: Do not connect your product to your computer yet.
3. Launch the app and follow its instructions to set up your product. If necessary, tap the + icon on the top right corner of the app’s home screen, select the option to set up a new product, and follow the instructions to set up your product.

For information on setting up the fax, connecting your product to a computer, using voice-activated printing, solving problems, or for details on reaching Epson support, see the sections on the back of this sheet.

Fill ink tanks

Warning: Keep the ink bottles out of the reach of children and do not drink the ink.
Caution: This product requires careful handling of ink. If ink spills, wipe it off immediately with a damp towel to avoid permanent stains.
If ink gets on your clothes or belongings, it may not come off.

Note:

• Epson cannot guarantee the quality or reliability of third-party ink.
• Use the ink bottles included with the printer to set up the product.
  Part of the ink will be used to charge the printhead. These bottles may print fewer pages compared with replacement ink bottles.
• Epson strongly recommends the use of genuine ink to ensure optimal print quality and performance.

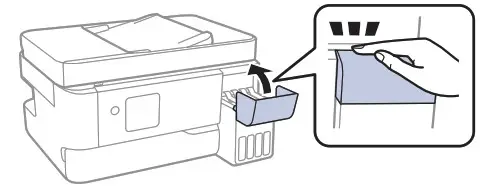

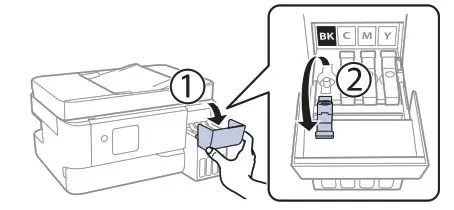

1. Open the ink tank cover, then open the cap for the black (BK) ink tank.
   Note: Refer to the color-coded sticker on the ink tank unit to identify the color of each tank.

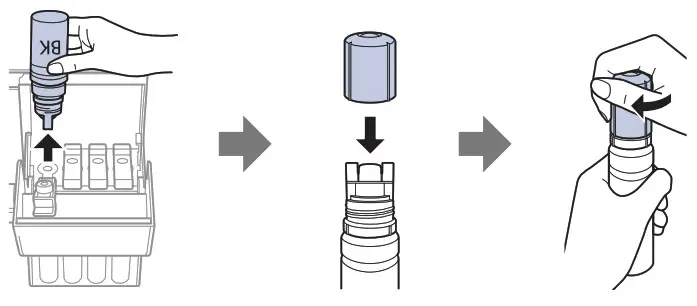

2. Unpack the black (BK) ink bottle. Hold the ink bottle upright and slowly turn the bottle cap to remove it.
   Caution: Do not shake or squeeze the ink bottles. Do not touch the top of the ink bottle after its cap is removed.

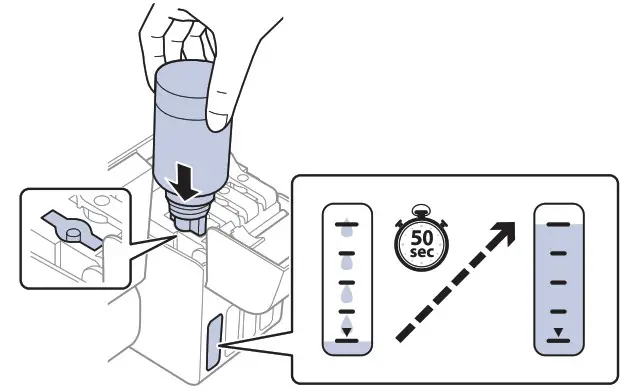

3. Insert the ink bottle into the filling port, as shown below.
   Note: Do not force the bottle into position; each bottle is keyed for each color.
4. Wait for the ink to fill the tank.

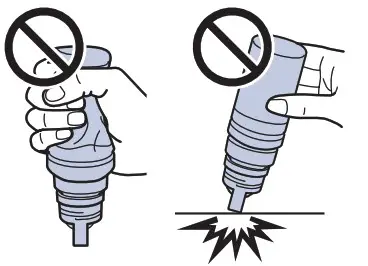

   Do not squeeze the bottle or allow it to contact any other surface.
   Note: Ink flows into the tank and stops automatically when the ink tank is filled to the upper line. If ink does not flow from the bottle, lift and reinsert the bottle.
5. When the ink tank is full, remove the ink bottle and securely close it with the bottle cap. Place the remaining ink aside; you will need it later.
   Note: Do not leave the ink bottle inserted; otherwise the bottle may be damaged or ink may leak. If any ink remains in the bottle, store the bottle upright and top off the ink tank after completing initial setup.

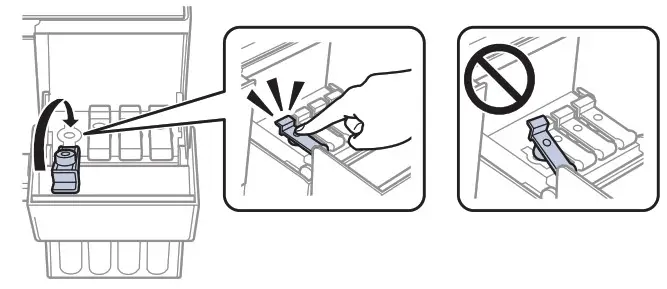

6. Securely close the black ink tank cap.

7. Repeat the previous steps for the other colors.

8. Close the ink tank cover.

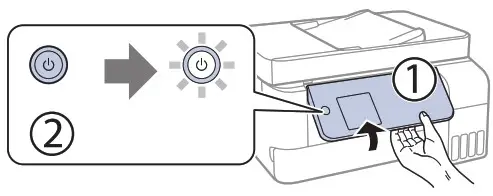

9. Raise the control panel, then press the power button to turn on the product. The power light flashes.
   Note: If an error code appears, turn off the product and check that no protective material has been left inside the product.
10. Select your language, country, date, and time settings.
    Note: You can change these settings later using the product’s control panel. For more information, see the online User’s Guide.
11. When an Epson Smart Panel setup message appears on the LCD screen, select the option to continue setup.

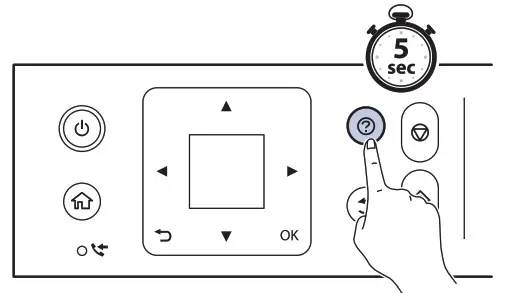

12. When the message to see the Start Here sheet appears on the LCD screen, press and hold the help button for 5 seconds.

13. Press the start button to start ink charging. Ink charging takes about 11 minutes.
    Note: When the power light stops flashing, ink charging is complete. Once initial setup of the printer is complete, you can top off the ink tanks with any remaining ink. See the online User’s
    Guide for instructions.

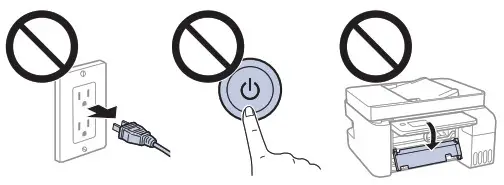

    Caution: Do not unplug or turn off the product, or open the inner cover while the product is charging or you’ll waste ink.
    Note: After some ink is used for charging, the rest is available for printing.
14. Press the OK button to proceed with initial setup.

15. Follow the on-screen instructions to adjust the print quality of your product.

Note:

• You need to load paper before you can adjust the print quality.
  See “Load paper” on this sheet for details.
• Select Adjust Later if you want to adjust the print quality later.
  For more information, see the online User’s Guide.

Caution: After setup, periodically inspect the ink levels to ensure they do not fall below the lowest lines on the tanks. Prolonged use when any ink level is below the lowest line could damage the product. See the online User’s Guide for refilling instructions.

Load paper

See the online User’s Guide for information about loading capacity, available paper types and sizes, loading envelopes, and using the ADF.

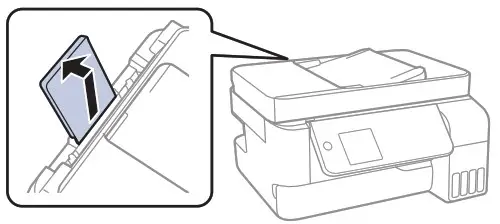

1. Make sure the product is done charging the ink. Then raise the paper support and tilt it backwards slightly.

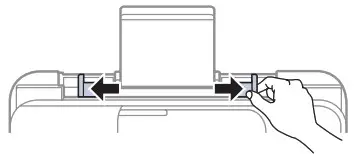

2. Slide the edge guides all the way out.

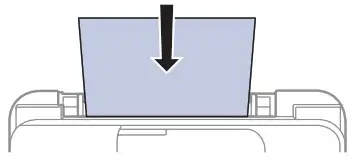

3. Load paper, glossy or printable side up and short edge first, in the middle of the rear paper feeder.
   Note: Do not load paper above the line under the symbol on the edge guide.
4. Slide the edge guides against the paper, but not too tightly.

5. Open the front cover.

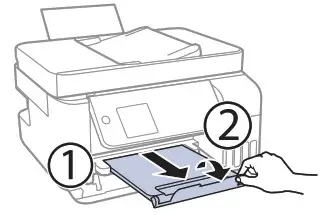

6. Pull out the output tray and raise the paper stopper.

7. Select the paper settings on the product’s control panel.

Connect the fax line

1. Connect a phone cord to a telephone wall jack and to the
   LINE port on your product. See the online User’s Guide for more information.
2. Press the OK button to set up the fax, or press the # pound button to set it up later.

Install software

Note:

• An Internet connection is required to obtain the product software.
• To print from a Chromebook™, go to http://epson.com/support/chromebookprint (U.S.) or http://epson.ca/support/chromebookprint (Canada) for
  instructions.

1. Make sure the product is NOT CONNECTED to your computer. Windows® : If you see a Found New Hardware screen, click Cancel and disconnect the USB cable.
2. Download and run your product’s software package. For the latest software, visit: http://epson.com/support/et4810 (U.S.) or
   http://epson.ca/support/et4810 (Canada).
3. Follow the instructions on the computer screen to run the setup program.
4. When you see the Select Your Connection screen, select one of the following and follow the on-screen instructions:
   • Wireless connection
   In most cases, the software installer automatically attempts to set up your wireless connection. If setup is unsuccessful, you may need to enter your network
   name (SSID) and password.
   • Direct USB connection
   Make sure you have a USB cable (not included).
   • Wired network connection
   Make sure you have an Ethernet cable (not included).

Mobile and voice-activated printing

• Print directly from your Android™ (v4.4 or later) device*. Simply connect your printer and device to the same network and tap the menu icon to select the print option.
• Turn your mobile device into an intuitive, easy-to-use printing and scanning control center with Epson Smart Panel. Download the app from your mobile device’s app store.
• Print remotely with Epson Connect™. See your online User’s Guide for instructions or learn more at http://epson.com/connect (U.S.) or
  http://epson.ca/connect (Canada).
• Use voice-activated assistants to print a variety of creative and everyday items from your Epson product. Simply add your product to an Epson Connect account, then link the account to a voice-activated assistant. See http://epson.com/voice (U.S.) or http://epson.ca/voice (Canada).
  * May r equire the Epson Print Enabler or Mopria Print Service app from Google Play™.

Any problems?
Network setup was unsuccessful.

• Make sure you select the right network name (SSID).
• Restart your router (turn it off and then on), then try to connect to it again.
• The printer can only connect to a network that supports
  2.4 GHz connections. If your router offers both 2.4 GHz and 5 GHz connections, make sure 2.4 GHz is enabled.
• If you see a firewall alert message, click Unblock or Allow to let setup continue.
• If your network has security enabled, make sure you enter your network password (WEP key or WPA passphrase) correctly. Be sure to enter your password in the correct case.
• Print a network connection report to identify network problems and solutions. See your online User’s Guide for instructions.

There are lines or incorrect colors in my printouts.
Run a nozzle check to see if there are any gaps in the printout.
Then clean the printhead, if necessary. See the online User’s
Guide for more information.

The product’s screen is dark.
Make sure your product is turned on and press any button to wake it from sleep mode.

Setup is unable to find my product after connecting it with a USB cable.
Make sure your product is on and the USB cable is securely connected.

Any questions?
User’s Guide
Windows: Click the icon on your desktop or Apps screen to access the online User’s Guide.
Mac: Click the icon in Applications/Epson Software/Guide to access the online User’s Guide.
If you don’t have a User’s Guide icon, go to the Epson website, as described in “Technical support.”

Technical support
Visit http://epson.com/support/et4810 (U.S.) or http://epson.ca/support/et4810 (Canada) to download drivers, view videos and manuals, get FAQs, or contact Epson.
Call (562) 276-4382 (U.S.) or (905) 709-3839 (Canada), 7 a.m. to 4 p.m., Pacific Time, Monday through Friday. Days and hours of support are subject to change without notice. Toll or long distance charges may apply.

Recycling
Epson offers a recycling program for end-of-life hardware and ink bottles. Please go to http://epson.com/recycle (U.S.) or http://epson.ca/recycle (Canada) for information on how to return your products for proper disposal.

Need paper and ink?
Ensure brilliant results with Epson specialty and plain papers, engineered specifically for Epson printers. Find Epson papers and Epson Genuine Ink at http://epson.com (U.S. sales) or http://epson.ca (Canadian sales) and at Epson authorized resellers. Call 800-GO-EPSON (800-463-7766).

Epson printers, ink and specialty papers.

ET-4810 replacement inks

EPSON and Epson Smart Panel are registered trademarks, EPSON Exceed Your Vision is a registered logomark, and Epson Connect is a trademark of Seiko Epson Corporation.
Designed for Excellence is a trademark of Epson America, Inc.
Windows is a registered trademark of Microsoft Corporation in the United States and/or other countries.
Mac is a trademark of Apple Inc., registered in the U.S. and other countries.
Android, Chromebook, and Google Play are trademarks of Google LLC.
General Notice: Other product names used herein are for identification purposes only and may be trademarks of their respective owners. Epson disclaims any and all rights in those marks.
This information is subject to change without notice.
© 2022 Epson America, Inc., 10/22 Printed in XXXXXX
CPD-62636
