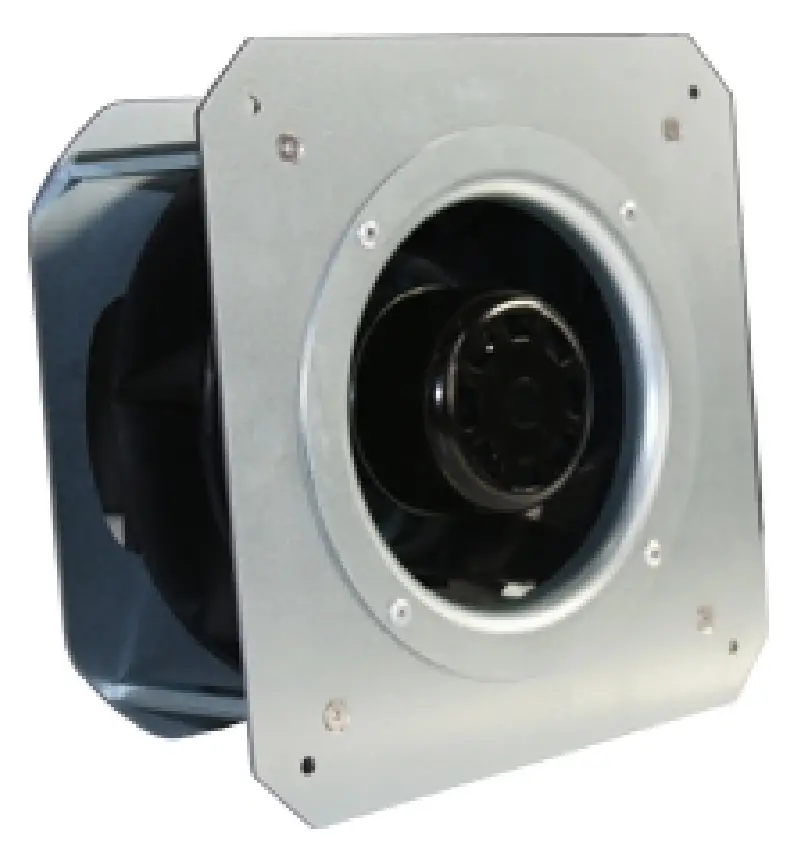

Belong BI2E19064UB2M-IS-SB EC Centrifugal Radial Fans
Technical Specifications
Impeller: Plastic PA66
Motor: EC brushless external rotor motor
Insulation: Class B
Approvals: CE; UL in process
Operating Temperature: -20-+60°C
Technical Features: Control input 0-10VDC/PWM,
Tach output, Soft start, Locked rotor protection, Reverse protection, Current limited protection.
Specifications
| Listed Model | Rated Voltage | Operating Voltage | Rated Current | Rated Power | Rated Speed | Air Flow | Air Pressure | Noise Level | Net Weight | ||
| Part NO | VAC | VAC | A | W | RPM | CFM | M3 /h | mm H2 O | O in H2 O
| dBA
| Kg |
| BI2E19064UB2M-IS-SB | 230 | 184~276 | 1.30 | 170 | 4100 | 553 | 940 | 100 | 3.94 | 72.0 | 2.75 |

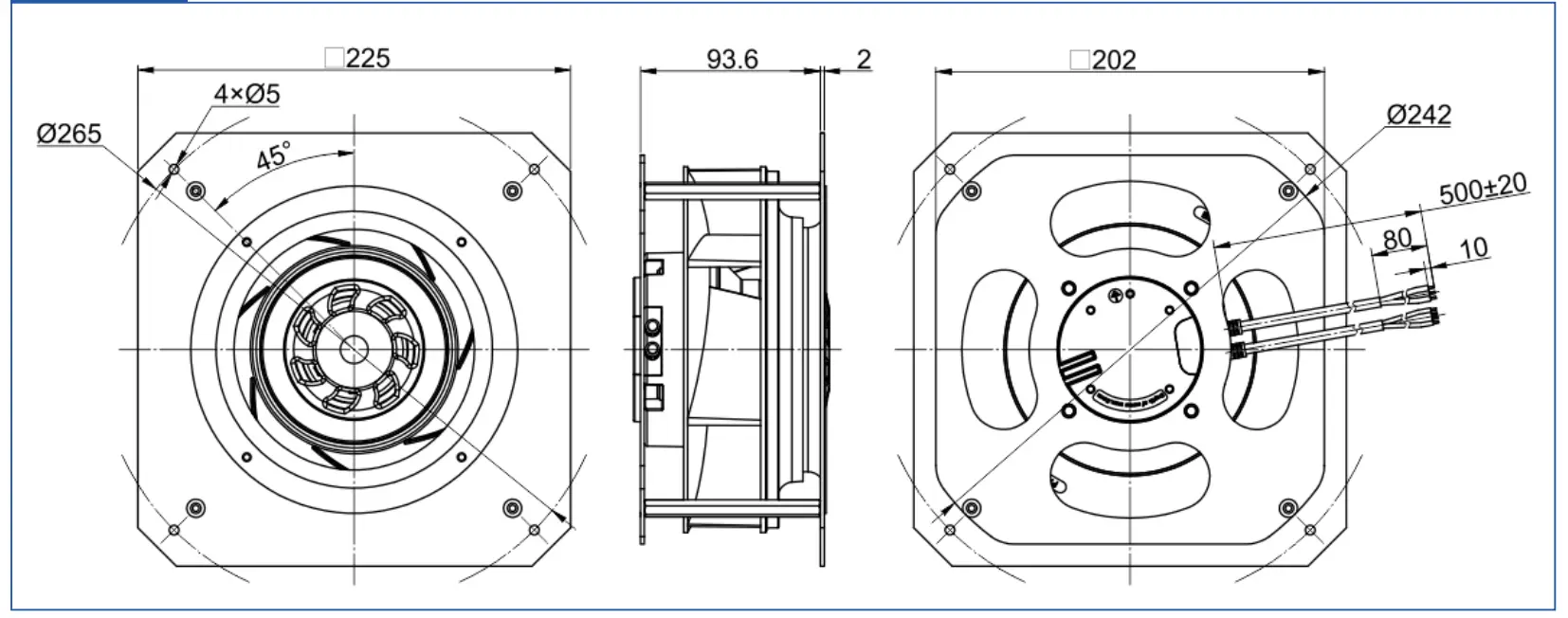

Outline

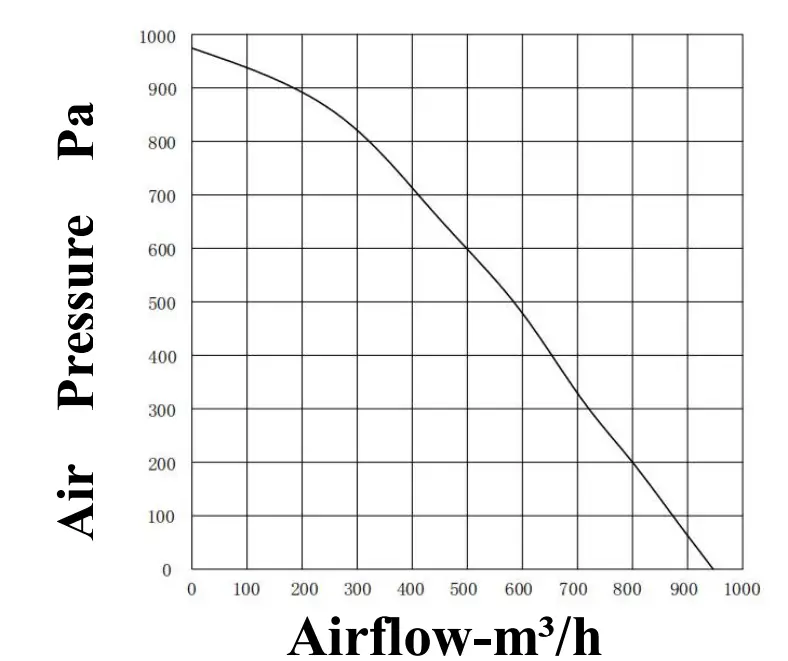

Curves
Other specification can be customized upon request
