USER’S MANUAL

MCS-22C/MCS-22B
powerecoustik.com

To achieve the optimal performance of the player, please read this manual carefully and install the player properly. Please keep this manual for future reference.

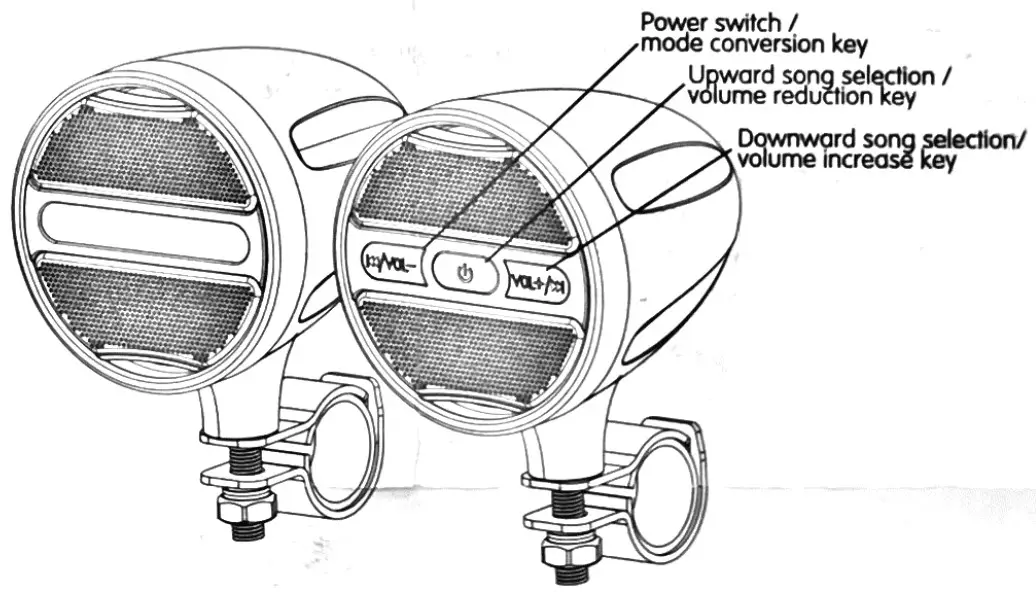

Control Panel

Basic Operations

1. Power switch/mode conversion key
   1) After it is powered on, short press”” key to start up; long press’ ” key to power off, double click” ” for mode conversion.
   2) In the boot reception mode, short press” ” key is the mute function, and the short press again is the relief of mute, double-click is the mode conversion, with the sequential circulating conversion of “radio -U disk -BT”. When the related device is not connected to the host, the corresponding default equipment mode does not participate in the circulation. In the playback status of Bluetooth and U disk, short press is the Pause, and short press again is the relief of the Pause, double-click is the mode conversion, with the sequential circulating conversion of “radio -U disk – BT”. When the relevant equipment is not connected to the host, the corresponding mode of the default device does not participate in the circulation.
2. Upward song selection / volume reduction key( /VOL-)
   1. In reception status, short press “/VOL-” key is low frequency channel search, long press “/VOL-” key is to reduce the volume.
   2. In playing status of BT/U disk, short press “/VOL-” key to select the previous song; long press “/VOL-” key is to reduce the volume.
3. Downward song selection/volume increase key “VOL+/“
   1) In reception status, short press “VOL+/“ high-end frequency channel search; long press “VOL+/“  key is to increase the volume.
   2) In playing status of BT/U disk, short press “VOL+/” key is to select the next song; long press  “VOL+/“ porkey is to increase the volume.

Bluetooth Operation

Bluetooth Pairing Method:

1. After it is powered on, double click the MOD key to enter the Bluetooth mode, when the host is FtOf connected to Bluetooth, the blue light at the speaker of the host and the auxiliary engine flashes; when it is connected to Bluetooth, the blue light at the speaker of the host and the auxiliary engine does not
2. After entering the Bluetooth mode, the host will issue a “Ding Long dong” warning tone, first, open the Bluetooth of the phone; then use the phone to search this local device, (nome: POWER ACOUSTIK) and for pairing connection.
3. The initial password of pairing is defaulted to be “0000”, after the pairing is successful, the host will issue a “ding dong∼ding dong” prompt tone; at this time, open your mobile music player, the Bluetooth playback con be realized. Note: Some phones do not need to enter the pairing password: it will automatically conduct Bluetooth connec1ion after the host is searched.

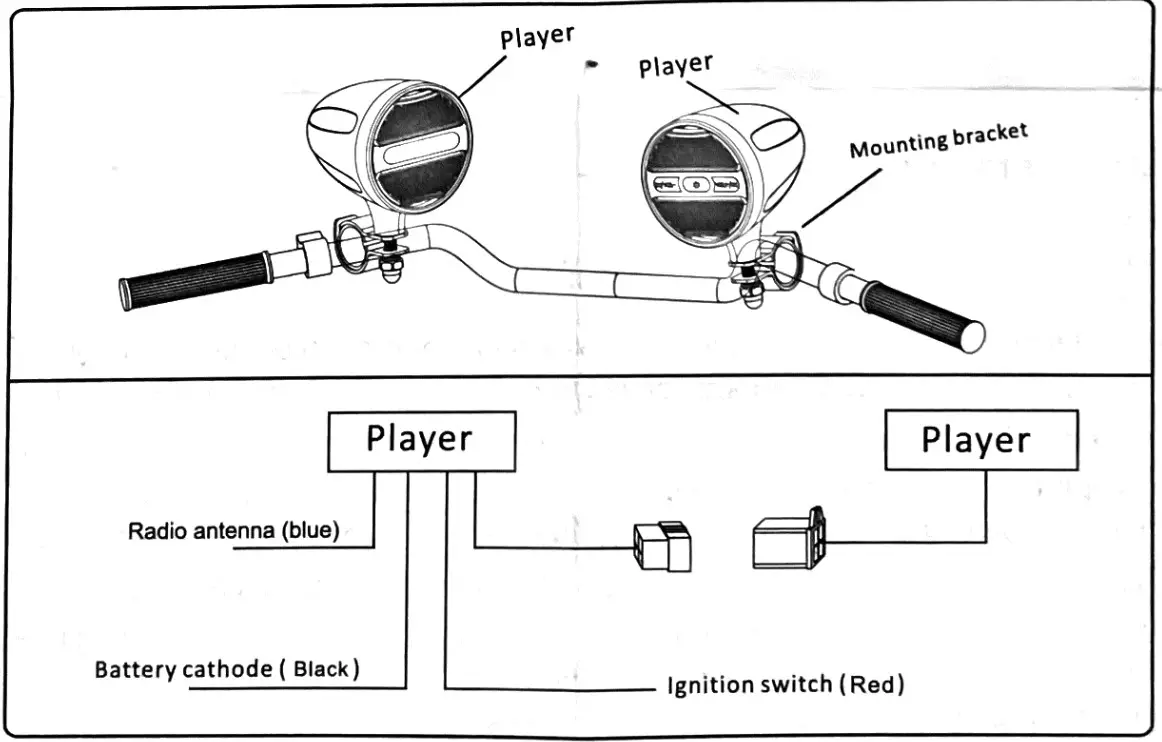

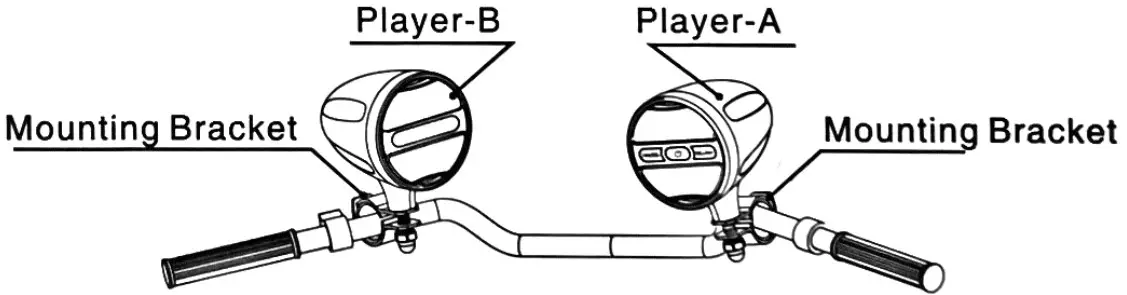

Installation Diagram

Technical Parameters

FM
Frequency range: 87.5∼108MHz
Intermediate frequency: 10.7MHz
SNR: 40dB
Noise sensitivity: 37dB
Player
SNR: 40dB
Channel isolation (at 1 KHz): 23dB
Harmonic distortion (at 1 KHz):  5%
Frequency response: 100Hz∼10KHz±6dB
Power amplifier
Output: Speaker output
Speaker impedance: 4∼8Ω
Maximum active output power: 15Wx2
Maximum output power: 20Wx2
Power supply: DC12V

Caution: +12V DC Negative Ground
Receiving Range: FM 87.5∼107.9MHz

Istallation

This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference
2. This device must accept any interference received including interference that may cause undesired operation.

Serial No.: MCS—22C
