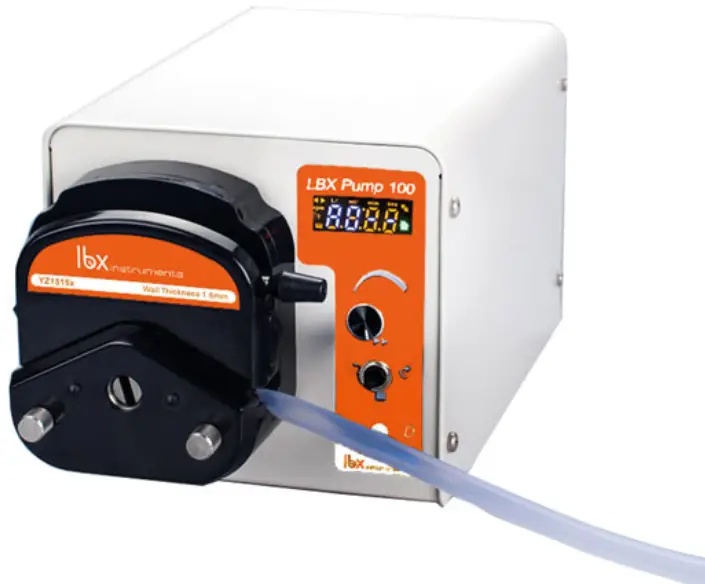

lbx instruments LBX P10 Dispensing Peristaltic Pump
Important notice
This instrument is designed for laboratory usage only. Please read this manual carefully before installing or operating this equipment. The instrument shall not be modified in any way. Any modification will void the warranty and may result in potential hazard. We are not responsible for any injury or damage caused by any non-intended purposes and modifying the instrument without authorization.
- Check the voltage specified on the name-plate and ensure it matches the line voltage in your location.
- Install the instrument in a clean, dust-less, and ventilated area under 40℃.
- Never spray flammable or toxic materials.
- If the following occurs, turn off the pump and disconnect the power plug (pull the plug rather than holding the power line):
- Liquid spilled on the pump
- You think the pump needs maintenance or repair
- Customer’s power outlet must have a reliable earth ground
- If the supply cord is damaged, please contact the manufacturer or your service agent for replacement to avoid hazard.
Service
In order to guarantee this equipment Works safely and efficiently, it must have a regular maintenance. In case of any faults, do not try to repair it yourself. If help is needed, you can always contact your dealer or Labbox via www.labbox.com
Please provide the customer care representative with the following information:
- Serial number
- Description of problem
- Your contact information

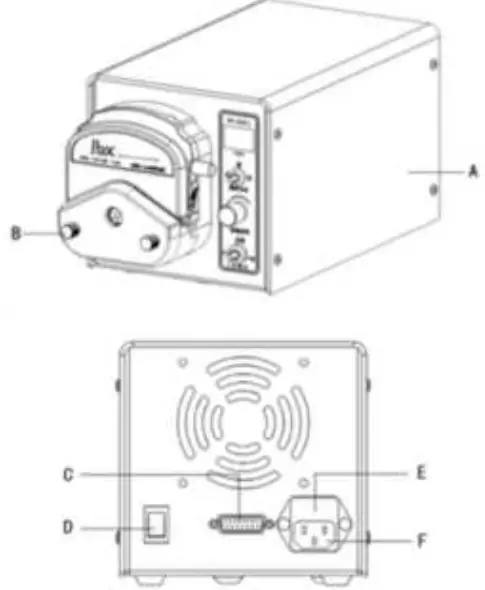

Product overview
- Drive
- Pump head
- Analog interface
- Power switch
- Fuse
- Power socket
- Foot pedal (provided)
Display

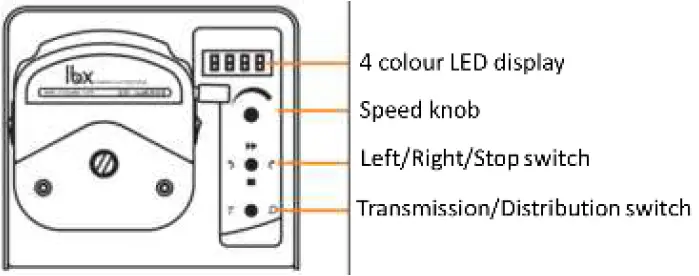

Operation pane

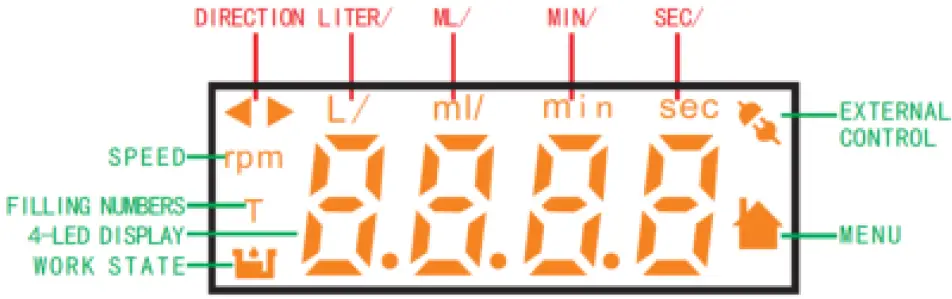

LED DISPLAY INTERFACE

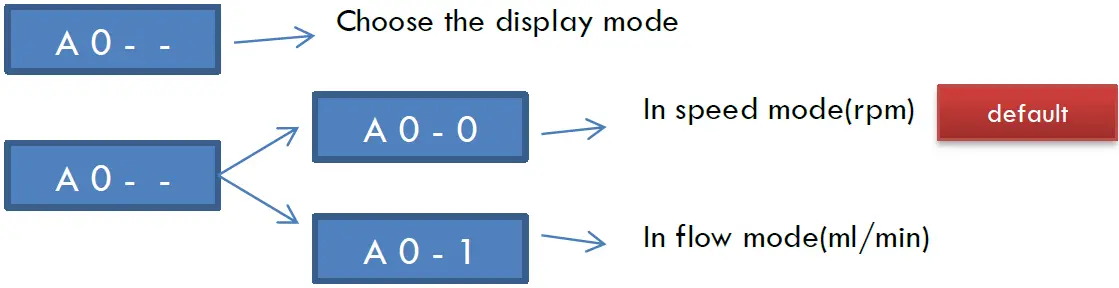

General settings
When the power is on the display will show 1-32

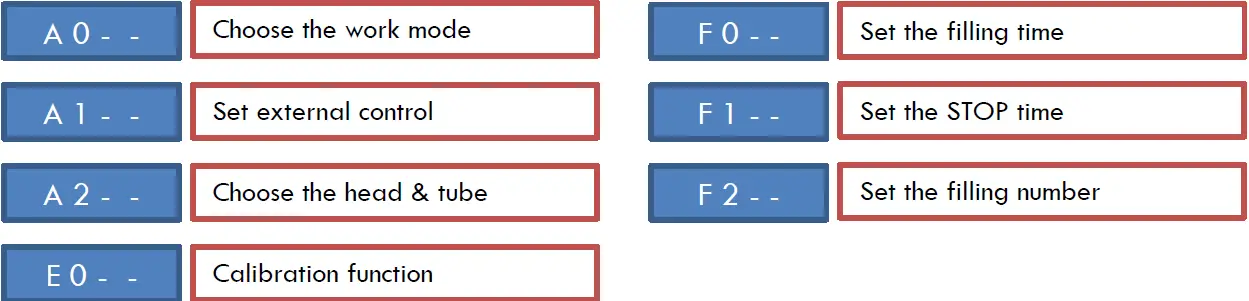

Note: Press the rotary knob, enter the setting menu. Rotate the knob to choose the setting
Note:
In A0-0 mode. You can set the A1/F0/F1/F2

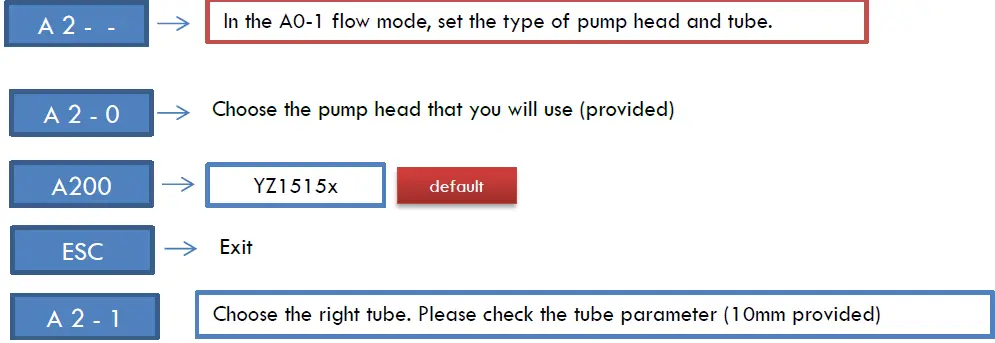

In A0-1 mode. You can set the A1 /A2/E0/F0/F1/F2
Note: Press the rotary knob, enter the setting menu. Rotate the knob to choose the setting mode
Note:
Rotate the knob to ESC. Then exit the current display.

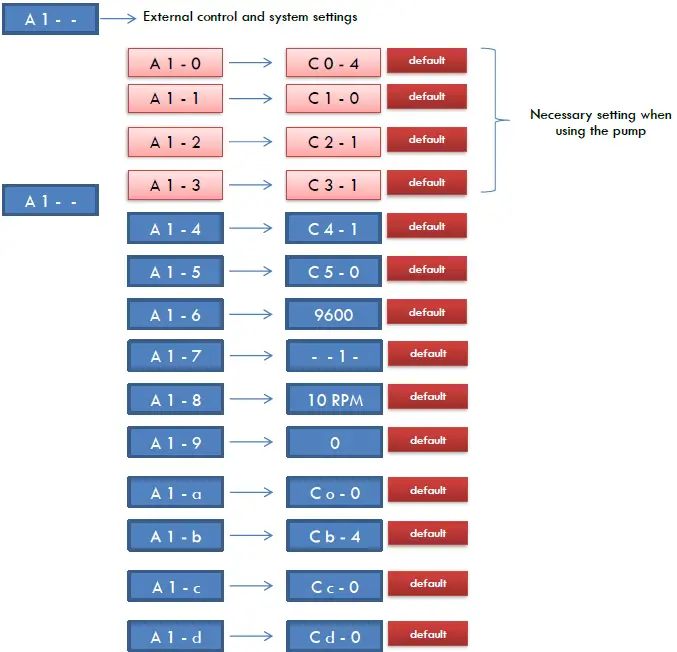

Note: Please do not set the A1-4 to A1-d without the manufacturer’s professional guide
Calibration setting
Press the knob to enter the calibration function
Before calibrating, please use the scale or counting cup in order to know the volume beforehand. Example:
Volume to calibrate: 20 ml
- Enter to calibration setting.
- Rotate the knob to 20.00
- Left–stop-right switch to the direction needed. After stop transfer. Let the direction switch to stop.
- Rotate the knob
- Input the measured volume by scale or counting cup.
- Here finishes the first calibration. If calibration it is still not precise use that calibration function again. 3-5 times is recommended
Flow/speed setting
For example (pump model is P10 10J and the tube diameter is 10mm): The flowrate range is 0.0015-290 ml/min.
- Bottle volume 30 ml
- Wanted performance: to fill 3 bottles per minute
- The speed needed can be calculated by 30*3*2 = 180 ml/min
- In the flow mode, adjust the flow to 180 ml/min
- In the speed mode, adjust speed bearing in mind that 1rpm=2.9 ml
- 180/2.9= 65 rpm, so adjust the speed to 65 rpm
- 180ml/60s=3ml/s 30/3=10 s
- So set the filling time in 10 seconds.
Flow rate according to tube outer diameter. Note: the supplied tube is 10mm in OD.
| Tube | Speed (ml/min/rpm) | |||||||||||
| OD (mm) | 1 rpm | 10 rpm | 30 rpm | 50 rpm | 100 rpm | 150 rpm | 200 rpm | 300 rpm | 400 rpm | 450 rpm | 500 rpm | 600 rpm |
| 4 | 0,07 ml | 0,7 ml | 2,1 ml | 3,5 ml | 7 ml | 10,5 ml | 14 ml | 21 ml | 28 ml | 31,5 ml | 35 ml | 42 ml |
| 4,8 | 0,27 ml | 2,7 ml | 8,1 ml | 13,5 ml | 27 ml | 40,5 ml | 54 ml | 81 ml | 108 ml | 121,5 ml | 135 ml | 162 ml |
| 5,6 | 0,51 ml | 5,1 ml | 15,3 ml | 25,5 ml | 51 ml | 76,5 ml | 102 ml | 153 ml | 204 ml | 208,5 ml | 255 ml | 306 ml |
| 6,3 | 0,82 ml | 8,2 ml | 24,6 ml | 41 ml | 82 ml | 123 ml | 164 ml | 246 ml | 328 ml | 369 ml | 410 ml | 492 ml |
| 8 | 1,7 ml | 17 ml | 51 ml | 85 ml | 170 ml | 255 ml | 340 ml | 510 ml | 680 ml | 765 ml | 850 ml | 1020 ml |
| 10 | 2,9 ml | 29 ml | 87 ml | 145 ml | 290 ml | 435 ml | 580 ml | 870 ml | 1160 ml | 1305 ml | 1450 ml | 1740 ml |
| 11,1 | 3,8 ml | 38 ml | 114 ml | 190 ml | 380 ml | 570 ml | 760 ml | 1140 ml | 1520 ml | 1710 ml | 1900 ml | 2280 ml |
| PUMP-10J-001 | PUMP-30J-001 | PUMP-60J-001 | ||||||||||

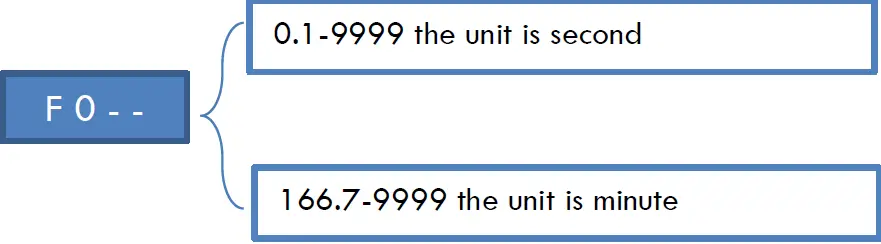

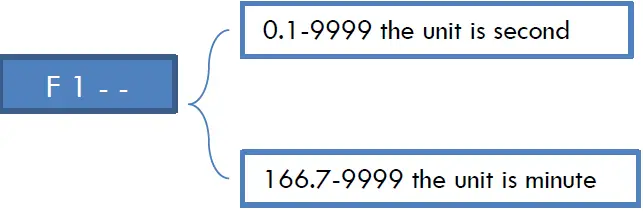

Interval time setting
Interval time setting
Number of times that the pump is needed to repeat the filling action
Warranty
This instrument is warranted to be free from defects in materials and workmanship under normal use and service, for a period of 48 months from the date of invoice. The warranty is extended only to the original purchaser. It shall not apply to any product or parts which have been damaged on account of improper installation, improper connections, misuse, accident or abnormal conditions of operation. For claim under the warranty please contact your supplier.
