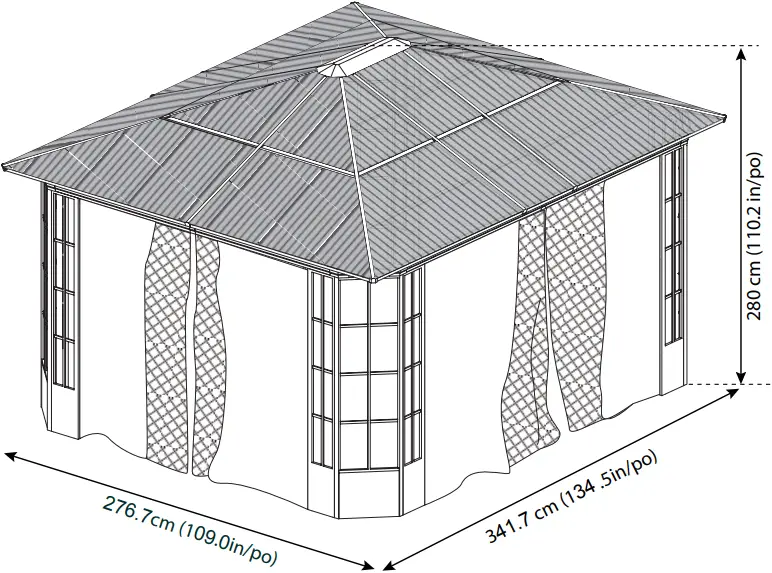

Assembly Manual
Suggested assembly method
Use the hex keys in the box.
Please use a Phillips screwdriver.
You may need to use a drill for this step.
Wearing protective gloves is recommended.
Two or more people are required at this stage.
Do not tighten screws all the way for now.
Sold separately.
Optional step
| [U] X102(+10)
| [U1] X20(+2)

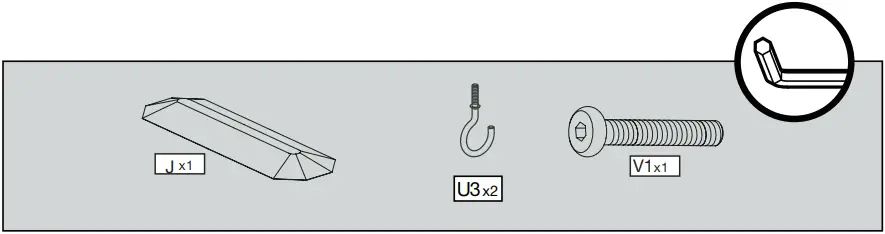

| [U3] X2 (+1)
| |
| [U2] X 8(+2)
| [V] X40(+4)
| ||
| [V1] X1 (+1)

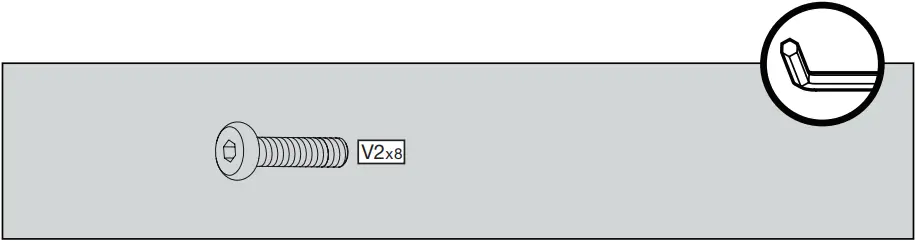

| [V2] X8 (+2)
| ||
| [X] X32(+3)
| [Y] X 30 (+6)
| [Y1] X 10 (+2)
| |
| [Z] X2
| [Z1] X2
| ||

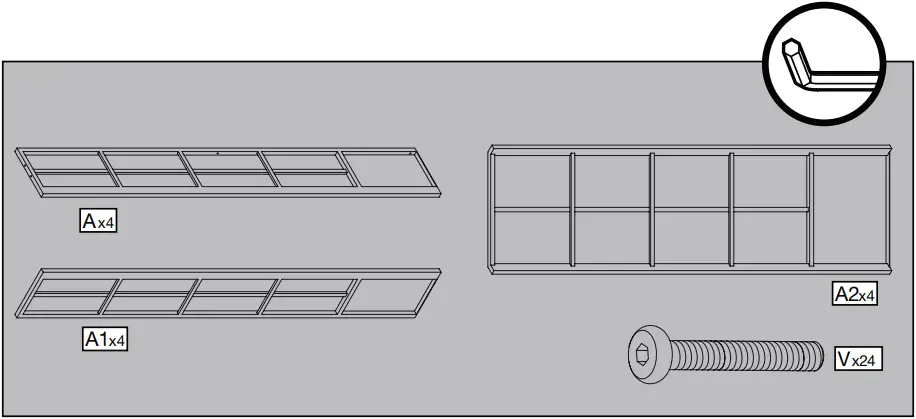

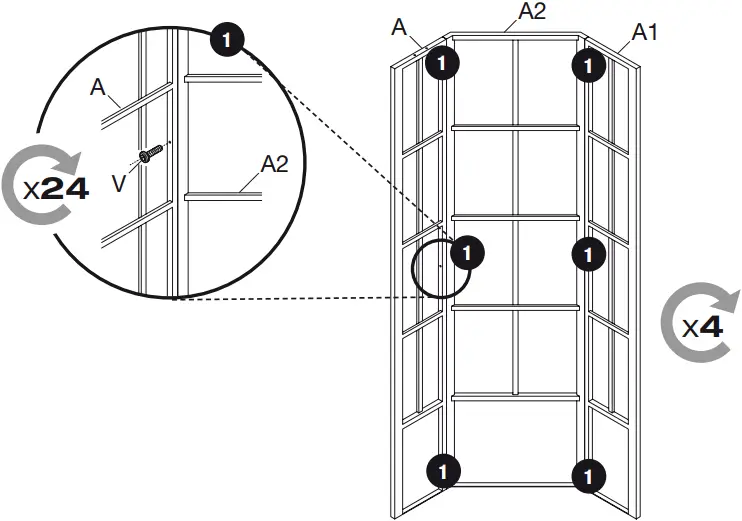

| [A] X4
| |||
| [A1] X4
| |||
| [A2] X4
| |||

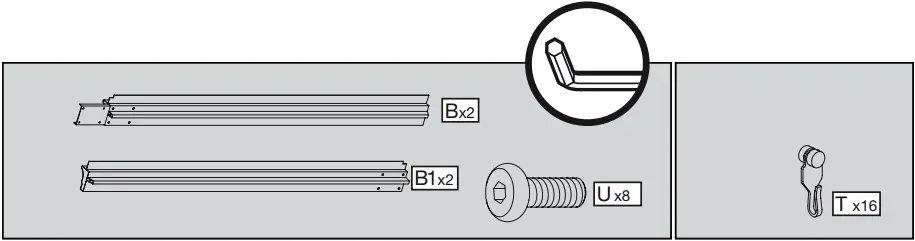

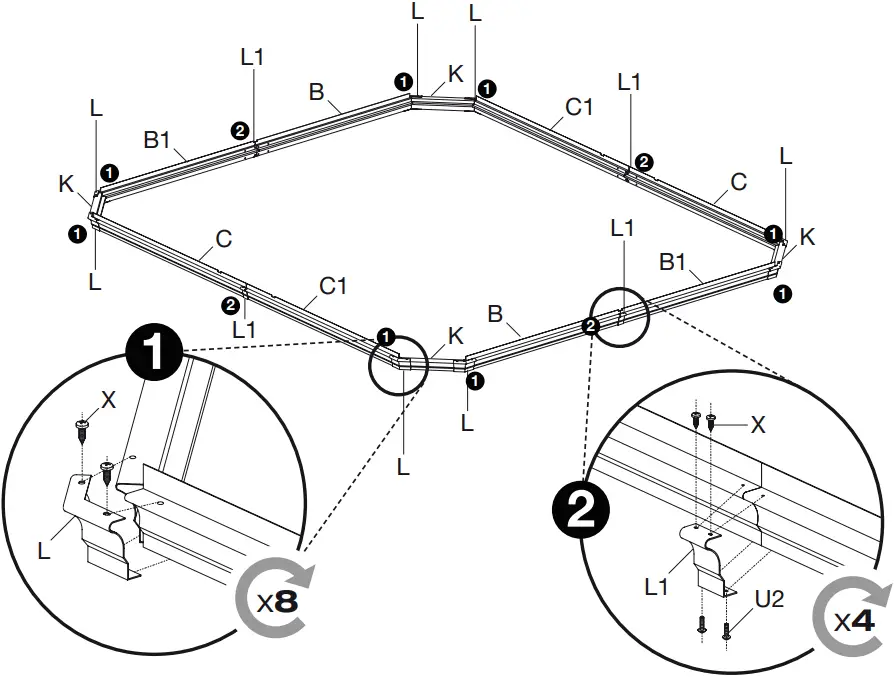

| [B] X2
| |||
| [B1] X2
| |||

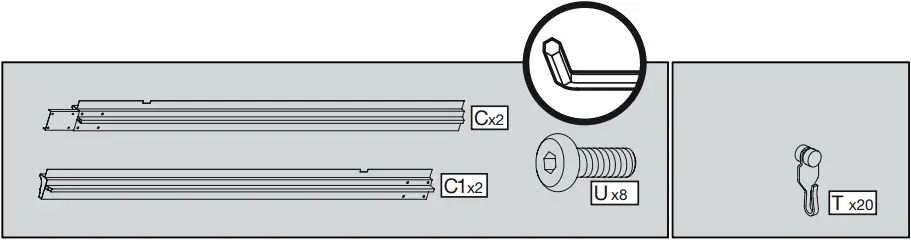

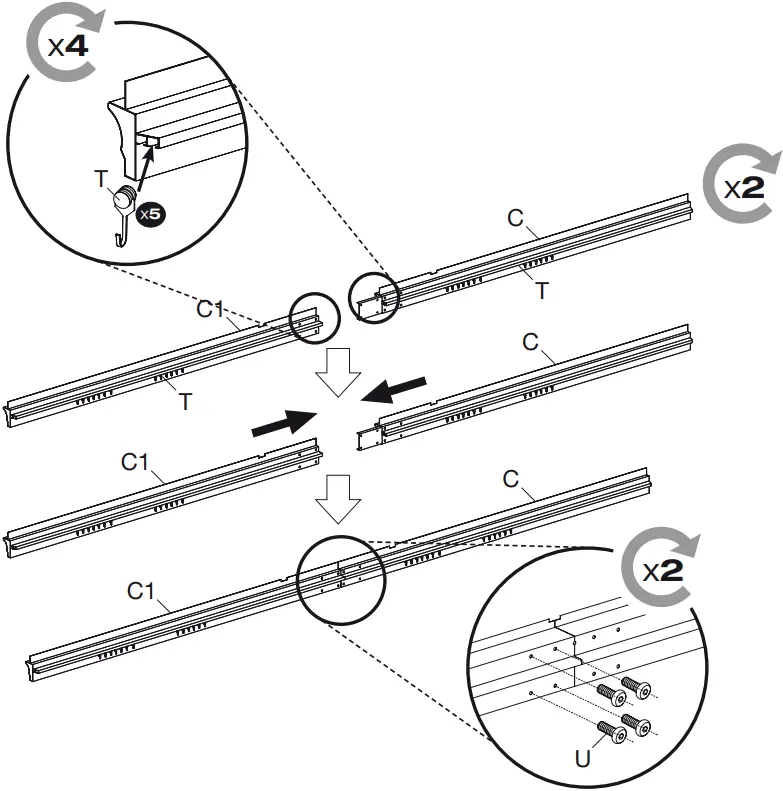

| [C] X2
| |||
| [C1] X2
| |||
| [D] X4
| |||

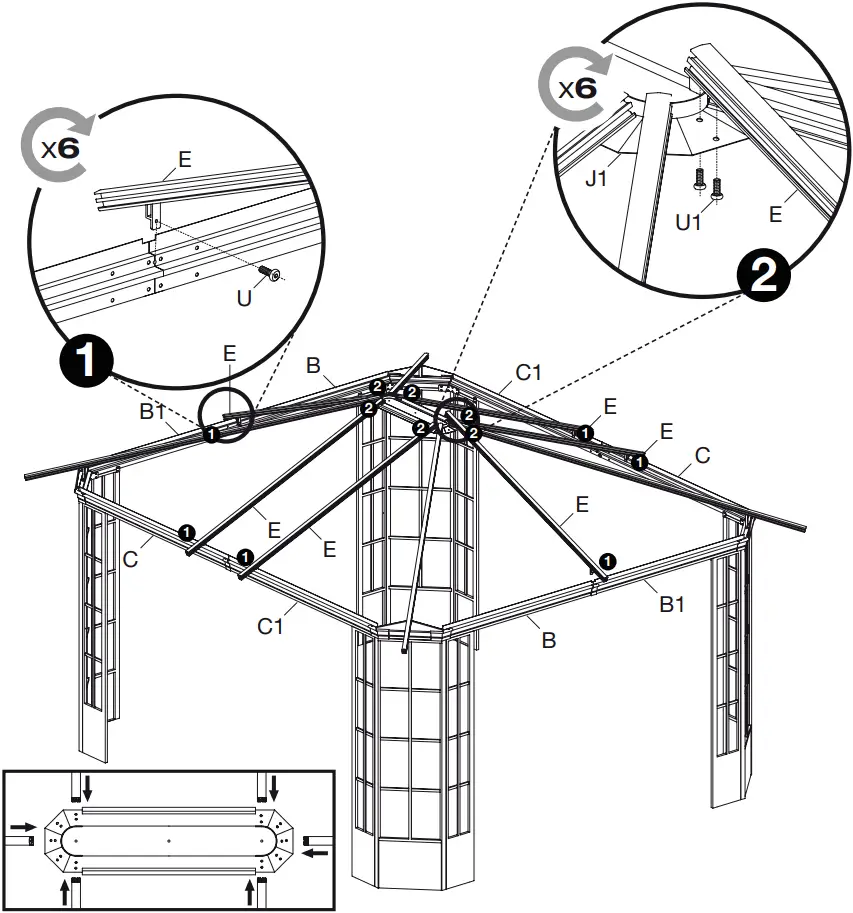

| [E] X6
| |||

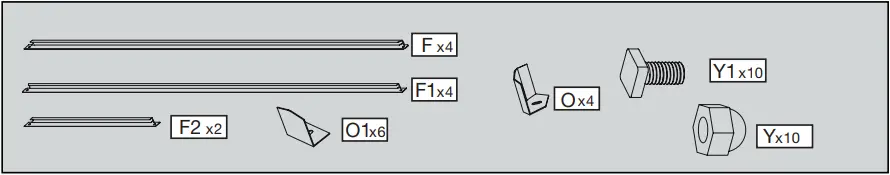

| [F] X 4
| [F1] X 4
| ||
| [F2] X 2

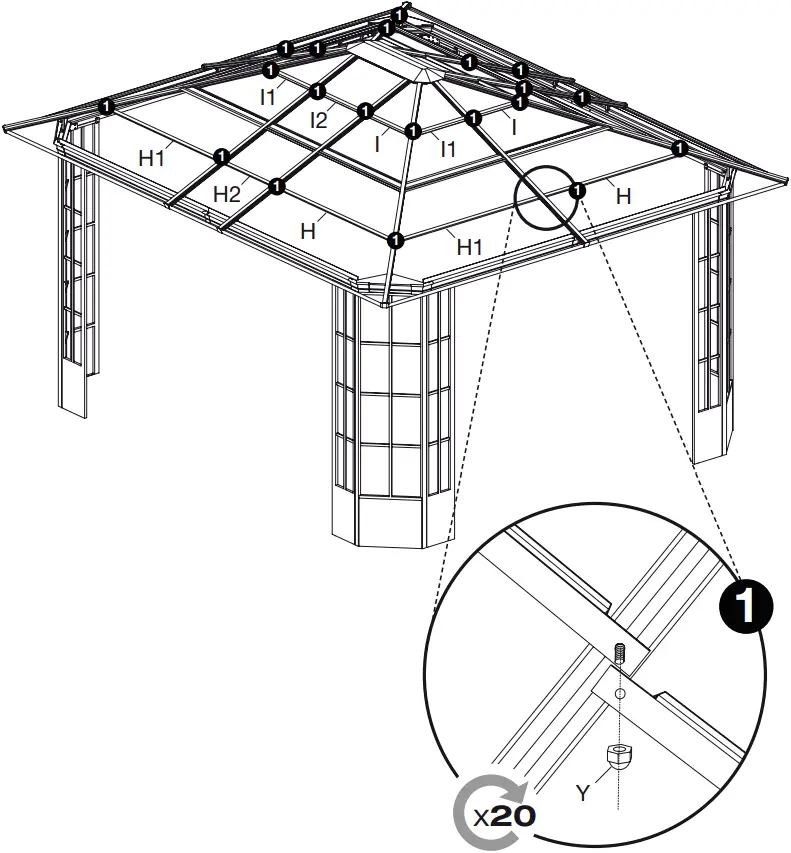

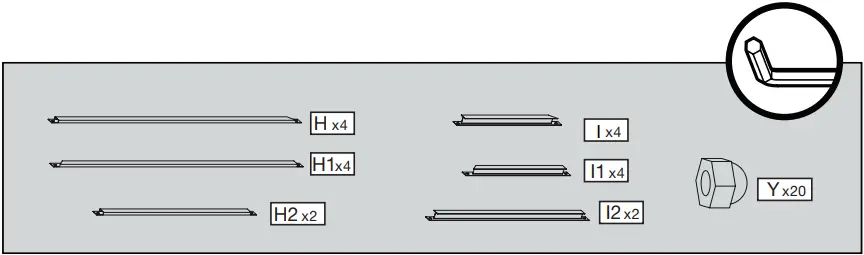

| [H] X4
| ||
| [H1] X4
| [H2] X 2
| ||
| [I] X4
| [I1] X4
| ||
| [I2] X2

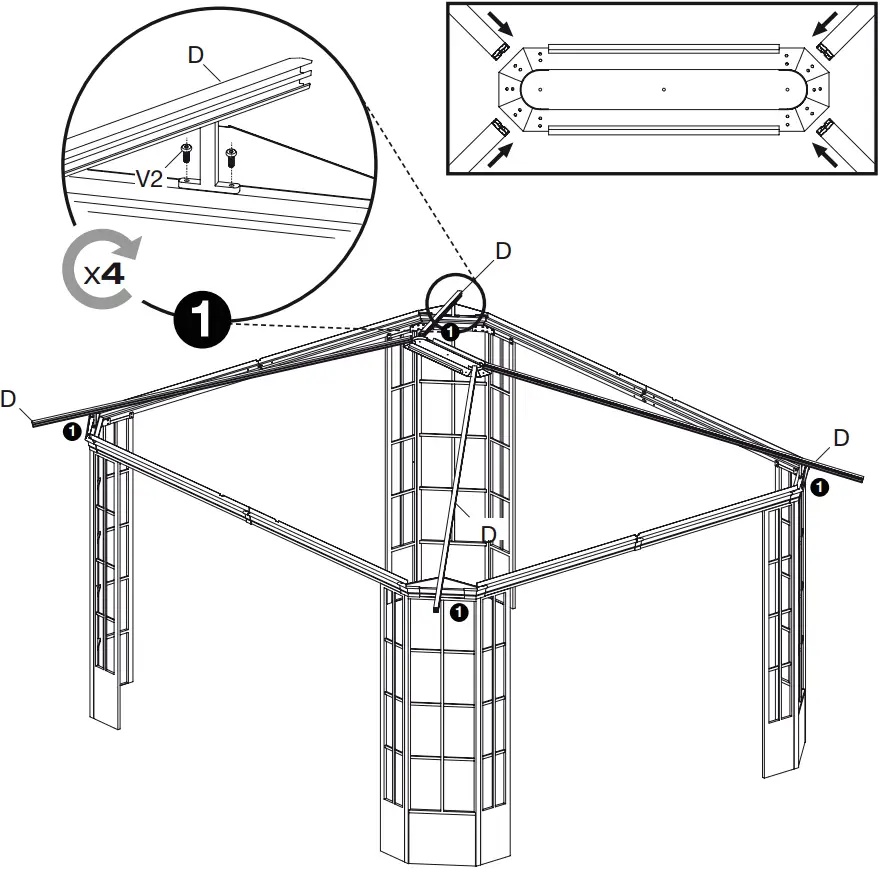

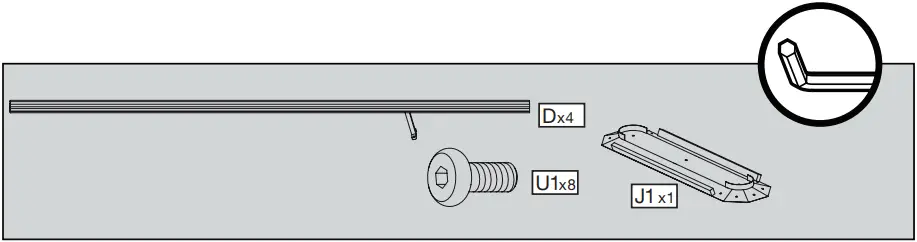

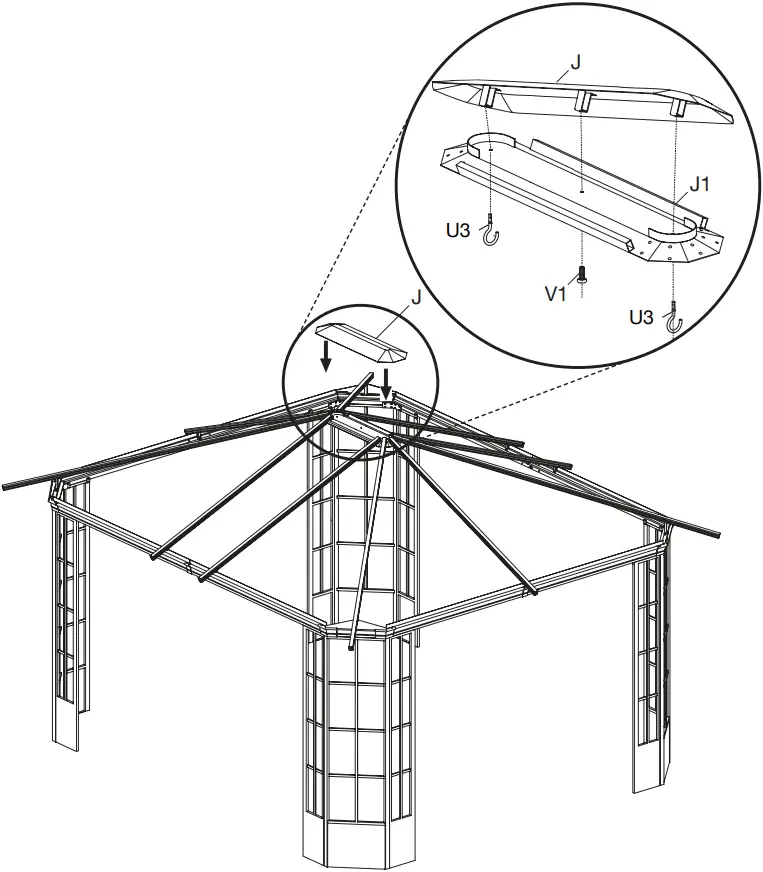

| [J] X 1
| ||

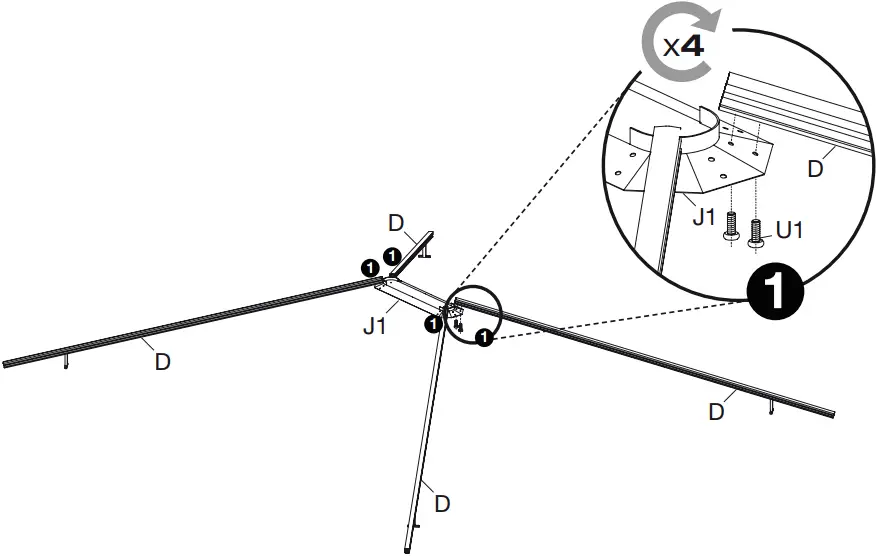

| [J1] X1

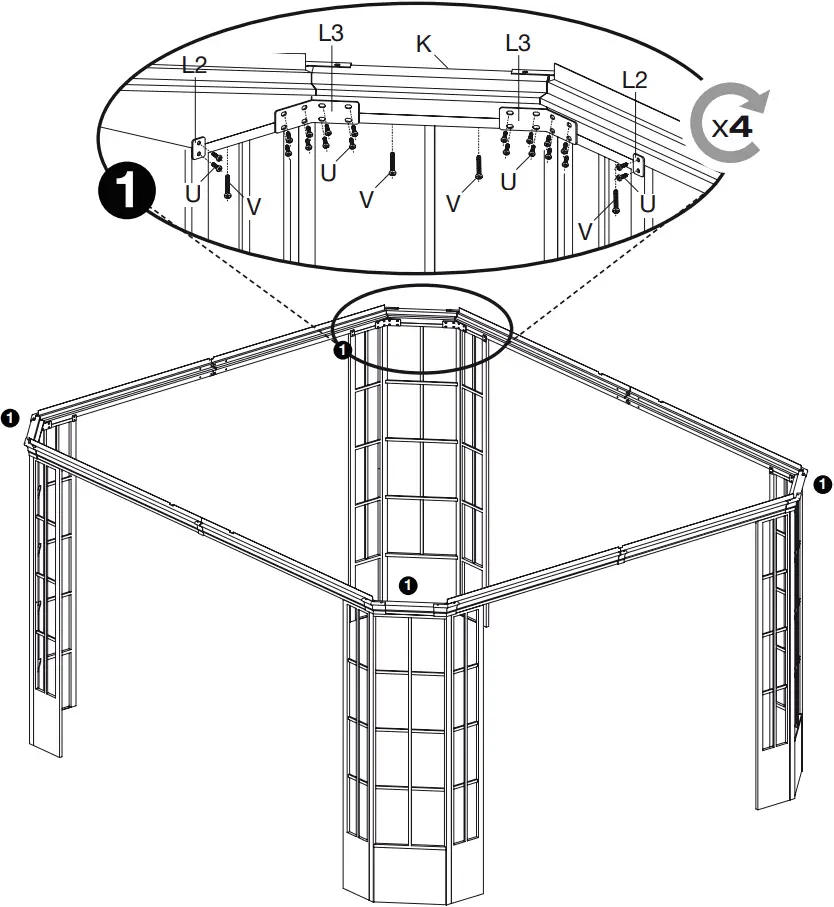

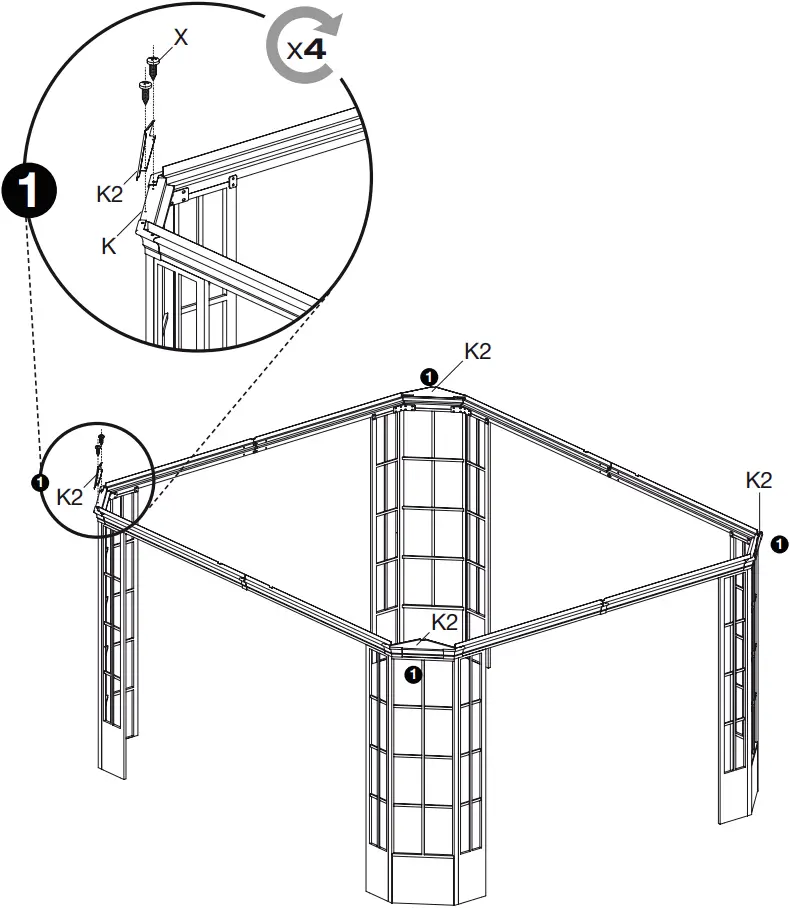

| [K] X 4
| ||
| [K2] X 4

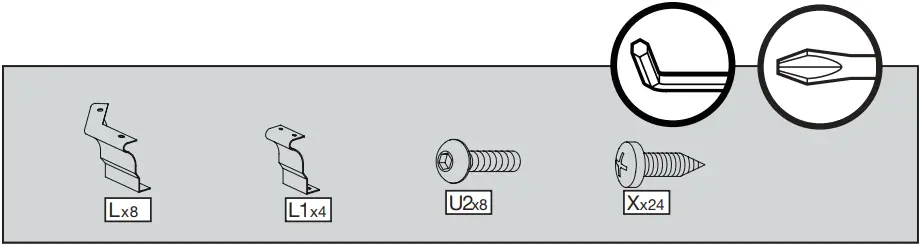

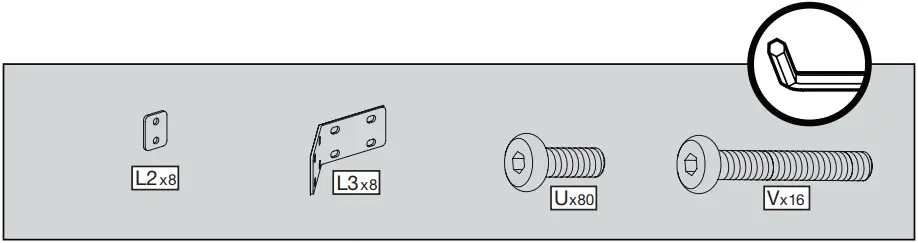

| [L] X 8
| ||
| [L1] X4
| [L2] X8
| ||

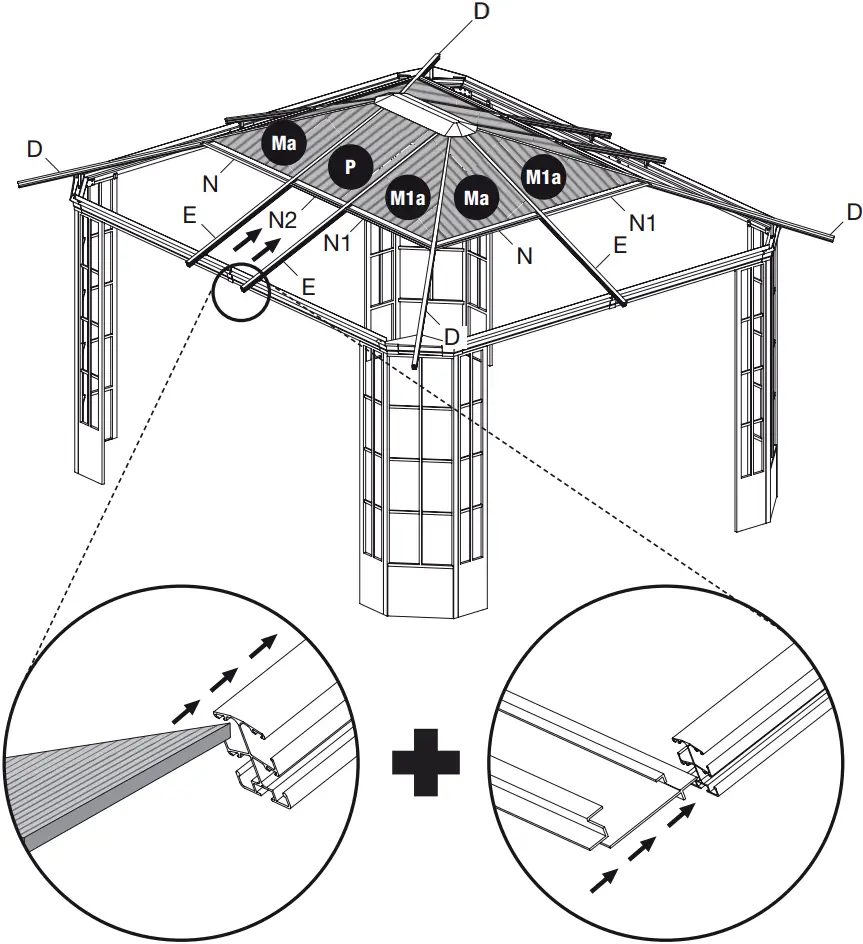

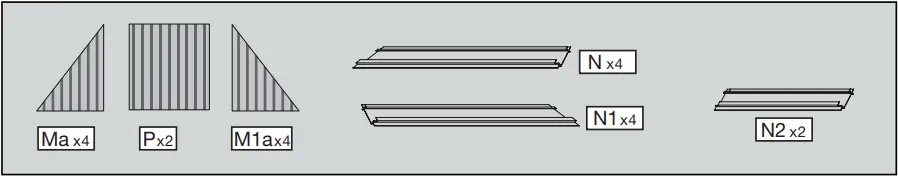

| [Ma] X4
| [P] X 2
| [M1a] X 4
| |

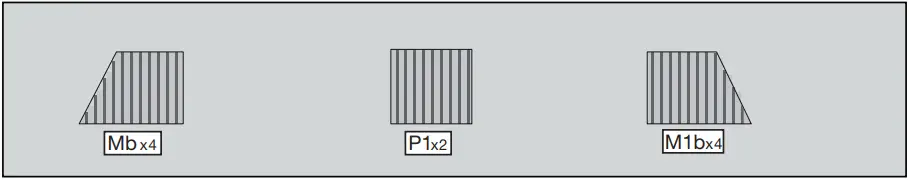

| [Mb] X4
| [P1] X 2
| [M1b] X 4
| |
| [N] X 4
| [N1] X 4
| [N2] X 2
| |

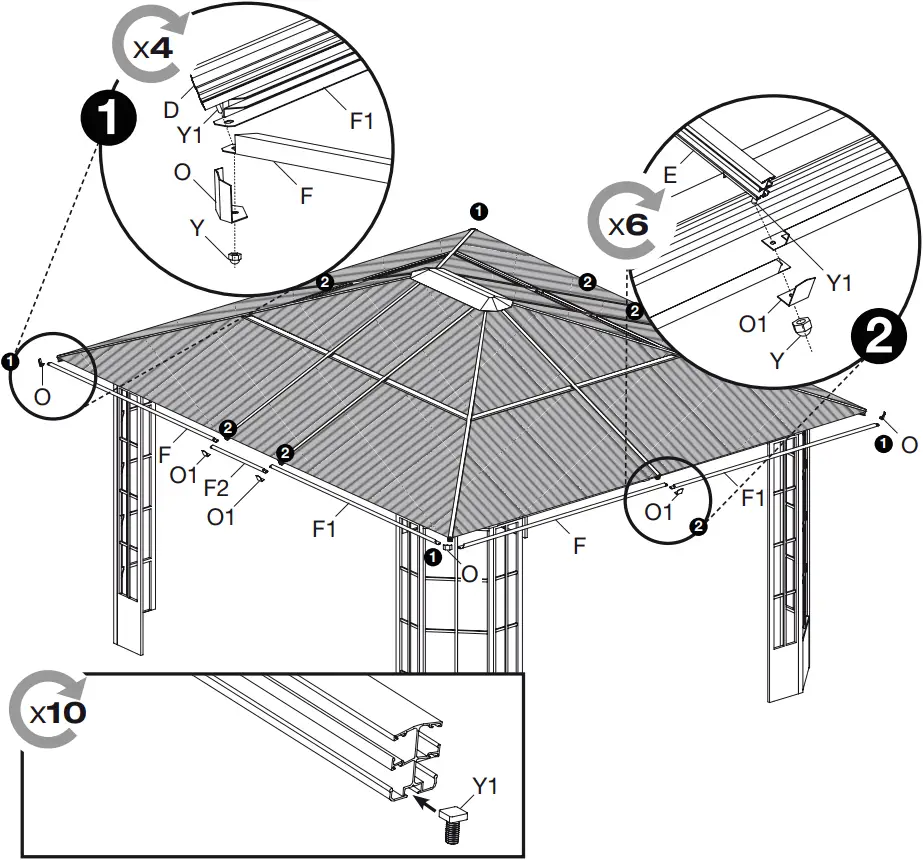

| [O] X 4
| [O1] X 6
| [L3] X 8
| |

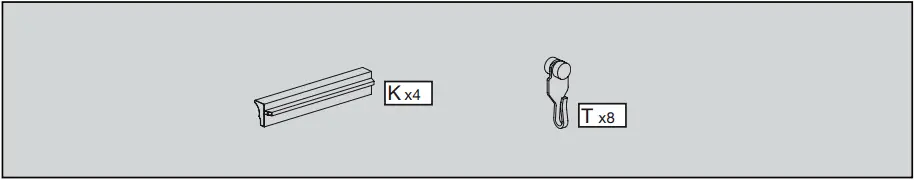

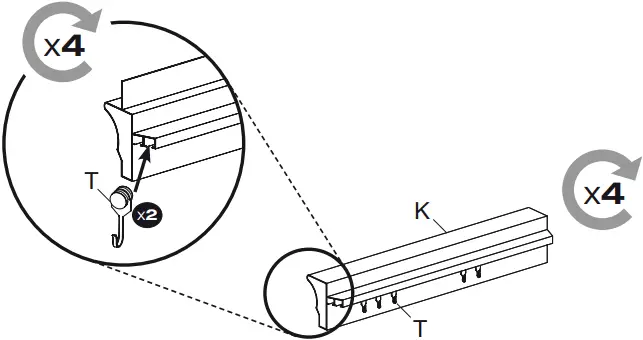

| [T] X 44

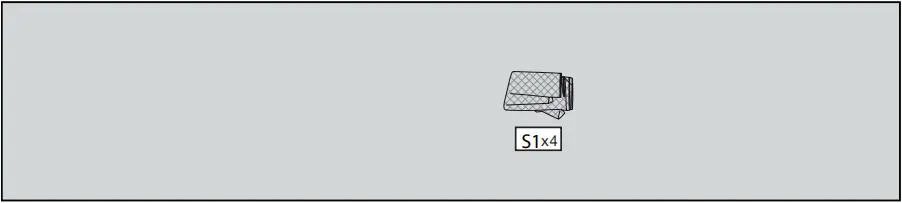

| [S1] X 4
| ||
