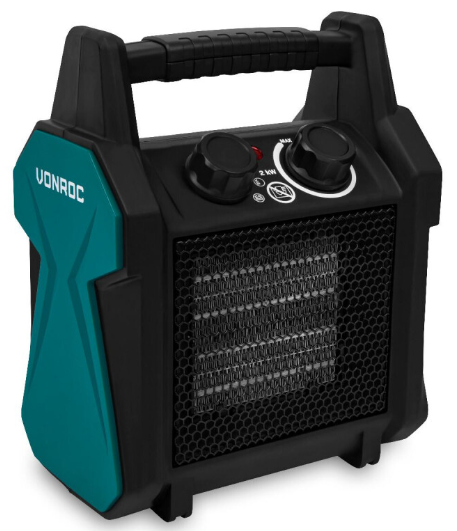

Vonroc Eh510ac Electric Ptc Fan Heater Instruction Manual

EH510AC Electric PTC Fan Heater
Instruction Manual

ELECTRIC PTC FAN HEATER
EH510AC / EH511AC

EH510AC Electric PTC Fan Heater

SAFETY INSTRUCTIONS

Read the enclosed safety warnings, the additional safety warnings and the instructions. Failure to follow the safety warnings and the instructions may result in  electric shock, fire and/or serious injury.
Save the safety warnings and the instructions for future reference.
The following symbols are used in the user manual or on the product:

	Read the user manual.
	Denotes risk of personal injury, loss of life or damage to the tool in case of non-observance of the instructions in this manual.
	Denotes risk of electrical shock.
	Class II machine – Double insulation – You don’t need any earthed plug.
	Important! WARNING: In order to avoid overheating, do not cover the heater.
	Do not dispose of the product in unsuitable containers.
	The product is in accordance with the applicable safety standards in the European directives.

GENERAL SAFETY WARNINGS
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and  knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not  play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
Children of less than 3 years should be kept away unless continuously supervised. Children aged from 3 years and less than 8 years shall only switch on/off the  appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the  appliance or perform user maintenance.

CAUTION — Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are  present.
ADDITIONAL SAFETY WARNINGS FOR ELECTRIC HEATER

• Children should be kept away unless continuously supervised to ensure that they do not play with the heater.
• Children shall not plug in, position, operate, regulate and clean the appliance or perform user maintenance.
• CAUTION-some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.
• The heater is not suitable for use outdoors in damp weather, in bathrooms or in other wet or damp environments.
• Please note that the heater can become very hot and should, therefore, be placed at a safe distance from flammable object such as furniture, curtains and similar.
• Use handle when moving this heater.
• Do not move the heater when it is heated. Allow the product to thoroughly cool before handling it.
• Do not cover the heater.
• The heater must not be located immediately below a socket outlet
• Do not connect the heater using an on/off timer or other equipment which can automatically switch the device on.
• The heater must not be placed/used in rooms where flammable liquids or gases are used or stored.
• If an extension cord is used, it must be as short as possible and always be fully extended.
• You must not connect other appliances to the same mains socket as the heater.
• Do not use the heater in immediate surroundings of a bath, a shower or a swimming pool.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Make sure the heater is always under surveillance and keep children and animals away from it.
• Do not place/use the heater on moving vehicles or some where easy to be tripped over.
• When the heater is not used for a long time, unplug the heater form its means. Pull the plug straight out, never remove the plug by pulling the cord.
• Keep the heater far from curtain or places where the air inlet van easily be blocked.
• The power coupler is waterproof when not in use. In order to prevent possible electric shock or leakage current, never use the heater with wet hand or operate the heater when there is water on the power cord.
• Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local government for information regarding the collection systems available. If electrical appliance are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being.

Warning! Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.
Warning! To reduce the risk of fire, keep textiles, curtains, or any other flammable material a minimum distance of 1 m from the air outlet (4).

Electrical safety
When using electric machines always observe the safety regulations applicable in your country to reduce the risk of fire, electric shock and personal injury. Read  the following safety instructions and also the enclosed safety instructions.
Always check that the voltage of the power supply corresponds to the voltage on the rating plate label.
Connecting to the power supply
Check that the power supply and plug used in accordance with your machine. Have a look at the rating plate on the machine. Any changes should always be carried out by a qualified electrician.
Warning! Avoid contact with the terminals on the plug when installing (removing) the plug to (from) the power supply outlet. Contact will cause a severe electrical shock.
Replacing cables or plugs
If the replacement of the supply cord is necessary, this has to be done by the manufacturer or his agent in order to avoid a safety hazard. Immediately throw away old cables or plugs when they have been replaced by new ones. It is dangerous to insert the plug of a loose cable in the wall outlet.
Using extension cables
Only use an approved extension cable suitable for the power input of the machine. The minimum conductor size is 1.5 mm². When using a cable reel always unwind the reel completely.

PRODUCT INFORMATION

Intended use
Electric PTC fan heater for warehouses, workshops and household use only. Do not use the product for any other purpose. The heater can be used in enclosed rooms in a free standing position for room heating. The heater may only be used completely mounted and standing vertically on a stable surface. It incorporates a thermostat and a self-reset- ting thermal cut-out to control the heating element and therefore the temperature.

TECHNICAL SPECIFICATIONS

DESCRIPTION
The numbers in the text refer to the diagrams on page 2-3.

1. Handle
2. Heating element
3. Air inlet
4. Air outlet
5. Power indicator
6. Function knob
7. Off
8. Fan
9. Low heating mode
10. High heating mode
11. Thermostat knob
12. Tip-over switch
13. Power cable

OPERATING

Check the device for damage before use and only use in good working condition.
When using the heater for the first time, you may notice a slight emission of smoke. This is quite normal and it stops after a short time. The heating element is  made of stainless steel and was coated with protection oil by production. The smoke is caused by the left oil when heated.

Placing the electric heater (Fig. A)

• Place the heater upright on a firm and a level surface.
• Keep a minimum distance of 1 m between the front of the housing and walls, combustible materials (furniture, curtains, etc.) and 30 cm from all other housing  surface areas. Keep away from wet environments.
• After long storage always make sure the heating element (2) is clean and free  from dust.

Warning! Make sure to place the heater in a safe spot, so you cannot easily trip over the machine and cable. Make sure to place the heater where it cannot fall down  / of.
Starting the electric heater (Fig. A, B)

• Plug in the cable (13) to the mains.
• Set the thermostat knob (11) to the Max.
• The heater will switch on when the function knob (6) is set to one of the function settings.
• The power indicator light (5) will turn on.
• Once the room reaches the required temperature, turn the thermostat knob (11) back slowly until you hear back until you hear a click and the power indicator light (5) turns off.
• The heater now starts and stops automatically and therefore keeps the room temperature constant. This means once the temperature decreased, the heating element and fan will start again.

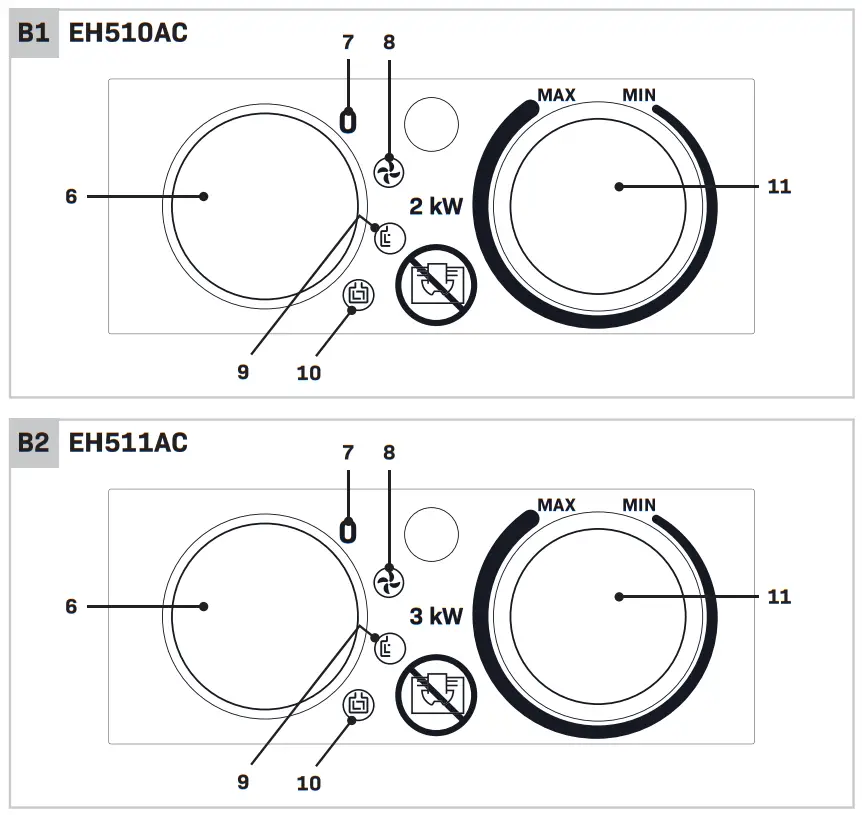

Function settings (Fig. B)
Different functions are possible by turning the function knob (6).

• Power off (7)
• Fan only (8)
• Low heating mode (9)
• High heating mode (10)

Tip-over switch (12)
This heater has an mechanical tip-over protection.
This protection ensures when the heater is not placed upright on a firm and level surface or when the heater tip over, the system will automatically shut the heater  off. If this occurs, put the heater on a firm and level surface and start the heater again.

Automatic Overheat Safety Control
This heater is equipped with safety internal heat limiting thermostat and overheat protection circuit. When a potential overheat temperature is reached, the system  will automatically shut the heater off.

Stopping the electric heater (Fig. A, B)
Let the machine cool down before turning off by using the ventilation function.

• Turn the thermostat knob (11) to lowest position and turn the function knob to fan position (8).
• Let the fan cool down the appliance for a few minutes.
• Turn the function knob (6) to off position (7).
• Pull the plug out of the mains.

Storing the electric heater

• Always let the heater cool down completely before storing the machine.
•  Never wrap the cable around the heater

Warning! Never store the machine in a wet or dusty environment

MAINTENANCE

Before cleaning and maintenance, always switch off the machine and remove the mains plug from the mains.
Cleaning
Let the machine cool down completely before cleaning.

• Clean the heater with a dry towel or vacuum cleaner.
• In order to protect the enclosure, don’t splash water onto the heater, and never use a solvent like gasoline, isoamyl acetate, toluene, etc. to clean the heater.
• When you store the heater, let it cool down first and, keep it dry.

Trouble shooting
In case the electric heater does not work well, we give you subjoined some possible causes and their solutions.

ENVIRONMENT
Faulty and/or discarded electrical or electronic apparatus have to be collected at the appropriate recycling locations.

Only for EC countries
Do not dispose of power tools into domestic waste.
According to the European Guideline 2012/19/
EU for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected separately  and disposed of in an environmentally friendly way.
WARRANTY
VONROC products are developed to the highest quality standards and are guaranteed free of defects in both materials and workmanship for the period lawfully  stipulated starting from the date of original purchase. Should the product develop any failure during this period due to defective material and/or workmanship then contact VONROC directly.

The following circumstances are excluded from this guarantee:

• Repairs and or alterations have been made or attempted to the machine by unauthorized service centers;
• Normal wear and tear;
• The tool has been abused, misused or improperly maintained;
• Non-original spare parts have been used.

This constitutes the sole warranty made by company either expressed or implied. There are no other warranties expressed or implied which extend beyond the face hereof, herein, including the implied warranties of merchantability and fitness for a particular purpose. In no event shall VONROC be liable for any incidental or consequential damages. The dealers remedies shall be limited to repair or replacement of nonconforming units or parts.
The product and the user manual are subject to change. Specifications can be changed without further notice.

DECLARATION OF CONFORMITY
EH510AC / EH511AC – ELECTRIC PTC FAN HEATER

We declare under our sole responsibility that this product is in conformity with directive 2011/65/EU of the European parliament and of the council of 8 June on  the restriction of the use of certain hazardous substances in electrical and electronic equipment is in conformity and accordance with the following standards and  regulations: EN 60335-1, EN 60335-2-30, EN 62233, 2014/35/EU, EN 55014-1, EN 55014-2, EN 61000-3-2, EN 61000-3-3, 2014/30/EU, 2011/65/EU, 2012/19/EU

Zwolle, 01-03-2023
VONROC • Lingenstraat 6 • 8028 PM Zwolle • The Netherlands

©2023 VONROC
WWW.VONROC.COM
2303-30
