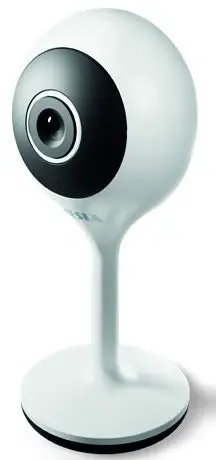

TESLA SMART CAMERA MINI
USER MANUAL
WHAT`S IN THE BOX
Please consult this checklist for all parts.
- Smart Camera Mini
- Power adapter
- USB cable
- Adhesive tape
- User manual

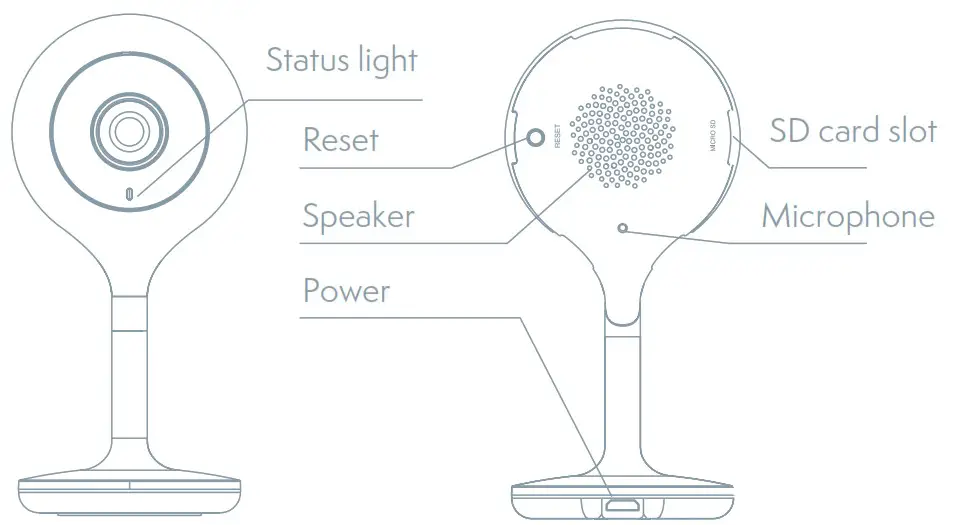

Power DC 5V ±10% Status light Red light solids on: the camera or network is abnormal
Blinking red light: awaiting WiFi connection (faster blinking)
Blue light solids on: camera running correctly
Blinking blue light: currently connecting (faster blinking)Microphone Captures sound for your video SD card slot Supports local SD Card storage (Max.128G) Reset Press and hold for 5 seconds to reset the camera
(if you have modified settings, they will return to factory defaults)
INSTALL

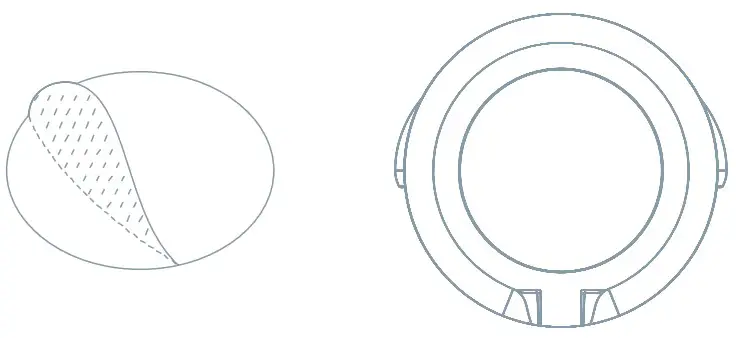

- Stick the adhesive tape in the middle of camera bottom.

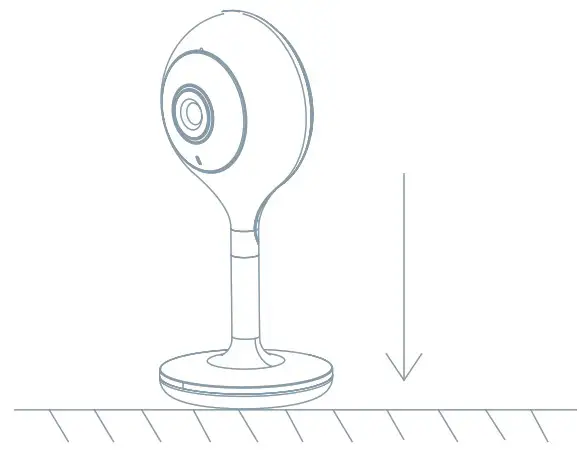

- Put the camera on the clean plane.
CONNECT
Download Tesla Smart is available for both iOS and Android OS. Search the name, Tesla Smart` in App Store or Android Market, or scan the QR-Code to download the App.
SET UP ROUTER
The router supports the 2.4GHz WiFi (doesn`t support the 5GHz), and is connected to the WiFi network. Please set the parameters of the router before connecting the WiFi network, and record the SSID and password of your WiFi. Please keep network available
REGISTRATION PROCESS
Step 1 Open the Tesla Smart App, click “Register”, read the “Privacy Policy” and click “Agree”.
Step 2 Input a legal and valid Mobile number or Email address and click “Continue”. Input Verification Code, then log in the app.
QR CODE CONFIGURATION
- Open the Tesla Smart App, click “Create family”, and you can customize the Family name and related settings.
- Continue to click “Security & Sensor” >> “Smart Camera”, and then choose” Add Device” or,+”, ready to add camera.
- In “Add Device” this interface, continue to click “next step”, and then you should input your WiFi`s passwords.
Note:
1) Camera only supports 2.4GHz WiFi network.
2) The number of bits in the ssid and passwords of the router should not exceed 24 digits. - In this interface, you should scan the QR code in your phone with the camera, when the camera comes out “dong dong dong”. And you can complete the configuration about 30s.
- When connecting, you should make sure your router, mobile, and camera are as close as possible. When camera added successfully, click “
” you could also DIY the camera`s name.
SETTINGS
In “Smart Camera” interface, click “
” common functions. you can set the camera common functions.
FAQ
Q: The device cannot be previewed properly?
A: Check whether the network is normal, you can place the camera close to the router, and if not, it is recommended to reset the device and add it again.
Q: Why is it still in the list of devices after reseting?
A: The reset device only resets the network configuration of the camera, but cannot change the configuration on the App, remove the camera, and must be deleted by the App.
Q: How to cut the camera network to another router?
A: First remove and reset the device on the App and then configure the device again by the App.
Q: Why doesn`t the device identify the SD card?
A: It is recommended to plug in SD card after power cut. Confirm whether the SD card is normally available and the format is FAT32. And the TF card can’t be identified when the internet environment is not good.
Q: Why I can’t get the notifications with my cell phone App?
A: Please confirm that the App has been running on the phone, and the relevant reminder function has been opened; Message notification and authority confirmation in the mobile phone system have been opened.
FUNCTIONS
Video flip
Flip your video stream up or down for maximum flexibility.
Motion detection
Motion sensors will notify you when movement is detected.
Record
Record every moment using high capacity SD card storage.
Day & Night Powerful night vision means no interruptions, even in complete darkness.
TECHNICAL SPECIFICATION
| Product name | Tesla Smart Camera Mini |
| Resolution | 1920 x 1080 |
| Power supply | DC5V, 1A |
| Sensor | 1/3‘‘ 2MPx, CMOS |
| IR Distance | Up To 10 m |
| Lens | 3.6mm , F2.0 |
| Dimensions | 52 x 32 x 110 mm |
| Storage | MicroSD Card, Cloud |
| App | Tesla Smart for Android and iOS |
| Connectivity | Wi-Fi 2,4 GHz IEEE 802.11b/g/n |
| Model | Mini 7S |
INFORMATION ABOUT DISPOSAL AND RECYCLING
This product is marked with the symbol for separate collection. The product must be disposed of in accordance with the regulations for disposal of electrical and electronic equipment (Directive 2012/19/EU on waste electrical and electronic equipment). Disposal together with regular municipal waste is prohibited. Dispose of all electrical and electronic products in accordance with all local and European regulations at the designated collection points which hold the appropriate authorization and certification in line with the local and legislative regulations. Correct disposal and recycling help to minimize impacts on the environment and human health. Further information regarding disposal can be obtained from the vendor, authorised service centre, or local authorities.
EU DECLARATION OF CONFORMITY
Hereby, Witty Trade s.r.o. declares that the radio equipment type Mini 7S is in compliance with EU directives. The full text of the EU declaration of conformity is available at the following internet address: teslasmart.com/declaration
Connectivity: Wi-Fi 2,4 GHz IEEE 802.11b/g/n
Frequency band: 2.400 – 2.4835 GHz
Max. radio-frequency power (EIRP): < 20 dBm
Manufacturer
Tesla Global Limited
Gee Chang Industrial Building,
121 Des Voeux Road Central
852 00 Hong Kong
www.teslasmart.com
TESLA | Smart home in your hands
