Trio R62451531 Asterion 51cm Led Ceiling Lamp Instruction Manual

TRIO R62451531 Asterion 51cm LED Ceiling Lamp

Instruction

Description of how the light works without the remote control unit

By the wall switch you can choice the following ligh modes

• Brightness 100% 2700K
• Brightness 100% 4200K
• Brightness 100% 6500K

You can select it, with short turn on and turn off of the lamp.

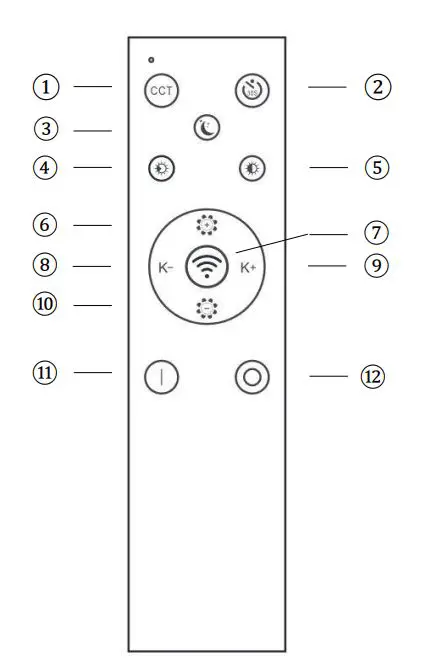

Operation of the remote control

1. Mode:
   •  Step: 2700K/ 2. Step: 4200K/ 3. Step: 6500K
2. The light turns off after 30 seconds
3. Night light
4. Brightness 30%
5. Brightness 60%
6. Brightness regulator: The adjustment takes place in stages. By pressing for a short period,
   it is possible to control the individual stages. Pressing the button permanently results in the
   maximum or minimum brightness being reached.
7. The adjustment takes place in stages. By pressing for a short period, it is possible to control
   the individual stages. Pressing the button permanently results in the wärmest or coldest colour
   setting being reached.
8. On/Off Button
   Set up remote control
9. Please press button 7 immediately after switching on the lamp. Successful pairing is confirmed by the lamp lighting on.

Declaration of Conformity

Hereby, Trio Leuchten GmbH. Gut Nierhof 17, D-59757 Arnsberg, declares that this product is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.trio-leuchten.de
