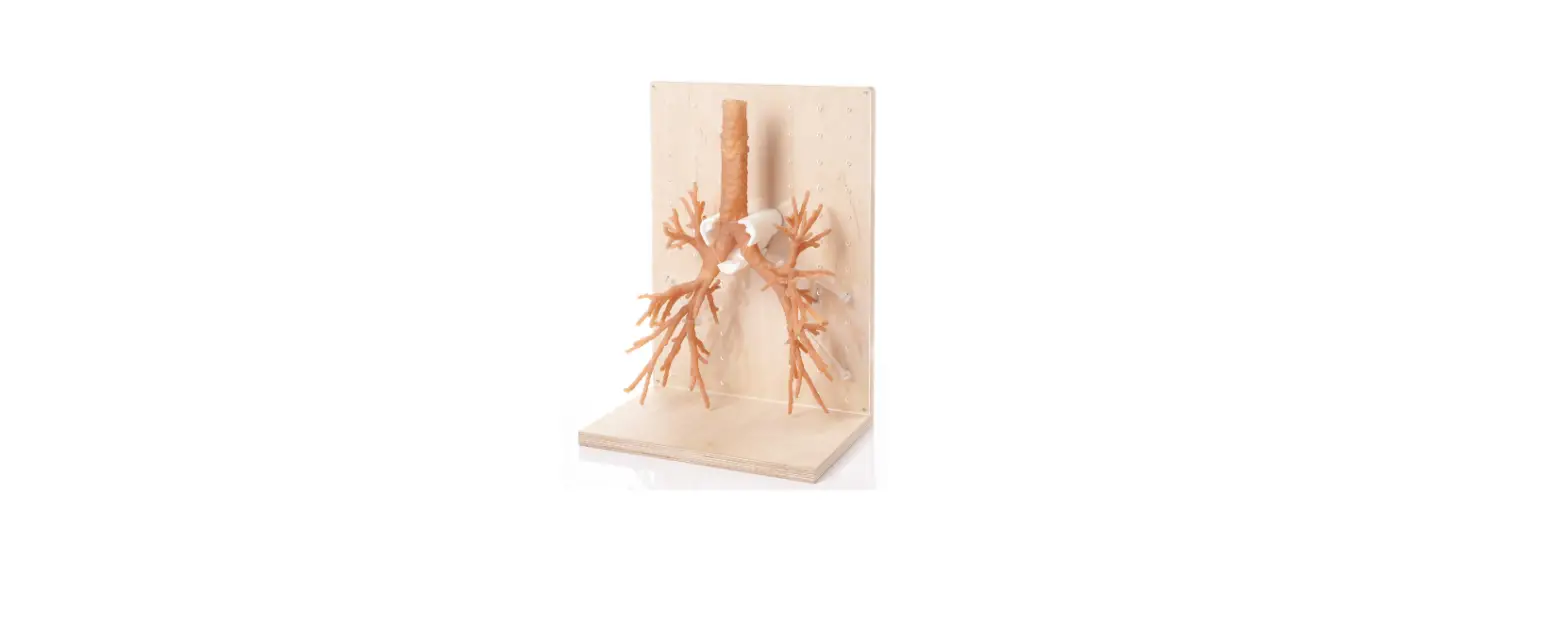

ApplyLabWork MPT-SP001PK MSLA Spring Pink
Check
- Resin tank and LCD screen are clean
- Shake resin bottle well before use
- Tank and plateform are properly fastened
Printer Settings Recommendation
| Brand | Model | Layer height (mm) | Bottom Layer counts | Exposure time (s) | Bottom Exposure (s) | Lifting Speed (mm/min) | Lifting Distance (mm) | Retract Speed (mm/min) |
| Phrozen | Sonic | 0.1 | 6 | 4 | 30 | 60 | 8 | 120 |
| Sonic mini | 0.1 | 6 | 5.5 | 30 | 60 | 8 | 120 | |
| Sonic Mighty 4 K | 0.1 | 10 | 4 | 60 | 60 | 8 | 120 | |
| Elegoo | Mars2 Pro | 0.1 | 6 | 3.6 | 30 | 60 | 8 | 120 |
| Mars3 | 0.1 | 6 | 3.6 | 30 | 60 | 8 | 120 | |
| Layer height (mm) | Bottom Layer counts | Exposure time (s) | Bottom Exposure (s) | Lifting Speed (mm/s) | Lifting Distance (mm) | Retract Speed (mm/s) | ||
| Anycubic | MonoX | 0.1 | 6 | 2.2 | 30 | 1 | 8 | 2 |
- Light-off Delay = 15s under current lift-retract motion. [ When printing large object, increase Lifting Distance and recalculate Light-off Delay ]
- For Sonic Mighty 4K, please set Transition Layer Count to 20
- Light intensity varies each printer. Please adjust exposure time ±0.1~0.5 second and/or XY dimesion ratio according to printing result and part application.
Parts Recommendation
- Avoid large aspect-ratio geometry (e.g. thin wall or long thin rod) in the sturcture to reduce failures.
- If support is needed, please set contact diameter>1.2(mm), and density>60%
Washing
Wipe off excess resin on printed parts with paper towel, submerge into 95% IPA and place the container in ultrasonic bath, wash for 5 minutes. Replace by clean IPA and repeat ultrasonic washing for another 5 mintes (total 10 minutes). Blow off all excess IPA and set parts in a shaded, ventilated place to dry at least 2 hours before curing. Dried print will be tacky to touch
Post-curing (Mandatory)
Submerge the parts into glycerol/glycerin(CAS # 56-81-5) and start FormCure with 60 ℃ / 30 mins setting. Wash off glycerol in water and dry off with paper towel.
- If prints don’t sink completely into glycerol, add water (no more than half of volume) to adjust liquid density.
- If prints are still tacky to touch after post-curing, rinse with acetone (CAS # 67-64-1) for no more than 1 minute will significantly reduce tackiness
Storage
- Keep resin away from heat and light.
- NOT accessible to children
Note:
- Keep printing environment well ventilated.
- Wear gloves when handling Spring resin and avoid direct contact.
- Vibration of the parts during printing process might cause resin splash onto printer ’s cover. Use paper towel and IPA to clean immediately.
- Slight pigment settlement is normal.Gentally mix remaining resin in resin tank with rubber spetula for color evenness.
- Don’t leave the parts on building platform after printing for more than one day.
- Color of printed parts will gradually turn yellow if contiuously receive photon energy.
- Spring resin should NOT use with food, drink, or on/in the human body unless specifically indicated.
Prototype Engineering Series
