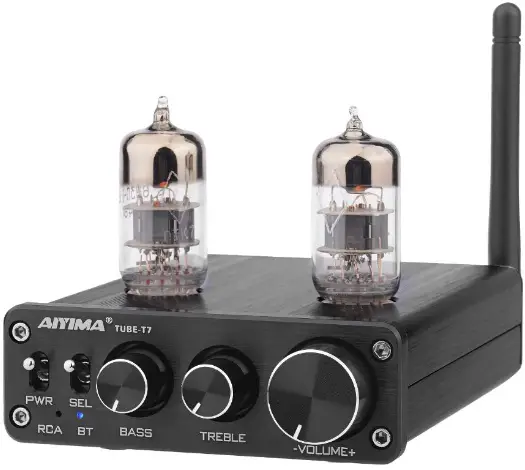

AIYIMA T7 Bluetooth 5.0 Tube Preamplifier

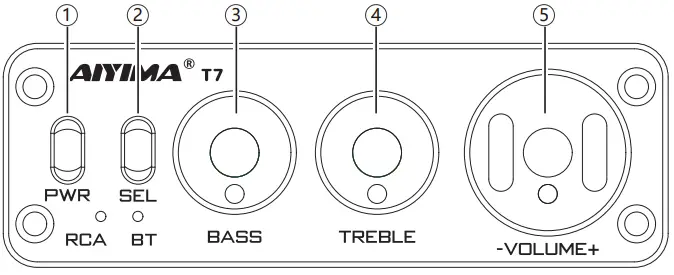

Front Panel Introduction
- UP:power on Down:power off
- AUDIO INPUT SELECET( UP:bluetooth mode ; Down : line in mode)
- Bass control
- Treble control
- Total vol

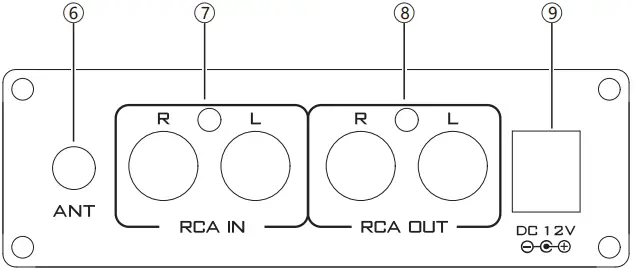

Rear Panel Introduction
- Bluetooth antenna jack
- RCA input
- RCA output
- Power input (DC12V)
Specifications
| Special circuit | Matisse Fantasy Line Stage buffer |
| Audio sources | RCA(Line In), Bluetooth |
| Bluetooth | QCC3034(Bluetooth 5.0) |
| Bass adjustment range | +12dB，-14dB |
| Treble adjustment range | ±10dB |
| SNR | 92dB |
| THD+N | 0.1% |
| Shock sound of switch machine | No |
| Frequency response | ±0.5dB |
| Power input | DC12 |
| Current | >1.5A |
| Size | 98x33x123mm |
Cautions for Replacing Op-amp/Tube
Since replaceable-socket-type NE5532 from Ti are installed in the T7, users can replace the op-amp according to the taste of music.To replace an op-amp, remove the installed op-amp and install a new op-amp into the blank socke
Tube socket compatible with 6N3,6H3N,Ge5670
