User Manual
What’s in the box

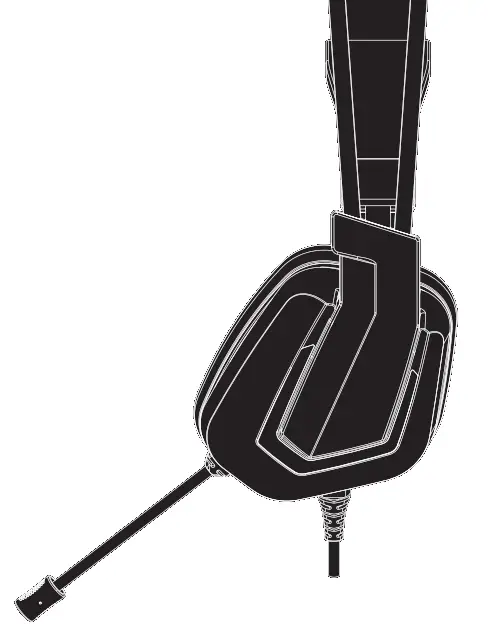

Product views
Introduction

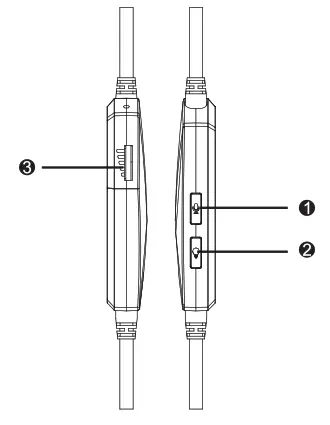

Audio control box
- Mic On/Off
- Light control
- Volume control
Parameter
Headphone
Connect: USB wired
Cable: 2.4 meters braided cable
USB audio solution: CM108B
Driver unit: Φ50mm * 10 mm(H)
Loading impedance: 16±15% Ω
Frequency response: 20~20KHz
Power rating: 15mW (Max)
THD: ≤5%
Lighting: RGB
Weight: 320±10g(Not included cable)

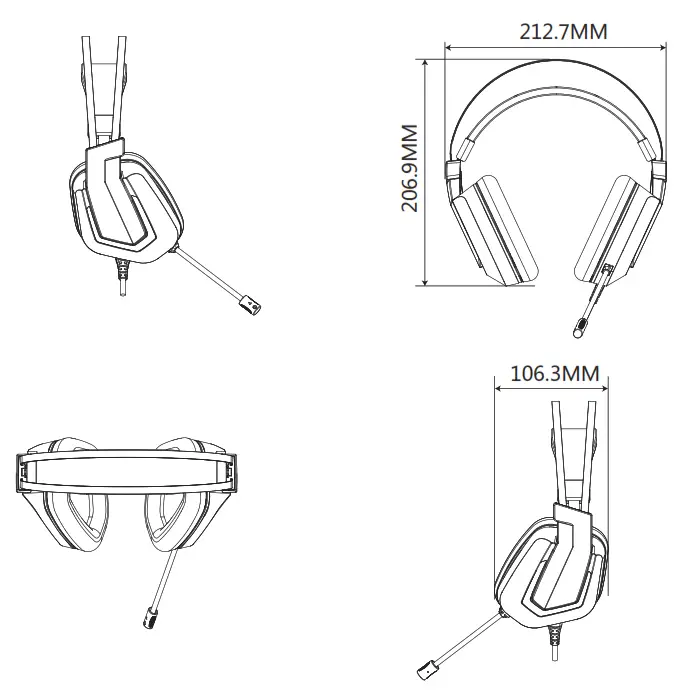

Dimension: 212.7*206.9*106.3 mm
Microphone
Driver unit: φ6mm*2.7mm(H)
Sensitivity: -42±3dB
Directivity: omnidirectional
Output impedance: 2.2KΩ
Frequency response: 100~10000Hz
THD: ≦ 5%

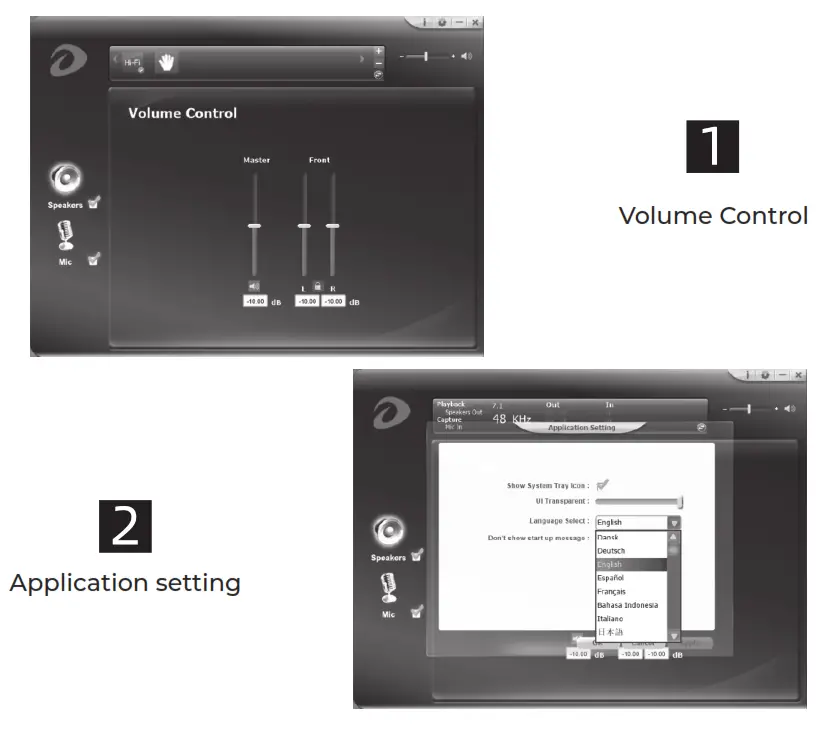

How to use driver
Download driver from Dareu’s official website(www.dareu.com) and install it.
*Pictures are for reference only.
