LEDVANCE 4058075525313 WiFi Smart+ Planon Plus LED Panel

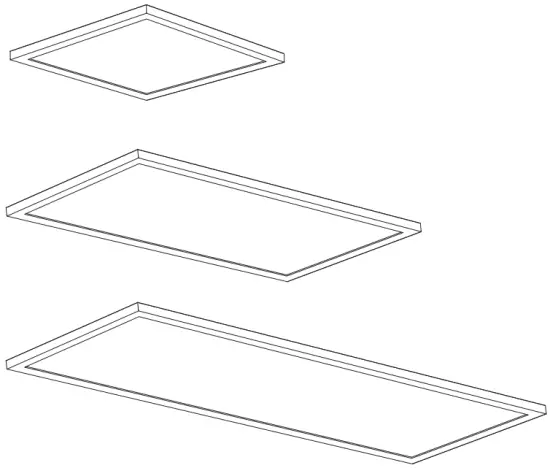

Product Overview
| EAN | W | lm | K | (°C) | V~ | mA | Hz | PF | |
| SMART WIFI PLANON PLUS 30X30 TW | 4058075525313 | 20 | 1500 | 3000-6500 | -20…+40 | 220-240 | 110 | 50/60 | >0.9 |
| SMART WIFI PLANON PLUS 45X45 TW | 4058075525337 | 28 | 2000 | 3000-6500 | -20…+40 | 220-240 | 170 | 50/60 | >0.9 |
| SMART WIFI PLANON PLUS 60X30 TW | 4058075525368 | 22 | 1600 | 3000-6500 | -20…+40 | 220-240 | 140 | 50/60 | >0.9 |
| SMART WIFI PLANON PLUS 60X60 TW | 4058075525382 | 36 | 3000 | 3000-6500 | -20…+40 | 220-240 | 200 | 50/60 | >0.9 |
| SMART WIFI PLANON PLUS 120X30 TW | 4058075525405 | 36 | 2700 | 3000-6500 | -20…+40 | 220-240 | 200 | 50/60 | >0.9 |

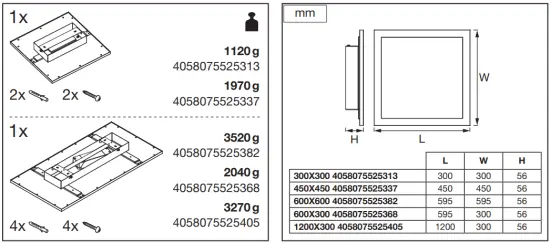

Required Parts And Dimension

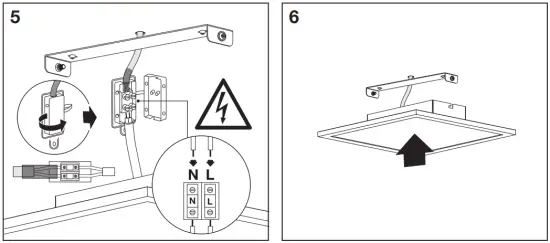

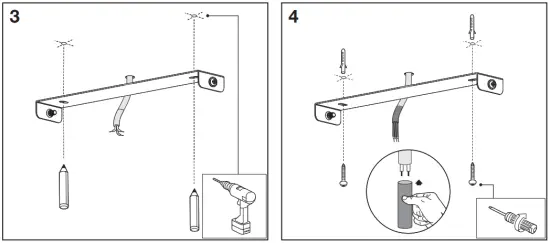

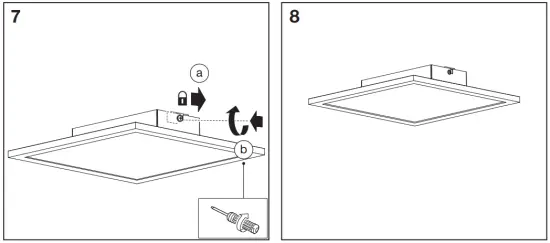

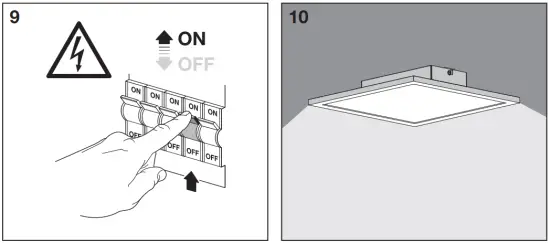

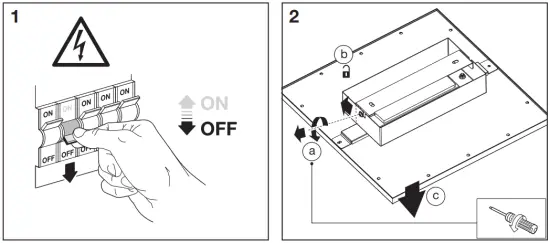

Assembly And Installation
| EAN | This product contains a light source of energy efficiency class | Contained Light Source | |
| SMART WIFI PLANON PLUS 30X30 TW | 4058075525313 | F |  |
| SMART WIFI PLANON PLUS 45X45 TW | 4058075525337 | F |  |
| SMART WIFI PLANON PLUS 60X30 TW | 4058075525368 | F |  |
| SMART WIFI PLANON PLUS 60X60 TW | 4058075525382 | E |  |
| SMART WIFI PLANON PLUS 120X30 TW | 4058075525405 | E |  |
LEDVANCE GmbH
Steinerne Furt 62 86167 Augsburg, Germany
www.ledvance.com
