ledix TETI 230 V AC LED Lighting

LED lighting fitting

• Supplied by 230 V AC
• Mounting in a Ø60
• junction box
• Mounting indoor only

Application:

• supplied by 230 V AC 50/60 Hz
• easy mounting in a Ø60 junction box
• excellent lighting parameters obtained by applying high quality LEDs
• light colour repeatability
• high luminous flux at minimum power consumption
• high manufacturing quality and reliability with an estimated durability of five years of continuous lighting (~40 000 h).

TECHNICAL PARAMETERS

MOUNTING

CAUTION! Connection of this device to a single-phase installation must be installed in accordance with standards valid in a particular country. Installation, connection and control should be carried out by a qualified electrician staff, who act in accordance with the service manual and the device functions.

TETI fitting is designed to be used in a Ø60 junction box.

1. Disconnect power supply by the phase fuse, the circuit-breaker or the switch-disconnector combined to the proper circuit.
2. Check if there is no voltage on the connection cables by means of a special measuring equipment.

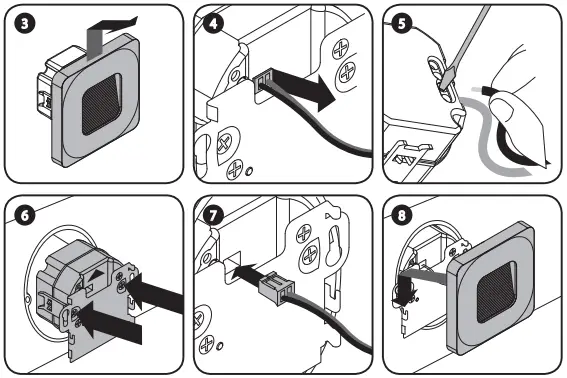

3. Remove the casing – to do it hold the control module with one hand, next move the fitting upward (as shown in the figure) and pull it gently out of the mounting element.
4. Disconnect the wires connecting the fitting and the control module.
5. Connect the device cables with the control module terminals in accordance with the installing diagram (wiring diagram example).
6. Mount the control module in a Ø60 junction box and tighten the fixing elements.
7. Connect the fitting cables with cables of the module mounted in the Ø60 junction box.
8. Mount the front of the fitting.
9. Switch on the power supply from the mains.
10.  Check if the fitting works properly

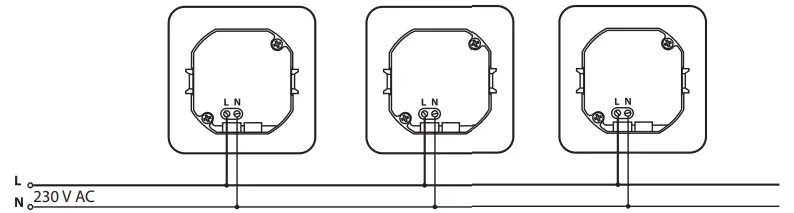

INSTALLATION EXAMPLES
WARRANTY CARD

1. ZAMEL Sp. z o. o. assures a 5 years guarantee for the product.
2. The manufacturer’s guarantee does not cover any of the following actions:
   • a) mechanical damage during transport, loading / unloading or under other circumstances,
   • b) damage caused by incorrect product mounting or misuse,
   • c) damage caused by unauthorised modifications made by the PURCHASER or any third parties to the product or any other devices required for the product functioning,
   • d) damage caused by Act of God or any other incidents independent of the manufacturer – ZAMEL Sp. z o. o.
   • e) power supply sources (batteries) included in the device when sold (if included).
3. The PURCHASER shall lay any claims in writing in the place of purchase or to ZAMEL Sp. z o. o.
4.  ZAMEL Sp. z o. o. is liable for processing any claim according to current Polish legislation.
5. ZAMEL Sp. z o. o. shall process the claim at its own discretion: product repair, replacement or money return.
6. The PURCHASER’s statutory rights in any applicable legislation whether against the retailer arising from the purchase contract or otherwise are not affected by this warranty.

Zamel Sp. z o.o.
43-200 Pszczyna, ul. Zielona 27
tel: +48 32 449 15 00, Fax: +48 32 449 15 02
E-mail: [email protected], www.ledix.pl
