USER MANUAL

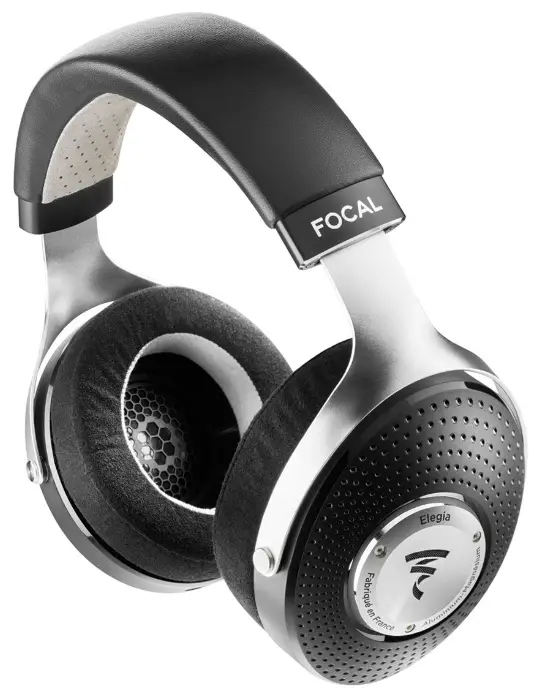

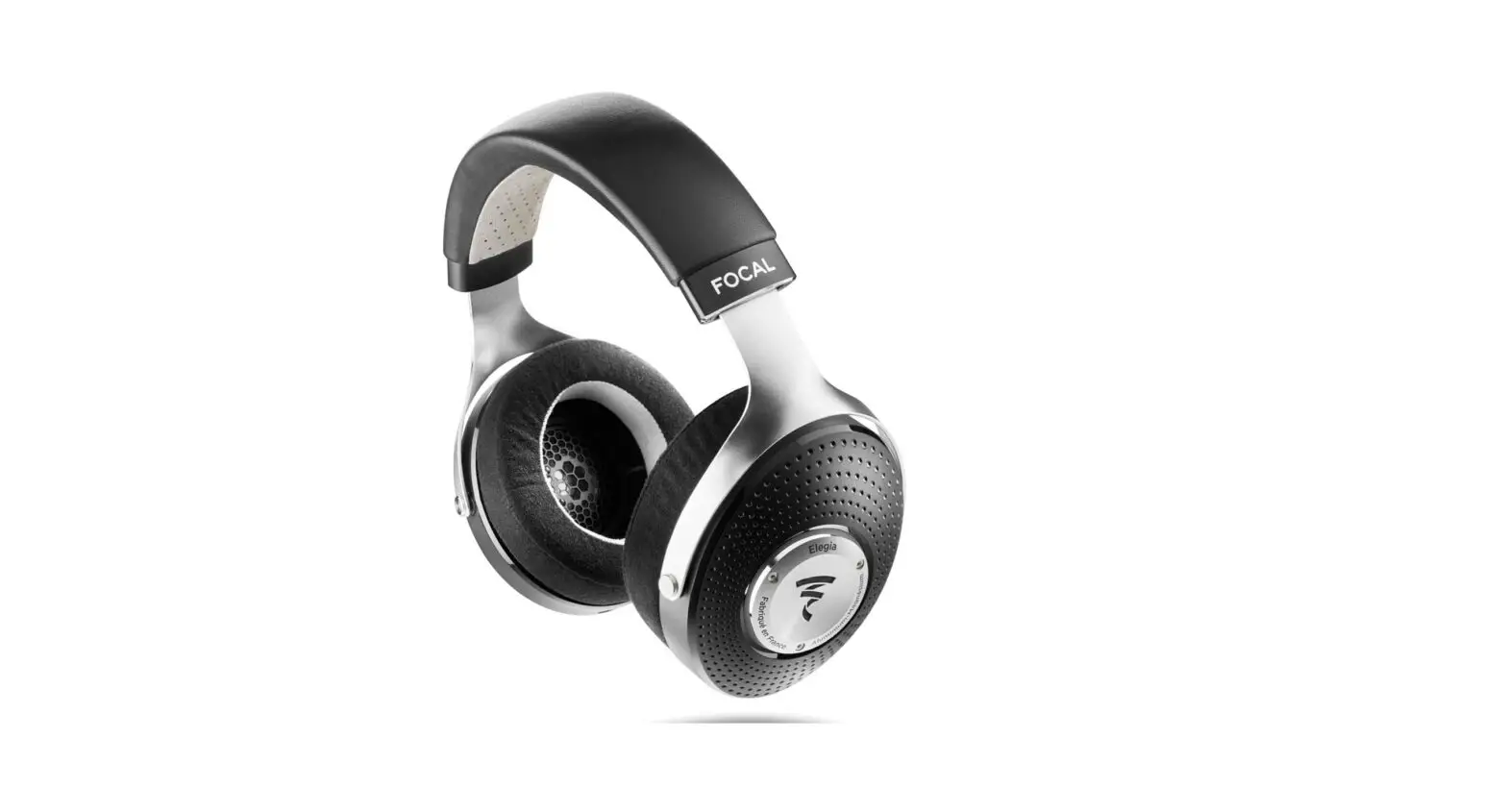

ELEGIA Closed Back Over-Ear Headphones
| Type | Circum-aural closed-back headphones |
| Impedance | 35 Ohms |
| Sensitivity | 105dB SPL / 1mW @ 1kHz |
| THE | 0.1% @ 1kHz / 100 dB SPL |
| Frequency response | 5Hz–23kHz |
| Loudspeaker | 1.6″ Aluminum-Magnesium “M” shape dome |
| Weight | 0.95lb |
| Cable provided | • 1 x 4ft OFC 24 AWG cable with 1/8″ TRS Jack connector • 1 x Jack adapter, 1/8″ female – 1/4″ male |
| Carrying case provided | 913/16″X 97/16″ X3/4″ |
Package contents
- 1 x Elegia headphones
- 1 x carrying case
- 1 x 4ft OFC 24 AWG cable with asymmetrical 1/8″ TRS Jack connector
- 1 x Jack adapter, 1/8″ female – 1/4″ male
- 1 x user manual
- 1 x brand content
- 1 x operating instructions
Connecting the headphones

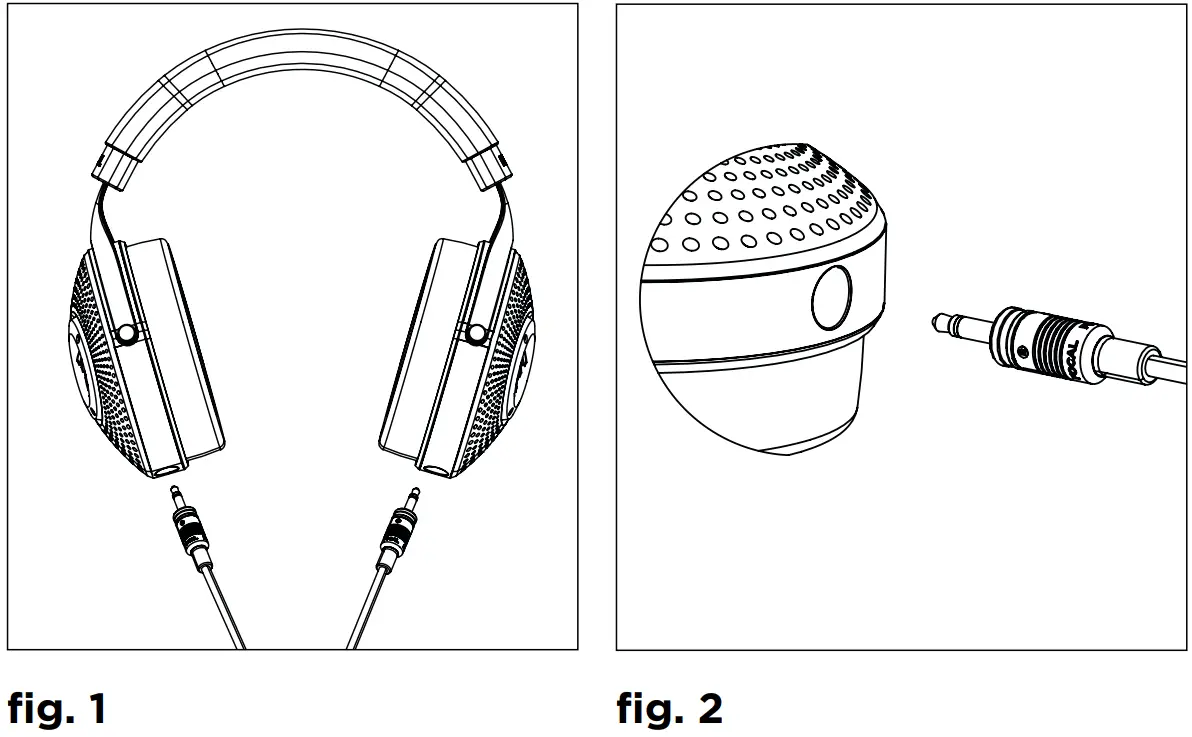

Each extremity of the cables has an indicator: “L” for left and “R” for right (fig. 1). Make sure you connect each end of the cable to the correct headphone inputs which are also labeled “L” and “R” on the underside of the ear-pieces next to the connectors (fig. 2).
Storage

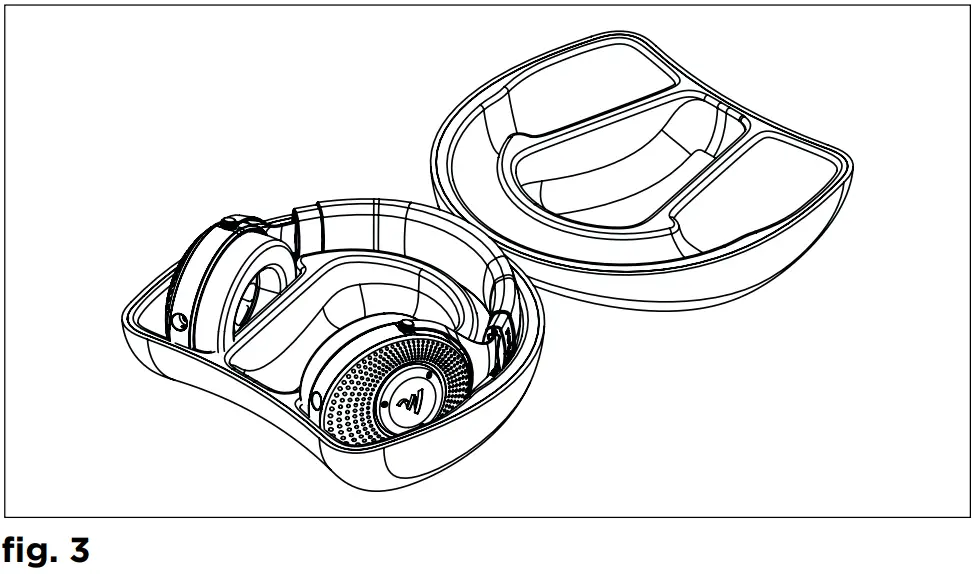

You can store your headphones in the carrying case. You simply have to disconnect the cable and store it in the case in the intended compartment (fig. 3).
Care and maintenance

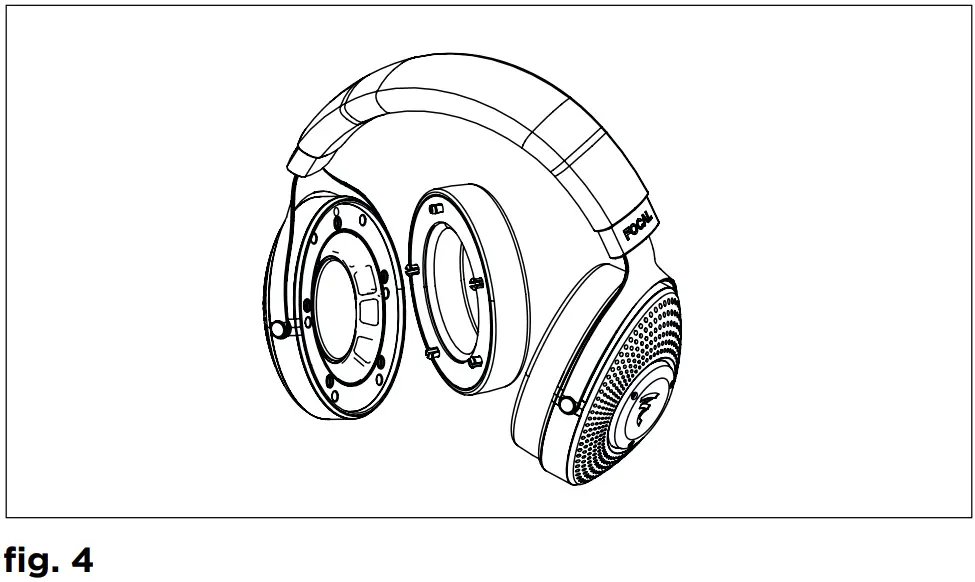

It is advisable to clean your headphones regularly to limit wear and tear. To do so, we recommend using a clean, dry lint-free cloth. After much use, wear marks may be visible on the ear cushions. In this case, if you wish to, the ear cushions can be replaced. Ask your local Focal retailer for replacement parts. The ear cushions are easy to unclip by pulling them and clip back into place by pushing them back onto the ear-pieces, making sure the 5 pins are correctly in place (fig. 4).
Correct elimination of this product.
This marking indicates that within the EU this product should not be disposed of with other household wastes. To prevent any risk to the environment or human health, please recycle them responsibly to encourage the reuse of material resources. To return your used device, please use the return and collection systems available, or contact the retailer where you purchased the product. They can recycle this product safely.
| Part Name | Toxic and Hazardous Substances or Elements | |||||
| Pb | Hg | Cd | CrVI | PBB | PBDE | |
| Cable assembly (Plug) | X | Ο | Ο | Ο | Ο | Ο |
| Electronic components | X | Ο | Ο | Ο | Ο | Ο |
| Metal parts | X | Ο | Ο | Ο | Ο | Ο |
| Adaptor | X | Ο | Ο | Ο | Ο | Ο |
ΟSJ/T 11364
O: GB/T 26572
X: GB/T 26572
Please validate your Focal-JMlab warranty, it is now possible to register your product online: www.focal.com/warranty
http://www.focal.com/warranty/
Focal-JMlab® – BP 374 – 108, rue de l’Avenir –
42353 La Talaudière cedex – France – www.focal.com
Tel. (+33) 04 77 43 57 00 – Fax (+33) 04 77 43 57 04 –
SCAA-181206/2 – CODO1558
