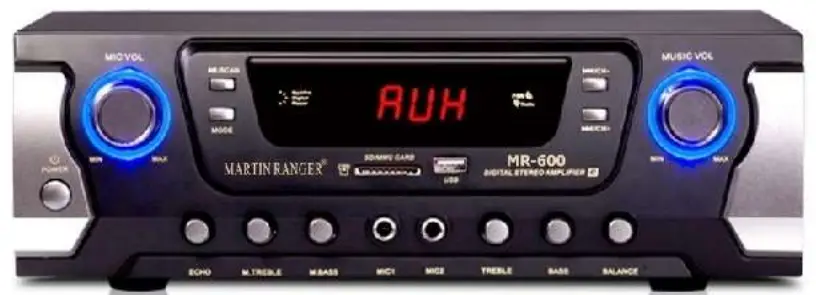

Stereo Speaker System MR-600
Operation Manual
PLEASE READ THIS MANUAL BEFORE USING
INTRODUCTION
Thank you for purchasing the power amplifier, To take full advantage of the amplifier functions, and to enjoy long and trouble-free use, please read this user’s manual carefully.
IMPORTANT SAFETY INSTRUCTION
IMPORTANT SAFETY INSTRUCTION- Make sure that the line voltage is AC 220-240V/50Hz If you are not sure, Kindly consult your appliance dealer or local power service company
- Please put the unit in a ventilated place. Do not operate in a sealed Box.
- Protect voltage line Avoid high pressure and stamp on, do not pull, or push excessively.
- Avoid any objects inserted into the unit. It may cause short circuits and unit defect
- Avoid water, dust, and moisture. Do not put the Flower vase and another water container on the top of the unit.
- Avoid cleaning with volatile solution Do not spray insecticide. Do not clean with alcohol, painting, gasoline, etc.
- Avoid covering vents Block up the vents will make the temperature in the unit become higher and will damage the unit.
- Avoid opening the cover. Do not open, fix, or touch the inner parts, refer to qualified service personnel for help.
FEATURES
- The built-in Mp3 player is compatible with lossless mode.
- Built-in FM radio, with searching channels automatically.
- Radio, MP3play with memory with power off
- The signal switchover between USB, SD, and RADIO automatically.

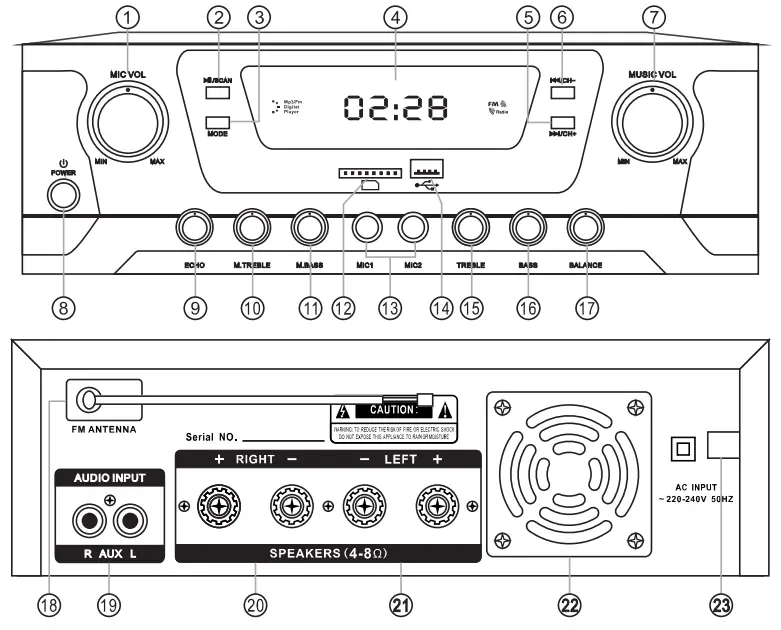

FRONT AND REAR PANEL INSTRUCTION
| 1. Microphone volume adjusts 2.MP3 play/pause or FM scan switch 3.MP3 work mode selects USB/SD/FM/AUX 4. Display screen 5.MP3 next or FM CH+ switch 6.MP3 prey. or FM CH- switch 7. Music volume adjust 8. Power switch 9. Microphone echo adjust 10. Microphone treble adjust 11 . Microphone bass adjust | 12. card data input in surface 13. Microphone 1, 2 jack 14. USB data input interface 15. Music treble adjust 16. Music bass adjust 17. Main channel balance adjust 18. FM radio antenna 19. AUX audio input jack 20. Right channel speaker output 21. Left channel speaker output 22. Fan window 23. AC 220-240V power source input |

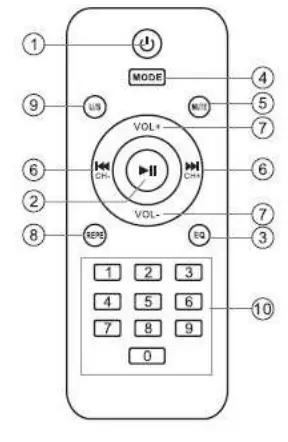

REMOTE CONTROL INSTRUCTION
POWER: Press it to turn on the unit, and press it again to turn it off.- PLAY/PAUSE: Press to play, press again to pause. orderly or FM scan.
- EQ: Sound field-effect button.
- MODE: Work mode select U/S/FM/AUX/BT.
- MUTE: Press it to mute down sound.
- Maid: Press NH to skip the next track. Press tel to skip prey. track.
- VOL+/VOL-:Press it to adjust the volume level.
- REPEAT: Switch the repeat mode.
- S/U: Press it to turn the S card and U.
- 0-9:Numeric buttons
POWER: Press it to turn on the unit, and press it again to turn it off.SPECIFICATION
Power Output…………………………………………………. 250W+250W
External devices sensitivity…………………………………. 200mv
T.ILD………………………………………………………………⪁0.19% (1KHz/1 W/4 Ω)
Frequency band………………………………………… …..40Hz-20KHz ±2dB
Signal/Noise ratio (with IHFA Filter)…………………….. ?-74dB
Music/Mic tone adjustment: TREBLE…………… ±10dB(1OKHz)
Music/Mic tone adjustment: BASS………………… ±10dB(100Hz)
Power source……………………………………………………. 220-240V 50Hz
The products improved constantly, when the appearance and parameter changes, subject to samples, without prior notice.
•BT Pairing Name: BT-AMPLIFIER
