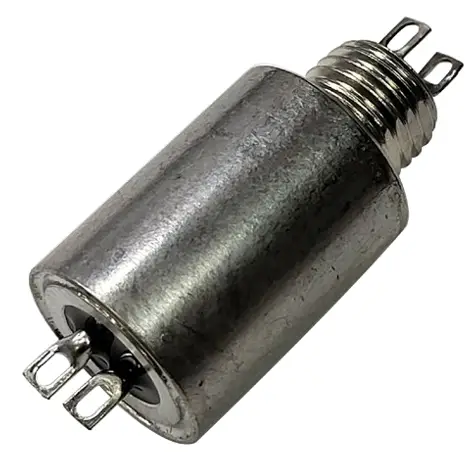

Dual Line Common Mode Panel Mount
Filter Instructions
Installation Guidelines
- Use a temperature-controlled soldering iron with tip temperature of 525 ± 10°F (275 ± 5°C).
- Use an SN 63 RMA flux core solder.
- Make mechanical wire connection.
- Use heat sink next to filter body where possible.
- Clean soldering iron tip.
- Clip end of solder (remove 0.5”) to expose flux for soldering.
- Apply soldering iron to wire/flag junction at wetted solder tip region of iron (Wetted Bridge Method).
- Immediately apply solder.
- Dwell time for soldering iron tip on product should be 3-5 seconds maximum.
- Terminals have been oriented to maximize clearance.
Threaded Style Filters
| Filter Thread Size | Max. Mounting Torque | Mounting Hole Dia. | Drill Size | |||
| In-lbs | Nm | (in) | (mm) | English | Metric (mm) | |
| Apr-40 | 1.5 | 0.17 | 0.12 | 3.05 | # 31 | 3.1 |
| Jun-40 | 3 | 0.339 | 0.147 | 3.73 | # 26 | 3.75 |
| Jun-32 | 3 | 0.339 | 0.147 | 3.73 | # 26 | 3.75 |
| Aug-32 | 4 | 0.452 | 0.173 | 4.39 | # 17 | 4.4 |
| Oct-32 | 4 | 0.452 | 0.19 | 4.83 | # 8 | 5.1 |
| 28-Dec | 6 | 0.678 | 0.228 | 5.79 | # 1 | 5.8 |
| Dec-32 | 6 | 0.678 | 0.228 | 5.79 | # 1 | 5.8 |
| 1/4/2028 | 7 | 0.791 | 0.261 | 6.63 | # G | 6.7 |
| 5/16/2024 | 7 | 0.791 | 0.323 | 8.2 | # P | 8.25 |
| 5/16/1932 | 7 | 0.791 | 0.323 | 8.2 | # P | 8.25 |
| 3/8/1932 | 9 | 1.017 | 0.386 | 9.8 | # W | 9.9 |
| 7/16/2020 | 14 | 1.582 | 0.453 | 11.51 | 29/64 | 11.51 |
