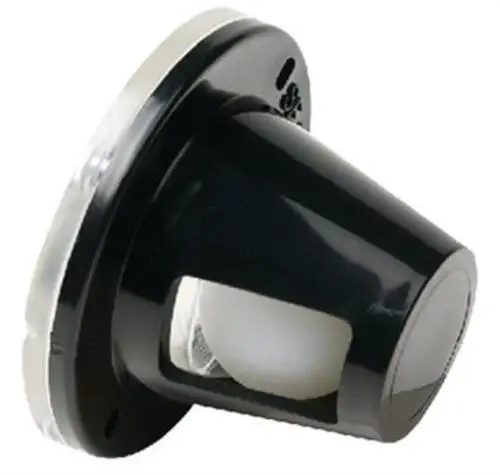

SEACHOICE 18291 Self Bailing Scupper Instruction Manual

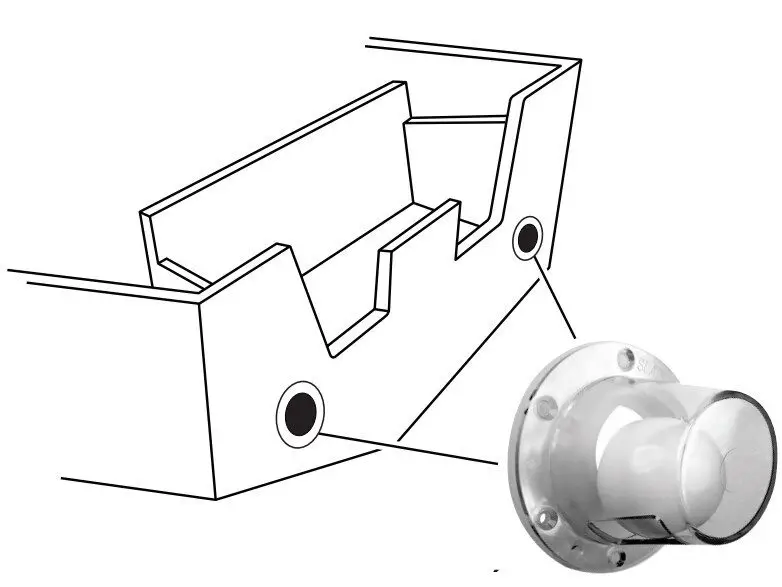

INSTALLATION INSTRUCTIONS
- Mount gasket and scupper over existing drainage hole using silicone around back of gasket.
- Drill screw holes using 5/32″ drill bit.
- Screw scupper and gasket into place using #8 x 1″ or #8 x 3/4″ Oval head screws.
Note:
- Gasket hole must be on bottom
- Scupper drain hole must face bottom of hull (down, as shown in photo)
Not liable for any improper installations. All boat repairs/modifications should always be performed by Oat\ a licensed and insured professional.
