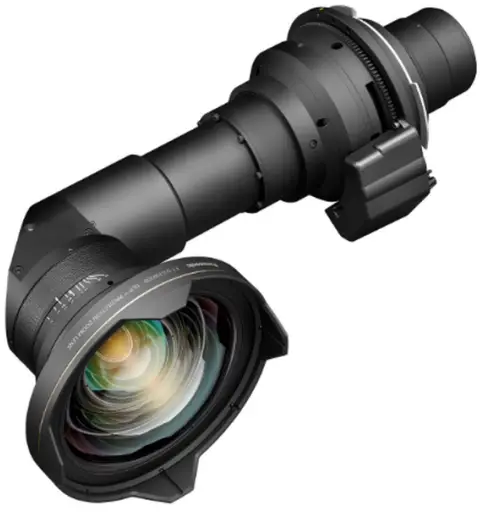

Panasonic CONNECT ET-D3LEW200 Short-Throw Zoom Projector Lens User Guide
Product Overview
Specification
| Lens type | Short-Throw Zoom Lens |
| F Value | 2.5 |
| Focal Length | 13.8–18.1 mm (17/32˝–23/32˝) |
| Screen Size | 200-600 inches |
| Throw ratio | 4K+ | 0.693–0.913:1 |
| Throw ratio | WUXGA | 0.645–0.850:1 |
| Throw ratio | SXGA+ | 0.699–0.921:1 |
| Lens-shift*1 | Vertical | ±59 % |
| Lens-shift*1 | Horizontal | ±19 % |
| Zoom | Yes |
| Dimensions (W×H×D) | 250 × 193 × 495 mm (9 27/32˝ x 7 19/32˝ x 19 1/2˝) |
| Weight | Approx. 9.0 kg (19.8 lbs) |
| Compatible projectors | RQ32K/RZ31K Series/RQ22K/RZ21K Series |
| Note | Value is for ceiling installations using the PT-RQ22K. Lens-shift value will vary by model. Please see the Throw Distance Calculator for more information: https://panasonic.net/cns/projector/calculator/tdc/. For floor installations, up and right shift will be defined as a positive value. Down and left shift will be defined as a negative value. |
