CAJ-AS Cajon Contact Microphone
Owner’s Manual
CAJ-AS Cajon Contact Microphone
Coordinated contact microphone for authentic Cajon sound

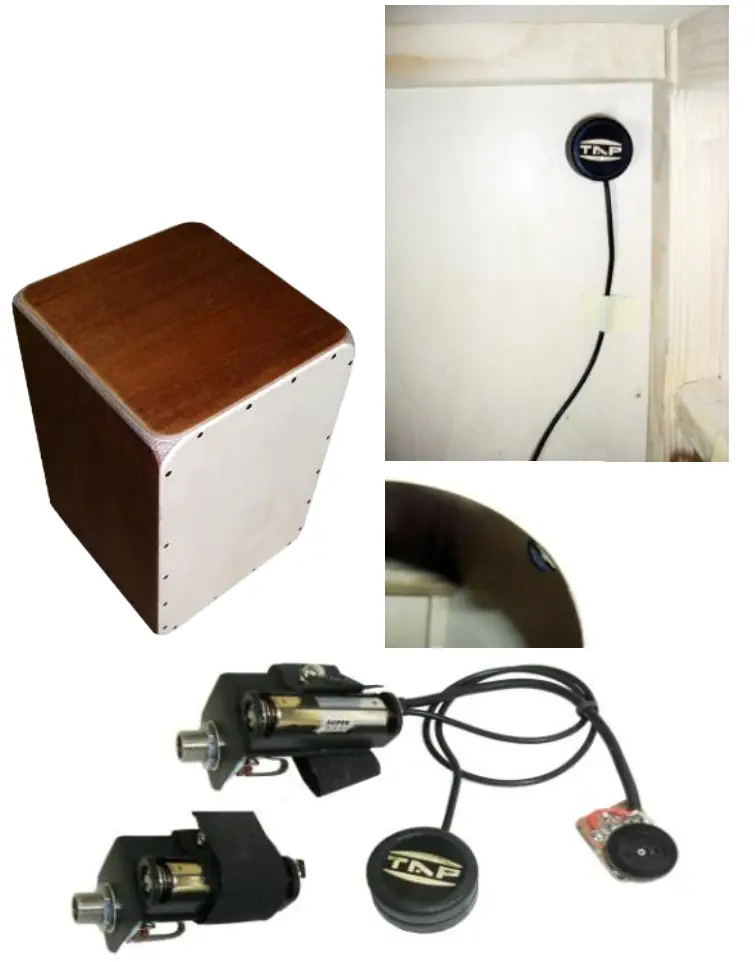

Features The Cajon contact-microphone comes with filtered preamplifier. This compact active system, includes a specially preamp, chassis output jack and battery case. Adjust the levels with volume control knob and connect in any amplification system through 1/4 jack. Provides comfortable and easy handling on stage.
This active system is completely ready for internal installation. Supplied the 12V durable battery (23A).

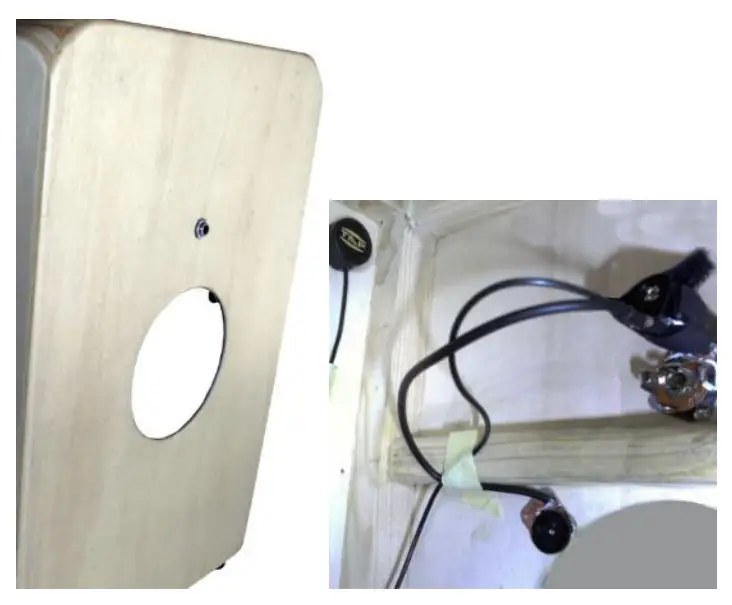

INSTALLATION
- Make a hole 9mm for the Output jack on the back plate.
- Mount the contact microphone in the side with adhesive tape. (3cm distance from the upper and 2cm distance for the back plate).
- Mount the volume control board on the soundhole limits with adhesive tape.
** Secure the cable on the body with tape.
** Enjoy
