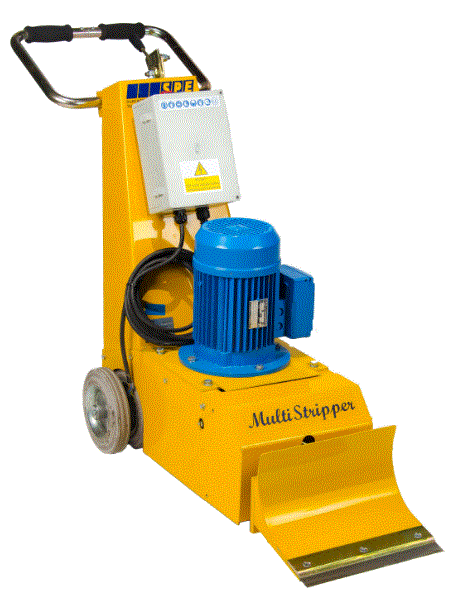

SPE MS330-1 Multistripper

STARTING WORK

• Check the condition of the cutter blade assembly
• Check all nuts and bolts for tightness
• Check the drive belt for condition and tension
• Check the plugs and cables for damage

Before starting the machine ensure that the blade is clear of any obstructions
Adjust the handlebar to a comfortable height and position.
Connect the machine to the power supply. See page 2 for further details.
Start the motor by turning the switch on the panel to the start position hold for 2-3 seconds for the motor to start and release, the switch will return to it’s run position.
To stop the machine, turn the switch to the off position.

OPERATING INSTRUCTIONS

With the motor running, the blade will now be operational. To drive the machine forwards, engage the clutch by moving the lever on top of the machine forwards. To cease the drive, pull the lever backward. The machine can also be moved manually (i.e. in confined areas), if required, by leaving the clutch lever in the rearward position. Care should be taken when operating the drive clutch mechanism. Should the machine become slack/jammed into the material whilst in forward drive, the following procedure should be followed.

Stop the forward drive of the machine by pulling the clutch lever backward. If the drive does not disengage freely on operation of the lever, do not force the lever and mechanism. Stop the machine by turning the switch to the off position and then operate the clutch lever backward to disengage the drive. Free the machine from the material and recommence work.
Excessive pressure on the clutch mechanism will result in the bending of the clutch operating arms and the potential failure of the clutch release bearings.
NOTE: If removing sheet vinyl or carpet, cut the material into strips with a knife at approximately the width of the MS330 blade.

ELECTRICAL INSTRUCTIONS

• The points raised are based on many years of practical experience not on textbook theory. If you follow these guidelines your time on site will be productive rather than frustrating. The MS330-1 machine is supplied with a specially commissioned 110v electric motor and starter switch assembly.
• Each unit is fully tested and the safety overload relays have been calibrated and set according to the manufacturer’s specifications. In the event of a malfunction on a new machine, the owner should first check that the power supply on site is suitable and adequate.
• The motor requires a 32amp 110v power supply.
• To avoid voltage drop the cable size must be a minimum of 4.0mm 3 core. The maximum length of cable not to exceed 30 metres.
• The transformer must have a continuous rated output of at least 3 KVA. In practice, this means that a 5 KVA transformer must be used. Manufacturers of transformers have different methods of rating their equipment.
• The transformer and all cables should be fitted with 32 amp 110v plugs and sockets.
• All cables should be fully uncoiled and never left wrapped around cable reels or tied in loops.
• If the power is to be generated, the MS330-1 requires a minimum 8kva generator.
• The motor is protected with a safety trip in the panel. Should the trip be activated, you must isolate the power supply, open the panel and reset the trip.
• If the motor repeatedly cuts out then it will be damaged. The possible causes are
  either an inadequate power supply, overloading of the machine, or an electrical fault. The machine can only be overloaded by setting the depth of cut too low.

MAINTENANCE

Prior to any maintenance or adjustment, isolate the power supply.

AFTER USE:
Clean the machine to remove all the buildup of dust and surface residue. If using hosepipe or pressure water take care that water is not directed onto electrical components and switches. (Note: Motors and switches are not waterproof)
The drive belts are tensioned by sliding the motor forward to tension the gearbox drive belt and then adjust the tensioner arm/pulley to tension the front blade drive belt. It is important that the drive belts are not over-tensioned. Serious damage could be caused to the drive shaft, drive shaft bearings, drive motor and/or gearbox if the belt is excessively tight.
All components should be checked daily for tightness and the drive belt for tension.
Check the individual manufacturer’s service recommendations for full details on motors and engines.

BLADE CHANGE
Loosen the blade clamp bolts and slide out the blade. Insert the new blade and tighten the clamp bolts
Note: The operator should be aware the blades are sharp and use suitable protection when handling them.

BLADE ANGLE

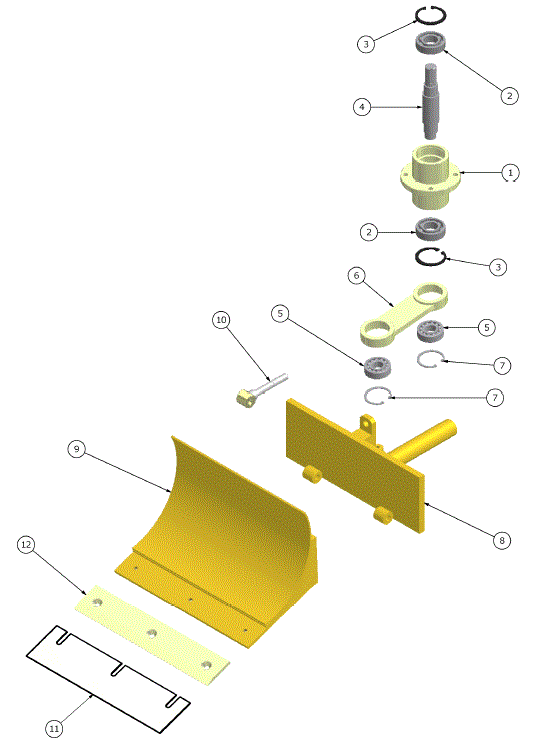

The angle of the blade can be altered to suit different applications by adjusting the angle of (part no. 7095) the blade carrier. This procedure is as follows:

• a) Loosen the M12 lock nut at the rear of the adjuster bar (part no 7097)
• b) Adjust the other M12 nut on the adjuster bar until the required angle of the blade carrier is reached. Moving this adjuster nut rearward will increase the blade angle.
• c) Once the blade angle is adjusted, retighten the lock nut.

BASIC MAINTENANCE/CHECKLIST:

• This checklist should be undertaken every 8hrs to 10hrs – taking into account the vibrating action of the machine
• Firstly remove the outer covers and guard to gain access to check all components
• Check the condition of the blade
• Check all nuts and bolts for tightness
• Check the condition and tension of the belts
• Check the plugs and cables for damage.
• Grease al the moving parts on the sliding blade mechanism
• Check the condition of the bearings.

SAFETY

1. Only trained operatives should be allowed to work the MS330
2. Appropriate PPE must be worn.
3. Keep hands and feet away from the moving blade at all times
4. Keep the electric lead away from the moving blade
5. Never leave the MS330 unattended whilst in use. Always stop the motor before leaving the machine.
6. Always ensure that the power supply is disconnected before attempting to service the machine. Never tip the machine backward until the blade has stopped moving.
7. Do not use in wet conditions
8. Always use correct voltage for the machine and RCD protection
9. Be careful when working around pipes or ducts protruding from the floor as the moving blade may cause damage to them
10. Extreme care should be taken when changing the blades. The blades are sharp and suitable protection should be used when handling them.
11. Equipment must be used in line with guidelines laid down by the Health & Safety Executive.
    Noise and vibration will occur at various levels dependent on the attachments and work being completed, SPE have assessments conducted under test conditions detailed in the operating manual (see page 13). However, it is recommended that additional tests are taken on site to provide the operator with accurate information on using the equipment within the guidelines laid down by the Health & Safety Executive.

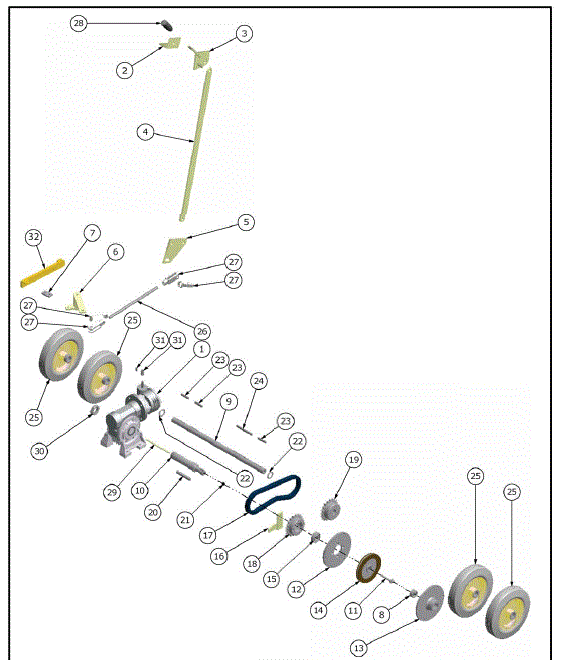

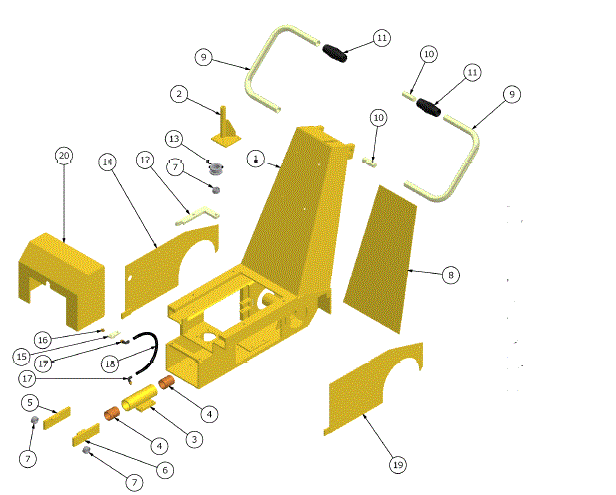

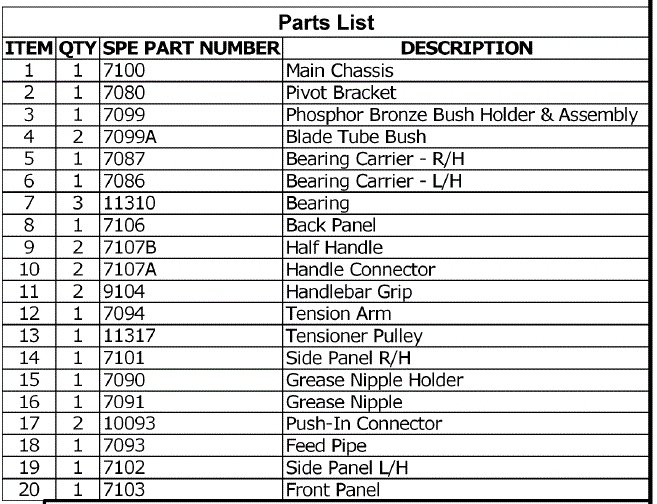

SPARE PARTS

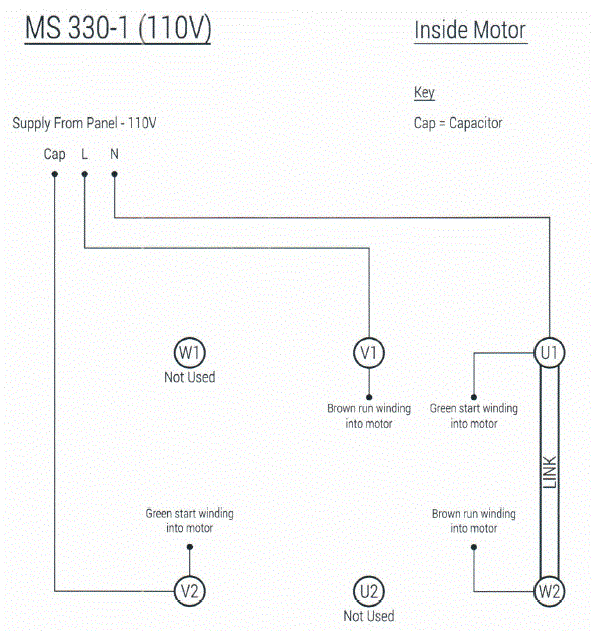

Note
Live in = Brown 4.0mm? from contactor
Neutral in = Brown 4.0mm? from MCB (old machines)
Blue 4.0mm? from contactor (new machines)

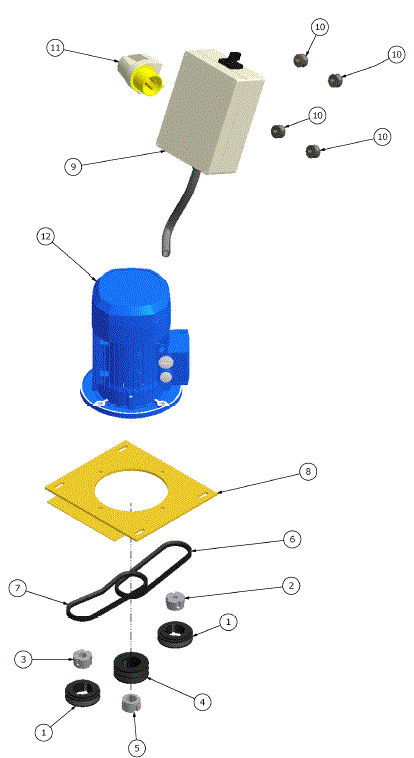

ELECTRICAL COMPONENTS

SPECIFICATION SHEET

ELECTRICAL REQUIREMENTS

RECORD OF NOISE AND VIBRATION ASSESSMENT

• Manufacturer: SPE
• Type: Tile Lifter
• Model No. MS330-1 Electric
• Operation : Removing vinyl tiles
• Running Conditions: 1410 rpm
• HAV Note: Operc

HAND-ARM VIBRATION
Frequency Weighted Energy Equivalent Accelerations (ah,w)

NOISE LEVELS
Sound Power Level (LWA)

Operator’s Ear

WARRANTY

The standard warranty period of this equipment is 12 months from the date below in accordance with the company Conditions of Sale (copy attached).

DECLARATION OF CONFORMITY

WE SPE INTERNATIONAL LTD
OF Honeyholes Lane
Dunholme
Lincoln
LN2 3SU
DECLARE that under our sole responsibility for the supply/manufacture of the product
(Description/name) MS330 Multistripper
(Model/type) MS330
to which this declaration relates is in conformity with the following standards and other normative documents following the provisions of Directive 2006/42/EC.

CONDITIONS OF SALE

The quotation overleaf and any order placed following such quotation are subject to the following conditions of sale in which SPE International Limited is referred to as the “Company”.

1. Validity of quotation
   No order received from a customer by the Company shall constitute a contract until accepted in writing by the Company.
2. Prices
   Prices quoted by the Company are firm for 30 days only or until previously withdrawn. Unless otherwise stated all prices are exclusive of any applicable Value Added Tax for which the customer shall be additionally liable to the Company.
3. Delivery
   Delivery periods and dates are given in good faith but are not the subject of any warranty or condition and time shall not be of the essence of the contract in these respects. No liability will attach to the Company if delivery periods or dates are not met for any reason whatsoever.
4. Payment
   Save as may otherwise be agreed in writing the customer shall pay the price in full on or before the estimated delivery date whereupon the Company shall raise a receipted invoice. Each invoice includes an Overdue Account Levy of 5% of the total invoice value inclusive of VAT. Subject to payment in full being made on or before the due date a sum equal to the Overdue Account Levy shall be credited to the customers account with the Company. Until such time as payment in full has been made the Company shall be under no obligation to allow or effect of any goods to the customer.
5. Warranty
   The Company warrants that all goods supplied by it will correspond to their specifications and will be free from defects in materials or workmanship for a period of 12 months from the date of delivery. The Company’s obligation in the event of a breach of this warranty is limited to the repair or replacement of any defective goods which shall be returned at the cost and expense of the customer to the Company. This warranty is given in lieu of all the other warranty or conditions expressed or implied (whether by statute or otherwise) and is subject to the following conditions:-
   • Claims must be notified in writing to the Company within seven days from the date of delivery or (where the defect is not apparent on reasonable inspection) as soon as practicable after discovery of the defect.
   • The Company shall be under no liability in respect of any defect in the goods arising from any drawing, design or specification supplied by the customer.
   • The Company shall be under no liability if the defect or failure in the reasonable opinion of the Company arises from wilful damage or misuse, or negligence by the customer or any third party. Failure to follow the Company instructions, usage of non-recommended parts and materials, alteration or repair of the goods without the prior approval of the Company or non-recommended maintenance.
   • The Company shall be under no liability if the price for the goods has not been paid by the due date for payment.
   • The above warranty does not extend to:-
   • Parts, materials or equipment not manufactured by the company in respect of which the customer shall be entitled only to the benefit of any such warranty or guarantee as is given by the manufacturer to the Company.
   • `Any component part of the goods or associated parts coming into contact with abrasive elements or dust within surface Preparation equipment.
   • Fair wear and tear of moving parts within the goods.
   • Except in the case of death or personal injury caused by the Company’s negligence, the Company shall not be liable for any consequential loss or damage (whether for loss of profit or otherwise) or other claims for consequential compensation.
6. Carriage
   Packing, carriage and insurance charges in respect of delivery of the goods to the customer will be charged to the customer at cost to the company.
7. Damage in Transit
   The company does not accept any liability for loss or damage to the goods while in transit to the customer.
8. Risk
   The risk in the goods shall pass to the customer on delivery to the customer or (if earlier) when possession of the goods is taken by a carrier for delivery to the customer.
9. Force Majeure
   The Company shall not be liable to the customer or be deemed to be in breach of any contract with the customer by reason of any delay in performing or any failure to perform any obligation of the Company obligation in relation to the goods if the delay or failure was due to force majeure or to any other cause beyond the Company’s reasonable control.
10. Reservation of Title
    The goods sold under these conditions shall remain the absolute property of the Company and legal title in the goods shall remain vested in the Company until payment in full of all amounts invoiced or due to the Company in respect of the goods. If the customer shall enter into liquidation have a winding up order made against it or have a Liquidator, receiver, administrator or administrator receiver shall be appointed over its assets, income or any part thereof before the property in the goods has passed in accordance with this condition the Company shall be entitled immediately after giving notice of its intention to repossess any goods to enter upon the premises of the customer with such transport as may be necessary and to repossess any goods to which it has title under this condition. No liquidator, receiver, administrator or administrative receiver of the customer shall have authority to sell goods to which the Company has title without the prior written consent of the Company.
11. Insolvency of Customer
    If the customer being a body corporate, shall pass a resolution or suffer an order of the Court to be made for winding – up, or if a Receiver, Administrator or Administrative Receiver shall be appointed or, being an individual or partnership, shall suspend payment , propose or enter into any composition or arrangement with his or their creditors, or have a bankruptcy order made against him or them, then the Company shall have the right, without prejudice to any other contract with the customer, not to proceed further with the contract and shall be entitled to charge for work already carried out ( whether completed or not) and for goods and materials already purchased for the customer such charge to be an immediate debt due from the customer.
12. Patent Rights, etc
    The acceptance of a quotation includes the recognition by the customer of the Company under any patents, trademarks, registered designs or other intellectual property rights relating to the goods and the customer undertakes that patent numbers, trademarks or other trade markings on goods supplied shall not be obliterated, altered or defaced.
13. Applicable Law
    These conditions shall be governed by and construed in accordance with English law and parties acknowledge and accept the exclusive jurisdiction of the English Courts.

SPE International Ltd, Honeyholes Lane, Dunholme, Lincoln. LNS 3SU England
Tel: +44 (0) 1673 860709 Fax: +44 (0) 1673 861119 Web: www.spe-int.com e-mail: [email protected]
