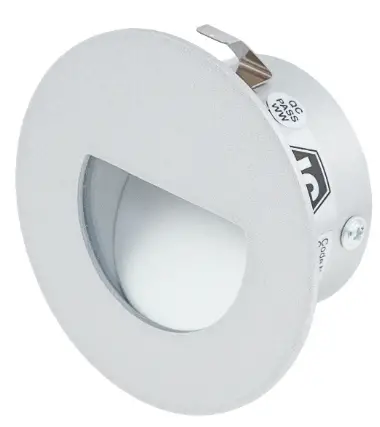

HALCYON R914 1.2W Round Eyelid Wall-Stair
RISK OF FIRE
Required clearance from structural members and building elements
- Side Clearance to building element (eg timber, joist or Batten) (SCB): 0mm
- Height Clearance to building element (eg timber, joist or Batten) (HCB): 0mm
Recessed Luminaire Classification:
- IC building insulation that can safely be continuously exposed to 90°C allowed to abut and cover the luminaire.
- For indoor use only.
Installation

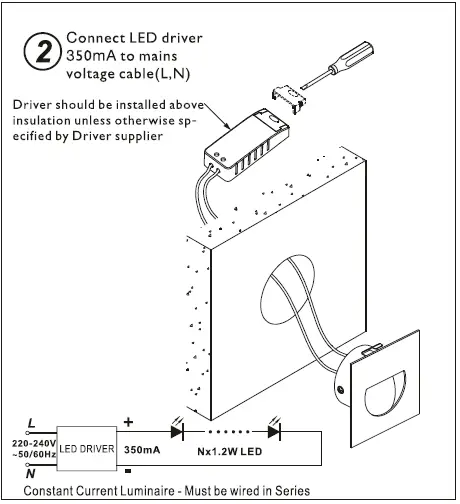

Connect LED driver 350mA to mains voltage cable (L, N)
