Pro WS WRX80E-SAGE Wifi Motherboard Owner’s Manual
Brand : ASUS
Product code: 90MB1E60-M0EAY0
Product name : Pro WS WRX80E-SAGE SE WIFI II

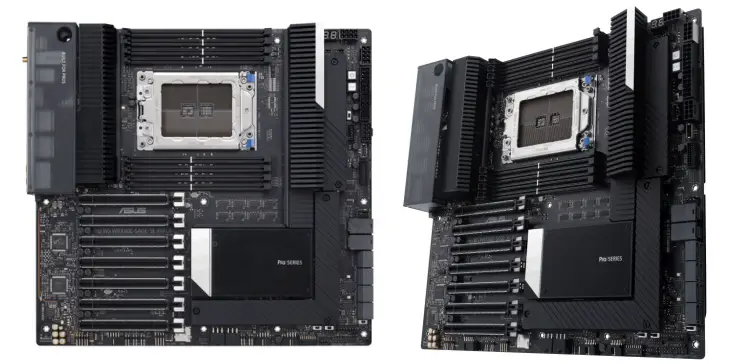

Pro WS WRX80E-SAGE WiFi Motherboard

• AMD sWRX8 Socket: Ready for AMD Ryzen™ Threadripper™ PRO Series Processors, with overclocking available to dip into untapped potential and performance
• Ultrafast connectivity: USB 3.2 Gen 2×2 Type-C port, 10 x USB 3.2 Gen 2 ports, 3 x M.2 PCIe 4.0, HYPER M.2 x16 Gen 4 card and Intel® X550-AT2 dual 10Gb  Ethernet, WiFi 6E
• ASMB9-iKVM remote management: AST-2500 BMC chip to provide intelligence for its IPMI architecture for out-of-band management to enhance hardware-level  control for improved IT efficiency
• Powerful performance: 16 power stages, multi-GPU support and R-DIMM memory support
• Trusted stability: Tested for 24/7 dependability, validated for solid compatibility and equipped with SafeSlot for ultimate security AMD WRX80 Ryzen™ Threadripper™  PRO extended-ATX workstation motherboard with Intel dual 10G LAN, USB 3.2 Gen 2×2 Type-C port, 7 x PCIe 4.0 x16 slots, 3 x M.2 PCIe 4.0,  ASMB9-iKVM, 2 x U.2 and 16 power stages, and WIFI 6E

Processor

Memory

Supported memory types *	DDR4-SDRAM
Number of memory slots *	8
Memory slots type	DIMM
Memory channels	Octa-channel
ECC
Non-ECC
Maximum internal memory *	2048 GB
Unbuffered memory

Storage controllers

Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
RAID support

Graphics

Internal I/O

USB 2.0 connectors *
USB 3.2 Gen 1 (3.1 Gen 1) connectors *	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors *	1
Number of SATA III connectors *	1
Front panel audio connector	8
ATX Power connector (24-pin)
CPU fan connector
Number of chassis fan connectors	6

Rear panel I/O ports

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity *	8
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity *	1
USB 3.2 Gen 2×2 Type-C ports quantity	1
Ethernet LAN (RJ-45) ports *	2
Headphone outputs	1
Line-in
Microphone in
S/PDIF out port
WiFi-AP antenna jack	1

Network

Ethernet LAN
Ethernet interface type	10 Gigabit Ethernet
LAN controller	Intel® X550-AT2
Wi-Fi *
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Bluetooth
Bluetooth version	5.3

Features

Internal I/O

EPS power connector (8-pin)
Number of COM connectors	1
TPM connector
12V power connector
RGB LED pin header

Expansion slots

BIOS

BIOS type *	UEFI AMI
BIOS memory size	256 Mbit
Clear CMOS button

Weight & dimensions

Packaging content
