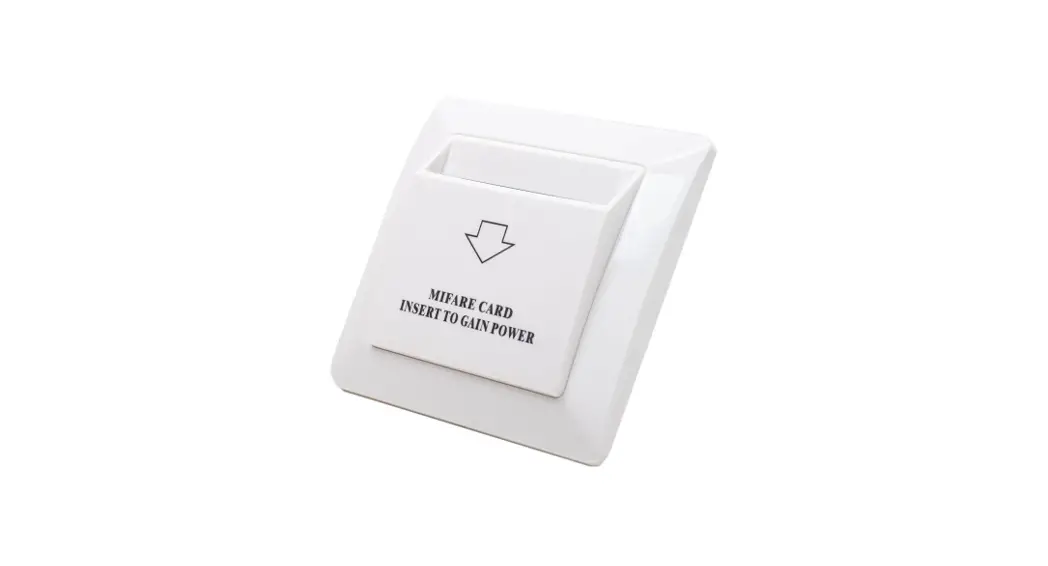

PNI ES100
RFID Card Switch
User manual
FOREWORD
PNI ES100 card switch is suitable for hotels and guest houses.
By inserting the electromagnetic card into the switch, it will supply the connected electrical device.
TECHNICAL SPECIFICATIONS
» Power supply voltage: 230V
» Maximum current: 30A
» Maximum load: 6000W
» Standby consumption: 0.01W
» Delay: approx. 15 seconds (15 seconds after removing the card, the switch will switch off the power of the connected device)
» Dimensions: 84 x 84 x 43 mm

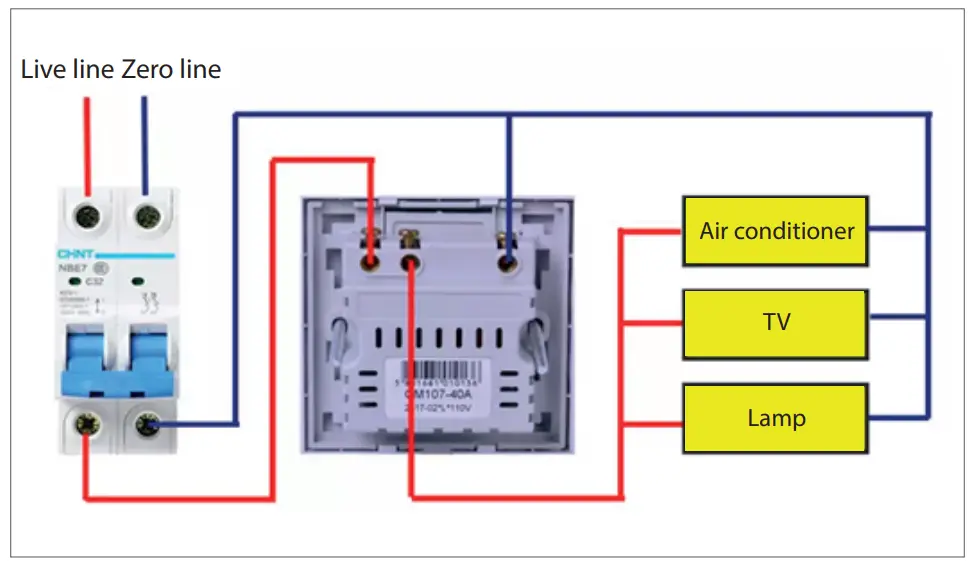

CONNECTION SCHEME
WARNINGS
Before installing the switch, turn of the general power supply.
We recommend that only the qualified electricians install the switch.
EU Simplified Declaration of Conformity
SC ONLINESHOP SRL declares that RFID Card Switch model ES100 complies
with the Directive EMC 2014/30/EU and RED 2014/53/UE. The full text of the
EU declaration of conformity is available at the following Internet address:
https://www.mypni.eu/products/4785/download/certifications
