Soundcore Flare Mini User Manual

Soundcore Flare Mini
USER MANUAL

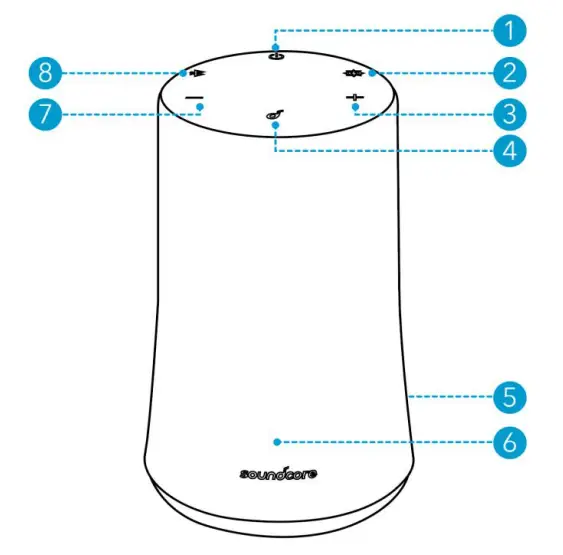

At a Glance

1. Power Button
2. Light Effects Button
3. Volume Up Button
4. Multi-function Button
5. Micro-USB Charging Port
6. Microphone
7. Volume Down Button
8. Bluetooth Button

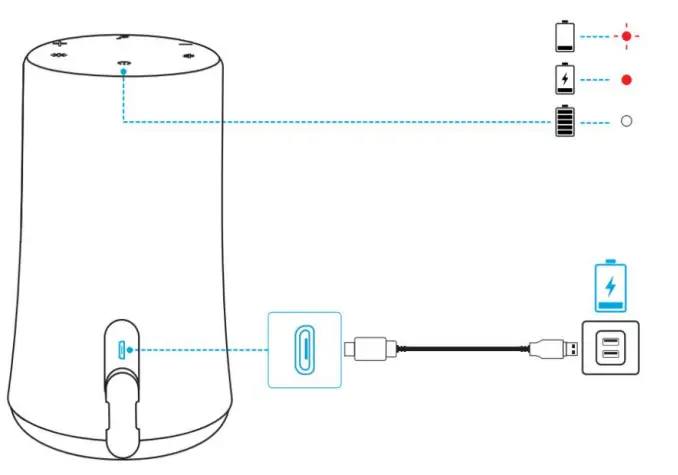

Charging

• Use a certified micro-USB charging cable and charger to prevent any damage.
• Fully charge this speaker before the first use to prolong the lifespan of the builtin battery.
• Disconnect this speaker from the charger when fully charged. Do not charge for extended periods.

	Flashing red	Low battery
	Steady red	Being charged
	Steady white	Fully charged (when powered on)
	Light off	Fully charged (when powered off)

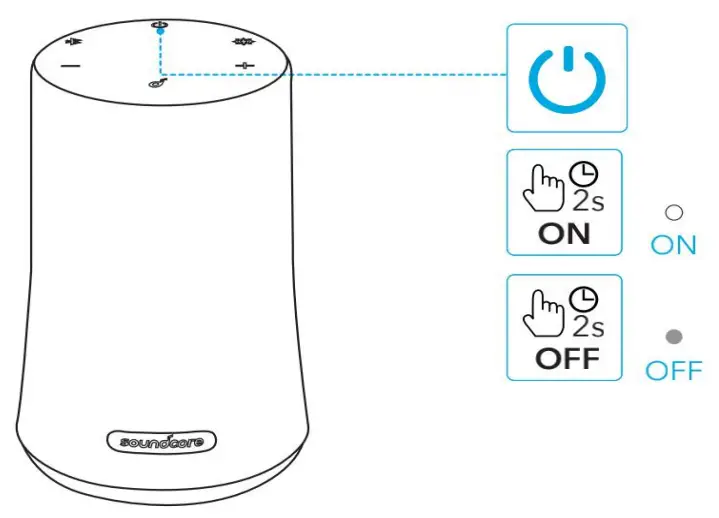

Powering On/Off

	Press or press and hold for 2 seconds	Power on
	Steady white
	Press and hold for 2 seconds	Power off
	Light off

• This speaker will power off automatically after 30 minutes if no device is connected.

Using Your Speaker

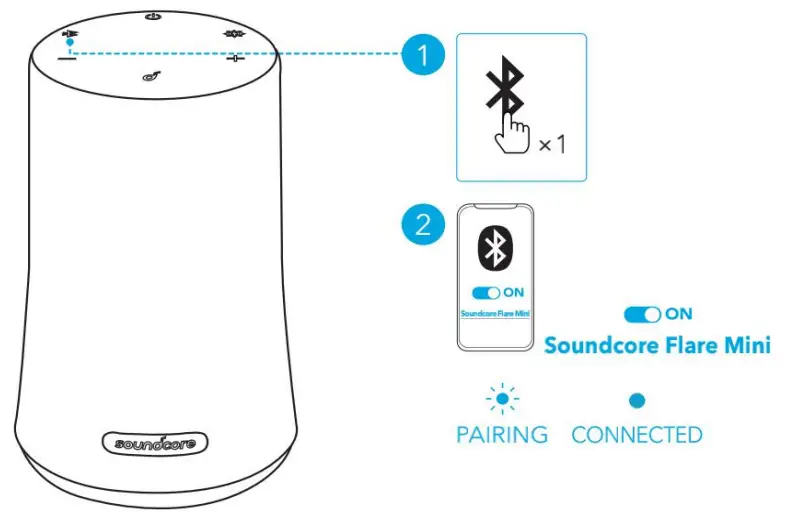

Bluetooth Mode
With this speaker, you can enjoy music through your Bluetooth-enabled devices.

	Press	Enter Bluetooth pairing mode
	Flashing blue	Pairing
	Steady blue	Connected

• This speaker can pair with up to 2 mobile devices via Bluetooth. To pair with another Bluetooth device, press the Bluetooth button to re-enter Bluetooth pairing mode.
• This speaker can only connect and play music on one mobile device at a time.
• Each time you power on your Soundcore speaker, it will automatically connect to your last connected device if available within the Bluetooth range. If not, press the Bluetooth button to enter Bluetooth pairing mode.

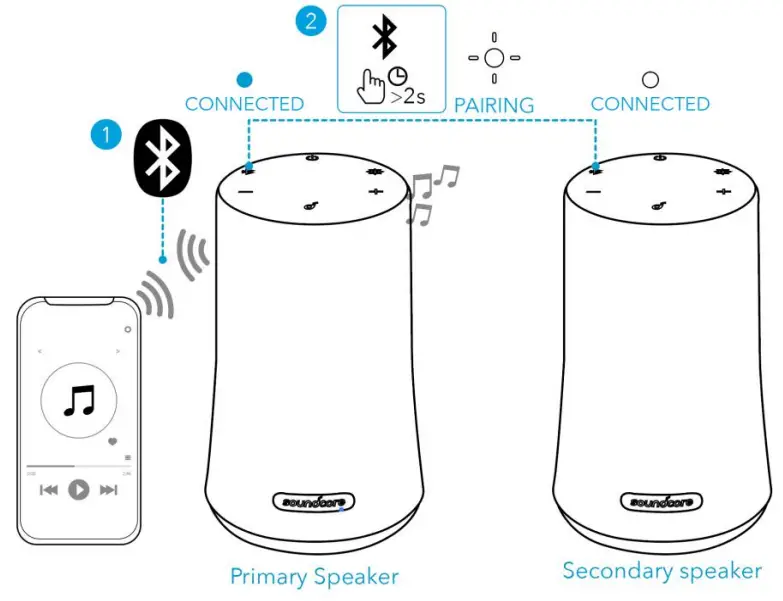

TWS (True Wireless Stereo) Mode
Two identical Soundcore Flare Mini speakers can pair up with each other for true wireless stereo sound.
Note: Unavailable between a new generation speaker and an old one.

1. Connect one Soundcore speaker with your smartphone or tablet.
2. On both Soundcore speakers, press and hold the Bluetooth button for 2 seconds to enter TWS pairing mode.
   → The speakers start searching for each other to establish the TWS connection.

	Press and hold for 2 seconds	Enter TWS pairing mode
	Flashing white	TWS pairing
	Steady blue (Primary speaker)	TWS connected
	Steady white (Secondary speaker)

• To exit the TWS mode, press and hold the Bluetooth button for 2 seconds.

Button Controls

	Press	Play/Pause
	Press twice	Next track
	Press three times	Previous track
	Press or press and hold	Adjust volume

	Press	Answer/End a call
		Answer a second incoming call and put the current call on hold
	Press and hold for 2 seconds	Reject an incoming call
		Switch between a call on hold and an active call

	Press and hold for 2 seconds	Activate Siri or other voice assistant software

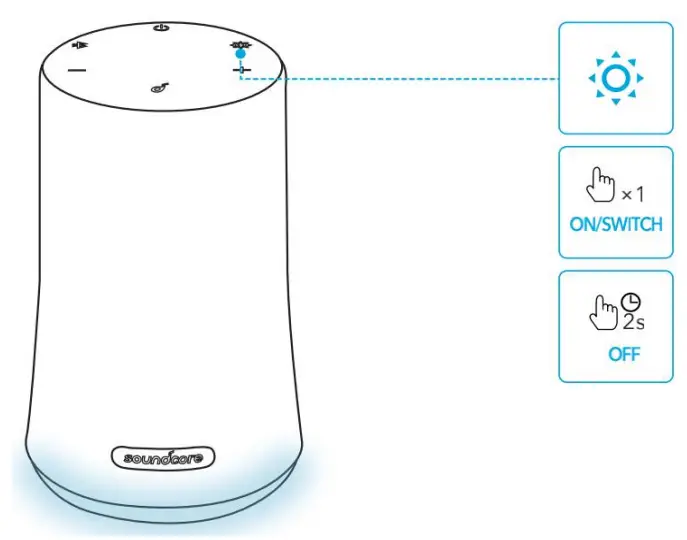

Light Effects
This speaker is equipped with light effects for a party mood.
Press the light effect button to turn on or switch among multiple music-sync light effects.
To turn the light effects off, press and hold the light effect button for 2 seconds.

• You can also check all available light effects in the Soundcore app.

Soundcore App
Download the Soundcore app to enhance your experience.

Product information: Check the product name and software version, or read the user manual.
Firmware update: You will be informed once a new version of firmware is detected when you connect the speaker to the app.
Battery status: Indicates the remaining battery level of your speaker.
Volume control: Adjust the volume level via the app without pressing the buttons on the speaker.
EQ settings: There are 4 EQ settings you can choose from in the app to optimize you’re experience while enjoying different music genres.

• Soundcore Signature: Normal EQ mode with well-balanced sound.
• Voice: Voices stand out more clearly from other ambient sounds.
• Balance: No enhancement for high-frequency and low-frequency sounds.
• Treble Boost: High frequencies are enhanced.

Set Auto-power off time: Set an auto-power off time (5/10/30/60 minutes, 30 minutes by default), the speaker will automatically power off when time is up. Light effects: Besides the music-sync light effects (Phasing beats, Bouncing beats, Party), you can also choose your favorite light effects (Chill, Energy, Bedtime, Spring) from in the app.
Voice prompt: Mute or restore the voice prompt while powering on/off.

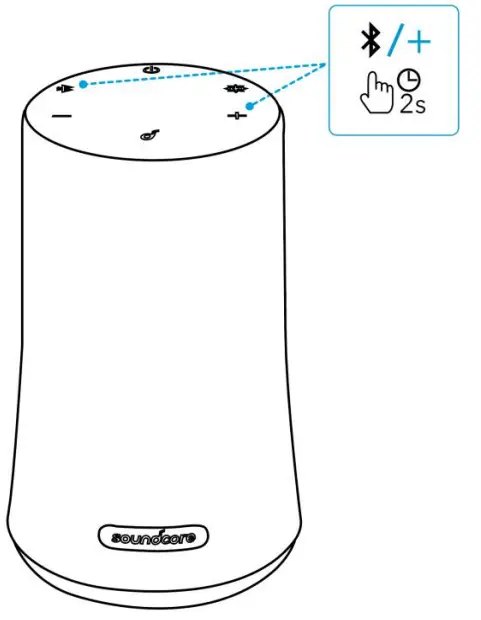

Reset

You might need to reset this speaker when you encounter any connection problems or function issues.
Press and hold the Bluetooth Button and Volume + Button for 2 seconds simultaneously.

Specifications

• Specifications are subject to change without notice.
