Mod: HN202T-4T
Production code: STL016G012-DI

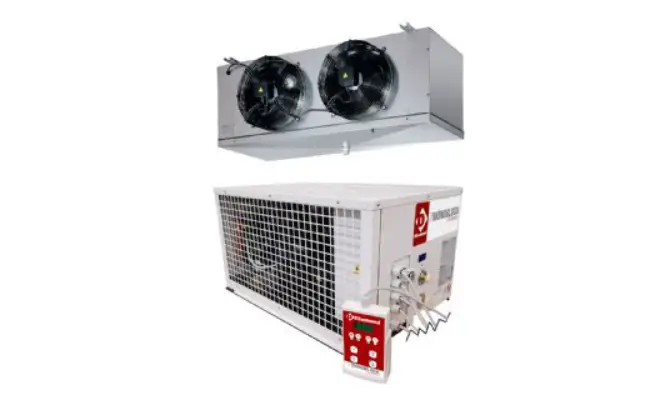

HN202T-4T Split Refrigeration Unit

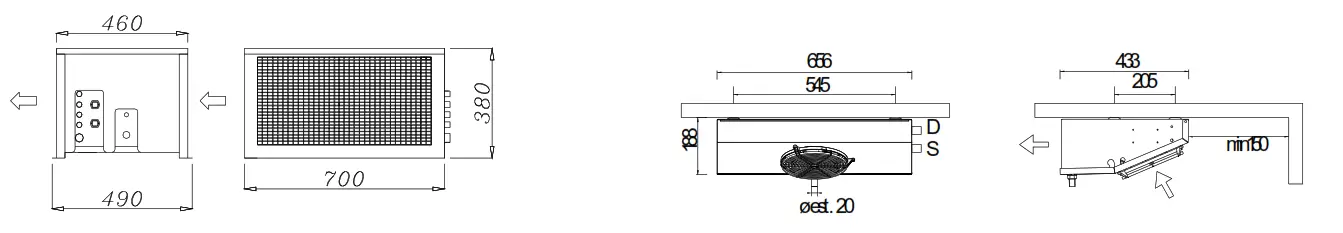

Drawing 6
| HBP | MBP | LBP | ||||||||||||
| Mod. | S [mm] | D [mm] | Net. Weight [Kg] | Mod. | S [mm] | D [mm] | Net. Weight [Kg] | Mod. | S [mm] | D [mm] | Net. Weight [Kg] | |||
| Cond.Unit | Evap. | Cond.Unit | Evap. | Cond.Unit | Evap. | |||||||||
| STH003 STH006 | 10 10 | 6 6 | 44.3 45.7 | 6.1 7.2 | STM003 STM006 | 10 10 | 6 6 | 45.3 46.7 | 6.1 7.2 | STL003 STL006 | 10 12 | 6 6 | 53.8 54.6 | 6.1 7.2 |

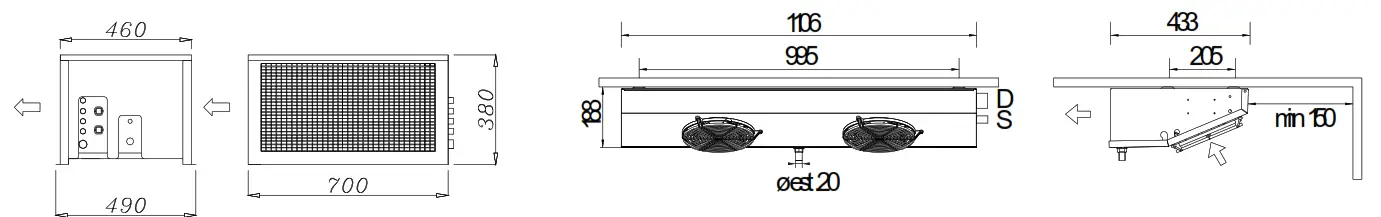

Drawing 7
| HBP | MBP | LBP | ||||||||||||
| Mod. | S [mm] | D [mm] | Net. Weight [Kg] | Mod. | S [mm] | D [mm] | Net. Weight [Kg] | Mod. | S [mm] | D [mm] | Net. Weight [Kg] | |||
| Cond.Unit | Evap. | Cond.Unit | Evap. | Cond.Unit | Evap. | |||||||||
| STH009 STH016 | 12 12 | 6 6 | 53.5 57 | 10.7 12.5 | STM009 STM012 STM016 | 12 12 12 | 6 6 6 | 47 55 57 | 10.7 10.7 12.5 | STL009 | 12 | 6 | 68.6 | 10.7 |

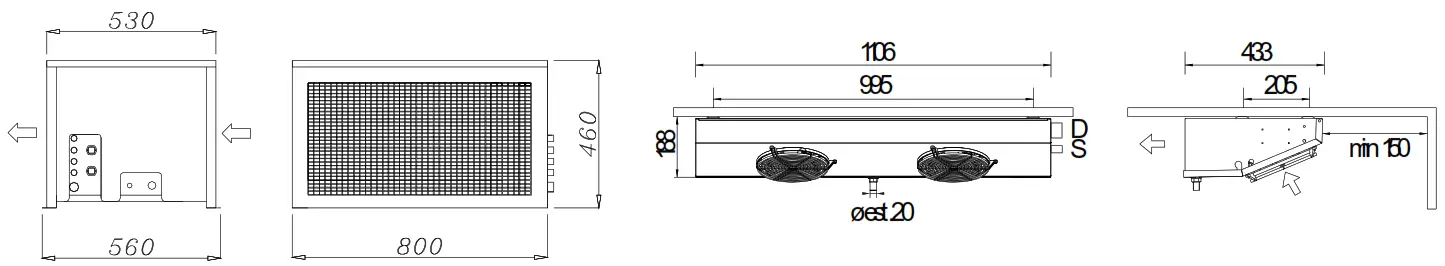

Drawing 8
| LBP | ||||
| Mod. | S [mm] | D [mm] | Net. Weight [Kg] | |
| Cond.Unit | Evap. | |||
| STL012 | 12 | 10 | 65 | 10.7 |

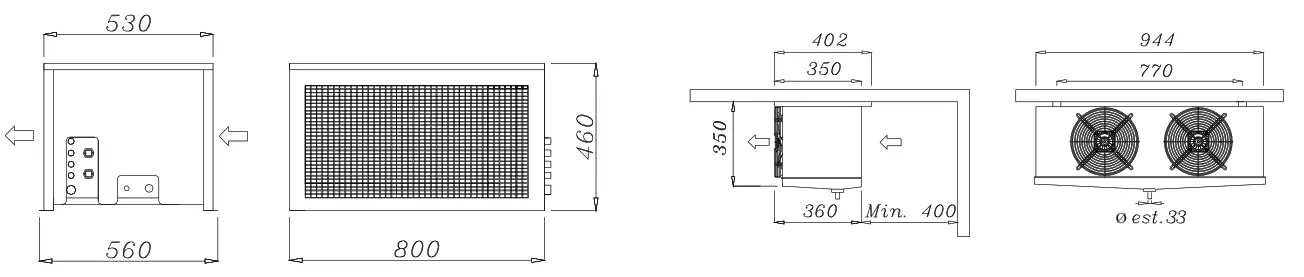

Drawing 9
| HBP | MBP | LBP | ||||||||||||
| Mod. | S [mm] | D [mm] | Net. Weight [Kg] | Mod. | S [mm] | D [mm] | Net. Weight [Kg] | Mod. | S [mm] | D [mm] | Net. Weight [Kg] | |||
| Cond.Unit | Evap. | Cond.Unit | Evap. | Cond.Unit | Evap. | |||||||||
| STH022 | 16 | 10 | 62.3 | 17.7 | STM022 | 16 | 10 | 63 | 19 | STL016 | 16 | 10 | 74 | 19 |

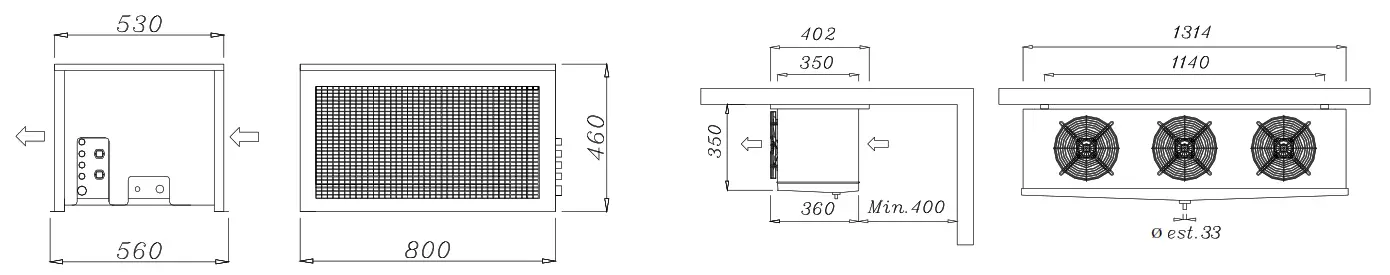

Drawing 10
| HBP | MBP | ||||||||
| Mod. | S [mm] | D [mm] | Net. Weight [Kg] | Mod. | S [mm] | D [mm] | Net. Weight [Kg] | ||
| Cond.Unit | Evap. | Cond.Unit | Evap. | ||||||
| STH034 | 16 | 10 | 84.8 | 25.2 | STM034 | 16 | 10 | 85 | 27 |

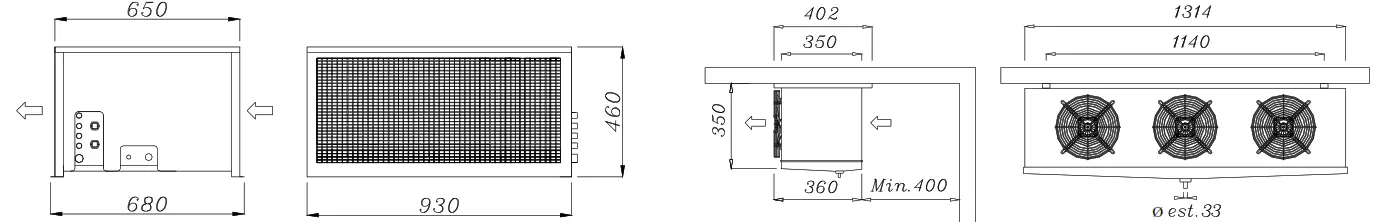

Drawing 11
| HBP | MBP | LBP | ||||||||||||
| Mod. | S [mm] | D [mm] | Net. Weight [Kg] | Mod. | S [mm] | D [mm] | Net. Weight [Kg] | Mod. | S [mm] | D [mm] | Net. Weight [Kg] | |||
| Cond.Unit | Evap. | Cond.Unit | Evap. | Cond.Unit | Evap. | |||||||||
| STH054 | 16 | 10 | 90.8 | 28.2 | STM054 | 18 | 10 | 92 | 30 | STL024 STL034 | 16 18 | 10 10 | 88 100 | 27 30 |

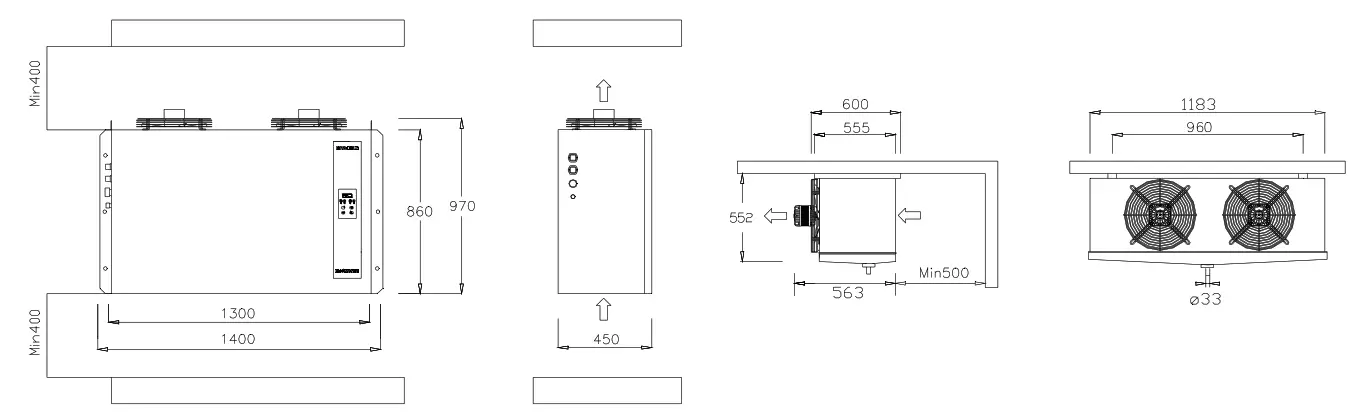

Drawing12
| MBP | LBP | ||||||||
| Mod. | S [mm] | D [mm] | Net. Weight [Kg] | Mod. | S [mm] | D [mm] | Net. Weight [Kg] | ||
| Cond.Unit | Evap. | Cond.Unit | Evap. | ||||||
| STM068* STM080* | 22 22 | 12 12 | 109.4 118.7 | 46.6 51.3 | STL060* STL080* | 28 28 | 12 12 | 125.4 126.7 | 46.6 51.3 |
Model not available with fast connections and gas charge

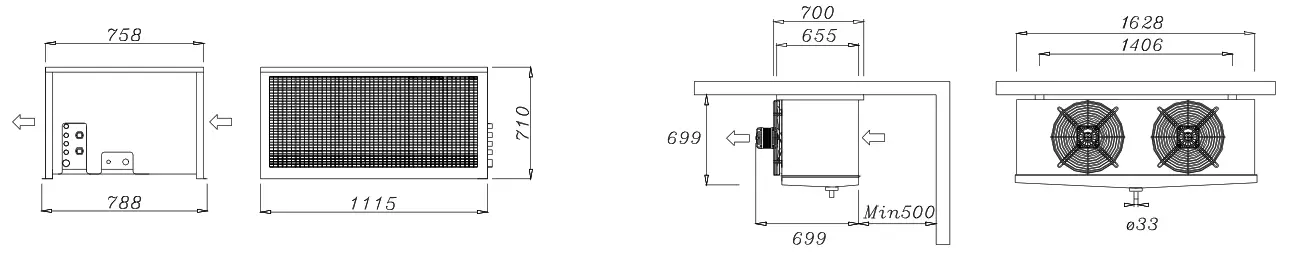

Drawing 13
| MBP | LBP | ||||||||
| Mod. | S [mm] | D [mm] | Net. Weight [Kg] | Mod. | S [mm] | D[mm] | Net. Weight [Kg] | ||
| Cond.Unit | Evap. | Cond.Unit | Evap. | ||||||
| STM110* | 28 | 12 | 144.6 | 57,4 | STL130* | 28 | 16 | 173.6 | 57,4 |

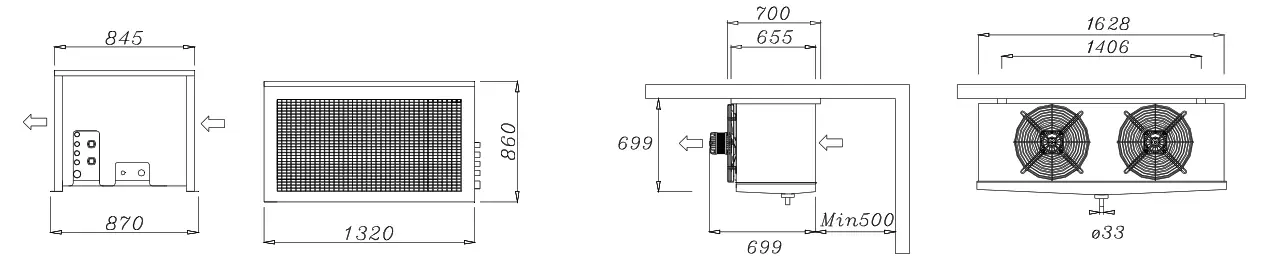

Drawing 14
| MBP | LBP | ||||||||
| Mod. | S [mm] | D [mm] | Net. Weight [Kg] | Mod. | S [mm] | D [mm] | Net. Weight [Kg] | ||
| Cond.Unit | Evap. | Cond.Unit | Evap. | ||||||
| STM140* STM200* | 28 35 | 12 16 | 156.3 178 | 78.7 89 | STL180* STL200* STL260* | 35 35 35 | 16 16 16 | 232.3 229 232 | 78.7 89 89 |
Model not available with fast connections and gas charge
“SP” RANGE

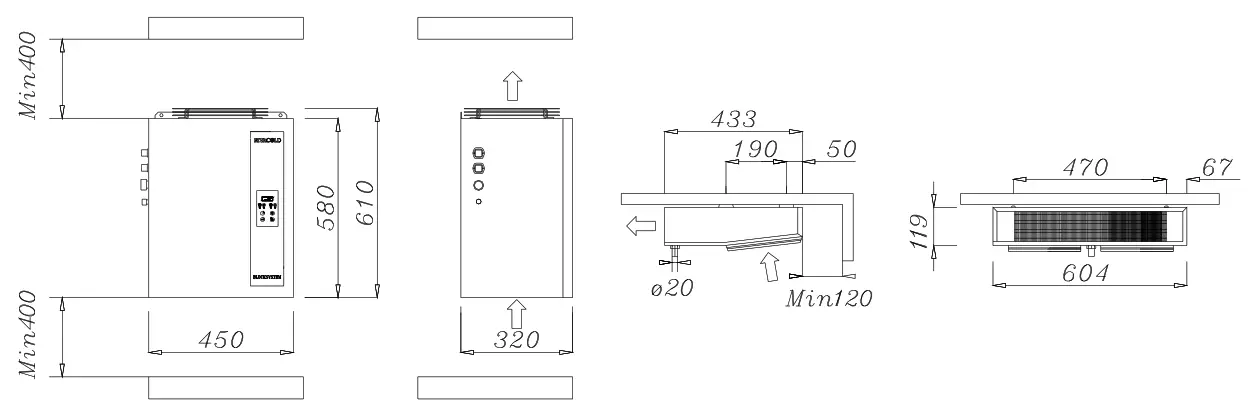

Drawing 15
| HBP | MBP | LBP | ||||||||||||
| Mod. | S [mm] | D [mm] | Net. Weight [Kg] | Mod. | S [mm] | D [mm] | Net. Weight [Kg] | Mod. | S [mm] | D [mm] | Net. Weight [Kg] | |||
| Cond.Unit | Evap. | Cond.Unit | Evap. | Cond.Unit | Evap. | |||||||||
| SPH003 SPH006 | 10 10 | 6 6 | 42.3 44.7 | 6.7 7.3 | SPM003 SPM006 | 10 10 | 6 6 | 43.3 42.7 | 6.7 7.3 | SPL003 | 10 | 6 | 48.8 | 7.2 |

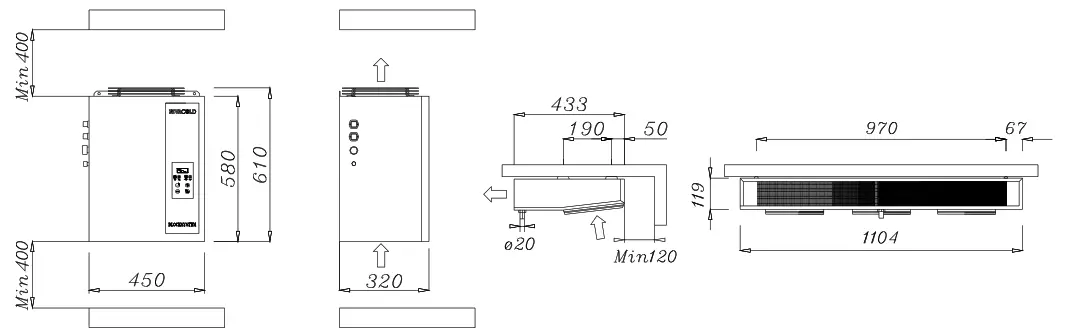

Drawing 16
| HBP | MBP | LBP | ||||||||||||
| Mod. | S [mm] | D [mm] | Net. Weight [Kg] | Mod. | S [mm] | D [mm] | Net. Weight [Kg] | Mod. | S [mm] | D [mm] | Net. Weight [Kg] | |||
| Cond.Unit | Evap. | Cond.Unit | Evap. | Cond.Unit | Evap. | |||||||||
| SPH009 | 12 | 6 | 53.5 | 10.5 | SPM009 | 12 | 6 | 56.5 | 10.5 | SPL006 | 12 | 6 | 54.6 | 10.4 |

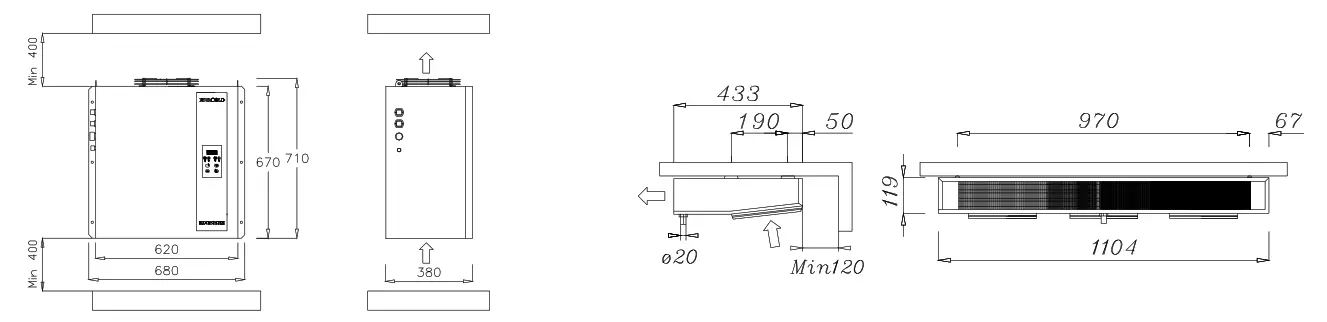

Drawing 17
| HBP | MBP | LBP | ||||||||||||
| Mod. | S [mm] | D [mm] | Net. Weight [Kg] | Mod. | S [mm] | D [mm] | Net. Weight [Kg] | Mod. | S [mm] | D [mm] | Net. Weight [Kg] | |||
| Cond.Unit | Evap. | Cond.Unit | Evap. | Cond.Unit | Evap. | |||||||||
| SPH016 | 12 | 6 | 54.5 | 11.5 | SPM016 | 12 | 6 | 58.5 | 11.5 | SPL009 | 12 | 6 | 70.6 | 11.4 |

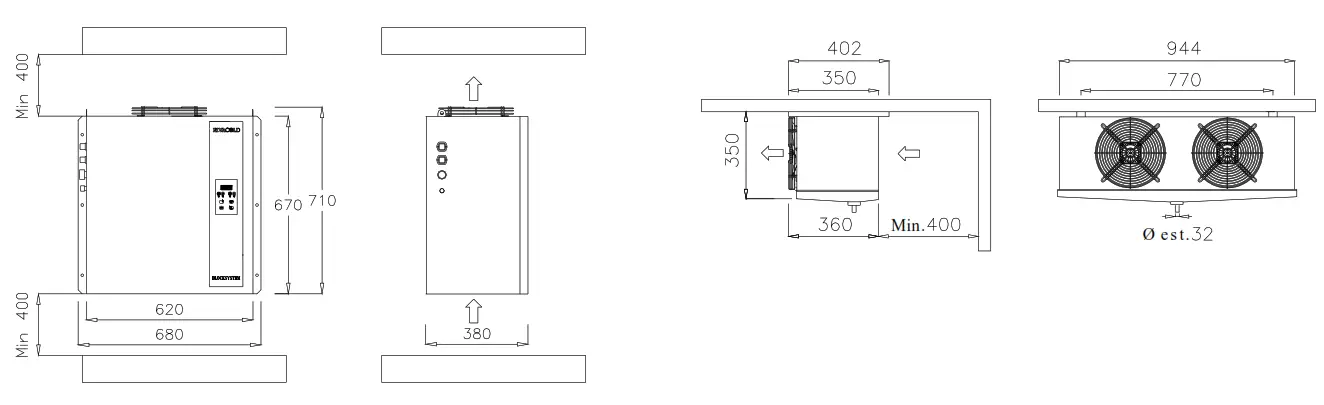

Drawing 18
| HBP | MBP | LBP | ||||||||||||
| Mod. | S [mm] | D [mm] | Net. Weight [Kg] | Mod. | S [mm] | D [mm] | Net. Weight [Kg] | Mod. | S [mm] | D [mm] | Net. Weight [Kg] | |||
| Cond.Unit | Evap. | Cond.Unit | Evap. | Cond.Unit | Evap. | |||||||||
| SPH022 | 16 | 10 | 91.3 | 17.7 | SPM022 | 16 | 10 | 89 | 19 | SPL016 | 16 | 10 | 76 | 19 |

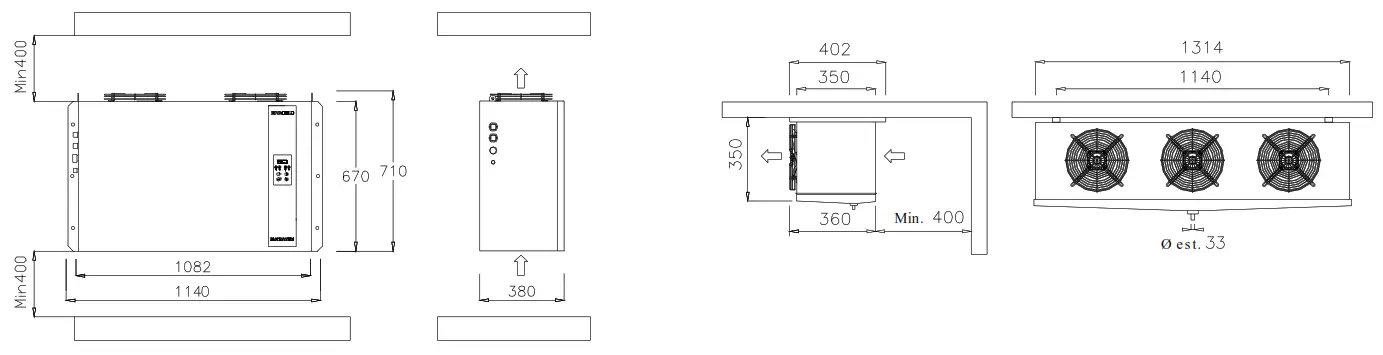

Drawing 19
| HBP | MBP | LBP | ||||||||||||
| Mod. | S [mm] | D [mm] | Net. Weight [Kg] | Mod. | S [mm] | D [mm] | Net. Weight [Kg] | Mod. | S [mm] | D [mm] | Net. Weight [Kg] | |||
| Cond.Unit | Evap. | Cond.Unit | Evap. | Cond.Unit | Evap. | |||||||||
| SPH034 SPH054 | 16 16 | 10 10 | 97.8 131.8 | 25.2 28.2 | SPM034 SPM054 | 16 18 | 10 10 | 94 95 | 27 30 | SPL024 SPL034 | 16 18 | 10 10 | 126 128 | 27 30 |
Drawing 20
| MBP | LBP | ||||||||
| Mod. | S [mm] | D [mm] | Net. Weight [Kg] | Mod. | S [mm] | D [mm] | Net. Weight [Kg] | ||
| Cond.Unit | Evap. | Cond.Unit | Evap. | ||||||
| SPM068* | 22 | 12 | 117.4 | 46.6 | SPL060* | 28 | 12 | 144.4 | 46.6 |
| SPM080* | 22 | 12 | 130.7 | 51.3 | SPL080* | 28 | 12 | 145.7 | 51.3 |
Model not available with fast connections and gas charge

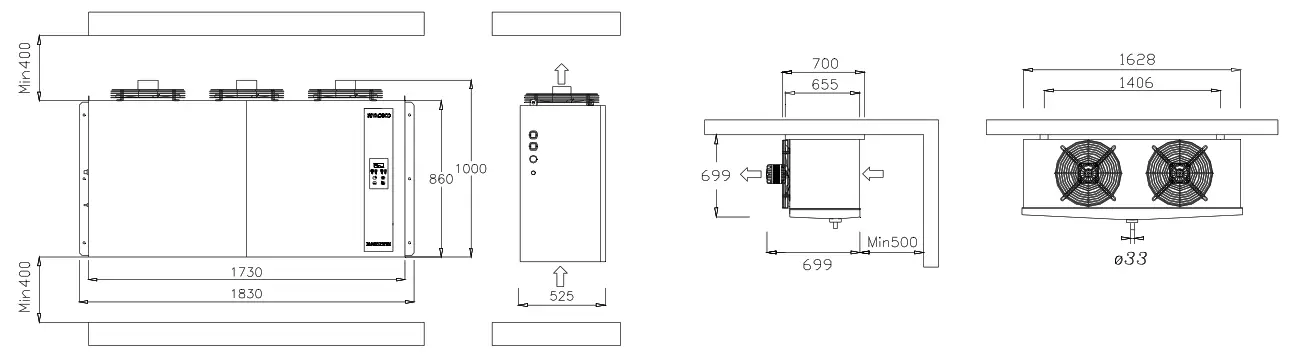

Drawing 20
| MBP | LBP | ||||||||
| Mod. | S [mm] | D [mm] | Net. Weight [Kg] | Mod. | S [mm] | D [mm] | Net. Weight [Kg] | ||
| Cond.Unit | Evap. | Cond.Unit | Evap. | ||||||
| SPM110* | 28 | 12 | 211.6 | 68.4 | SPL130* | 28 | 16 | 254.6 | 68.4 |
| SPM140* | 28 | 12 | 218.3 | 78.7 | SPL180* | 35 | 16 | 262.3 | 78.7 |
| SPM200* | 35 | 16 | 241 | 89 | SPL200* | 35 | 16 | 292 | 89 |
| SPL260* | 35 | 16 | 295 | 89 | |||||

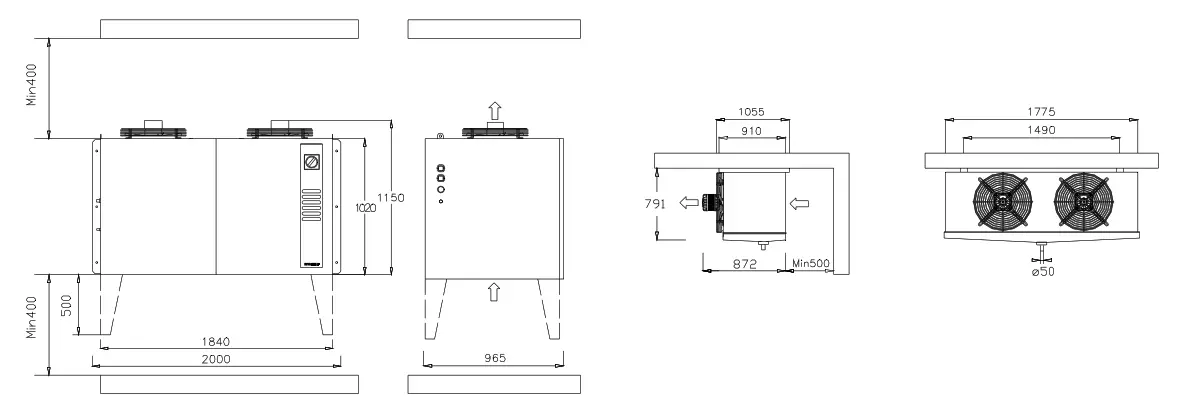

Drawing 22
| MBP | LBP | ||||||||
| Mod. | S [mm] | D [mm] | Net. Weight [Kg] | Mod. | S [mm] | D [mm] | Net. Weight [Kg] | ||
| Cond.Unit | Evap. | Cond.Unit | Evap. | ||||||
| SPM300* SPM370* | 35 35 | 16 16 | 455.1 475.9 | 124.9 134.1 | SPL350* SPL450* | 42 42 | 22 22 | 525.1 545.9 | 124.9 134.1 |
Model not available with fast connections and gas charge

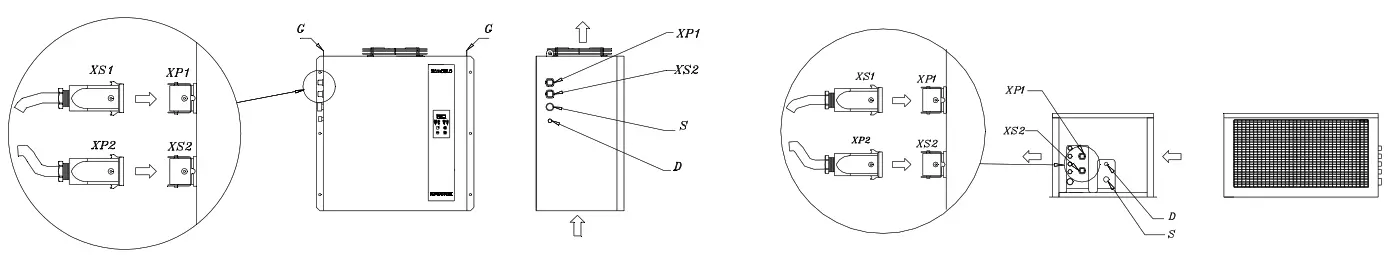

Drawing 23
Key
S = Suction pipe
D = Discharge pipe
XS1 = Prise connecteur sondes
XP1 = Probe connector plug
XS2 = Fans and heaters connector socket
XP2 = Fan and heater connector plug
G = Lifting hooks
Pre-charged pipe connections
| RANGE TENP. | BLOCKSYSTEM | BLOCKSYSTEM | Liquid line | Suction | Pipe connections m2 | Pipe connections m5 | Pipe connections m 10 |
|
HBP | STH003E001 | SPH003E001 | 6 | 10 | KIT2610/E | KIT5610/E | KIT10610/E |
| STH006E001 | SPH006E001 | 6 | 10 | KIT2610/E | KIT5610/E | KIT10610/E | |
| STH009E001 | SPH009E001 | 6 | 12 | KIT2612/E | KIT5612/E | KIT10612/E | |
| STH003Y001 | SPH003Y001 | 6 | 10 | KIT2610/Y | KIT5610/Y | KIT10610/Y | |
| STH006Y001 | SPH006Y001 | 6 | 10 | KIT2610/Y | KIT5610/Y | KIT10610/Y | |
| STH009Y001 | SPH009Y001 | 6 | 12 | KIT2612/Y | KIT5612/Y | KIT10612/Y | |
| STH003Z001 | SPH003Z001 | 6 | 10 | KIT2610/Z | KIT5610/Z | KIT10610/Z | |
| STH006Z001 | SPH006Z001 | 6 | 10 | KIT2610/Z | KIT5610/Z | KIT10610/Z | |
| STH009Z001 | SPH009Z001 | 6 | 12 | KIT2612/Z | KIT5612/Z | KIT10612/Z | |
| MBP | STM003E001 | SPM003E001 | 6 | 10 | KIT2610/E | KIT5610/E | KIT10610/E |
| STM006E001 | SPM006E001 | 6 | 10 | KIT2610/E | KIT5610/E | KIT10610/E | |
| STM009E001 | SPM009E001 | 6 | 12 | KIT2612/E | KIT5612/E | KIT10612/E | |
| STM003Y001 | SPM003Y001 | 6 | 10 | KIT2610/Y | KIT5610/Y | KIT10610/Y | |
| STM006Y001 | SPM006Y001 | 6 | 10 | KIT2610/Y | KIT5610/Y | KIT10610/Y | |
| STM009Y001 | SPM009Y001 | 6 | 12 | KIT2612/Y | KIT5612/Y | KIT10612/Y | |
| STM003Z001 | SPM003Z001 | 6 | 10 | KIT2610/Z | KIT5610/Z | KIT10610/Z | |
| STM006Z001 | SPM006Z001 | 6 | 10 | KIT2610/Z | KIT5610/Z | KIT10610/Z | |
| STM009Z001 | SPM009Z001 | 6 | 12 | KIT2612/Z | KIT5612/Z | KIT10612/Z | |
| LBP | STL003Z011 | SPL003Z011 | 6 | 10 | KIT2610/Z | KIT5610/Z | KIT10610/Z |
| STL006Z011 | SPL006Z011 | 6 | 12 | KIT2612/Z | KIT5612/Z | KIT10612/Z |
| HBP | STH016E001 | SPH016E001 | 6 | 12 | KIT2612/E | KIT5612/E | KIT10612/E |
| STH022E012 | SPH022E012 | 10 | 16 | KIT21016/E | KIT51016/E | KIT101016/E | |
| STH016Y001 | SPH016Y001 | 6 | 12 | KIT2612/Y | KIT5612/Y | KIT10612/Y | |
| STH022Y012 | SPH022Y012 | 10 | 16 | KIT21016/Y | KIT51016/Y | KIT101016/Y | |
| STH016Z001 | SPH016Z001 | 6 | 12 | KIT2612/Z | KIT5612/Z | KIT10612/Z | |
| STH022Z012 | SPH022Z012 | 10 | 16 | KIT21016/Z | KIT51016/Z | KIT101016/Z | |
| MBP | STM016E001 | SPM016E001 | 6 | 12 | KIT2612/E | KIT5612/E | KIT10612/E |
| STM022E012 | SPM022E012 | 10 | 16 | KIT21016/E | KIT51016/E | KIT101016/E | |
| STM016Y001 | SPM016Y001 | 6 | 12 | KIT2612/Y | KIT5612/Y | KIT10612/Y | |
| STM022Y012 | SPM022Y012 | 10 | 16 | KIT21016/Y | KIT51016/Y | KIT101016/Y | |
| STM016Z001 | SPM016Z001 | 6 | 12 | KIT2612/Z | KIT5612/Z | KIT10612/Z | |
| STM022Z012 | SPM022Z012 | 10 | 16 | KIT21016/Z | KIT51016/Z | KIT101016/Z | |
| LBP | STL009Z011 | SPL009Z011 | 6 | 12 | KIT2612/Z | KIT5612/Z | KIT10612/Z |
| STL016Z012 | SPL016Z012 | 10 | 16 | KIT21016/Z | KIT51016/Z | KIT101016/Z |
| HBP | STH034E012 | SPH034E012 | 10 | 16 | KIT21016/E | KIT51016/E | KIT101016/E |
| STH054E012 | SPH054E012 | 10 | 16 | KIT21016/E | KIT51016/E | KIT101016/E | |
| STH034Y012 | SPH034Y012 | 10 | 16 | KIT21016/Y | KIT51016/Y | KIT101016/Y | |
| STH054Y012 | SPH054Y012 | 10 | 16 | KIT21016/Y | KIT51016/Y | KIT101016/Y | |
| STH034Z012 | SPH034Z012 | 10 | 16 | KIT21016/Z | KIT51016/Z | KIT101016/Z | |
| STH054Z012 | SPH054Z012 | 10 | 16 | KIT21016/Z | KIT51016/Z | KIT101016/Z | |
| MBP | STM034E012 | SPM034E012 | 10 | 16 | KIT21016/E | KIT51016/E | KIT101016/E |
| STM054E012 | SPM054E012 | 10 | 18 | KIT21018/E | KIT51018/E | KIT101018/E | |
| STM034Y012 | SPM034Y012 | 10 | 16 | KIT21016/Y | KIT51016/Y | KIT101016/Y | |
| STM054Y012 | SPM054Y012 | 10 | 18 | KIT21018/Y | KIT51018/Y | KIT101018/Y | |
| STM034Z012 | SPM034Z012 | 10 | 16 | KIT21016/Z | KIT51016/Z | KIT101016/Z | |
| STM054Z012 | SPM054Z012 | 10 | 18 | KIT21018/Z | KIT51018/Z | KIT101018/Z | |
| LBP | STL024Z012 | SPL024Z012 | 10 | 16 | KIT21016/Z | KIT51016/Z | KIT101016/Z |
| STL034Z012 | SPL034Z012 | 10 | 18 | KIT21018/Z | KIT51018/Z | KIT101018/Z |
BLOCKSYSTEM ST-SP Rev. 10 11/10
