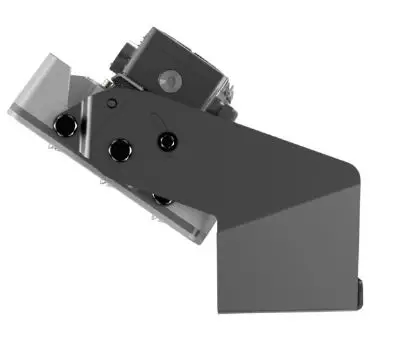

PrimeLine BRAUN Lighting Solutions

LED high power spotlight

Easy integration into existing lighting towers
Low weight and low wind load
Large light emission area and extremely powerful light output
Highest effi ciency of all system components LongLIFE
Diff erent light distributions possible
Insensitive to vibration
ThermoProtect System against overtemperature of the LED
Lifetime L80: 60.000 – 100.000 h
Overvoltage protection 10kA optional 20kA
Main dimensions L/B/H: 570x200x175mm without mounting bracket
Weight: approx. 13kg

BRAUN PrimeLine

ECO

Basic E1

Light E2

DALI

Power Consumption Luminous Flux

System performance

280W

27.653lm

101lm/W

60-280W

27.653lm

101lm/W

60-280W

27.653lm

101lm/W

1-280W

27.653lm

101lm/W

Possibility/s of regulation of the performance

Manual via 10-stage coding switch

Half-night switching via control voltage 230VAC Dimming is done manually via 10-step coding switch

AstroDimm multiple dimming levels programmable optional 0-10V 1-10V Interfac Dim to Oﬀ DALI

Light color Other light colors available on request

3000K Warm White 4000K Neutral White 5000K Daylight White

6500K Daylight White

Light distribution/ variants

TECHNICAL DESCRIPTIONS

Power consumption: 280 Watt Luminous ﬂux: 27.653lm
Color Temperature: 3000K, 4000K, 5000K ,6500K
Switching function: Eco (on/oﬀ) Basic E1 Light E2 DALI
LED control gear/s: CE ,ENEC , DALI , 0-10, 1-10V Dim to Oﬀ
Permissible operating voltage: 100-240VAC, 50/60Hz Permissible operating voltage: -40°C bis 50°C
Degree of protection luminaire and LED space: IP67,SKI
Housing: Die cast aluminum, powder coated
Optical Cover: technical lens system
Stainless steel mounting bracket: Adjustment range 140° Other mounting types on request e.g. Chain suspension

REFLECTOR SYSTEM VARIANTS

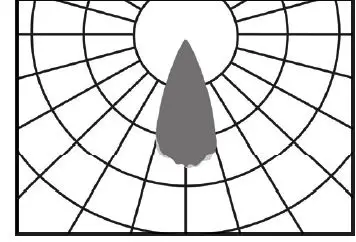

Variant 1: PrimeLine 01
Light distribution: symmetrical 65°

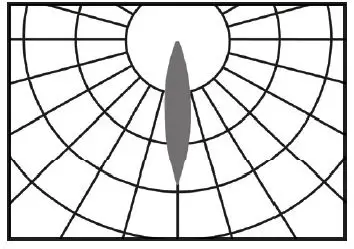

Variant 2: PrimeLine 02
Light distribution: symmetrical 20°

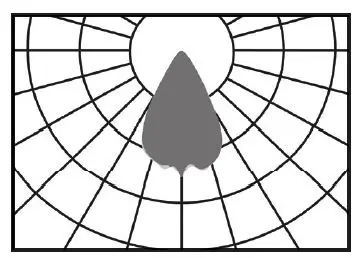

Variant 3: PrimeLine 03
Light distribution: symmetrical 105°

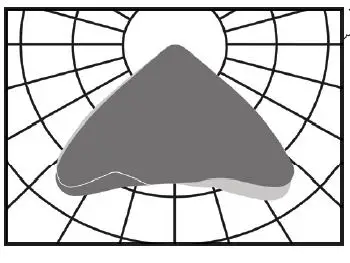

Variant 4: PrimeLine 04
Light distribution: asymmetric 45°

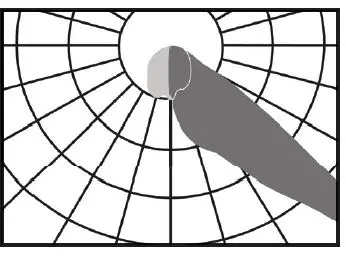

Variant 5: PrimeLine 05
Light distribution: symmetrical 40°

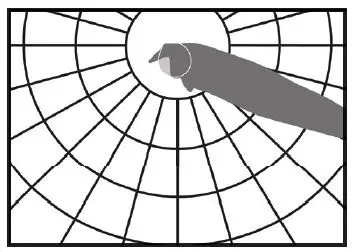

Variant 6: PrimeLine 06
Light distribution: asymmetric

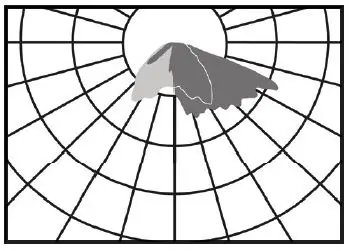

Variant 7: PrimeLine 07
Light distribution: asymmetric 65°
