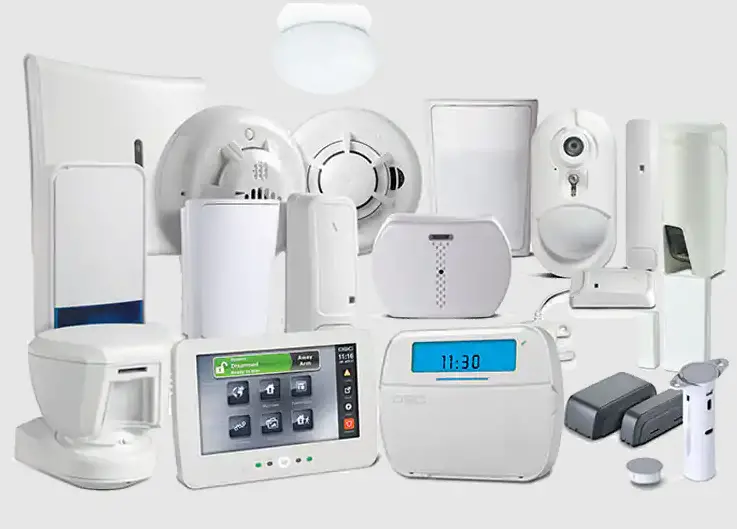

PowerG SUPPORTED SENSORS
The following PowerG sensors have been tested and approved for use with the IQ Panel 4. Sensor compatibility is based on running the current version of IQ Panel software (4.0.1) and the corresponding PowerG daughter card.
| Brand | Product | Part Number | Device Limitations |
| PowerG | Door / Window Sensor with AUX | PG9945 | None |
| PowerG | Commercial Door / Window Sensor with AUX | PG9309 | None |
| PowerG | Door / Window Vanishing Sensor | PG9975 | No Signal Test at Panel |
| PowerG | Door / Window Vanishing Sensor | PG9303 | None |
| PowerG | Outdoor Door Sensor | PG9312 | None |
| PowerG | Recessed Door Sensor | PG9307 | None |
| PowerG | PIR Detector | PG9904 | None |
| PowerG | Curtain PIR Detector | PG9924 | None |
| PowerG | Outdoor Curtain PIR Detector | PG9902 | None |
| PowerG | Mirror Optic PIR Detector | PG9974P | None |
| PowerG | Flat PIR Detector | PG9914 | Sensitivity Setting Not Supported / FW 4.0.0 or Higher Required |
| PowerG | 360 Degree Ceiling-Mount PIR | PG9862 | None |
| PowerG | Long Range 360 Degree Ceiling-Mount PIR | PG9872 | None |
| PowerG | Outdoor PIR Detector | PG9994 | None |
| PowerG | PIR – Camera Detector | PG9934 | Limit of 10 Total PIR CAMs |
| PowerG | Outdoor PIR – Camera Detector | PG9944 | Limit of 10 Total PIR CAMs |
| PowerG | Dual PIR and Microwave Detector | PG9984 | None |
| Brand | Product | Part Number | Device Limitations |
| PowerG | Glass Break Detector | PG9912 | None |
| PowerG | Glass Break Detector | PG9922 | Test Button Only Sends Alarm after Tamper + Tamper Restoral |
| PowerG | Shock Detector +Auxiliary Input | PG9935 | None |
| PowerG | Smoke Detector | PG9926 | Test Button Only Sends Alarm after Tamper + Tamper Restoral |
| PowerG | Smoke & Heat Detector | PG9936 | Test Button Only Sends Alarm after Tamper + Tamper Restoral |
| PowerG | Smoke & Heat Detector | PG9916 | Test Button Only Sends Alarm after Tamper + Tamper Restoral |
| PowerG | Carbon Monoxide Detector | PG9913 | Test Button Only Sends Alarm after Tamper + Tamper Restoral |
| PowerG | Carbon Monoxide Detector | PG9933 | Test Button Only Sends Alarm after Tamper + Tamper Restoral |
| PowerG | Flood Detector with Probe | PG9985 | None |
| PowerG | Temperature Sensor with Optional Probe | PG9905 | Must Opt Into Alarm.com SBTM Program for Remote Monitoring |
*Sensor compatibility is based on running the current version of IQ Panel software (4.0.1) and the corresponding PowerG daughter card.
319.5 MHz SUPPORTED SENSORS
| Brand | Product | Part Number | Device Limitations |
| PowerG | Simple Keyfob | PG9939 | No Signal Test at Panel |
| PowerG | Keyfob with System Status Indication | PG9929 | No Signal Test at Panel |
| PowerG | Single Key Panic Button | PG9938 | No Signal Test at Panel / Limit of 120 |
| PowerG | Two Key Panic Button | PG9949 | No Signal Test at Panel |
| PowerG | 2-Way Wireless Keypad | WS9LCDWF9 | Limit of 5 Total Wireless Keypads |
| PowerG | 2-Way Wireless Keypad | HS2LCDWF9 | Limit of 5 Total Wireless Keypads |
| PowerG | 2-Way Wireless Keypad | HS2LCDWF9ENGN | Limit of 5 Total Wireless Keypads |
| PowerG | Wired to Wireless Converter | PG9WLSHW8 | Limit of 2 |
| PowerG | Hardwired Keypads for PG9WLSHW8 | HS2LCD / HS2ICN | Limit of 2 Keypads Per Translator. FW v1.1 or Higher Required |
| PowerG | Indoor Siren | PG9901 | Limit of 16 Total Sirens |
| PowerG | Outdoor Siren | PG9911 | Limit of 16 Total Sirens |
| PowerG | Repeater | PG9920 | Limit of 8 |
*Sensor compatibility is based on running the current version of IQ Panel software (4.0.1) and the corresponding PowerG daughter card.
The following 319.5 MHz RF sensors have been tested and approved for use with the IQ Panel 4. Sensor compatibility is based on running the current version of IQ Panel software (4.0.1) and the corresponding S-Line/319.5 MHz daughter card.
| Brand | Product | Part Number | Encryption / Limitation |
| Qolsys | IQ Remote (Requires a WiFi Connection) | QW9104-840 | Limit of 3 |
| Qolsys | IQ DW Mini-C | QS1125-840 | Encrypted |
| Qolsys | IQ DW-S | QS1133-840 | Encrypted |
| Qolsys | IQ Mini DW-S | QS1135-840 | Encrypted |
| Qolsys | IQ Mini DW-S (Brown) | QS1136-840 | Encrypted |
| Qolsys | IQ DW Mini Extended-S | QS1137-840 | Encrypted |
| Qolsys | IQ Micro | QS1132-840 | Encrypted |
| Qolsys | IQ Micro (Brown) | QS1130-840 | Encrypted |
| Qolsys | IQ Recessed-S | QS1134-840 | Encrypted |
| Qolsys | IQ Motion-S | QS1231-840 / QS1230-840 | Encrypted |
| Qolsys | IQ Glass-S | QS1431-840 | Encrypted |
| Qolsys | IQ Fob-S | QS1331-840 | Encrypted |
| Qolsys | IQ Shock-S | QS1138-840 | Encrypted |
| Qolsys | IQ Hardwire 16-F (Small Enclosure) | QS7133-840 | Encrypted |
| Qolsys | IQ Hardwire 16-F (Large Enclosure) | QS7134-840 | Encrypted |
| Qolsys | IQ Hardwire 16-S | QS7131-840 | Encrypted |
| Qolsys | IQ Hardwire 8-S | QS7130-840 | Encrypted |
| Qolsys | IQ Temp-S | QS5535-840 | Encrypted |
| Qolsys | IQ Flood-S | QS5536-840 | Encrypted |
| Qolsys | IQ Pendant-S | QS1332-840 | Encrypted |
| Qolsys | IQ Fall Pendant | QS1314-840 | Encrypted |
| Qolsys | IQ Mini DW | QS1115-840 | Non-Encrypted |
*Sensor compatibility is based on running the current version of IQ Panel software (4.0.1) and the corresponding S-Line/319.5 MHz daughter card.
| Brand | Product | Part Number | Encryption / Limitation |
| Qolsys | IQ Mini DW (Brown) | QS1116-840 | Non-Encrypted |
| Qolsys | IQ Mini Extended | QS1117-PO1 | Non-Encrypted |
| Qolsys | IQ Door/Window | QS1100-PO1 | Non-Encrypted |
| Qolsys | IQ Tilt | QS1121-840 / QS5310-PO1 | Non-Encrypted |
| Qolsys | IQ Motion | QS1200-PO1 | Non-Encrypted |
| Qolsys | IQ Glass | QS1410-P01 | Non-Encrypted |
| Qolsys | IQ Fob | QS1310-PO1 | Non-Encrypted |
| Qolsys | IQ Smoke | QS5110-840 | Non-Encrypted |
| Qolsys | IQ Carbon | QS5210-840 | Non-Encrypted |
| Qolsys | IQ Temp | QS5515-840 | Non-Encrypted |
| Qolsys | IQ Flood | QS5516-840 | Non-Encrypted |
| Qolsys | IQ Doorbell | QS1119-840 / QS1605-840 | Non-Encrypted |
| Qolsys | IQ Pendant | QS6110-840 | Non-Encrypted |
| Qolsys | IQ Shock | QS1128-840 | Non-Encrypted |
| Qolsys | IQ Hardwire 16 | QS7121-840 | Non-Encrypted |
| Qolsys | IQ Hardwire 8 | QS7120-840 | Non-Encrypted |
| Qolsys | IQ Wireless Translator 345 | QS8130-PO1 | Non-Encrypted |
| Qolsys | IQ Wireless Translator 433 | QS8140-PO1 | Non-Encrypted |
| Qolsys | IQ Carbon | QS5210-PO1 | Non-Encrypted |
| Qolsys | IQ Smoke | QS5510-PO1 | Non-Encrypted |
| Qolsys | IQ Mini | QS1112-PO1 | Non-Encrypted |
| Qolsys | IQ Temp H20 | QS5500-PO1 | Non-Encrypted |
| Qolsys | IQ Pin Pad | QS1311-PO1 | Non-Encrypted |
| Qolsys | IQ Desk Fob | QS1312-PO1 | Non-Encrypted |
| Qolsys | IQ Hardwire | QS8120-PO1 | Non-Encrypted |
| Brand | Product | Part Number | Encryption / Limitation |
| Ecolink | Door Window Contact W/Bypass | WST-201 | Non-Encrypted |
| Ecolink | 4 Button Remote | WST-101 | Non-Encrypted |
| Ecolink | Recessed Contact | WST-221 | Non-Encrypted |
| Ecolink | Shock Sensor & Door Window Sensor | WST 302 | Non-Encrypted |
| Ecolink | Garage Door Tilt Sensor | WST 401 | Non-Encrypted |
| Ecolink | Flood Detector | TX-E611 | Non-Encrypted |
| Brand | Product | Part Number | Encryption / Limitation |
| Interlogix | SAW Door/Window Sensor | 60-670-95R, NX-450 | Non-Encrypted |
| Interlogix | MaxLife Crystal Door/Window Sensor | 60-362N-10-319.5, NX-650 | Non-Encrypted |
| Interlogix | DesignLine Door/Window Sensor | TX-1010-01-1 | Non-Encrypted |
| Interlogix | DesignLine Recessed Door/Window Sensor | TX-1510-01-1 | Non-Encrypted |
| Interlogix | Glass Guard Crystal Sensor | 60-462-10-319.5, NX-656 | Non-Encrypted |
| Interlogix | ShatterPro Glassbreak Sensor | 60-873-95 | Non-Encrypted |
| Interlogix | DesignLine 4 Button Keyfob | TX-4014-01-2 | Non-Encrypted |
| Interlogix | 2 Button Keychain Touchpad | 60-607-319.5 | Non-Encrypted |
| Interlogix | Crystal Water-Resistant Pendant Panic | 60-578-10-95, NX-475 | Non-Encrypted |
| Interlogix | Crystal Micro Wristwatch Panic Button | 60-906-95, NX-474 | Non-Encrypted |
| Interlogix | Crystal Pet Immune PIR Motion | 60-511-02-95 | Non-Encrypted |
| Interlogix | Indoor Wireless Pet Immune SAW PIR | 60-807-95R | Non-Encrypted |
| Interlogix | Learn Mode Shock Sensor | 60-886-95 | Non-Encrypted |
| Interlogix | DesignLine Garage Door Sensor | TX-8010-01-1 | Non-Encrypted |
| Interlogix | Wireless Flood Detector | 60-744-95R, NX-695 | Non-Encrypted |
| Interlogix | SafeAir Wireless Carbon Monoxide Alarm | TX-6310-01-1 | Non-Encrypted |
| Interlogix | Crystal Carbon Monoxide Gas Sensor | 60-652-95, NX497 | Non-Encrypted |
| Interlogix | Supervised Wireless Smoke Alarm | TX-6010-01-1 (Date Code 11303 or newer) | Non-Encrypted |
| Interlogix | 135/200 Degree Rate-of-Rise Heat | HDX-135 / HDX-200 | Non-Encrypted |
| Interlogix | 135 Degree Rate-of-Rise Heat Detector | 60-460-319.5-LB | Non-Encrypted |
| Interlogix | Smoke Detector with Heat and Freeze | SDX-135Z | Non-Encrypted |
| Interlogix | Repeater with Crystal Transmitter | 80-922-1 | Non-Encrypted |
| Brand | Product | Part Number | Encryption / Limitation |
| Encore | FireFighter | FF319 | Non-Encrypted |
| Encore | FireFighter | FF345 | Non-Encrypted |
| Resolution | Door/Window | RE101 | Non-Encrypted |
| Resolution | Mighty Mouse | RE111 | Non-Encrypted |
| Resolution | Tilt | RE106 | Non-Encrypted |
| Resolution | PIR Pet Immune | RE110P | Non-Encrypted |
| Resolution | Glass Break Detector | RE109 | Non-Encrypted |
| Resolution | Smoke Detector | RE112 | Non-Encrypted |
| Resolution | Carbon Monoxide Detector | RE113 | Non-Encrypted |
| Resolution | Home Disaster Sensor | RE119 | Non-Encrypted |
| Resolution | Temp Range | RE105 | Non-Encrypted |
| Resolution | Medical Pendant | RE103 | Non-Encrypted |
| Resolution | Key Fob | RE100 | Non-Encrypted |
| Resolution | Hidden Panic Button | RE151 | Non-Encrypted |
| Resolution | PINPad | RE152 | Non-Encrypted |
| Resolution | Hardwire to GE Wireless Translator | RE108 | Non-Encrypted |
| Resolution | Honeywell to GE Wireless Translator | RE124HG | Non-Encrypted |
| Resolution | DSC to GE Wireless Translator | RE124DG | Non-Encrypted |
| Resolution | GE Repeater | RE120 | Non-Encrypted |
| Resolution | Universal Wireless Translator / Repeater | RE524X | Non-Encrypted |
| Resolution | Hardwire Translator | RE508X | Non-Encrypted |
| Resolution | Wireless Siren | RE116 | Non-Encrypted |
345 MHz SUPPORTED SENSORS
The following 345 MHz RF sensors have been tested and approved for use with the IQ Panel 4. Sensor compatibility is based on running the current version of IQ Panel software (4.0.1) and the corresponding 345 MHz daughter card.
| Brand | Product | Part Number | Supported Loop |
| Honeywell | Door / Window Sensor | 5816 | Loop 1 – External Contact Loop 2 – Internal Reed |
| Honeywell | Door / Window Outdoor Sensor | 5816OD | Loop 1 – External Contact Loop 2 – Reed Switch |
| Honeywell | Door / Window Slim Line Sensor | 5920 L | Loop 1 |
| Honeywell | Shock / Door Sensor | 5819WHS | Loop 1 – Shock Loop 3 – DW Ext |
| Honeywell | Motion Sensor | 5800 PIR-RES | Loop 1 |
| Honeywell | Auxiliary Pendant | 5802WXT | Loop 1 |
| Honeywell | Key Fob | 5804 | N/A |
| Honeywell | Key Fob | 5803-4 | N/A |
| Honeywell | Temperature & Flood Detector | 5821 | Loop 1 – Freeze Loop 3 – Flood |
| Honeywell | Carbon Monoxide Detector | 5800CO | Loop 1 |
| Honeywell | Smoke Detector | 5808W3 | Loop 1 – Smoke Loop 2 – Heat Loop 3 – Freeze |
| Honeywell | Glass Break Detector | 5853 | Loop 1 |
| Honeywell | Tilt Sensor | 5822T | Loop 3 |
*Sensor compatibility is based on running the current version of IQ Panel software (4.0.1) and the corresponding 345 MHz daughter card.
The following 345 MHz RF sensors have been tested and approved for use with the IQ Panel 4. Sensor compatibility is based on running the current version of IQ Panel software (4.0.1) and the corresponding 345 MHz daughter card.
| Brand | Product | Part Number | Supported Loop |
| 2GIG | Door / Window Sensor | DW10 | Loop 1 – External Contact Loop 2 – Internal Reed |
| 2GIG | Recessed Door Sensor | DW20 | Loop 1 |
| 2GIG | Panic Button | 2GIG-Panic-345 | Loop 1 |
| 2GIG | 4 Button Key Fob | 2GIG-Key2-345 | N/A |
| 2GIG | Motion Detector | 2GIG-PIR1-345 | Loop 1 |
| 2GIG | Glass Break Detector | 2GIG-GB1-345 | Loop 1 |
| 2GIG | Smoke Detector | 2GIG-SMKT3 | Loop 1 – Smoke Loop 2 – Heat Loop 3 – Freeze |
| 2GIG | Carbon Monoxide Detector | 2GIG-CO3-345 | Loop 1 |
| 2GIG | Gun Motion Detector | 2GIG-GNGRD1-345 | Loop 1 |
| 2GIG | Hardwire to Wireless Translator | 2GIG-TAKE-345 | Loop 1 |
*Sensor compatibility is based on running the current version of IQ Panel software (4.0.1) and the corresponding 345 MHz daughter card.
433 MHz SUPPORTED SENSORS
The following 433 MHz RF sensors have been tested and approved for use with the Qolsys IQ Panel 2. Sensor compatibility is based on running the current version of IQ Panel software (4.0.1) and the corresponding 433 MHz daughter card.
| Brand | Product | Part Number – North America | Part Number – Australia | Device Limitations |
| DSC | 1 Button Panic | N/A | WS4938W | None |
| DSC | 2 Button Key Fob | WS4949 | WS4938-2W | None |
| DSC | 4 Button Key Fob | WS4939A | WS4939EU | None |
| DSC | 4 Button Key Fob | WS4959 | N/A | None |
| DSC | Shock Sensor | EV-DW4927SS | EV-DW4927 | None |
| DSC | Door / Windor Sensor | EV-DW4917 | N/A | None |
| DSC | Door / Window Sensor | WS4945 | WS4945W | None |
| DSC | Door / Window Sensor | WS4945NA | WS4975W | None |
| DSC | Vanishing Door/Window Sensor | EV-DW4975 | N/A | None |
| DSC | Motion Detector | WS4904P | WS4904PW | None |
| DSC | Motion Detector | WLS914 | N/A | None |
| DSC | Glass Break Sensor | WLS912L | WS912L | None |
| DSC | Smoke Detector | WS4936 | N/A | None |
| DSC | Smoke Detector | WS4916 | WS4936EU | None |
| DSC | Hold Up Switch | WLS928 | N/A | None |
| DSC | Pendant Button | WS4938 | N/A | None |
| DSC | Carbon Monoxide Detector | WS4933 | N/A | None |
| DSC | Carbon Monoxide Detector | WS4913 | N/A | None |
| DSC | Wireless Repeater | WS4920 | WS4920AUS | None |
| DSC | Wireless Flood Detector | N/A | WS4985W | None |
*Sensor compatibility is based on running the current version of IQ Panel software (4.0.1) and the corresponding 433 MHz daughter card.
Questions? [email protected] (855) 4- QOLSYS
