ON DUR C508 INSTALLATION GUIDE
Mode1:003001.C508

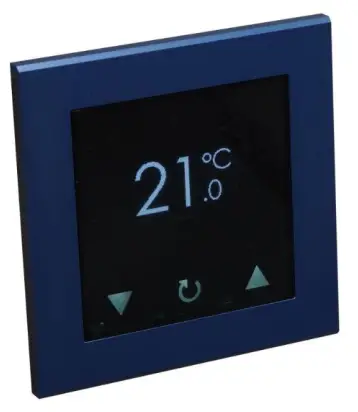

This is the guide for the Our C508 thermostat. This low-voltage thermostat directly connects to one or multiple Daikin Indoor Units (IDU).

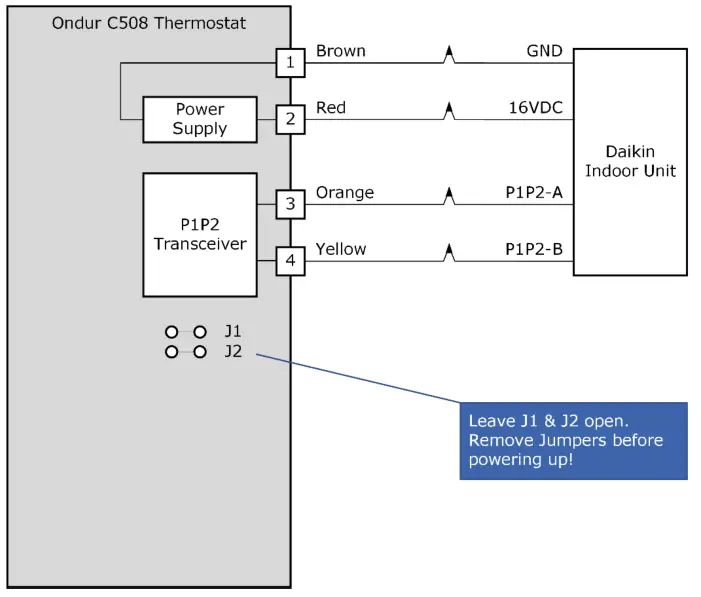

Typical Our C508 Wiring Diagram
Our C508 Daikin Thermostat, powered from the P1P2 communication wires
ON DUR C508 INSTALLATION GUIDE
Alternate Our C508 Wiring Diagram
Our C508 Daikin Thermostat is powered from a segregated 16VDC supply from the Daikin Indoor Unit (IDU)

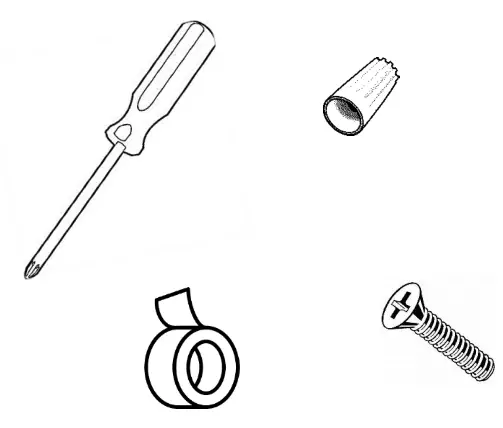

Tools
Screwdriver Wire nuts or Dolphin clips Electrical tape Screws
What’s in the box
ON DUR C508 thermostat Sheet metal mounting frame 4-wire harness
Confirm the thermostat model.
Ensure that the instrument being installed is the C508 ONDUR Thermostat.

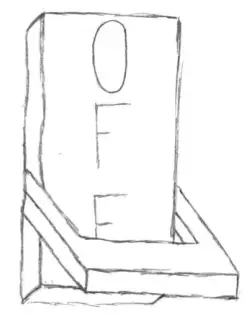

Turn off the power to the HVAC equipment
Failure can cause injury or product math inning Warranty is voided if the product is installed under power.

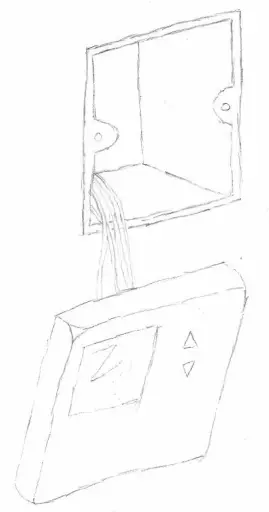

Remove old thermostat
Some thermostats require screws to be removed. Separate wires from the thermostat and from inside the wall.

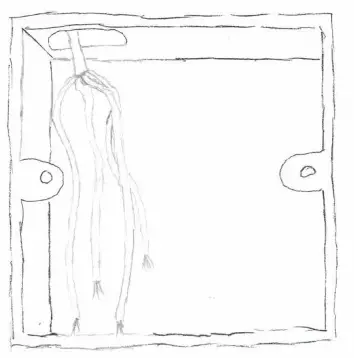

Evaluate wall box and wires
Trim existing wires and prepare for Later connections. Ensure enough room in the box for wires and connectors.
Install sheet metal mounting frame
Ensure that the mounting frame is level
Install wiring harness
Refer to site-specific wiring instructions.

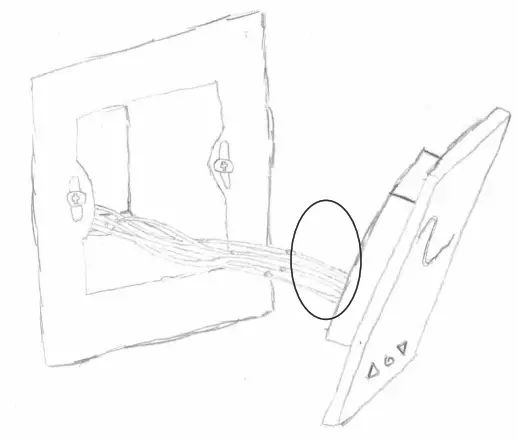

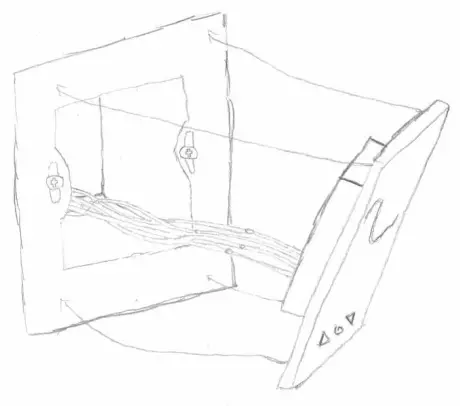

Insert thermostat
Assure that all magnets have contact with sheet metal mounting frame.Confirm that the thermostat is level.

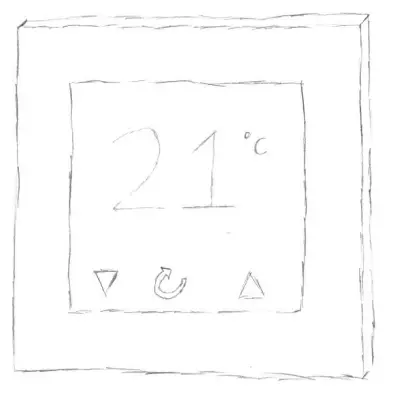

Restore power to HVAC equipment
Confirm that the thermostat is powered.
Perform basic functional test
Confirm that all fan speeds that are available work properly.Confirm cooling operation (if available).Confirm heating operation (if available).
Configure thermostat
Refer to the ONDUR configuration guide.
