2000 Tank Flow Switch
Instruction Manual
Brio 2000 Tank Flow Switch
- TARTS AND STOPS THE PUMP AUTOMATICALLY WHEN THE TAPS ARE OPENED AND CLOSED. PROTECTS AGAINST DRY OPERATION AND PUMP BLOCKAGE IN CASE OF PROLONGED NON-USE.
SAFETY INFORMATION
Installation reserved to specialised professionals
Disconnect the electrical power supply before all works

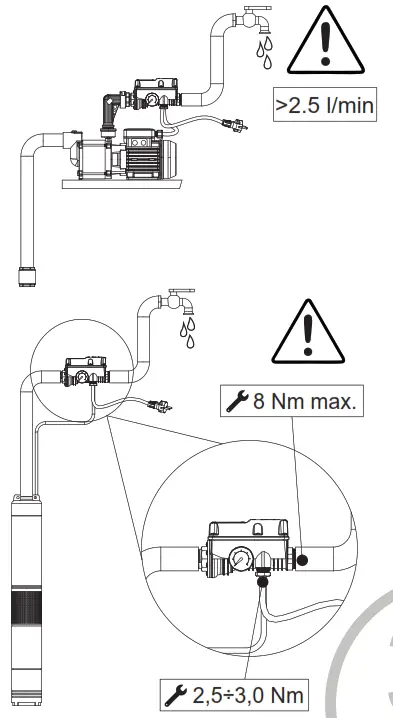

INSTALLATION WITH SUBMERSIBLE OR EXTERNAL PUMP

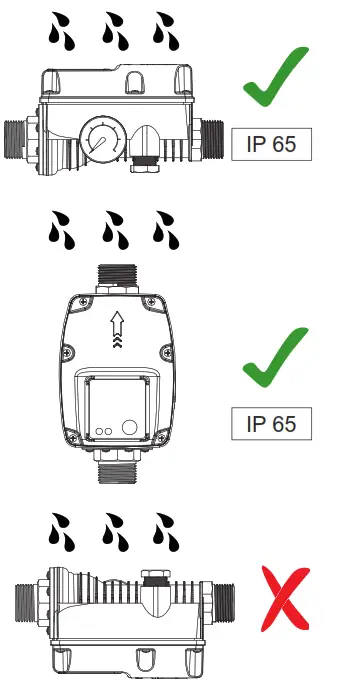

ALLOWED INSTALLATION POSITIONS

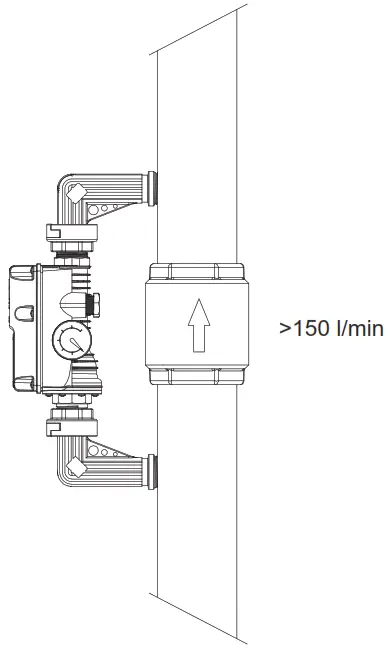

INSTALLATION WITH BYPASS FOR HIGH FLOW RATES

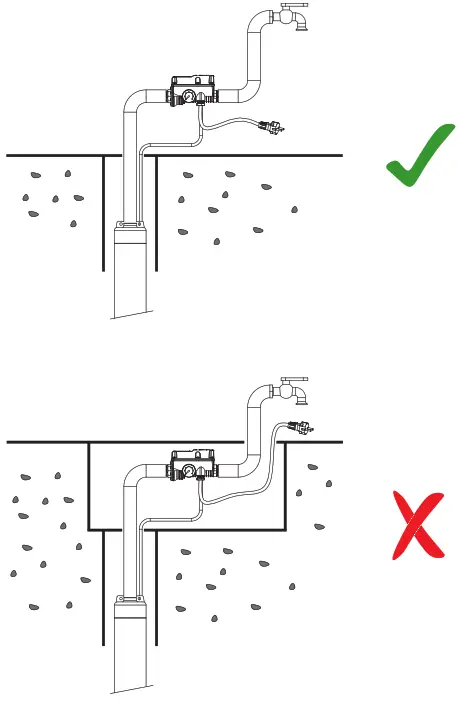

DO NOT INSTALL IN TRAPS

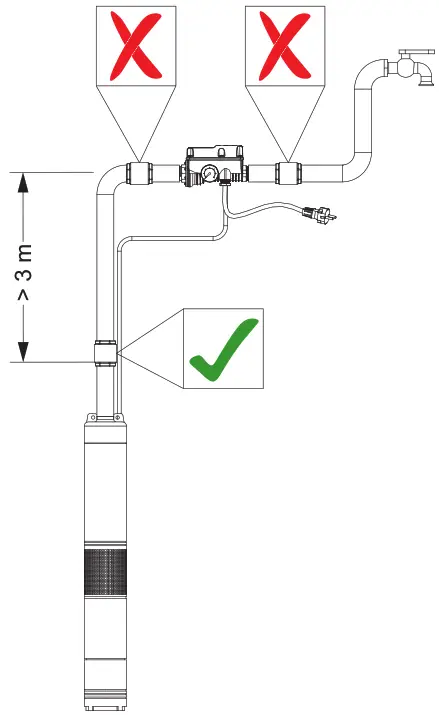

ALLOWED CHECK-VALVE POSITIONS

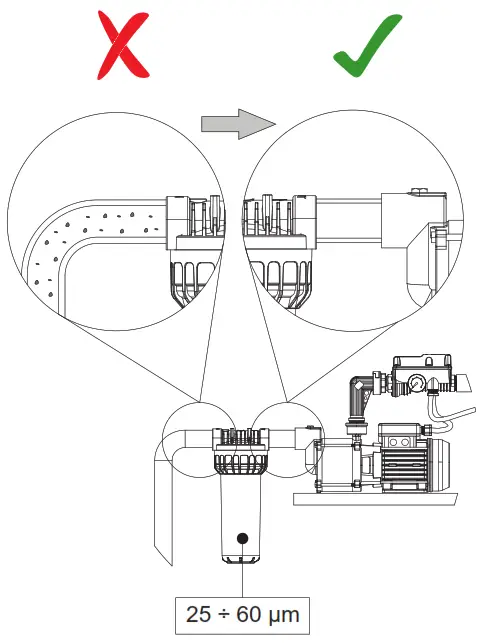

SUCTION FILTER RECOMMENDED
USE ONLY WITH WATER, MAX SALINITY 0.05%

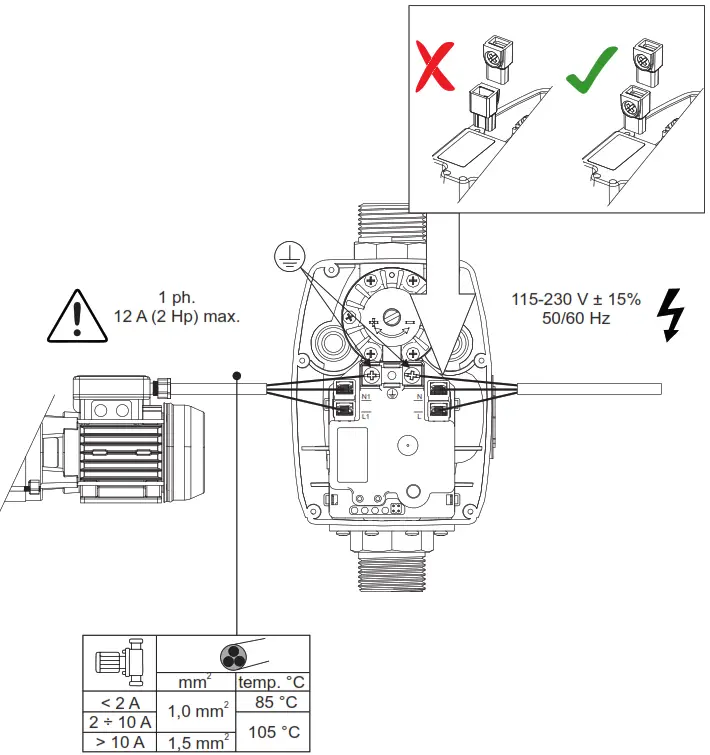

ELECTRICAL CONNECTION AND PROVISIONS FOR CABLES

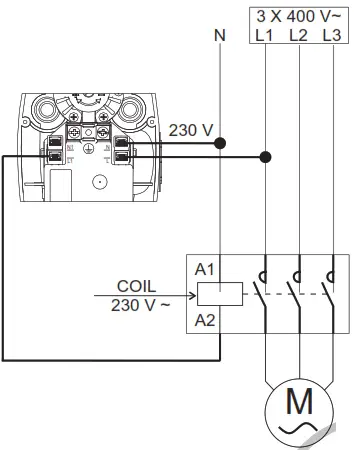

CONNECTION TO THREE-PHASE PUMP THROUGH RELAY
WARRANTYTERMS

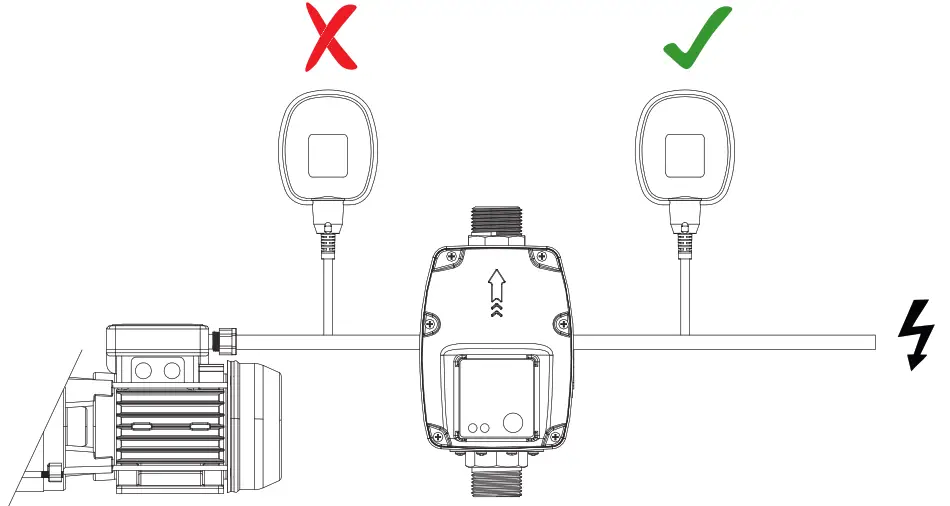

DO NOT INSTALL ANY ELECTRICAL DEVICES BETWEEN THE BRIO AND THE PUMP (FLOAT, ETC.)
NCREASE THE STARTING PRESSURE IF THE SYSTEM EXCEEDS 15 METRES (MAXIMUM 3.5 BAR = 35 METRES)
ELECTRONIC EQUIPMENTTO BE DISPOSED OF INACCORDANCE WITH NA TIONALREGULA TIONS

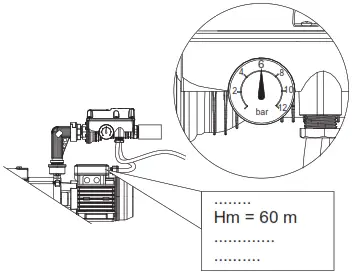

THE MAXIMUM PRESSURE IS NOT ADJUSTABLE !!
The maximum pressure corresponds to the pump head

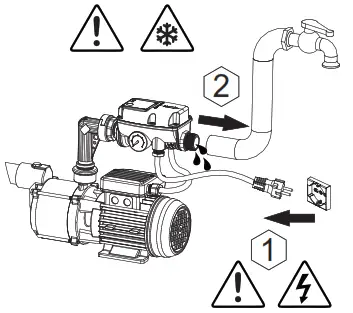

DECOMMISSIONING – PERIODS OF NON-USE

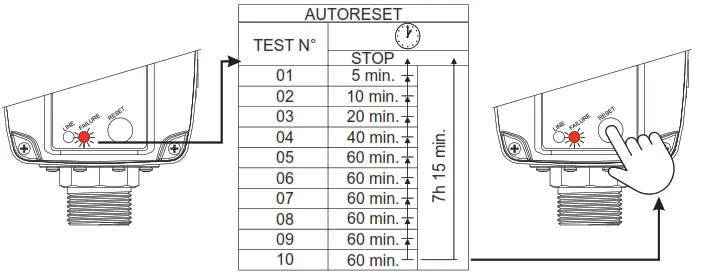

STOP DUE TO LACK OF WATER, MANUAL AUTOMATIC RESET
Check that the pump is not blocked

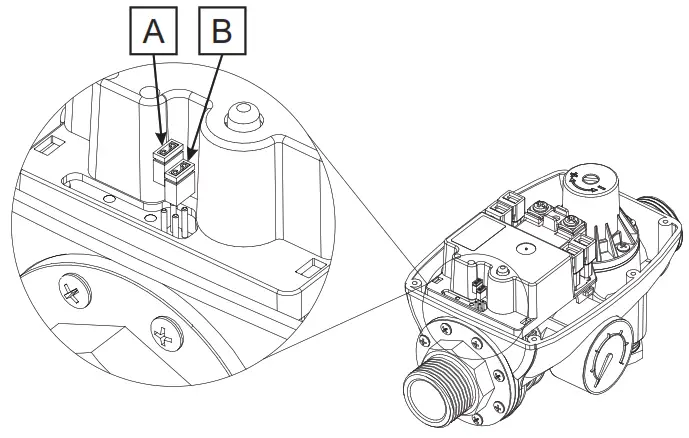

REMOVE JUMPER “A” TO DISABLE THE AUTOMATIC RESET AND JUMPER “B” FOR THE 24-HOUR ANTI-BLOCK
NOT SUITABLE FOR POOLS WITH PEOPLE IMMERSED
TECHNICAL DATA
 | 115-230 V 50/60 Hz |
| 1ph. – 12 A max. | |
| IP 65 | |
| 10 bar max. | |
| 5 ÷ 55 °C. | |
| -10 ÷ 50 °C RH < 95 % | |
| -10 ÷ 70 °C RH < 95 % | |
| 5 ÷ 45 °C RH < 85 % | |
| ACTION TYPE: 1.C POLLUTION DEGREE: III OVERVOLTAGE CATEGORY: III BALL PRESSURE TEST: 85°C |
ELECTRONIC EQUIPMENTTO BE DISPOSED OF INACCORDANCE WITH NA TIONALREGULA TIONS
