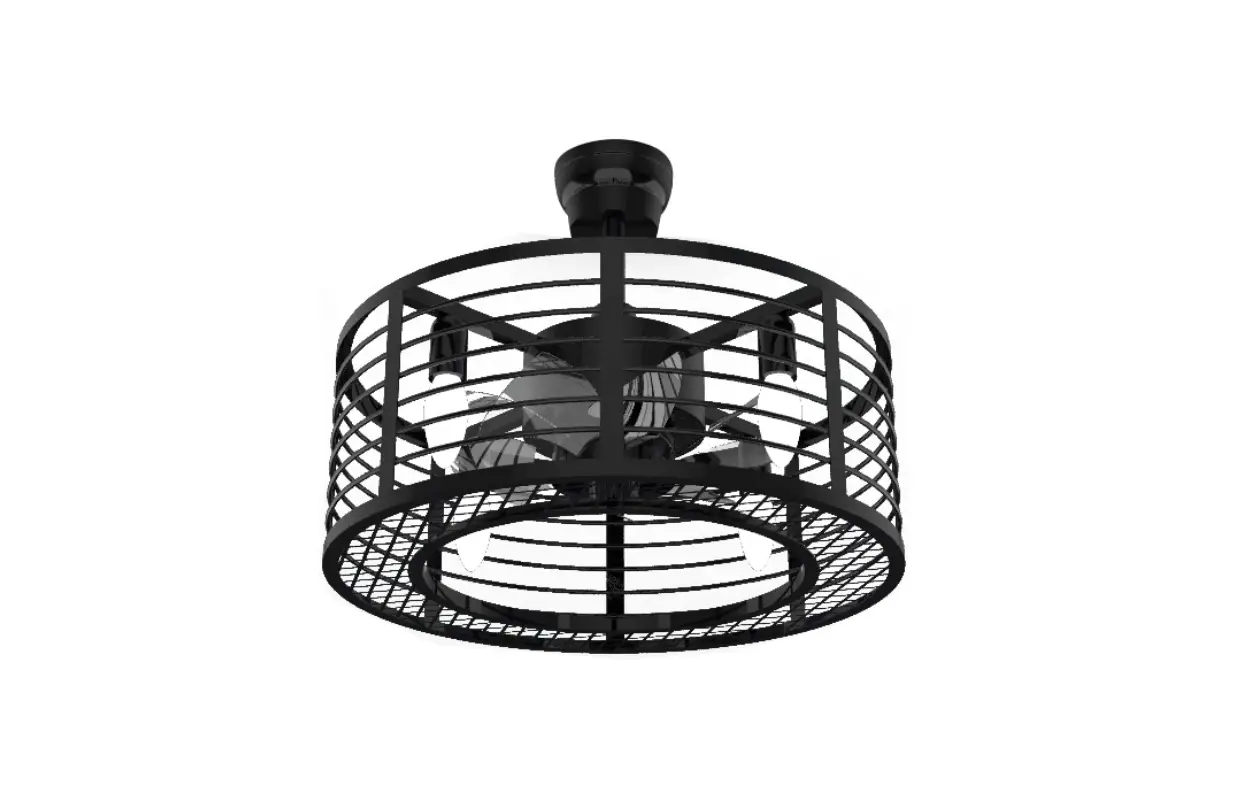

CFN-1112 Industrial Fandelier Caged Ceiling Fan
Product Information
The CFN-1112 is a ceiling fan that comes with a mounting
bracket, downrod, canopy, coupling cover, main body with motor,
blades, and lamp holders, remote control, wood screws, anchor
bolts, wire nuts, metal washers, and plastic anchors. It is
recommended to read the safety information before installation or
use. The estimated assembly time for the product is 120 minutes and
additional tools required for assembly include electrical tape,
flathead & Phillips screwdriver, pliers, safety glasses,
ladder, and wire strippers. Additional helpful tools include an AC
tester light, tape measure, wiring handbook, and wire cutters.
Product Usage Instructions
- Before beginning installation, read the package list and ensure
all parts are present and display no defects. If any part is
missing or damaged, contact customer service and do not attempt to
install the product. - Read all of the safety information before installation or
use. - Additional tools required for assembly include electrical tape,
flathead & Phillips screwdriver, pliers, safety glasses,
ladder, and wire strippers. Additional helpful tools include an AC
tester light, tape measure, wiring handbook, and wire cutters. - Turn off electricity at the circuit breaker or fuse box before
beginning installation to reduce the risk of electric shock. - All wiring must be in accordance with national and local
electrical codes. Electrical installation should be performed by a
qualified licensed electrician. - Ensure that the junction box used for mounting is marked
acceptable for fan support and is capable of reliably supporting a
minimum of 50 pounds. Use only UL listed junction boxes marked FOR
FAN SUPPORT. - The fan must be mounted with a minimum of 7 feet clearance from
the trailing edge of the blades to the floor. - Do not use the reverse switch while the fan blades are in
motion. To prevent damage and ensure long use, the fan must be
turned off and the blades stopped before reversing direction. - Do not place objects in the path of the blades.
- Exercise caution when working around or cleaning the fan. Use a
soft dry cloth to clean the fan body and blades. Do not use water
or detergent. - The electrical diagrams provided herein are for reference only.
Light kits that are not packaged with the fan must be UL listed and
suitable for use with this fan. Switches must be UL general use
switches. Refer to their separate instructions for proper
assembly. - Never bend the blades for any reason.
V20220805
CFN-1112 User Manual
Read Carefully Before Use Keep for Future Reference
CONTENTS
Introduction…………………………………………………………………………………………… 1 Package List………………………………………………………………………………………….. 2 Safety Information …………………………………………………………………………………. 3 Preparation……………………………………………………………………………………………. 4 Initial Installation …………………………………………………………………………………… 5 Downrod Mounting………………………………………………………………………………… 5 Circuit Connections ………………………………………………………………………………. 6 Canopy Adjustment……………………………………………………………………………….. 7 Light Installation……………………………………………………………………………………. 7 Remote Control Operation……………………………………………………………………… 8 Troubleshooting ……………………………………………………………………………………. 9 Contact Information …………………………………………………………………………….. 10
Introduction
Before beginning installation of this product, read the package list on page 2 and ensure all parts are present and display no defects. If any part is missing or damaged, contact customer service and do not attempt to install the product. Read all of the safety information on page 3 before installation or use. Estimated assembly time: 120 minutes Additional tools required for assembly: Electrical tape, flathead & Phillips screwdriver, pliers, safety glasses, ladder, and wire strippers
Additional helpful tools: AC tester light, tape measure, wiring handbook, and wire cutters
1
Package List
A
B C D
MED
LOW
HI
STOP
1H 2H 4H 8H
F
E
Item A B C D E F
G
Name Mounting Bracket Downrod Canopy Coupling Cover Main Body with Motor, Blades, and Lamp Holders Remote Control Wood Screws Anchor Bolts Wire Nuts Metal Washers Plastic Anchors
2
G
Qty. 1 1 1 1 1 1 4 2 3 4 4
Safety Information
Warning!
1. To reduce the risk of electric shock, ensure electricity has been turned off at the circuit breaker or fuse box before beginning.
2. All wiring must be in accordance with national and local electrical codes. Electrical installation should be performed by a qualified licensed electrician.
3. This fan is suitable for use with solid-state speed controls. 4. To reduce the risk of personal injury, use only the fasteners provided with the junction box
for mounting to the junction box. Most junction boxes commonly used for the support of lighting fixtures are not acceptable for fan support and may need to be replaced. Consult a qualified electrician if in doubt.
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, & PERSONAL INJURY, MOUNT FAN TO A JUNCTION BOX MARKED “ACCEPTABLE FOR FAN SUPPORT”.
5. The junction box and support structure MUST be securely mounted and capable of reliably supporting a minimum of 50 pounds. Use only UL listed junction boxes marked “FOR FAN SUPPORT”.
6. After marking electrical connections, spliced conductors should be turned upward and pushed carefully up into the junction box. The wires should be spread apart with the grounded conductor and the equipment-grounding conductor on one side of the junction box.
7. The fan must be mounted with a minimum of 7 feet clearance from the trailing edge of the blades to the floor.
8. Do not use the reverse switch while the fan blades are in motion. To prevent damage and ensure long use, the fan must be turned off and the blades stopped before reversing direction.
9. Do not place objects in the path of the blades. 10. Exercise caution when working around or cleaning the fan. 11. Use a soft dry cloth to clean the fan body and blades. Do not use water or detergent. 12. The electrical diagrams provided herein are for reference only. Light kits that are not
packaged with the fan must be UL listed and suitable for use with this fan. Switches must be UL general use switches. Refer to their separate instructions for proper assembly.
NEVER BEND THE BLADES FOR ANY REASON.
3
Preparation
1. Turn Off Your Power
Begin installation by removing fuses or turning off circuit breakers to the wiring you will be using. Use your compatible UL listed junction box if you already have one installed.
Failure to disconnect the power supply prior to installation may result in serious injury or death.
2. Choose Your Mounting Position
If you need to install a new UL listed junction box, secure it directly to your building’s structure usingappropriate fasteners and materials. Do not use plastic boxes. The junction box and its supports must be able to support the MOVING weight of the fan (at least 50 lb.) and be rated for fan support.
3. Choose a Suitable Location
Ensure the blades will be at least 30 inches from any obstruction and at least 7 feet above the floor. In locations without a ceiling joist, a hanger support bar may be required. Do not install in damp locations.
4
Initial Installation
Wood Ceiling
Mounting Bracket
Wood Screw
Supply Wires Metal Washer
Concrete Ceiling
Plastic Anchor & Anchor Bolt
Step 1. Pass the supply wires from the junction box (not included) through the central hole of the mounting bracket.
Step 2. Secure the bracket to the junction box with the provided fasteners. Use the mounting screws and metal washers on wood ceilings or the plastic anchor and anchor bolts on reinforced concrete or similar ceilings.
Downrod Mounting
Step 1. Remove the locking pin and retaining clip from the
downrod.
Step 2. Loosen the two locking bolts on the top of the motor assembly.
Step 3. Carefully slide the canopy and coupling cover onto the
Downrod
Coupling Cover
downrod.
Locking Pin
Step 4. Feed the wires of the fan motor assembly through the downrod.
Step 5. Install the downrod onto the top of the motor assembly, aligning their holes and replacing the pin and the clip.
Step 6. Retighten the previously loosened bolts.
Step 7. Place the downrod’s top mount onto the mounting bracket. Rotate the entire assembly until the tab has dropped into its slot and sits firmly. The entire motor assembly should no longer rotate if seated properly.
Failure to reattach the locking pin and/or properly seat the downrod can cause the fan to fall from the ceiling during operation.
Downrod
DO NOT use the fan before ensuring it is properly secured and the motor cannot rotate.
5
Canopy Locking Bolt
Retaining Clip
Mounting Bracket
Circuit Connections
Again, ensure that the power has been cut before working with the wiring. Use the wire nuts provided with your fan. Ensure there are no loose wires or connections, and secure connectors with electrical tape. Step 1. Connect the 2 colored wires of the receiver to the 2 identically colored wires of the
junction box. Secure each set with the provided wire nuts. Step 2. Connect the green or bare copper ground wire of the junction box to the ground wire
of the ceiling fan motor. Separate the white and green connections from the black wire connections, which should be kept on opposite sides of the junction box. Step 3. Tuck all the connections neatly into the junction box.
L
N
Green or Bare Copper (Ground)
Black (L)
White (N)
6
Canopy Adjustment
Step 1. Remove the locking bolts on the rim of the mounting bracket. Step 2. Slide the canopy up to the mounting bracket, turning until their slots align with each
other. Step 3. Replace the tighten the bolts.
Light Installation
Lamp Holder
Bulb
Install your bulbs into the sockets on the lamp holders. This fixture has been rated for four E12 bulbs (not included) up to 40W each.
7
Remote Control Operation
Install the remote control holder onto any wall or suitable flat surface using two mounting screws/ bolts.
Key
Function
LOW Starts the fan at low speed
MED Starts the fan at medium speed
HI Starts the fan at high speed
STOP Stops the fan
LIGHT Turns the light on or off
1H Runs the fan for 1 hour and then turns it off
2H Runs the fan for 2 hours and then turns it off
4H Runs the fan for 4 hours and then turns it off
8H Runs the fan for 8 hours and then turns it off
LIGHT ON/OFF
This remote operates with a range of 30 feet (10 m). It uses one A23 battery (not included). If the remote will not be used for a prolonged period, it is recommended to remove the batteries for better service life.
8
Troubleshooting
Potential Problems Fan blades don’t rotate
Fan is too noisy Fan wobbles during use
Common Solutions
Check fuses and/or circuit breakers and reset if needed.
Cut off power to the fan and check its internal electrical connections.
Replace the remote control’s batteries.
Check that the fan cover is correctly placed and no screws interfere with the movement of the blades.
Contact customer service to replace a faulty remote control.
Check that all fasteners are well tightened.
Ensure the canopy housing has a short distance between itself and the ceiling.
Upon initial installation, allow 24 hours of use for the machine to break itself in.
Cut off power to the fan and check that the wire nut connections are not rubbing against one another or the inner housing.
If you have installed a solid-state variable-speed control, cut off power to the fan and disconnect this control from the device. See if using the remote resolves the problem, which can be caused by erratic signals from such controls.
Check that all fasteners are well tightened.
Use the provided balance kit to adjust the blades if their tips are found to be an unequal distance from the ceiling while well fastened.
Exchange the position of the various blades.
Again, do not bend the blades during any of these procedures.
9
Contact Us
Thank you for choosing our products! If you have any questions or comments, contact us at [email protected] and we’ll resolve your issue ASAP!
For a .pdf copy of the latest version of these instructions, use the appropriate app on your smartphone to scan the QR code to the right.
10
CFN-1112-00 Rev. 5 Aug. 2022
