Duralamp L188ye Tub Led Food Instruction Manual

DURALAMP L188YE Tub LED Food

art	W	lm	K			PF		Ø	H
L188YE	10	850	2700	Bread/Pane	280°	0,91	G13	29	602
L188WE	10	1050	8000	Fish/Veg	280°	0,90	G13	29	602
L308WE	14	1400	8000	Fish/Veg	280°	0,9	G13	29	902
L308YE	14	1250	2700	Bread/Pane	280°	0,9	G13	29	902
L368YE	20	1800	2700	Bread/Pane	280°	0,91	G13	29	1212

THIS LAMP MUST BE INSTALLED BY A QUALIFICATED ELECTRICIAN. DURALAMP IS NOT RESPONSIBLE IF ITS LAMPS ARE NOT INSTALLED ACCORDING TO LOCAL SAFETYSTANDARDS. PLEASE LEAVE A COPY OF THESE INSTRUCTIONS TO THE PERSON RESPONSABLE FOR THE MAINTENANCE OF THE INSTALLATION. KEEP THE LABEL OF THE ORIGINAL PACKING FOR THE EVENTUAL FUTURE CLAIMS

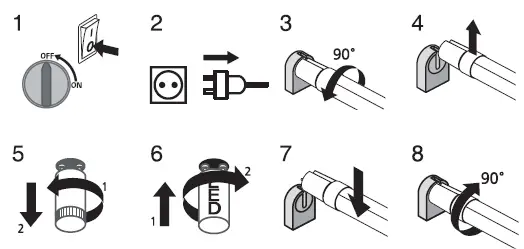

SETUP PROCEDURE

REPLACING FLUORESCENT TUBES IN EXISTING SYSTEMS

Existing luminaries equipped with electromagnetic reactor equipped with thermal protection direct replacement of the tube + replace the starter with the supplied device/starter. Without thermal protection: disconnection from power supply is recommended. Mains feed without any starter.

If the fixture is equipped with one reactor which feeding two tubes, exclude the reactor and feed the tubes directly to the mains.

Existing luminaries equipped with electronic power supply: disconnect power supply do not use any starter. Mains feed.

FOR USE WITH MAINS SUPPLY 230V, WITHOUT POWER SUPPLY

• Connect the pin side INPUT indicated on the tube to the mains.
• Do not connect anything on the opposite side; do not use any starter.
• DO NOT USE IN ‘IN SERIES’ INSTALLATIONS.

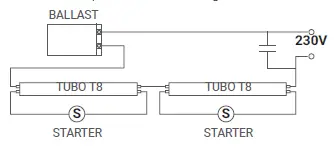

Installation with fluorescent tubes connected in series

LED tubes can not be connected in series

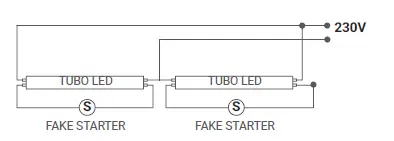

• Clear power supply and the starter of each fluorescent tube connect LED tubes in parallel directly to the mains voltage.
• Pay special attention to the appliance modification on technical-regulatory aspects.
