Radiator Valves and Thermostats
V2605
Mira-3

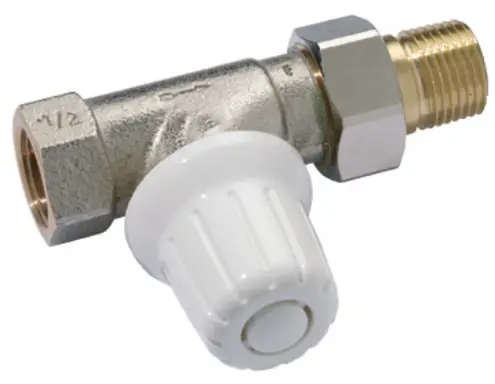

Presettable manual radiator valve
APPLICATION
Mira-3 presettable manual valves are installed on the supply of radiators and heat exchangers in warm water heating systems. Control of the room temperature is done by manually opening or closing the valve.
FEATURES
- Convertible to thermostatic control, also when installed and in operation
- Presettable by stroke limitation
- Robust, noise, and flow optimized valve housing
- Maintenance-free spindle sealing
- Valve housing with dimensions according to EN215, Appendix A, Series D
- Non-rising handwheel
- Connection to all types of pipe DN10 – DN20
SPECIFICATIONS
| Medium: | Heating water, water quality to VDI2035 | |
| pH-value: | 8 – 9.5 | |
| Max. operating temperature: | 130°C (266°F) | |
| Operating pressure: | PN10 | |
| Max. differential pressure: | 1 bar (14.5 psi) | |
| kvs (cvs)-value: | Angle DN10 Angle DN15 Angle DN20 Straight DNIO Straight DN15 Straight DN20 | ‘ 1.50 (1.76) 1.95(2.28) 2.45 (2.87) 1.30 (1.52) 1.70 (1.99) 2.20 (2.57) |
| !Thermostat connection: | M30 x 1.5 | |
FUNCTION
The orifice between the valve seat and valve cartridge increases when the valve is opened by turning the handwheel anticlockwise. More heating water can flow into the radiator or heat exchanger and the room temperature rises.
The orifice between the valve seat and the valve cartridge decreases when the valve is closed by turning the handwheel clockwise and the supply of heating water into the radiator or heat exchanger is throttled. At the right limit stop, the valve is closed except for a possible leakage rate.
DESIGN
The manual radiator valve consists of:
- Valve housing PN10, DN10, 15, or 20 with
– internal thread connection to DIN2999 (ISO7) for threaded, copper or precision steel pipe on the inlet (compression ring fittings see ‘Accessories’)
– external thread connection to DIN/ISO228 with union-nut and radiator tailpiece on the outlet
– dimensions to EN215, Appendix A,, Series D - Presettable valve insert
- Handwheel
MATERIALS
- Valve housing made of nickel-plated hot-forged brass
- Valve insert made of brass with EPDM O-rings
- Handwheel made of white plastic
- Threaded tailpiece and connection nut made of nickel-plated brass
PLEASE NOTE:
- To avoid stone deposit and corrosion the composition of the medium should conform with VDI-Guideline 2035
- Additives have to be suitable for EPDM sealings
- The system has to be flushed thoroughly before initial operation with all valves fully open
- Any complaints or costs resulting from non-compliance with the above rules will not be accepted by Honeywell Home
- Please contact us if you should have any special requirements or needs

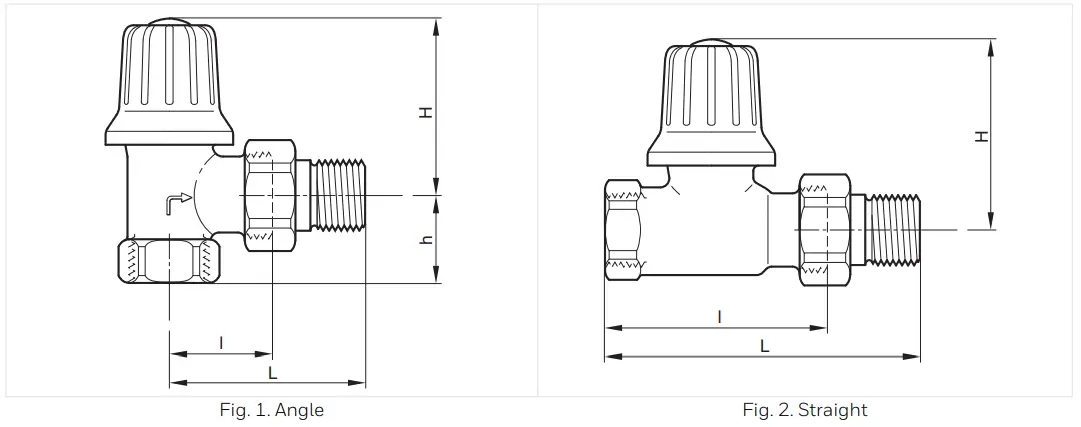

DIMENSIONS AND ORDERING INFORMATION
Note:
All dimensions in mm unless stated otherwise.
Tab. 1 Dimensions and OS-Nos (OS=Ordering System)
| Body type | DN | Pipe connection | Cvs(Cvs)-value | II. | 12 | 131 | 14 | OS-No. |
| Angle (Fig. 1) | 15 | Rp 3/8* | 1.50 (1.76) | 52 | 26 | 52 | 22 | V2605E0010 |
| 20 | Rp1/2″ | 1.95 (2.28) | 58 | 29 | 52 | 26 | V2605E0015 | |
| 25 | Rp /4′ | 2.45 (2.87) | 66 | 34 | 52 | 29 | V2605E0020 | |
| Straight (Fig. 2) | 15 | Rp 3/8; | 1.30C1.52) | 85 | 59 | 57 | – | V2605D0010 |
| 20 | Pp 1/2° | 1.70 (1.99) | 95 | 66 | 57 | – | V2605D0015 | |
| 25 | Rp 3/4′ | 2.20 (2.57) | 106 | 74 | 57 | – | V2605D0020 |
ACCESSORIES
| Description | Dimension | Part No. | ||
 | FIG3/8CS | Compression fitting for COPPER and STEEL pipe Consisting of a compression nut and compression ring. For valves with internal thread. Note: Support inserts have to be used for copper or soft steel pipe with 1.0 mm wall thickness. Max. operating temperature 120 °C, max. operating pressure 10 bar. | ||
| 3/8″, DN10 | 10 mm | FIG3/8CS10 | ||
| 3 /8″, DN10 | 12 mm | FIG3/8CS12 | ||
| 1 /2″, DN15 | 10 mm | FIG1/2CS10 | ||
| 1 /2″, DN15 | 12 mm | FIG1/2CS12 | ||
| 1 /2″, DN15 | 14 mm | FIG1/2CS14 | ||
| 1 /2″, DN15 | 15 mm | FIG1/2CS15 | ||
| 1 /2″, DN15 | 15 mm | FIG1/2CS15-10 | ||
| 1 /2″, DN15 | 16 mm | FIG1/2CS16 | ||
| 3 /4″, DN18 | 18 mm | FIG3/4CS18 | ||
| 3 /4″, DN22 | 22 mm | FIG3/4CS22 | ||
 | FIG3/8CSS | Compression fitting for COPPER and STEEL pipe Consisting of compression nut and compression ring and support insert. For valves with internal thread. Note: Support inserts have to be used for copper or soft steel pipe with 1.0 mm wall thickness. Max. operating temperature 120 °C, max. operating pressure 10 bar. | ||
| 3 /8″, DN10 | 12 mm | FIG3/8CSS12 | ||
| 1 /2″, DN15 | 12 mm | FIG1/2CSS12 | ||
| 1 /2″, DN15 | 14 mm | FIG1/2CSS14 | ||
| 1 /2″, DN15 | 15 mm | FIG1/2CSS15 | ||
| 1/2″, DN15 | 16 mm | FIG1/2CSS16 | ||
| 1/2″, DN15 | 18 mm | FIG1/2CSS18 | ||
| 3/4″, DN20 | 18 mm | FIG3/4CSS18 | ||
 | FIG1/2M | Compression fitting for MULTILAYER pipe. Consisting of a compression nut, compression ring, and support insert. For valves with internal thread. Note: Max. operating temperature 90°C, max. operating pressure 10 bar | ||
| 1/2″, DN15 | 16 mm | FIG1/2M16X2 | ||
 | VA6290 | Reduction | ||
| 1″ pipe >1/2″ valve | VA6290A260 | |||
| 11/4″ pipe >1/2″ valve | VA6290A280 | |||
| 1″ pipe >3/4″ valve | VA6290A285 | |||
| 11/4″ pipe >3/4″ valve | VA6290A305 | |||
 | VA5201Axxx | Radiator tailpiece with thread up to collar | ||
| for valves DN10 (3/”) | VA5201A010 | |||
| for valves DN15 (1/2″) | VA5201A015 | |||
| for valves DN20 (/4″) | VA5201A020 | |||
 | VA5204Bxxx | Extended radiator tailpiece, nickel-plated, to be shortened as required | ||
| 3/8″ x 70 mm (for DN10)thread approx. 50 mm | VA5204B010 | |||
| 1/2″ x 76 mm for DN15) thread approx. 65 mm | VA5204B015 | |||
| 3/4″ x 70 mm (for DN20)thread approx. 60 mm | VA5204B020 | |||
 | VA2202Axxx | Pressure cap – for shutting off valves on radiator outlet | ||
| for valves DN10 (3/8″) | VA5090A010 | |||
| for valves DN15 (1/2″) | VA5090A015 | |||
| for valves DN20 (3/4″) | VA5090A020 | |||
 | VA5090 | Sealing ring for pressure cap | ||
| for valves DN10 (3 /8″) | VA5090A010 | |||
| for valves DN15 (1 /2″) | VA5090A015 | |||
| for valves DN20 (3/4″) | VA5090A020 | |||
 | VA8200A | Service tool to replace valve insert | ||
| for all sizes | VA8200A001 | |||
 | VA8201M | Presetting tool | ||
| or all Mira-3 | VA8201M301 | |||
SERVICE PARTS
 | VS1200M | Valve insert | ||
| for all Mira-3 | VS1200M301 | |||
 | VS4200 | Handwheel | ||
| for all Mira-3 | VS4200MI03 |
FLOW DIAGRAM
PRESETTING VALUES
| Presetting | 1 | 2 | 3 | 4 | 5 | 6 | 7 |
| kvs(cv)-values | 0.034 (0.04) | 0.085 (0.10) | 0.17 (0.19) | 0.32 (0.37) | 0.49 (0.57) | 0.70 (0.82) | 0.86 (1.01) |
| Tolerance ± % | 35 | 30 | 25 | 21 | 17 | 14 | 12 |
| Approx. turns of handwheel | 8-Mar | 8-May | 8-Jul | 1 1/8 | 1 3/8 | 1 5/8 | 1 7/8 |
KVS (CV)-VALUES
| Type | Angle | Straight | ||||
| DN | 10 | 15 | 20 | 10 | 15 | 20 |
| kvs (cvs)-value | 1.50 (1.76) | 1.95 (2.28) | 2.45 (2.87) | 1.30 (1.52) | 1.70 (1.99) | 2.20 (2.57) |
