Weller®connects

The digital transformation is in full swing. Mobile and cloud computing, the Internet of Things, artificial intelligence and machine learning are transforming our work environment enormously. To keep pace with these technical advances and our customers’ demands, Weller has designed the Weller Smart Workbench, a process by which data from your soldering processes can be collected and stored in the cloud for future use. Your opinion is important to us – wedesire to meet your requirements as precisely as possible.
However we have not abandoned traditional means of connectivity. We still offer cables to connect our devices: fume extraction units to soldering stations, soldering stations to tools, or ust tools to a wall socket. Whether station or cabled tool, with our rapid heatup up and ease of use you can just plug it in and start soldering.
Design study: Weller Smart Workbench
What has been controlled manually and by cable is becoming digitized. Weller has long been able to exchange data from fume extraction systems with soldering stations or traceability systems.
So what’s next?
Introducing the Weller Smart Workbench

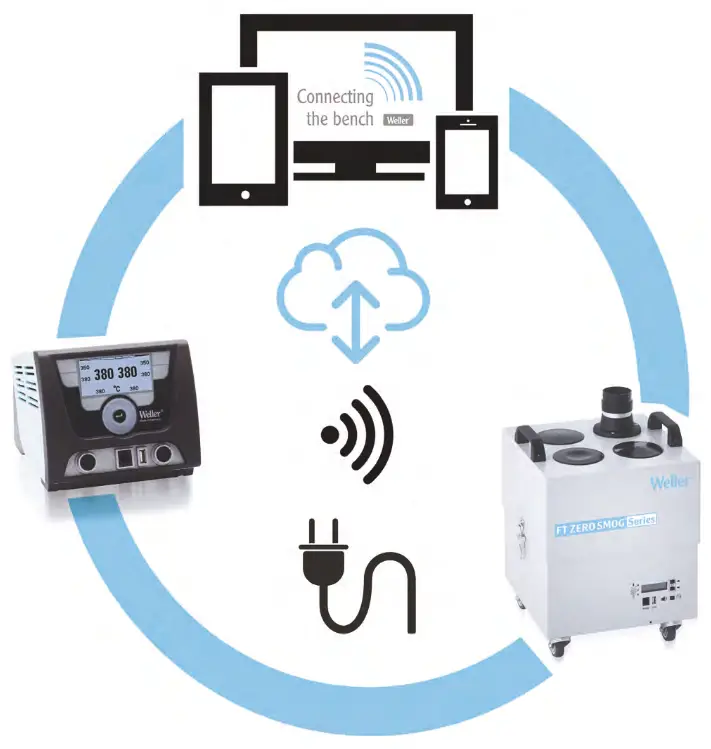

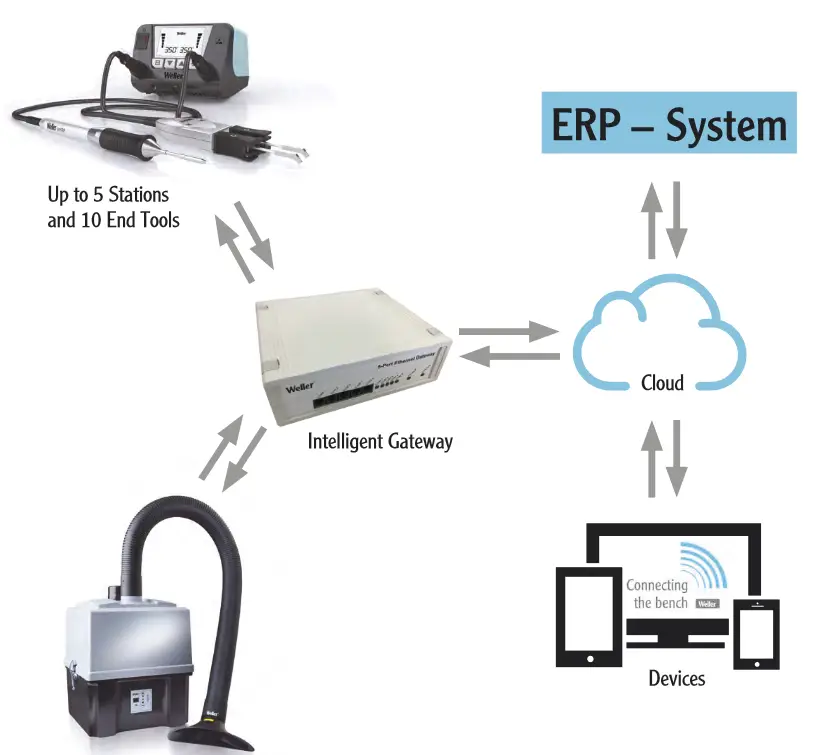

Cloud-based data exchange between workbench and central input devices.

Central operation
Set-up times, personnel and cost savings
Connection of up to 10 tools
Quality assurance through uniformity and error prevention: the input, the parameters, the control
Visualization of the soldering processes and their parameters
Data storage via cloud, analyses, evaluations, conclusions, as well as complete integration into existing traceability systems
Recognition of the required consumable material and automatic triggering of the reordering process (filter, tip)
Easy-to-use software for easy operation
Not for sale

Weller platforms

Weller offers customized soldering solutions.
If a solution is not immediately available for a unique customer challenge, the developers in our competency center relish the opportunity to develop, test, and present the best possible solution.
To help you better understand our wide product portfolio, we have segmented our products into 3 categories: the Performance Line, featuring our premiere professional soldering equipment; the Technology Line, setting a new standard for soldering; and the always reliable and cost-saving Efficiency Line.
This overview will help you find the right tool for your needs.


PERFORMANCE	TECHNOLOGY	EFFICIENCY

Standby Time
Auto-Off Time	Motion sensor
Standby Temperature		Keystroke
Temperature Window
Preset Temperature
Temperature °C / °F
Lock Function
Offset
Factory Setting
Motion Sensor in Iron
Micro Tool Support		WTP 90 only
High Power Tool Support		WT 2M only
Intelligent Tools		WT 1H & WT 2M only
Intelligent Power Management
Firmware Update
USB functionality*		Weller Service Centers only
Output for Zero Smog / Heating Plate / Robot			Zero Smog EL (not connectable)
Fume Extraction Units	ZeroSmog 4V, 6V; WX Hub	No WHP Heating Plate
PC connectivity via RS232 & Software
Performance Mode		Zero Smog TL; WT Hub
Language Setting
LCD Background Brightness
Number of Connectable Tools	12	15	1
Traceability ready

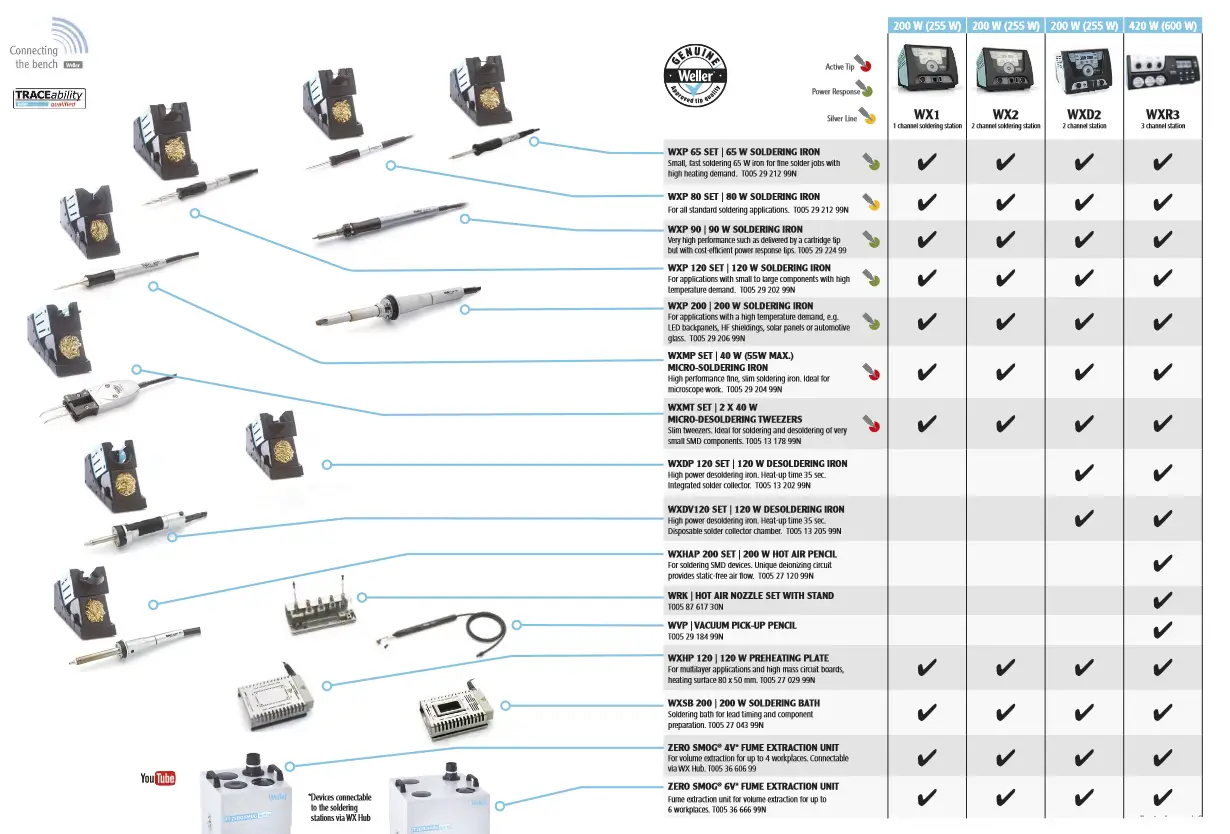

WX Weller Performance Line

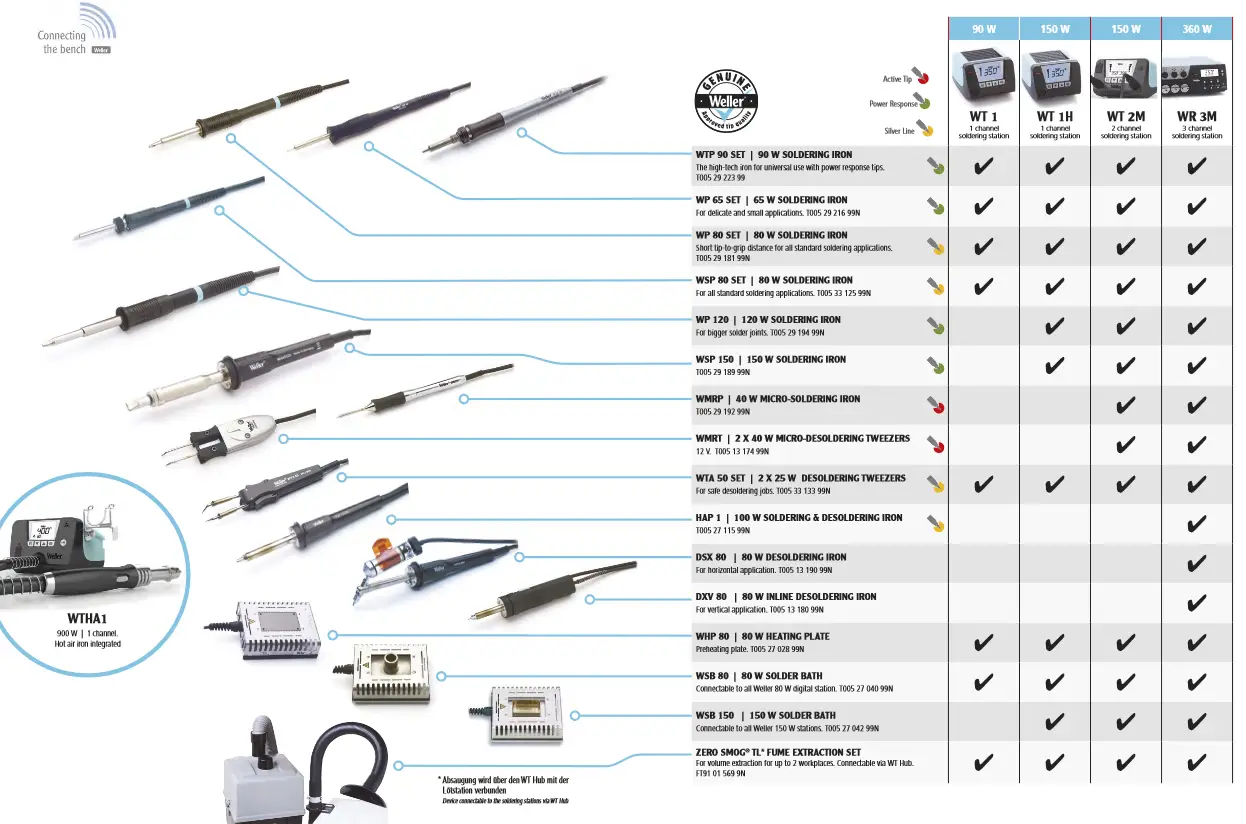

WT Weller Technology Line

WE Weller Efficiency Line

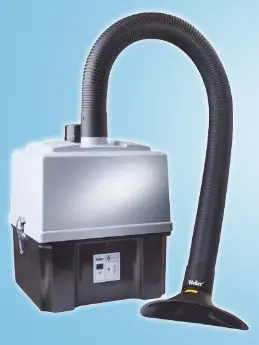

Protect your health with the Zero Smog®EL fume extraction system

Fume extraction unit for one to two workplaces
Can be placed next to workplace (No direct connection between soldering station and fume extraction unit.)

3 HEIZTECHNOLOGIEN VON WELLER
Do I have the right Weller tool for my application?

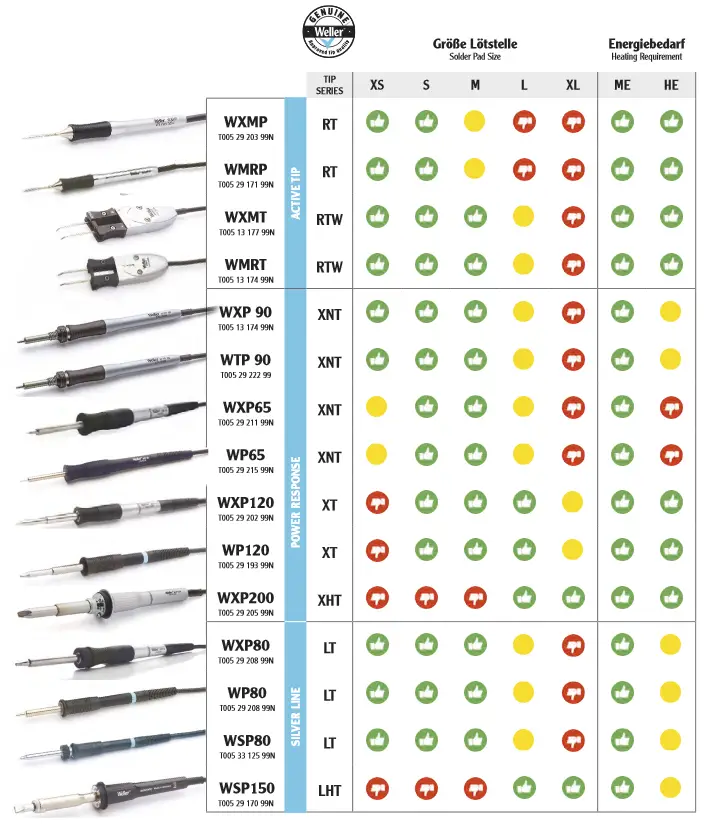

Here’s a handy little chart to help you figure that out. The applications are sorted by extra small to extra large solder pads, and by medium and high energy requirements.
Solder pad size

Do I have the right Weller tool for my application?
Here’s a handy little chart to help you figure that out The applications are sorted by extra small to extra large solder pads, and by medium and high energy requirements.
Solder pad size
XS Very sma solder pads
0.2-1.15mm 5 Small solder pads
0.8-1.6mm M Medium solder pads. universal soldering.
1.0-3.0mm L Larger solder pads. high mass soldering
XL Very large solder pads. high mass soldering (shielding)
Energy requirement
ME Medrum Energy remutement
HE High Energy requirement

Recommended for this application
Can but not optimal for this application
Not recommended for this application

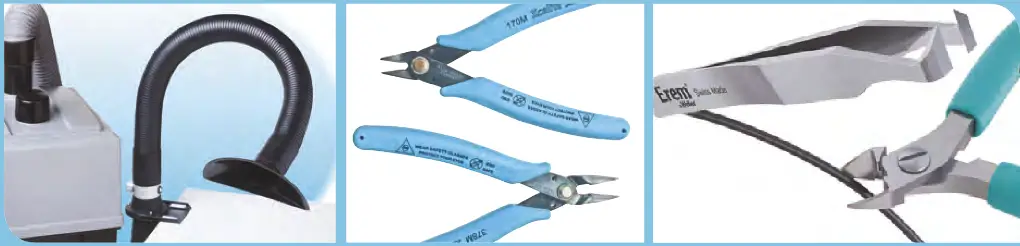

Also offering an extensive selection of Erem ® and Xcelite ® professional filtration and precision tools
