Uctronics U6149 Metal Case With Re-locate Board And Ice Towel Cooler For Raspberry Pi 4 User Manual

UCTRONICS U6149 Metal Case with Re-locate Board and Ice Towel Cooler for Raspberry Pi 4 User Manual

NOTE

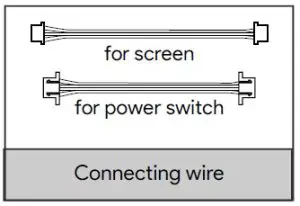

1. Do NOT allow the connecting wire to touch the fan when installing.
2. If you have any iussues, feel free to email us at.
3. 3.0.96 inch OLED display code library.

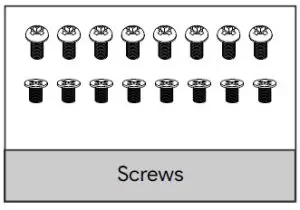

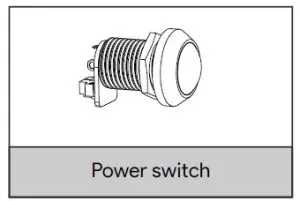

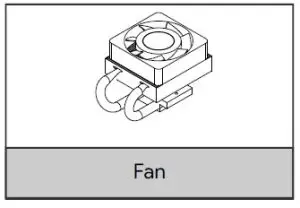

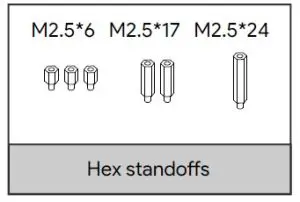

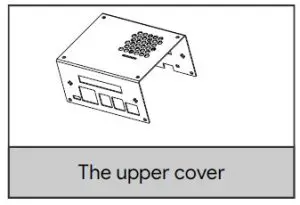

ACCESSORIES

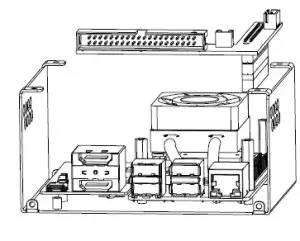

INSTALLATION

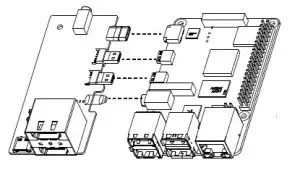

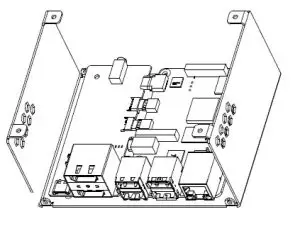

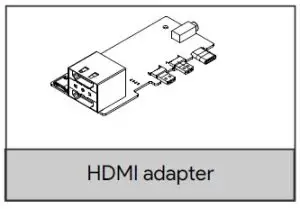

Step 1 Install HDMI adapter.

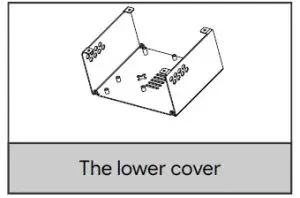

Step 2 Align the holes on the lower cover.

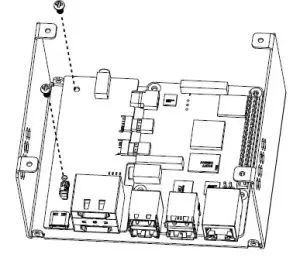

Step 3 Fix the HDMI adapter through 2 round head screws.

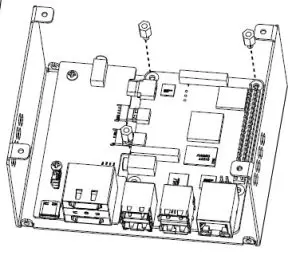

Step 4 Fix the RPi through 3 M2.5*6

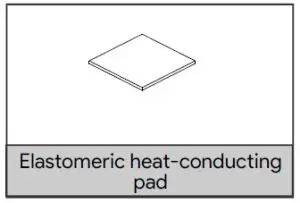

Step 5 Stick the elastomeric heat-conducting pad.

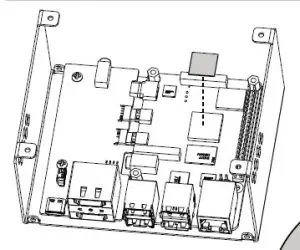

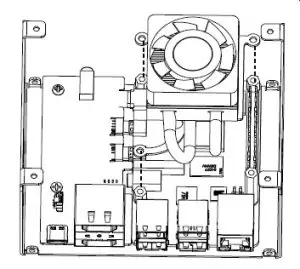

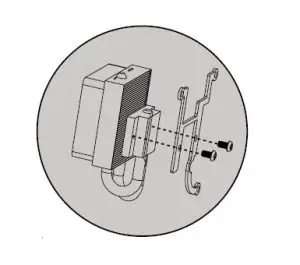

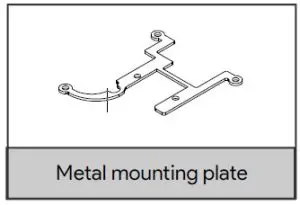

Step 6 Fix the fan on metal mounting plate.

Step 7 Align the holes on the plate with the holes on RPi.

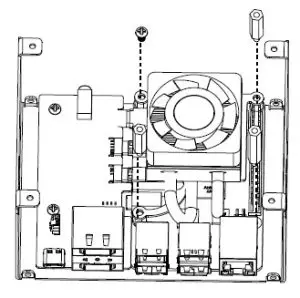

Step 8 Fix the fan through 2 M2.5*17

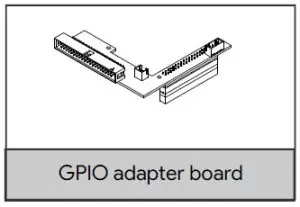

Step 9Install GPIO adapter.

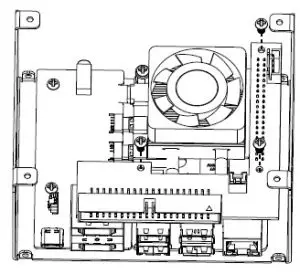

Step 10 Fix the GPIO adapter through 3 round head screws.

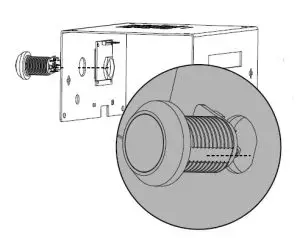

Step 11 Install the power switch.

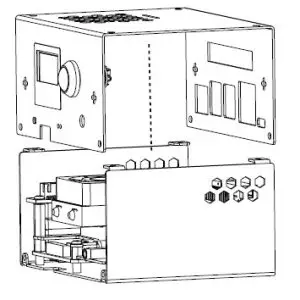

Step 12 Install the upper cover.

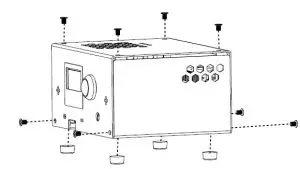

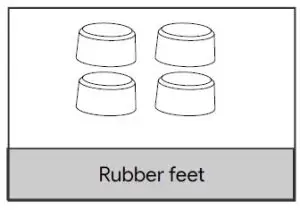

Step 13 Mount flat-nosed screws and stick rubber feet.
