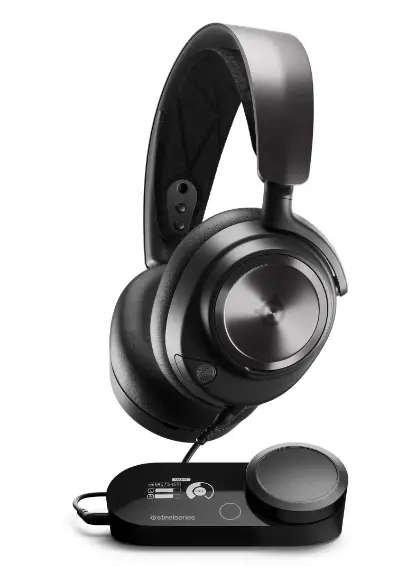

steelseries Arctis Nova Pro High-Res Gaming Headset
GENERAL
PACKAGE CONTENTS
- Arctis Nova Pro Headset GameDAC
- Main Audio Cable
- 2x USB-C to USB-A Cable Microphone Pop Filter
- Product Information Guide
SYSTEM COMPATIBILITY
- PC
- PlayStation 5
- PlayStation 4
- Nintendo Switch
- Android
SOFTWARE
Use Engine inside SteelSeries GG to set custom equalizer settings and control your mic.
GG also has other amazing apps like Sonar, a breakthrough in gaming sound, that allows you to hear what matters most, through cutting-edge audio tools.
DOWNLOAD NOW
steelseri.es/gg
PRODUCT OVERVIEW

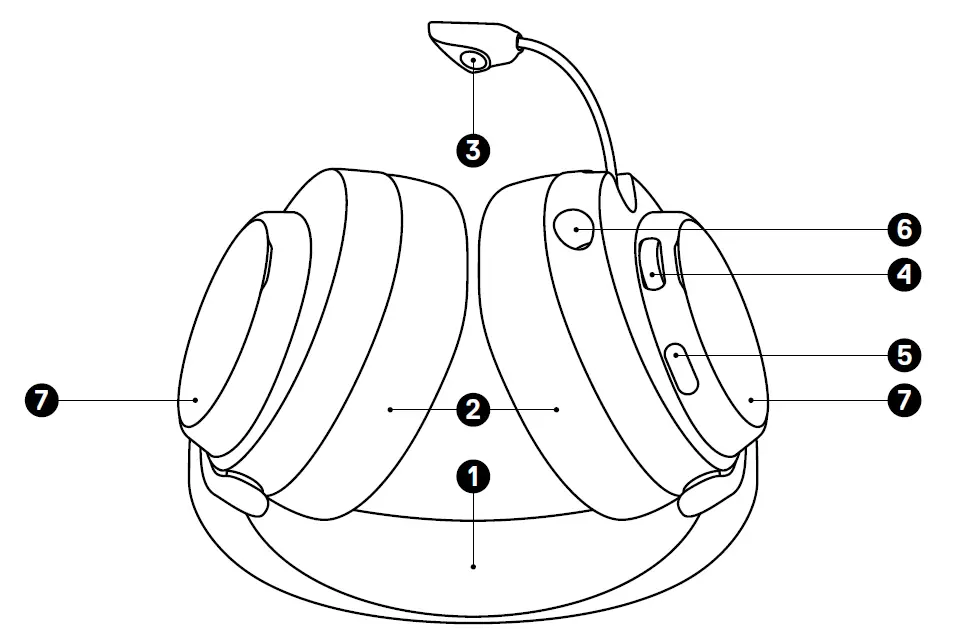

HEADSET
- Elastic Headband
- Premium Leatherette Ear Cushions*
- Retractable ClearCast Microphone
- Volume Wheel
- Microphone Mute Button
- 3.5 mm Audio Jack
- Removable Speaker Plates*
ACCESSORIES* - USB-C to USB-A Cable (×2)
- Main Audio Cable
- Microphone Pop Filter

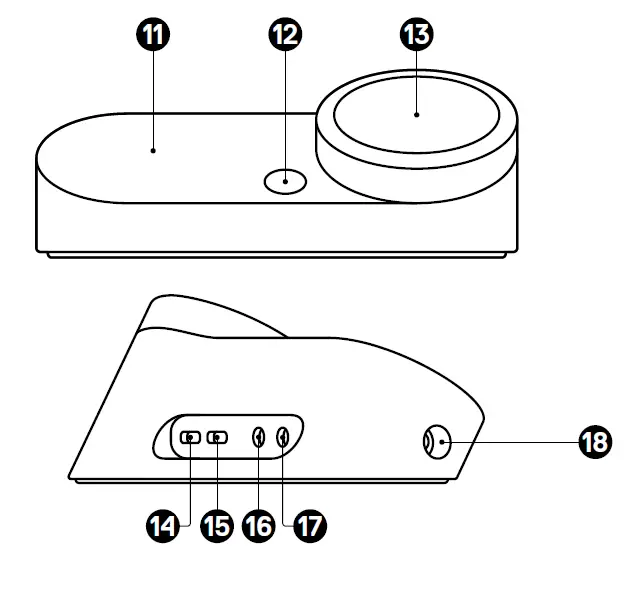

GAMEDAC - OLED Screen
- Secondary Button
- Control Wheel
- USB-1 Jack
- USB-2 Jack
- Line Out Jack
- Line-In Jack
- Headset Jack
SETUP
CONNECTIONS

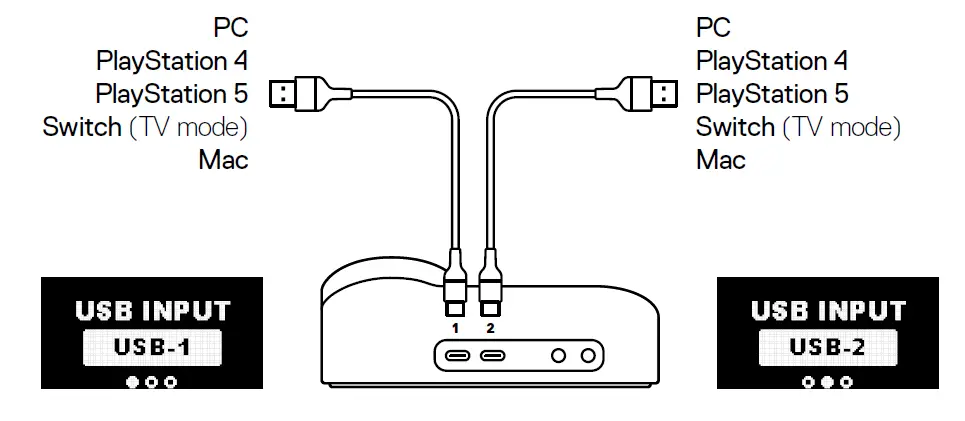

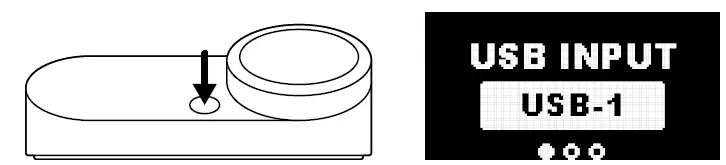

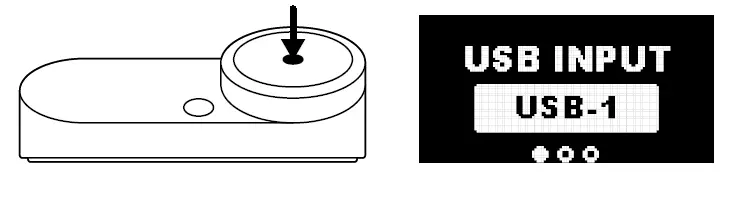

Plug one of the USB-C to USB-A Cables (8) into the USB-1 Jack (14), and connect the other end to your PC or console. Optionally connect the second USB cable from the GameDAC’s USB-2 Jack (15) to a second PC or console. Change input sources via the OLED display menu.
HEADSET TO DAC

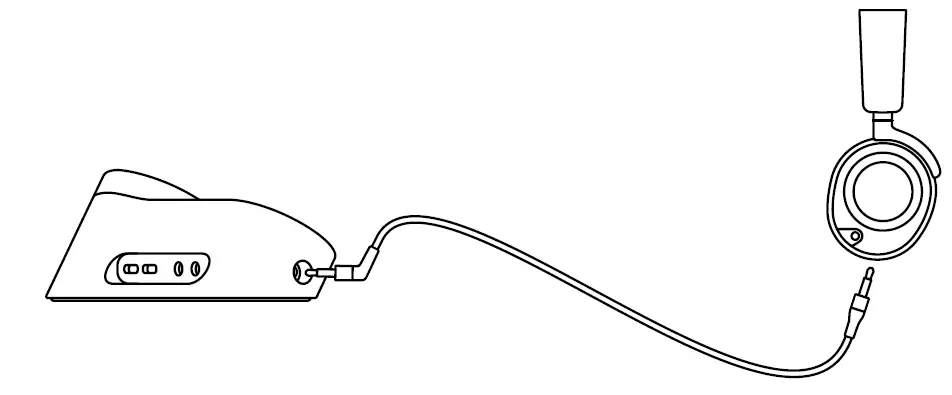

Plug the kinked end of the Main Audio Cable (9) into the Headset Jack (18) on the left side of the GameDAC and the straight end into the Headset’s 3.5 mm Audio Jack (6).
GAMEDAC OPERATION

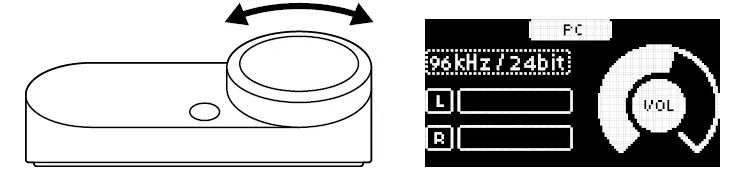

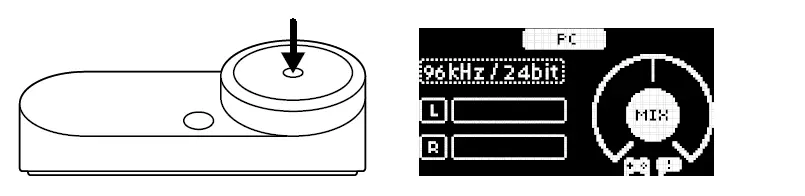

HOME SCREEN
- Press and release the Control Wheel (13) to toggle between Volume and ChatMix (*available on PC with software installed).
- Rotate the Control Wheel (13) to adjust the selected parameter.
- Press and hold the Control Wheel (13) to bring up the main menu
MAIN MENU

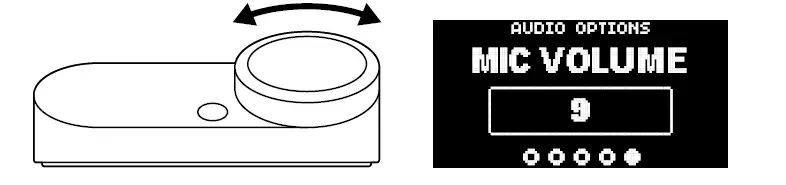

- Rotate the Control Wheel (13) to cycle menu items.

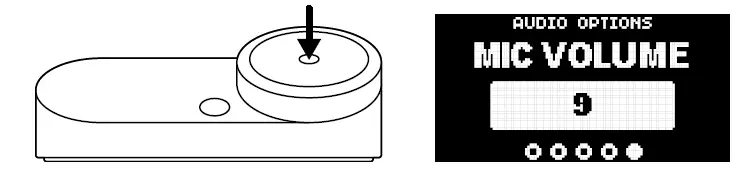

- Press and release the Control Wheel (13) to select
- Press and release the Secondary Button (12) to move back in the menu.
AUDIO OPTIONS

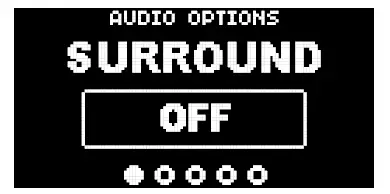

SURROUND
Toggle Software Surround Sound On/Off
(PC only, requires software install)

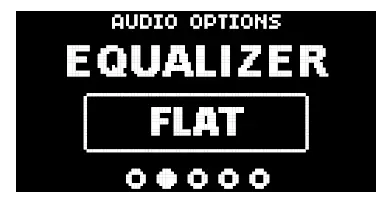

EQUALIZER
Customize your sound with included presets or fully adjustable 10-band EQ

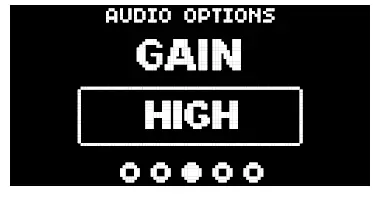

GAIN
Changes the maximum output level of the GameDAC

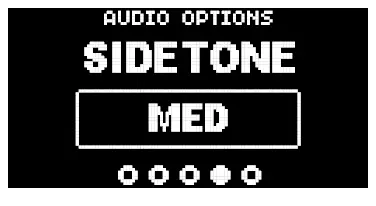

SIDETONE
Select the amount of your own voice you wish to hear in the headphones

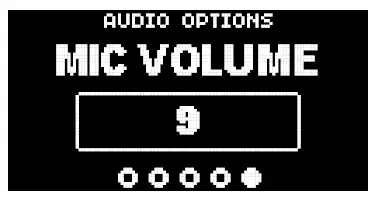

MIC VOLUME
Optimize the level of the microphone for your system

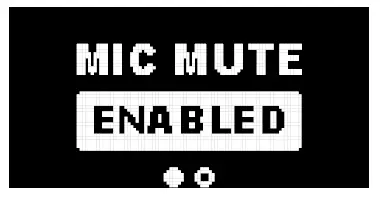

MIC MUTE
When enabled, the Secondary Button (12) toggles microphone mute
AUDIO OUTPUT SETTINGS
SPEAKERS
Play game and chat audio through a pair of external speakers.
- Connect a 3.5 mm cable (not included) from the GameDAC Line Out Jack (16) to your speakers.
- In the OLED menu set the Line Out option to ‘Speakers’.

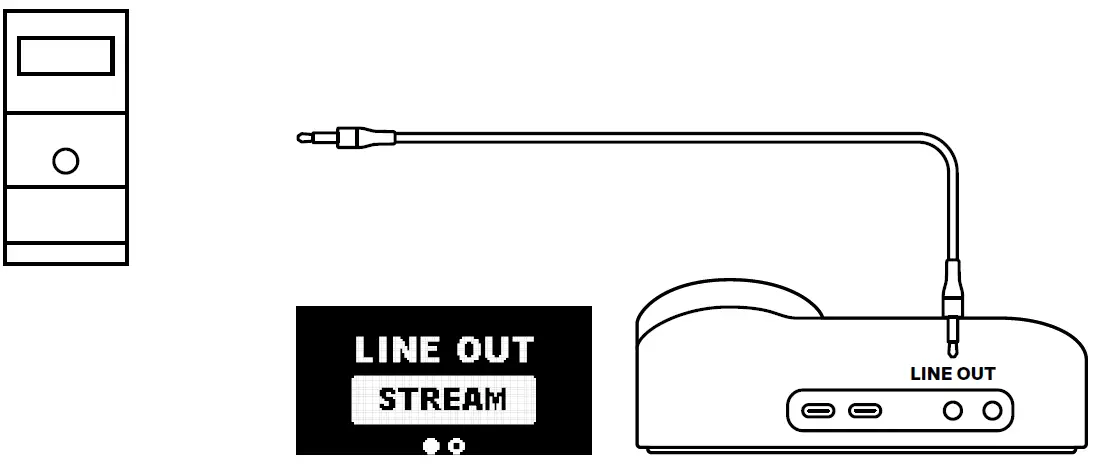

STREAM
Mix your Main, Aux, and Mic audio together to send to a PC for streaming.
- Connect a 3.5 mm cable (not included) from the GameDAC Line Out Jack (16) to your stream PC’s Soundcard input.
- In the OLED menu set the Line Out option to ‘Stream’.
- Adjust your custom mix via the Stream Mixer on the OLED screen.
MICROPHONE

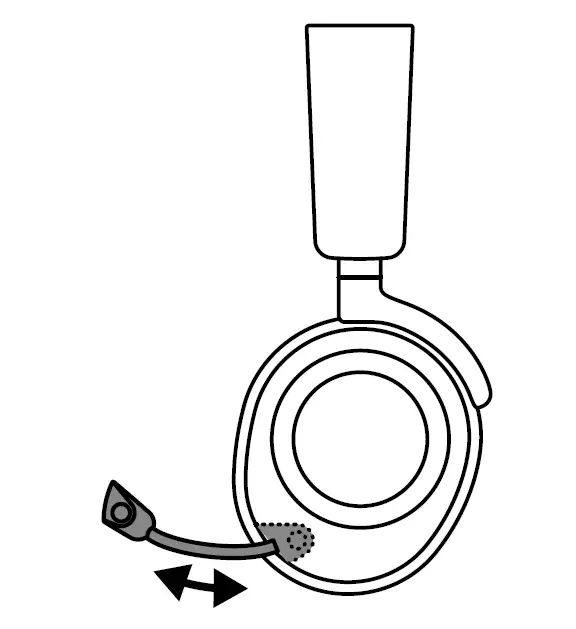

RETRACTABLE MICROPHONE
Out of the box, the Retractable ClearCast Microphone (3) is retracted To use the microphone, slide it away from the headset until it reaches full extension.

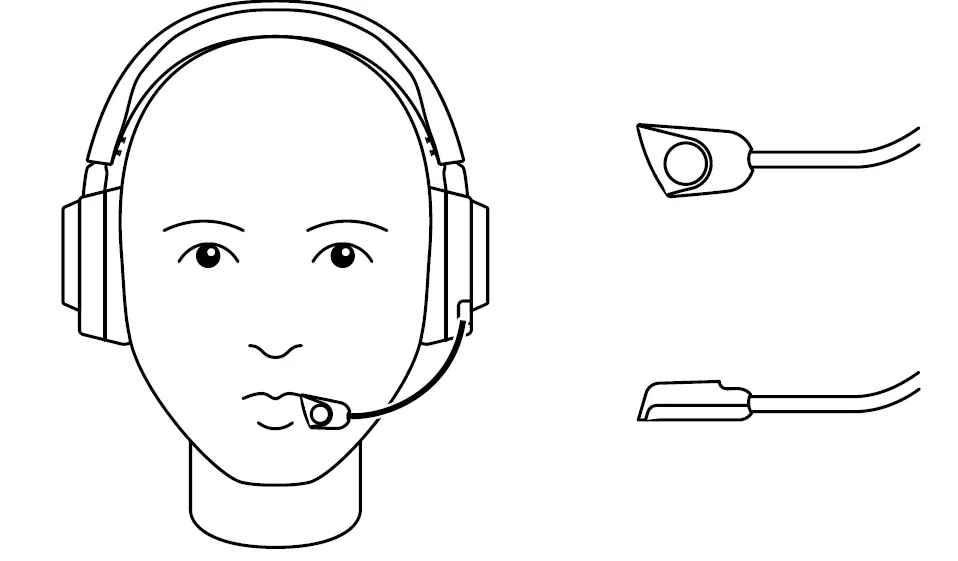

POSITIONING
Position the Retractable ClearCast Microphone (3) close to the corner of your mouth with the front surface facing you.
Note: The microphone should not be used when retracted
PERFECT FIT

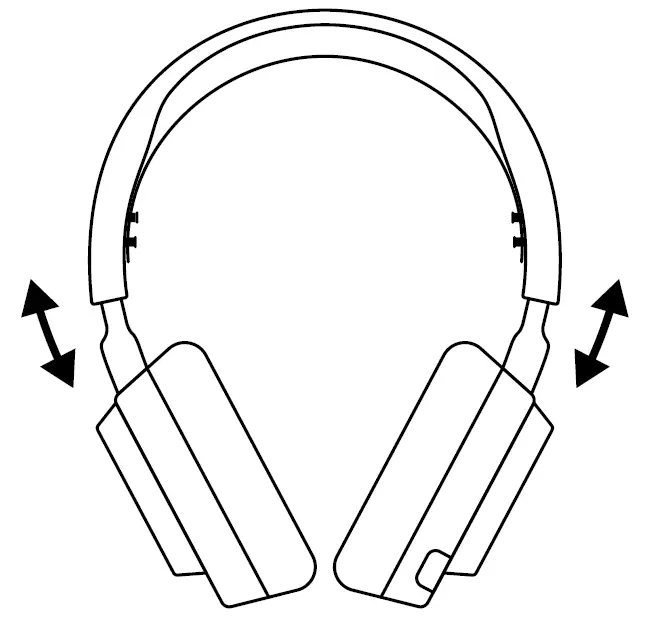

EARCUP ADJUSTMENT
Slide the Earcups up or down to change the overall height

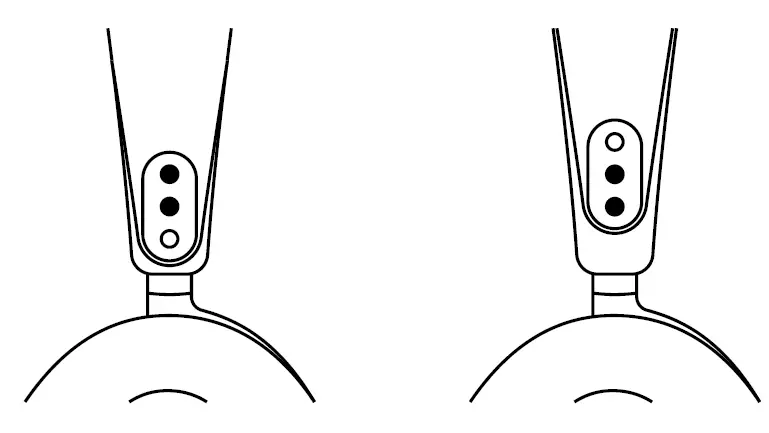

HEADBAND ADJUSTMENT
Change the position of the Elastic Headband (1) on one or both sides to achieve the desired tension and flex.

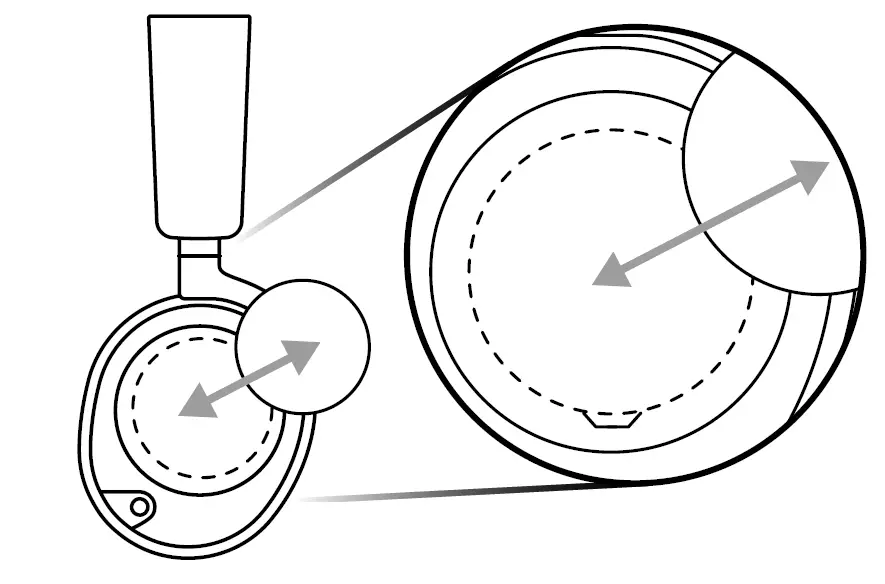

SPEAKER PLATES
The Removable Speaker Plates (7) are attached with magnets. To remove for replacement, place your fingernail in the groove at the bottom of the plate and gently lift.
learn more at steelseries.com
