Rinnai ODHRAD3M Outdoor Manual Super Ray Heater
EXPLODED VIEW
This diagram is provided to assist you to identify parts if replacement is necessary. Contact your place of purchase or the manufacturer to enquire about parts, availability and/or service.
| Ref. | Description | Qty. | Part No. |
| 1 | Burner assembly painted | – | – |
| – | Burner assembly (includes: burner body, ceramic plaque, and ceramic wool) | 3 | 1514 |
| 4 | Panel burner partition | 2 | 6018 |
| 5 | Plaque retainer side w-series | 2 | 6019 |
| 6 | Econ screen pin | 4 | 6034 |
| 8 | Plaque retainer top w-series | 1 | 10095 |
| 9 | Plaque retainer bottom | 1 | 6045 |
| 10 | Cross lighting bracket | 1 | 10070 |
| 12 | Heat diverter assembly | 1 | 10038 |
| 13 | Thermocouple 650 mm | 1 | 5049 |
| 18 | Electrode c/w bracket w-series | 1 | 5054 |
| 19 | Gas control―see page 2 | – | – |
| 20 | Bracket control w-series | 1 | 7939 |
| 21 | Bracket piezo | 1 | 7940 |
| 22 | Piezo igniter SIT | 1 | 7765 |
| – | Electrode/HT lead | 1 | 7766 |
| 24 | Bush x-lube shouldered S201M | 1 | 9280 |
| 25 | Terminal block | 1 | 5034 |
| 27 | Actuator | 1 | 10075 |
| 28 | Spring Piezo w-series manual | 1 | 7859 |
| 30 | Tip over switch assembly | 1 | 6131 |
| 32 | Insulating bush | 2 | 9010 |
| 33 | Heat deflector | 1 | 10066 |
| 35 | Reflector assembly (manufactured AFTER 30/04/2009) | 1 | 10094 |
| 35 | Reflector assembly (manufactured BEFORE 30/04/2009) | 1 | 10000 |
| 36 | Reflector top | 1 | 10094-1 |
| 37 | Pressure test point screw | 1 | 9994 |
| 38 | Pressure test point packing | 1 | 9995 |
| 39 | Economiser screen assy | 1 | 1513 |
| 40 | Split pin ZP 1/6 * 1/2 | 4 | 9360 |
| Ref. | Description | Qty. | Part No. |
| 41 | Heat shield | 1 | 10017 |
| 42 | Surround top | 1 | 10114 |
| 43 | Screw button socket | 14 | 9006 |
| 44 | Shield tilt switch | 1 | 10019 |
| 45 | Surround LH side assembly (manufactured AFTER 30/04/09) | 1 | 10089 |
| 45 | Surround LH side assembly (manufactured BEFORE 30/04/09) | 1 | 10004 |
| 46 | Surround RH side assembly (manufactured AFTER 30/04/09) | 1 | 11365 |
| 46 | Surround RH side assembly (manufactured BEFORE 30/04/09) | 1 | 10005 |
| 47 | Screw M4x8 | 12 | 9061 |
| 48 | Surround back assembly | 1 | 10060 |
| 49 | Heater bracket | 2 | 10015 |
| 50 | Screw button socket | 4 | 9007 |
| 51 | Wall bracket | 1 | 10016 |
| 52 | Surround bottom | 1 | 10062 |
| 53 | Louvre painted | 1 | 10036F |
| 54 | Union body ⅜ C x ⅜FI | 1 | 5065 |
| 55 | Gas inlet adaptor | 1 | 7983 |
| 56 | Union body ½C x ⅜FI | 1 | 5066 |
| 57 | Nut ½ compression | 1 | 5064 |
| 58 | Nut ⅜ compression w-series | 1 | 5030 |
| – | Sparker replacement kit | 1 | 11363 |
| – | Louvre bracket (manufactured BEFORE 30/04/09) | 1 | 10007 |

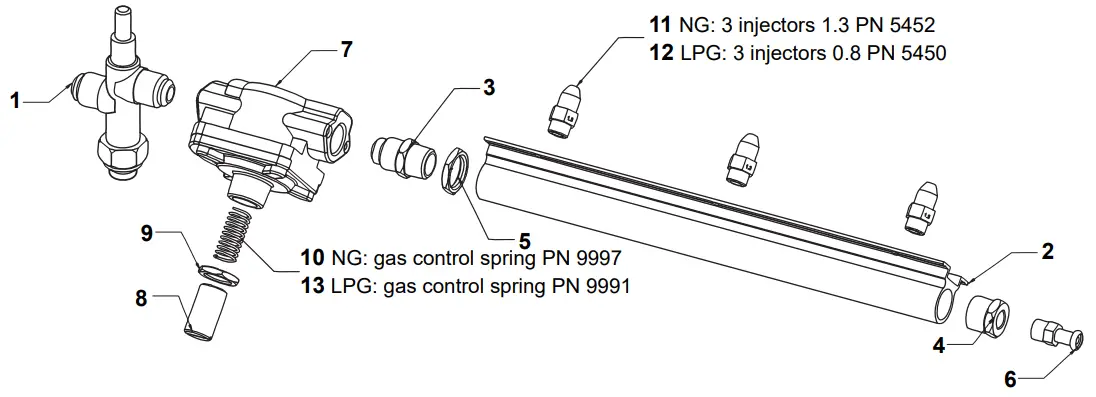

Gas control (exploded view)
| Ref. | Description | Qty. | Part No. |
| 1 | Flame failure (SIT 0400097) | 1 | 7942 |
| 2 | Manifold | 1 | 5178 |
| 3 | Union body | 1 | 5061 |
| 4 | Test point plug | 1 | 6033 |
| 5 | Locknut brass 3/8 | 1 | 5070 |
| 6 | Pressure test point | 1 | 9992 |
| 7 | Regulator 3/8 w-series | 1 | 5042 |
| 8/9 | Gas cock screw long & locknut | 1 | 9990 |
| – | Gas cock spring diaphragm | 1 | 9997 |
| – | Gas cock spring | 1 | 9991 |
| – | Pull cord set | 1 | 1809 |
