Duraflame 9hm9273 Infrared Heater User Manual

duraflame 9HM9273 infrared Heater User Manual

GETTING STARTED

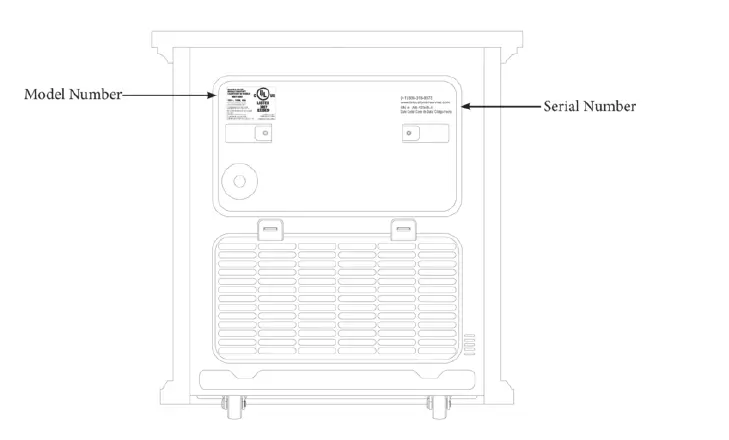

1.  The serial number is located on the back of the heater, the serial number is necessary for product warranty registration and customer service.
2. . Go to www.OkustommeITk<.<om fo, 9QI073ARA. If you are unable to complete registration save your proof of purchase for warranty purposes.

PRODUCT SPECIFICATIONS

IMPORTANT INSTRUCTIONS

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electrical shock, and injury to persons including the following:

1.  Read all instructions before using this appliance.
2.  This appliance is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. If provided, use handles when moving this appliance. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9 m) from the front of this appliance and keep them away from the sides and the rear.
   WARNING: In order to avoid overheating, do not cover the heater.
3.  CAUTION: Never leave the heater operating unattended. Extreme caution is necessary if unsupervised children or invalids are nearby.
4.  The appliance is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction.
5.  Always unplug this appliance when not in use.
6.  Do not operate any heater with a damaged cord or plug or after the appliance malfunctions, or if it has been dropped or damaged
   in any manner.
7.  If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
8.  Do not use outdoors.
9.  This heater is not intended for use in bathrooms, laundry areas, and similar indoor locations. Never locate this appliance where it may fall into a bathtub or other water container.
10.  Do not run the cord under the carpeting. Do not cover the cord with throw rugs, runners or the like. Arrange the cord away from traffic areas and where it will not be tripped over.
11. To disconnect this appliance, turn the controls.

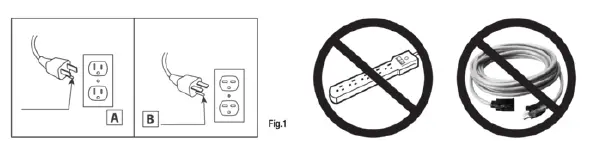

12. Connect to properly grounded outlets only. This heater is for use on 120 volts. The cord has a plug as shown at A in Fig. I. Do not use a 2-prong adapter. Never use an extension cord or relocatable power tap (outlet/power strip).
13. . This appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes, with the current CSA C22. l Canadian Electrical Code or for U.S.A. installations follow local codes and the National Electrical Code, ANSI/NFPA NO.70.
14.  Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the appliance.
15.  To prevent a possible fire, do not block air intake or exhaust in any manner. Do not use on soft surfaces, like a bed, where the opening may become blocked.
16.  This appliance has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint or flammable liquids are used or stored. This fireplace should not be used as a drying rack for clothing. Christmas stockings or decorations should not be hung in the area of it.
17.  Use this appliance only as described in the manual. Any other use not recommended by the manufacturer may cause fire, electric shock or injury to persons.
18.  CAUTION: Do not sit or stand on the heater; the heater may become unstable.

OPERATION INSTRUCTIONS

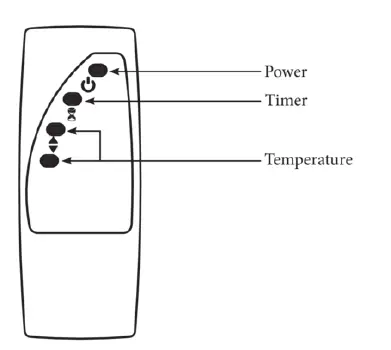

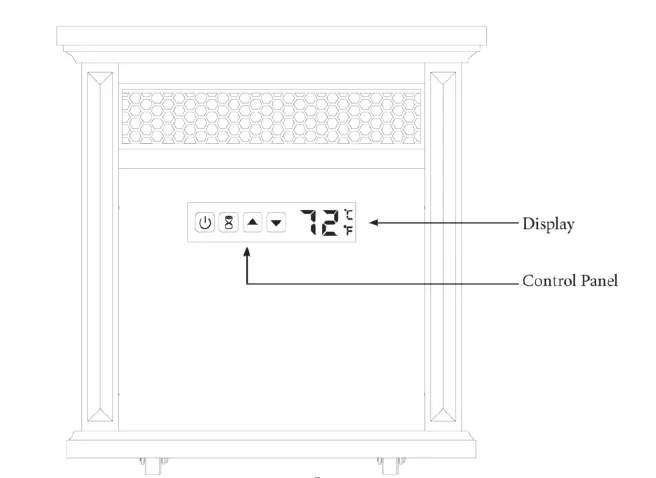

The heater can be operated by either the remote control or the control panel.

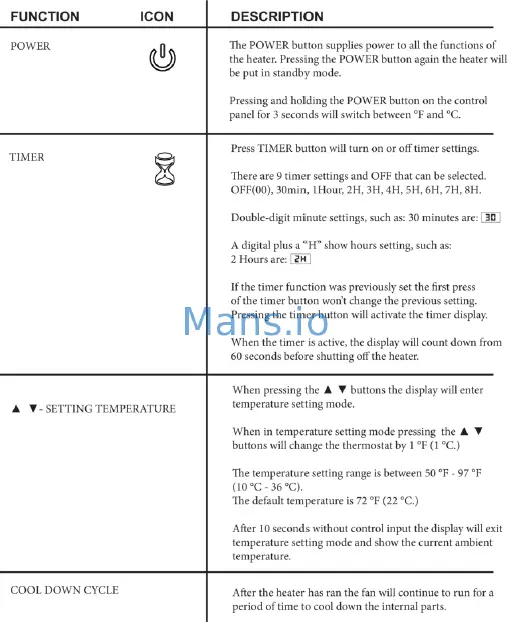

OPERATION INSTRUCTIONS

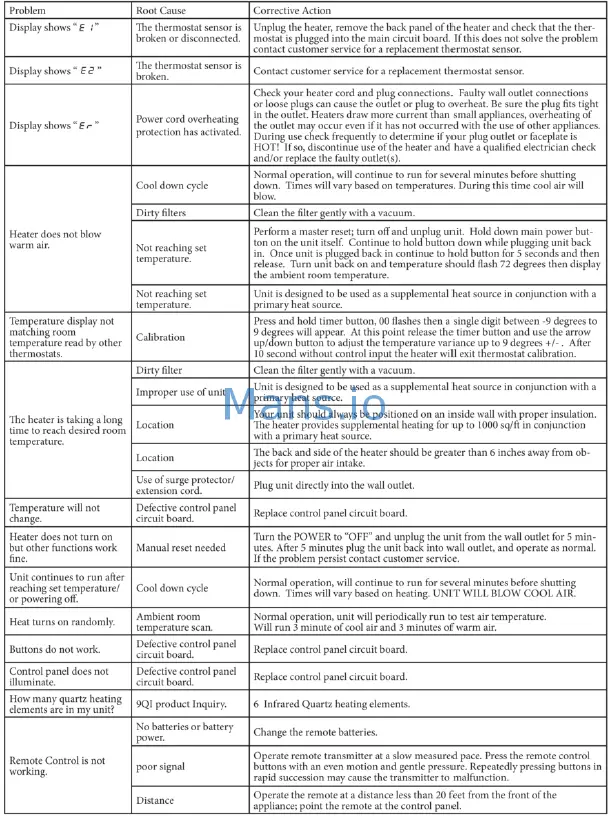

TROUBLESHOOTING

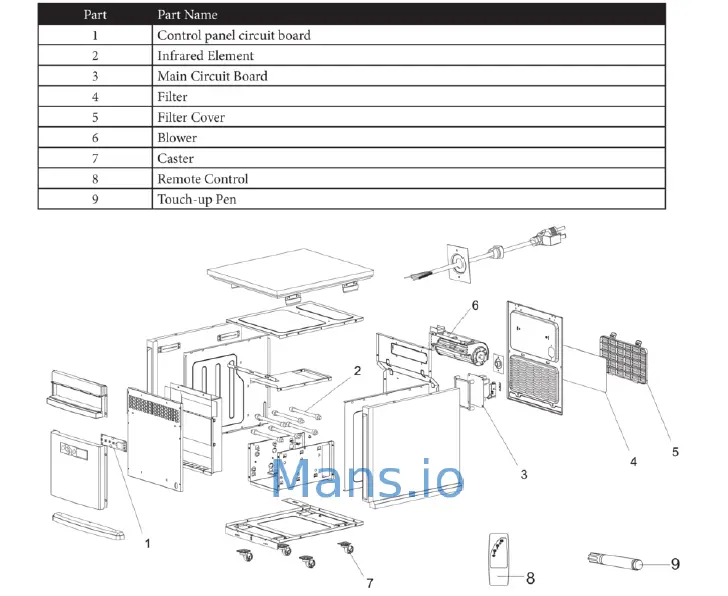

EXPLODED VIEW

CARE AND MAINTENANCE

•  Clean the trim using a soft cloth, slightly dampened with citrus oil-based product, and buff with a clean soft cloth.
•  DO NOT use brass polish or household cleaners as these products will damage the metal trim. Citrus oil-based products can be obtained at supermarkets or hardware stores.
•  Periodic cleaning/vacuuming of the filter is recommended.
•  WARNING: Electrical outlet wiring must comply with local building codes and other applicable regulations to reduce the risk of fire, electrical shock and injury to persons.
•  Warning: Disconnect power before attempting any maintenance or cleaning to reduce the risk of fire, electrical shock or personal injury.\

FCC/IC INFORMATION

NOTE: This equipment has been tested and found to comply with the limits for Class B digital devices, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• • Reorient or relocate the receiving antenna.
  • Increase the separation between the equipment and the receiver.
  • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
  • Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1.  This device may not cause harmful interference, and
2.  this device must accept any interference received, including interference that may cause undesired operation.

Modifications not approved by the party responsible for compliance could void the user’s authority to operate the equipment. This Class B digital apparatus complies with Canadian ICES-003.

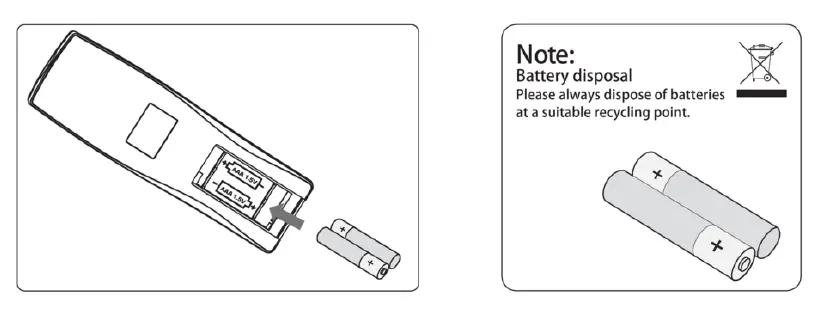

BATTERY REPLACEMENT

NOTE: Do not mix old and new batteries.

Caution: Do not ingest batteries.

1. Non-rechargeable batteries are not to be recharged.
2.  Batteries are to be inserted with the correct polarity.
3.  Exhausted batteries are to be removed from the product.

3-YEAR LIMITED WARRANTY

The manufacturer warrants that your new Electric Heater is free from manufacturing and material defects for a period of three years from the date of purchase, subject to the following conditions and limitations.

1.  Install and operate this Electric Appliance in accordance with the installation and operating instructions furnished with the product at all times. Any unauthorized repair, alteration, willful abuse, accident, or misuse of the product shall nullify this warranty.
2.  This warranty is non-transferable and is made to the original owner, provided that the purchase was made through an authorized supplier of the product.
3.  The warranty is limited to the repair or replacement of part(s) found to be defective in material or workmanship, provided that such part(s) have been subjected to normal conditions of use and service after said defect is confirmed
   by the manufacturer’s inspection.
4.  The manufacturer may, at its discretion, fully discharge aU obligations with respect to this warranty by refunding the wholesale price of the defective part(s).
5.  Any installation, labor, construction, transportation, or other related costs/expenses arising from defective part(s), repair, replacement, or otherwise of same, will not be covered by this warranty, nor shall the manufacturer assume responsibility for same.
6.  The owner/user assumes all other risks, if any, including the risk of any direct, indirect or consequential loss or damage arising out of the use, or inability to use the product, except as provided by law.
7.  All other warranties – expressed or implied -with respect to the product, its components, and accessories, or any obligations/liabilities on the part of the manufacturer are hereby expressly excluded.
8.  The warranties as outlined within this document do not apply to non accessories used in conjunction with the installation of this product.
9. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. This warranty is void if:
   •  The Heater is subjected to prolonged periods of dampness or condensation.
   •  Any unauthorized alteration, willful abuse, accident, or misuse of the product.
   •  You do not have the original receipt of the purchase.

CUSTOMER SERVICE

www.tsicustomerservice.com
For Customer Service Call 1-800-318-9373
Questions? Our experts are standing by assisting you at our Toll-Free helpline, we can help you with assembly, and, if necessary replace damaged/missing parts. Assistance is available 7 days a week/24 hours a day/365 days per year.

IMPORTANT:
Before contacting Customer Service please have this information available:

•  Serial Number
•  Model Number
•  Sales Receipt or Proof of Purchase
