Momcozy S12 9 Levels Wearable Electric Breast Pump User Manual

MOMCOZY S12 9 Levels Wearable Electric Breast Pump

OVERVIEW

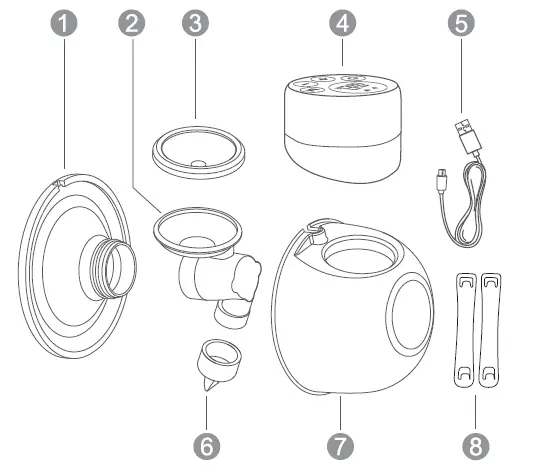

Parts list

1. Silicone flange
2. Linker
3. Silicone diaphragm
4. Pump motor
5. Type-c cable
6. Silicone valve
7. Milk collector
8. Bra adjustment buckle

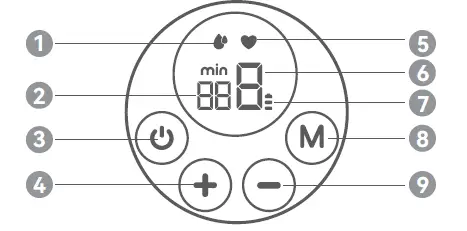

CONTROL PANEL

1. Expression mode display
2. Timing display
3. Power button
4. Increase intensity
5. Massage mode display
6. Level display
7. Battery power display
8. Mode selection button
9. Decrease intensity

Note
This product has a built-in lithium battery. When the battery indicator flashes in red, we recommend that you use a certified 5V 1A adapter to charge the Pump Motor as soon as possible.

CLEANING AND STERILIZING

• For first time and before each use, you must disassemble, wash and sterilize all the breast pump parts that come into contact with breast milk.
• Never wash or sterilize the pump motor, this component does not come into contact with your breast milk. You can wipe this part clean with a soft cloth.
• Please use hot water/steam/sterilization pot for sterilization, temperature shall not exceed 100 degrees.
• Drinking water is recommended to use for cleaning.
• Take care when cleaning the valve and silicone diaphragm, if it gets damaged, your breast pump will not function properly.
• To clean the Silicone Valve, tub it gently between your fingers in warm soapy water. Do not insert objects as this may cause damage.

ASSEMBLING

1. Put the Silicone Diaphragm into the linker, and press it with your hands to make the edges fasten tightly to ensure a perfect seal.

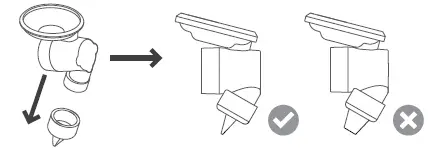

2. Install the Silicone Valve into the bottom of the linker, make sure it is installed in the correct direction.

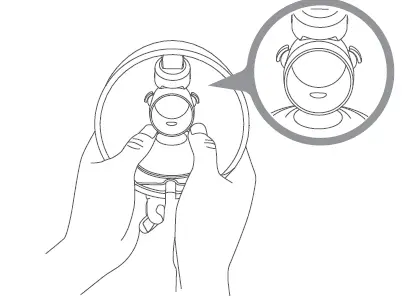

3. Put the assembled linker into the Milk Collector, with the “ear” part of the linker aligned with the internal slot of the Milk Collector, and press the linker disc part with both hands to fasten the edges firmly to ensure complete sealing.

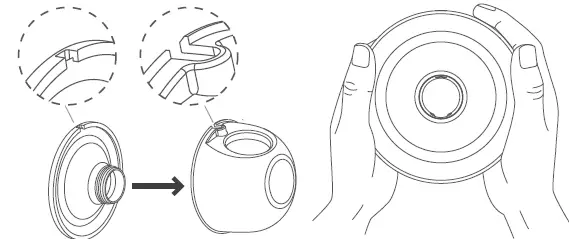

4. Install the Silicone Flange on the Milk Collector, align the deflector on the horn with the deflector on the Milk Collector, align the groove on Silicone Flange in the Milk Collector groove position.

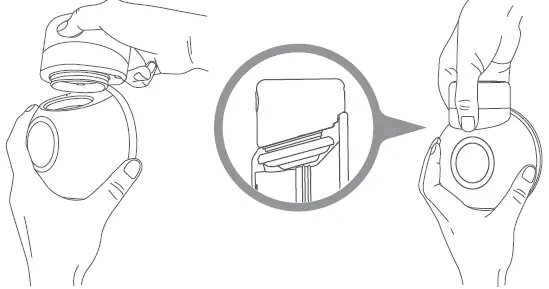

5. Press the Pump Motor onto the Milk Collector to ensure that it fits perfectly.

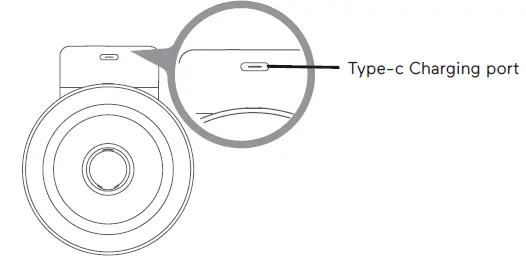

6. Unplug the dust plug and connect the type-c cable to charge the Pump Motor.

Note
The power adapter is a common standard accessory on the market. This product is not provided and can be purchased separately if necessary. Power adapter specification: 5V 1A.

TO BEGIN PUMPING

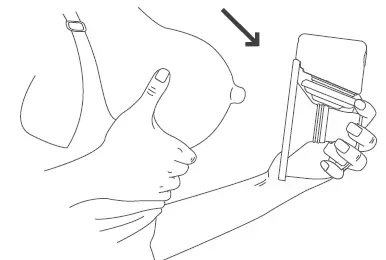

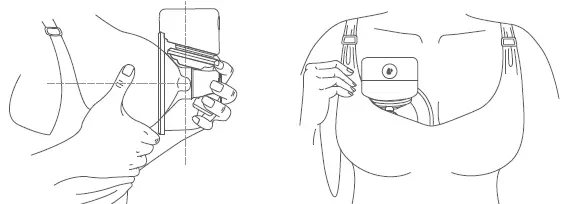

1. Press the Silicone Flange firmly against the breast, leave no gaps and make sure your nipples are centered. Keep it upright. Be careful not to distort the position of the product and the chest, otherwise, the breast pump will not have suction.
2. Lightly press the power button to start the breast pump, and the timing display turns on.
3. Lightly press the” M ” key to switch the mode, the display shows” ” for the breast pumping mode. There are 9 levels in this mode. You can select the suction power that makes you comfortable by touching the ” +” and “- ” keys. During postpartum breastfeeding, breast discomfort such as swelling and lumps are prone to occur. Using this mode can alleviate breast problems.
4. Press the” M” key again to switch to the massage mode, the display shows ” ” for the massage mode. There are 9 levels in this mode. Each level has 9 short suction and short release plus 1 long suction and long release as a cycle. You can press the “+ ” and “- ” keys to select the suction power that makes you comfortable. In the early postpartum period, the breast duct is not easy to conduct, and the breast can be stimulated by changing the mode to promote breast milk secretion.
5. When you have finished pumping, press the power button to turn off the breast pump, then carefully remove the breast pump from the breast.

SITTING POSITION FOR SUCTION

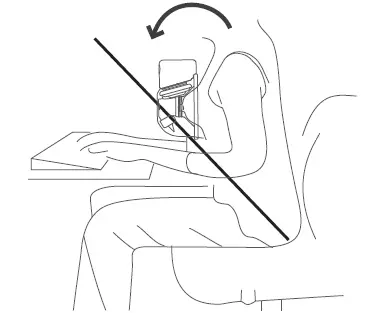

Relax the body, sit in a comfortable chair and lean slightly forward (use a cushion to support back). Make sure to keep the breast pump and Milk Collector upright.

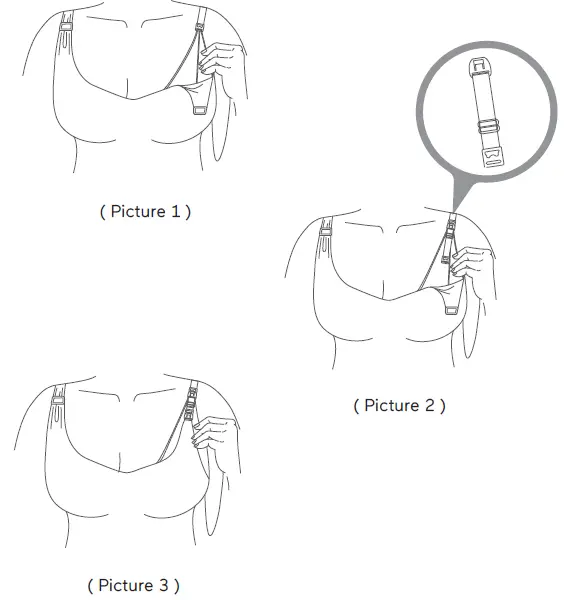

BRA ADJUSTMENT BUCKLE

• Adjusting the length of bra straps will make suction more comfortable.
• One end of the bra adjustment buckle hung on the inside buckle of the nursing bra. The length of the bra strap can be adjusted by changing the nursing bra buckle on the other end of the bra adjustment buckle.

POURING MILK

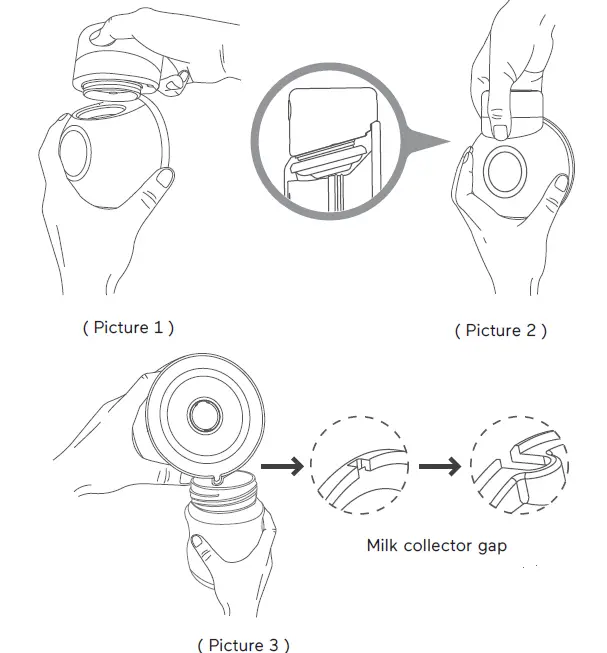

Please keep the breast pump upright, and remove the Pump Motor from the pump body carefully， to pour the milk into the bottle, make sure the gap of the Milk Collector is against the bottle mouth.

STORING YOUR BREAST MILK

Storing breast milk
Store the breast milk in a clean and sterilized storage bag or sealed bottle, and put them in the freezer immediately.
Unfreeze breast milk
Put the frozen breast milk in the fridge to unfreeze overnight. In case of any emergency, you can defrost the milk in a bowl of hot water with the bottle standing upright, or bottle warmer to heat the milk quickly.
Tips 1

• Only store the breast milk collected by a sterilized breast pump.
• Do not freeze the breast milk repeatedly
• Do not mix fresh breast milk with frozen breast milk
• Be sure to discard the remaining breast milk after feeding

Tips 2

• Remember! Always check the milk temperature before feeding.
• Never heat breast milk in the microwave as this may destroy valuable nutrients and antibodies.
• Uneven heating may lead to local overheating of the milk, which may cause burns.
• Do not immerse a frozen bottle in boiling water to avoid cracking or split.

FCC Statement:

This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

Warning: Changes or modification to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limited for Class B digital device, pursuant to Part 15 of the FCC Rules. Their limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.  However, there is no guarantee that interference will not occur in a particular installation. If the equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
