Bonoch Yd-1196 Electric Breast Pumps User Manual

YD-1196 Electric Breast Pumps
User Manual

Product Introduction

1.1 Basic Information
BONOCH Electric Breast Pumps are a hands-free product. Before using this product, you can use the nipple measurement card to select a connector or a silicone accessory that suits your nipple size for breastfeeding. During use, you can obtain your current use mode, gear, battery, and other information through the display screen, all clear at a glance. The bra silicone petal design and silicone plug design can help you avoid the embarrassment caused by leaking milk.
1.2 Specification

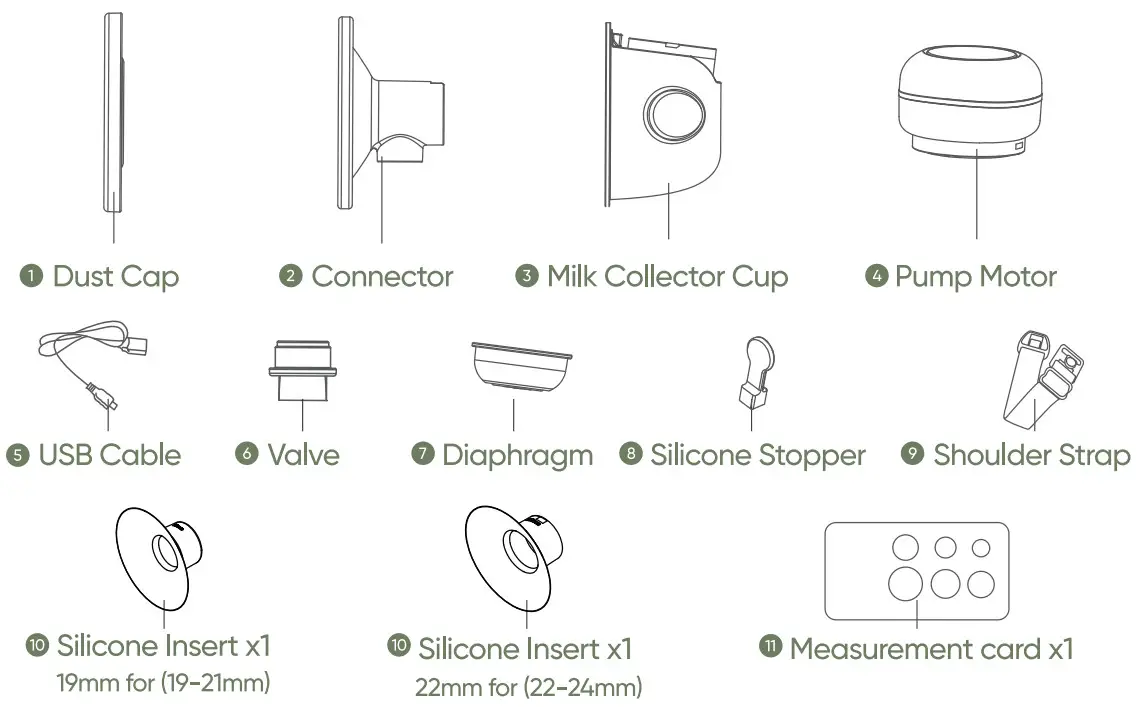

1.3 Accessory List

Instructions for Use

2.1 Cleaning Overview

When to Wash	Breast Shield	Breast Pump Kit	Milk Collector Cup
Before 1st use	sanitize wash	sanitize wash	sanitize  wash
After each use	wash	wash	wash
Once per day	sanitize	sanitize	sanitize

* Dry all the parts after wash or sanitize.
Washing and sanitizing are two different activities. They must be done separately to protect you, your baby and the performance of your breast pump.

1. Wash — To clean the surfaces of the parts by physically removing contamination.
2. Sanitize — To kill living organisms, such as bacteria or viruses, that may be present on the surfaces of the parts.

2.2 Assembly Instructions

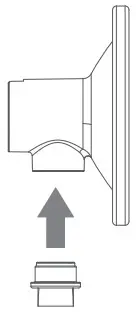

1. Insert the valve into the silicone connector.
2. Insert the silicone shield into the collector cup and make sure it is in right position.
3. Assembly the suction bowl into the milk collector cup.
4. Press and rotate pump motor onto the collector cups in CW direction and make sure they fit at correct position.
5. Put the breast pump into the nursing bra and get a comfortable gesture, then start to pump.

2.3 Steps for Pouring Out the Milk

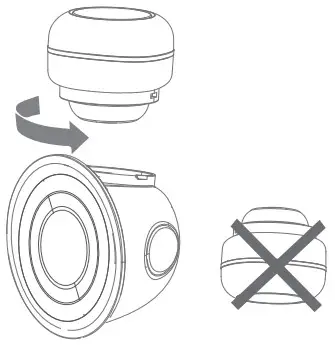

1. Rotate the pump in CCW direction and take it off. “The pump unit can not be laid flat to avoid breast milk backflow.
2. Insert the silicone stopper into the collector cup as above picture shows.

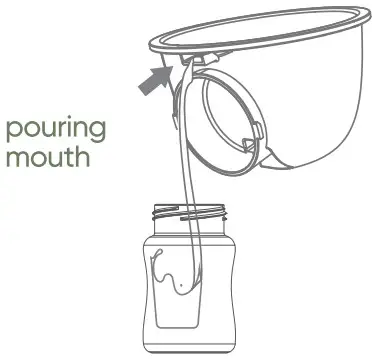

3. Pouring the breast milk into milk bottle in the indicated direction as above picture shows.

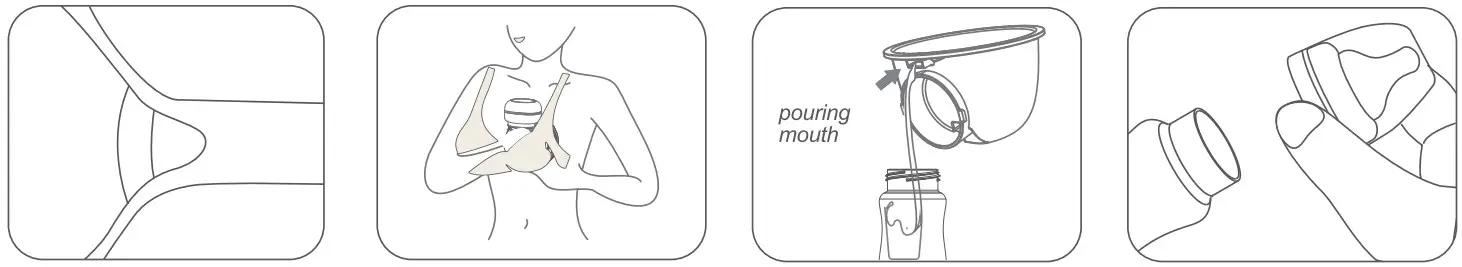

2.4 Operation Instructions

1. Hold the breast shield and connector onto your breast with your thumb and index finger. Support your breast with the palm of your hand.
2. Turn on the breast pump by tapping the power button and choose the mode you prefer.
3. Collect the milk after expression. Or you can keep it in the refrigerator.

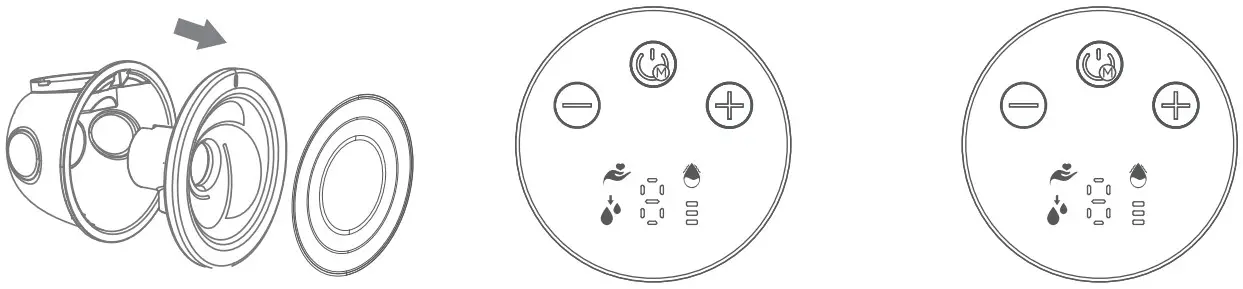

2.5 Icon Display

Function	Description	Status Shown
Switch On	Press and hold the power button
Switch Off	Press and hold the power button
Massage Mode	A slower pumping rhythm for improving breast milk secretion
Suction Mode	A fast pumping rhythm that mimics the baby’s natural sucking pattern to stimulate milk flow
Mixed Mode	A mixed pumping rhythm of massage mode and suction mode, which can stimulate the breast to produce more milk
Sunction Level Adjustment	Tap “+”, “-“
Sunction Level	After switching on
Battery Status	/
Low Battery	/	Bottom row of battery symbol keeps flashing
Main Part Charging	state of charge	Indicator flashing
Main Part Fully Charge	state of charge	Battery symbol always on
Auto Switch Off	After 30 mins working	Display off
Automatic Sunction Adjustment	Your breast pump will begin in massage mode. After 2 minutes of working it will automatically switch to suction mode	Both modes record the level used last time
Suction Level Memory	The pump’s memory will automatically use the suction level from the previous pumping session	/

Storage Tips

To better preserve the rechargeable battery inside, the breast pump will automatically switch into storage mode when not in use for a long time.
To remove it from storage mode, just fully charge the breast pump for 2 hours.
Things you should do before storing the breast pump

Clean breast pump kit	Clean pump machine	Make sure breast pump battery is fully-charged

Technical Support

If you encounter any questions or technical issues, please contact our Technical Support and provide the following information to us.

1. Your device serial number
2. Problem statement

E-mail: [email protected]
Website: www.bonoch.com/contact

Warranty Terms

One-year warranty (replace or refund) and lifetime technical support
The warranty terms do not apply to any product that has been subject to abuse, misuse, negligence, or accident. If you have warranty or support issues, please contact our professional customer service team rather than Amazon teams who are not familiar with the item, so that you will get smooth support directly and rapidly.

Troubleshooting

1. Poor suction/no suction; strong suction, but no more milk.
